XZB70-ZRTNY (2017)
Toyota Coaster

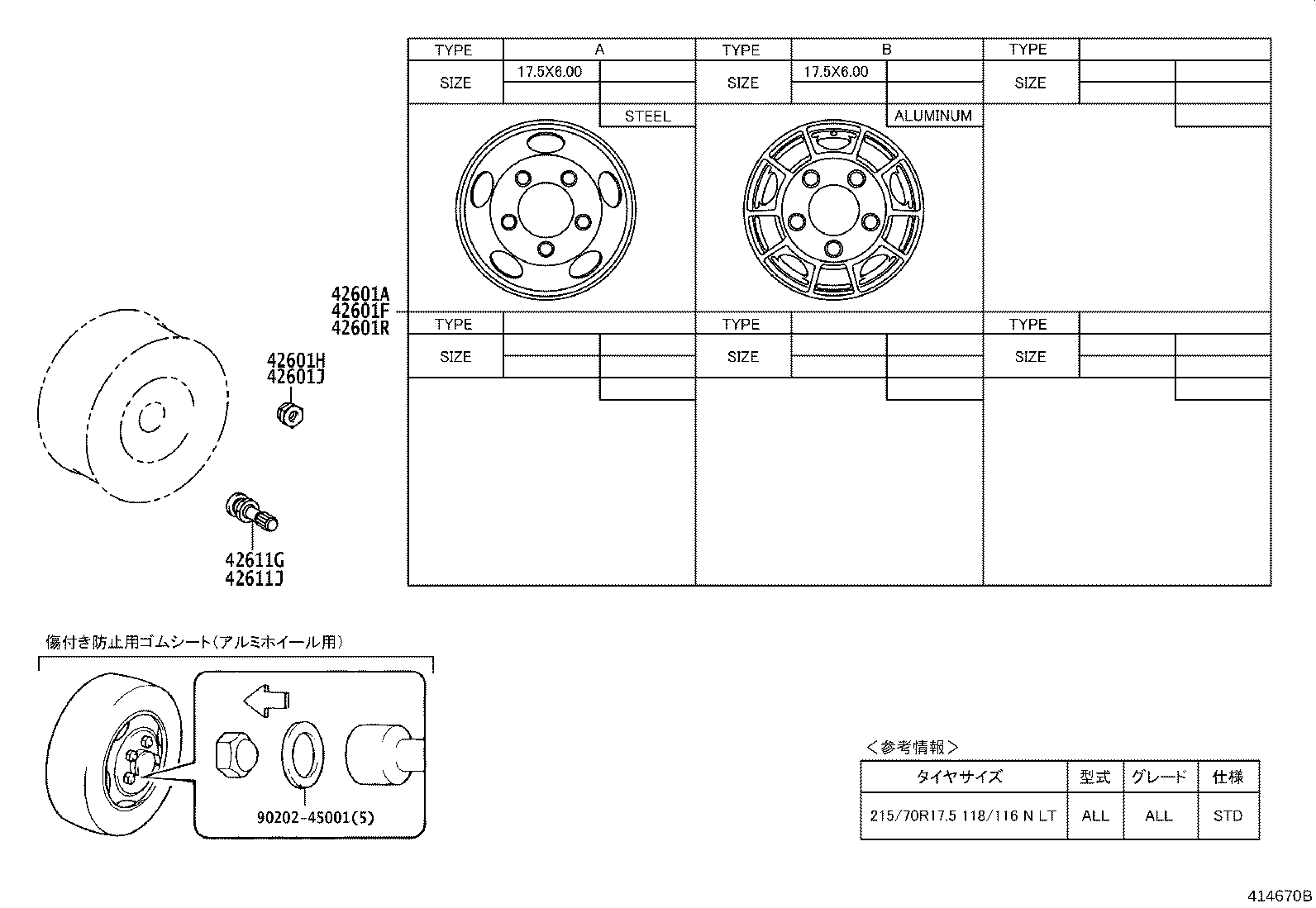

ILLUST NO. 1 OF 3(1701- )
ﾃﾞｨｽｸﾎｲｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-36721 |
XZB60,70,80 17.5X6.00,#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42611-36050 |
XZB60,70,80..13S,24S,25S,29S 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.O0,ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-36050 |
XZB60,70,80..13S,24S,25S,29S 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.O0,ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42601-36721 |
XZB60,70,80 17.5X6.00,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42601H - NUT,HUB (FOR FRONT AXLE) | ||||
| 90942-01091 |
XZB60,70,80..13S,24S,25S,29S ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,右側 |
5 | ||
| 90942-01107 |
XZB60,70,80 右側 |
5 | ||
| 90942-01108 |
XZB60,70,80 左側 |
5 | ||
| 90942-01092 |
XZB60,70,80..13S,24S,25S,29S ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,左側 |
5 | ||
| 42601J - NUT,HUB (FOR REAR AXLE) | ||||
| 42634-55030 |
XZB60,70,80 左側 |
5 | ||
| 42633-55030 |
XZB60,70,80 右側 |
5 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-36060 |
XZB60,70,80..13S,24S,25S,29S 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.O0,ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42601-36721 |
XZB60,70,80 17.5X6.00,#,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05023 |
XZB60,70,80 |
6 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05023 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90202-45001 | ||||

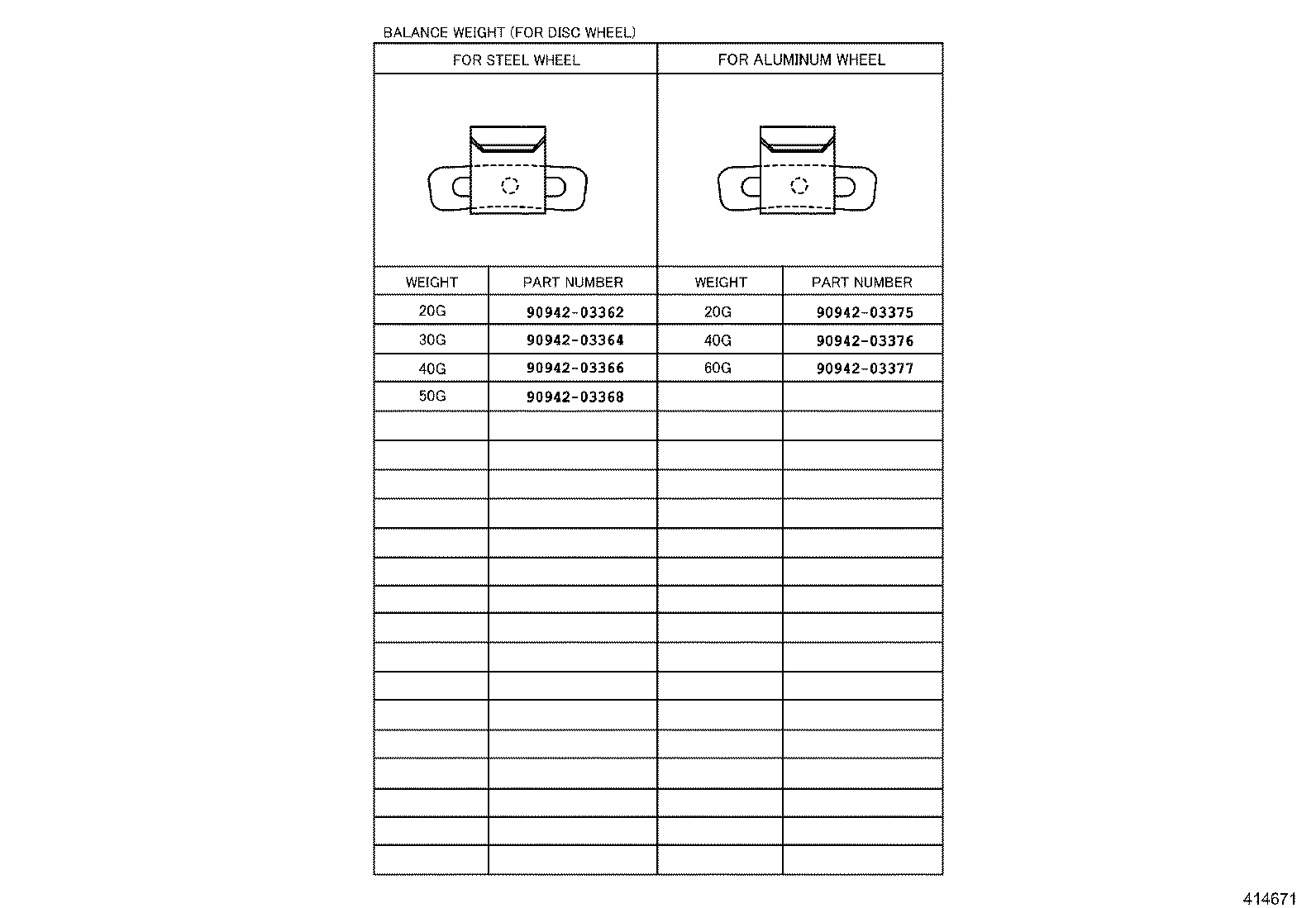

ILLUST NO. 3 OF 3(1701- )
ﾊﾞﾗﾝｽｳｴｨﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03362 | ||||
| 90942-03364 | ||||
| 90942-03366 | ||||
| 90942-03368 | ||||
| 90942-03375 | ||||
| 90942-03376 | ||||
| 90942-03377 | ||||

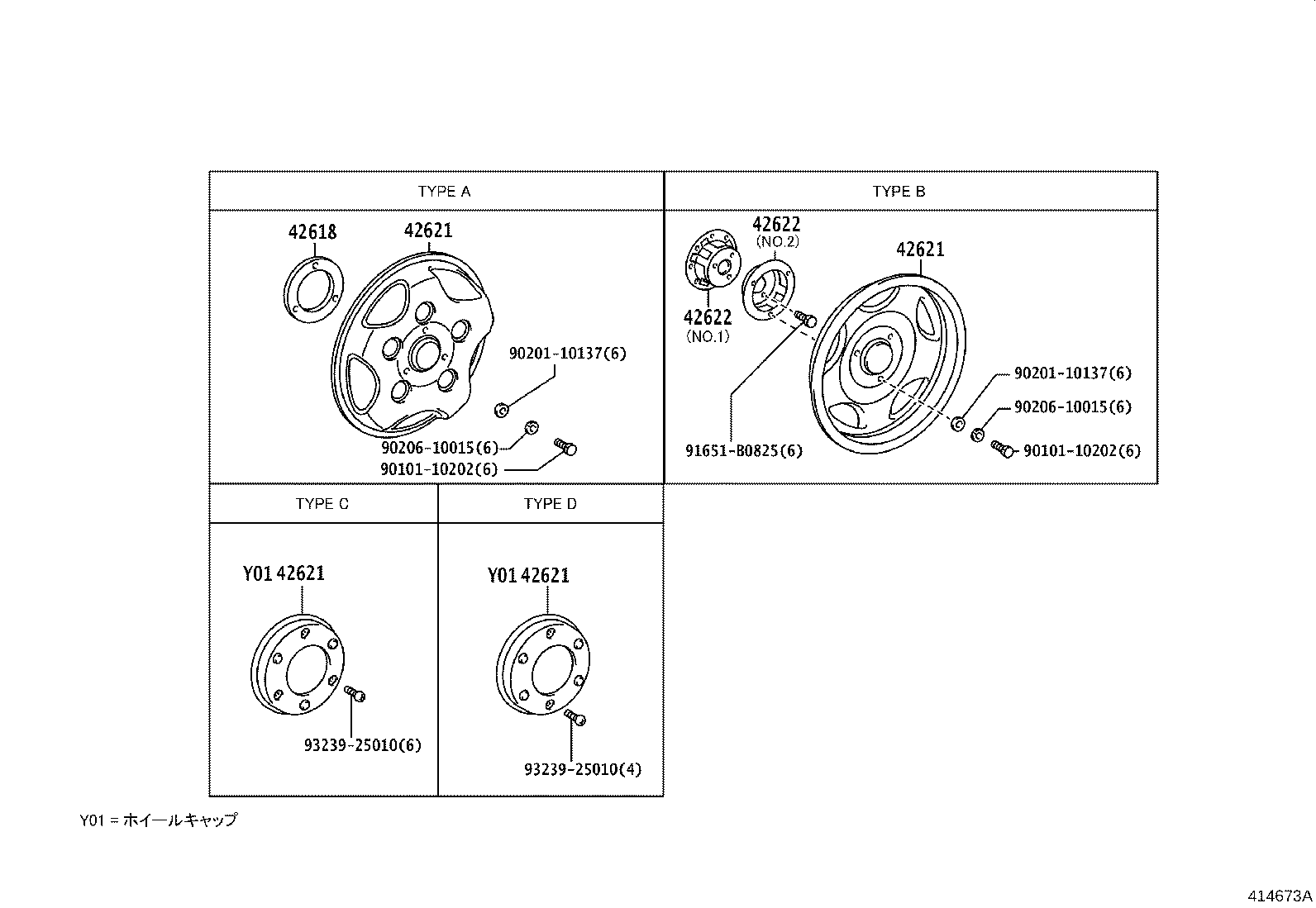

ILLUST NO. 2 OF 3(1701- )
ﾎｲｰﾙｷｬｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42618 - RETAINER, WHEEL CAP | ||||
| 42618-36030 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ) |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36160 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾌﾛﾝﾄ,sYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36170 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾘﾔ,TYoE D:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36180 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾌﾛﾝﾄ,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36160 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾌﾛﾝﾄ,sYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36170 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾘﾔ,TYoE D:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36180 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾌﾛﾝﾄ,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36160 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾌﾛﾝﾄ,sYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36170 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾘﾔ,TYoE D:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36180 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾌﾛﾝﾄ,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36160 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾌﾛﾝﾄ,sYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36170 |
XZB60,70,80..(13S,24S,25S,29S)..LX ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,6.00,ｱﾙﾐ,ﾘﾔ,TYoE D:ｲﾗｽﾄ参照 |
2 | ||
| 42621-36180 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),ﾌﾛﾝﾄ,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-36040 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 42622-36050 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-36040 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 42622-36050 |
XZB60,70,80 ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
| 91651-B0825 | ||||
| 93239-25010 | ||||
