XZB70-ZRTNY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

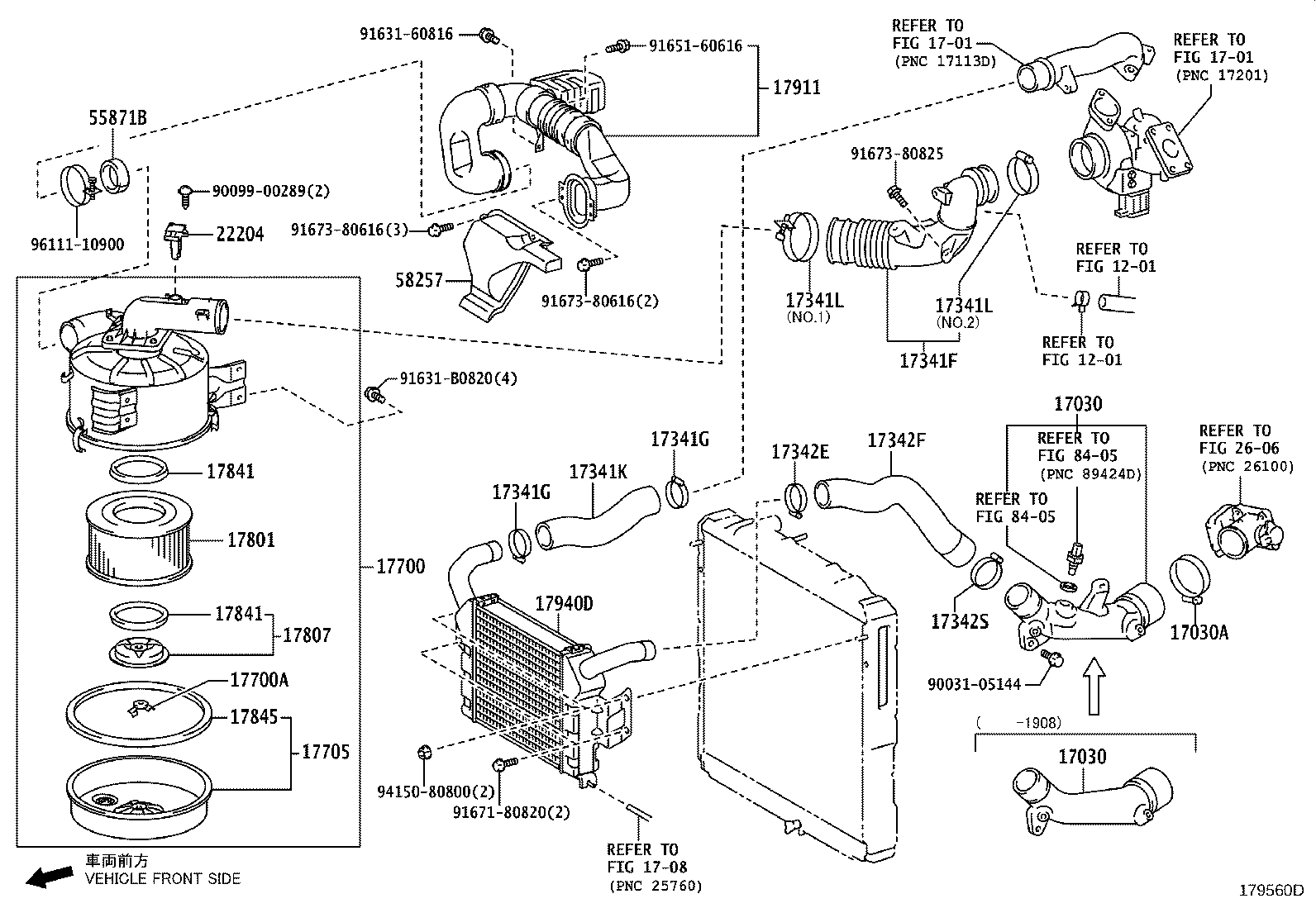

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 17030 17030 17030A 1708 17341F 17341G 17341G 17341K 17341L 17341L 17342E 17342F 17342S 17700 17700A 17705 17801 17807 17841 17841 17845 17911 17940D 22204 2606 55871B 58257 8405 8405 9003105144 9009900289 9163160816 91631B0820 9165160616 9167180820 9167380616 9167380616 9167380825 9415080800 9611110900
Part # Description Qty Price
17030 - HOSE ASSY, AIR
17030-78650

N04C..XZB60,70

 1
17030-78A50

N04C..XZB60,70,80

 1
17030 - HOSE ASSY, AIR
17030-78650

N04C..XZB60,70

 1
17030-78A50

N04C..XZB60,70,80

 1
17030A - CLAMP, HOSE
90460-80006

N04C..XZB60,70,80

 1
17341F - HOSE, AIR, NO.1
17030-78771

N04C..XZB60,70

 1
17030-78770

N04C..XZB60,70

 1
17030-78780

N04C..XZB60,70,80

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB60,70,80

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB60,70,80

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-78260

N04C..XZB60,70,80

 1
17341L - CLAMP, HOSE
90034-60044

N04C..XZB60,70

NO.2:ｲﾗｽﾄ参照

 1
96111-11180

N04C..XZB60,70,80

NO.1:ｲﾗｽﾄ参照

 1
90034-60050

N04C..XZB60,70,80

NO.2:ｲﾗｽﾄ参照

 1
17341L - CLAMP, HOSE
90034-60044

N04C..XZB60,70

NO.2:ｲﾗｽﾄ参照

 1
96111-11180

N04C..XZB60,70,80

NO.1:ｲﾗｽﾄ参照

 1
90034-60050

N04C..XZB60,70,80

NO.2:ｲﾗｽﾄ参照

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB60,70,80

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78150

N04C..XZB60,70,80

 1
17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-67008

N04C..XZB60,70,80

 1
17700 - CLEANER ASSY, AIR
17700-78531

N04C..XZB60,70,80

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

N04C..XZB60,70,80

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17180

N04C..XZB60,70,80

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-58030

N04C..XZB60,70,80

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020

N04C..XZB60,70,80

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB60,70,80

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB60,70,80

 2
17845 - GASKET, AIR CLEANER CAP
17845-58010

N04C..XZB60,70,80

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-36040

N04C..XZB60,70,80

 1
17940D - INTERCOOLER ASSY
17940-78150

N04C..XZB60,70,80

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30020

N04C..XZB60,70,80

 1
55871B - SEAL, AIR DUCT
55871-36020

XZB60,70,80

 1
58257 - PLATE, AIR CLEANER HOUSE
58257-36050

XZB60,70,80

 1
Common parts
90031-05144
90099-00289
91631-60816
91631-B0820
91651-60616
91671-80820
91673-80616
91673-80825
94150-80800
96111-10900
Linked diagrams
1201
1701
1708
2606
8405
