XZB70-ZRTEY (2017)
Toyota Coaster

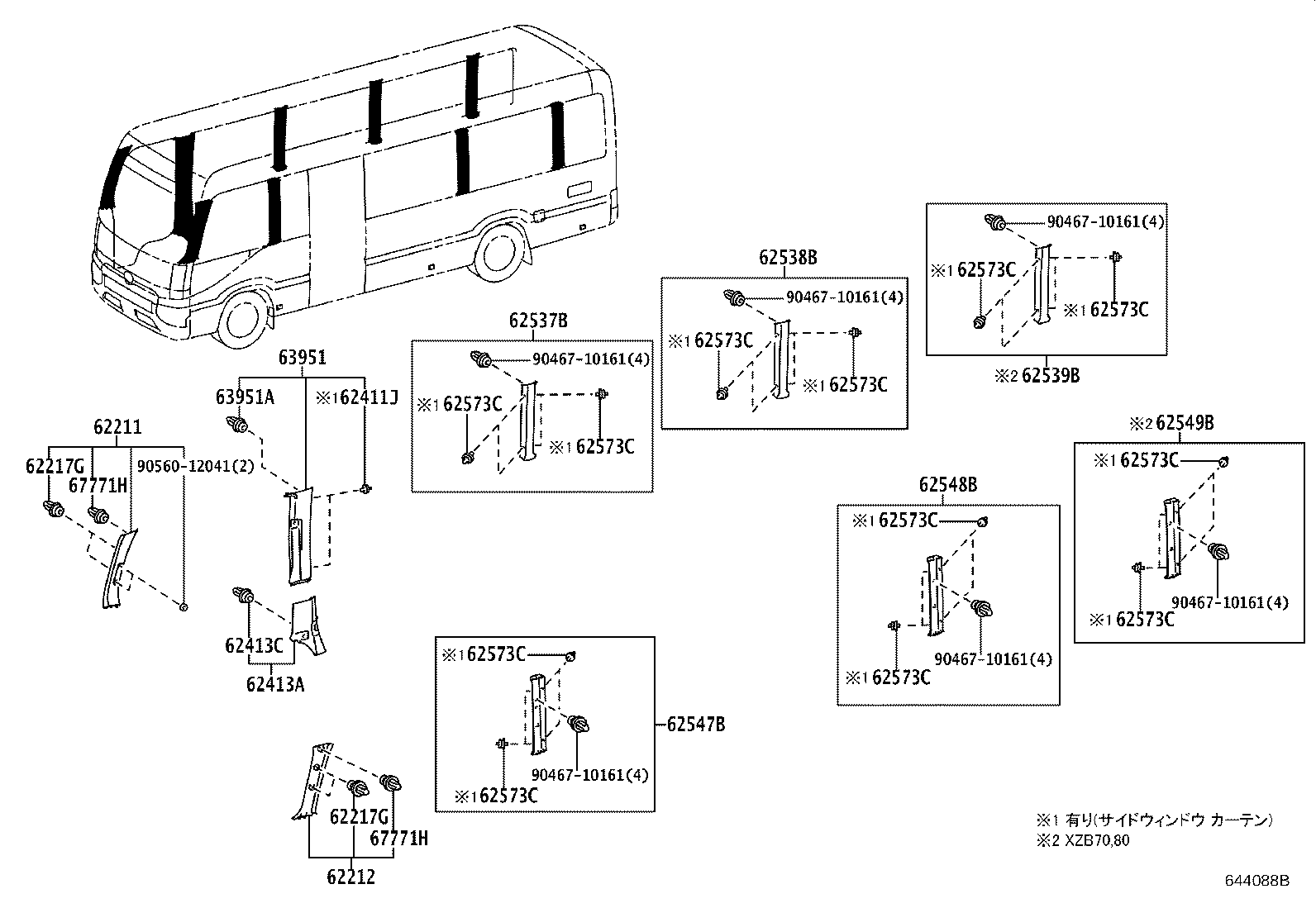

ILLUST NO. 1 OF 5(1701- )
ﾋﾟﾗｰｶﾞｰﾆｯｼｭ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-36230B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-36100B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
XZB60,70,80 |
4 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
XZB60,70,80 |
4 | ||
| 62411J - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-36060B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62413-36070B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
XZB60,70,80 |
4 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36120B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36120B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62539B - GARNISH, PILLAR NO.5, RH | ||||
| 62538-36120B0 |
XZB70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62547B - GARNISH, PILLAR NO.3, LH | ||||
| 62538-36200B0 |
XZB60,70,80..13S,24S,25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB60,70..S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62538-36140B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62538-36120B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36120B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62549B - GARNISH, PILLAR NO.5, LH | ||||
| 62538-36120B0 |
XZB70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62538-36130B0 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB70,80..13S,24S,29S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
24 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36230B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63951-36240B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63951A - CLIP(FOR COOLER PIPE COVER) NO.1 | ||||
| 90467-10161 |
XZB60,70,80 |
9 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 90467-10188 |
XZB60,70,80 |
2 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 90467-10188 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90560-12041 | ||||

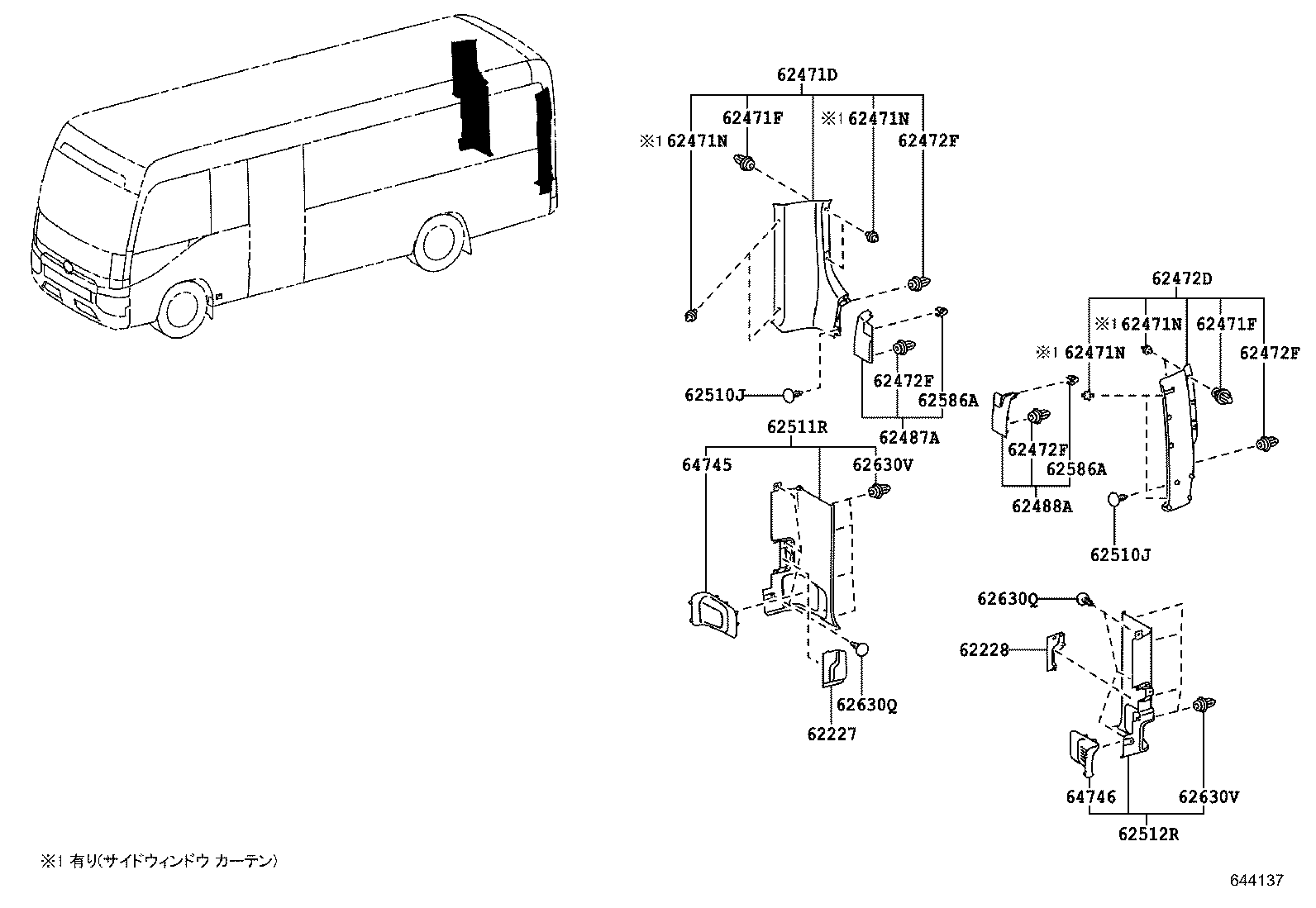

ILLUST NO. 5 OF 5(1701- )XZB60,70..EX,GX,LX,S
ﾘﾔｶﾞｰﾆｯｼｭ(ﾗｹﾞｰｼﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62227 - COVER, QUARTER PILLAR, LOWER, RH | ||||
| 64163-36010B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62228 - COVER, QUARTER PILLAR, LOWER LH | ||||
| 64164-36010B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36250B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62471-36250B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62471-36260B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60,70,80 |
20 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60,70,80 |
20 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36270B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62472-36280B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62472-36270B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 62511R - TRIM, REAR BODY INSIDE, REAR RH | ||||
| 62570-36460B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62570-36280B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62570-36270B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62512R - TRIM, REAR BODY INSIDE, REAR LH | ||||
| 62580-36070B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62580-36040B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
XZB60,70,80 |
8 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
XZB60,70,80 |
8 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 64735-36050B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-10161 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し |
12 | ||
| 90467-10161 |
XZB60,70..25S,29S |
12 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36070B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36090B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 64746-36100B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||

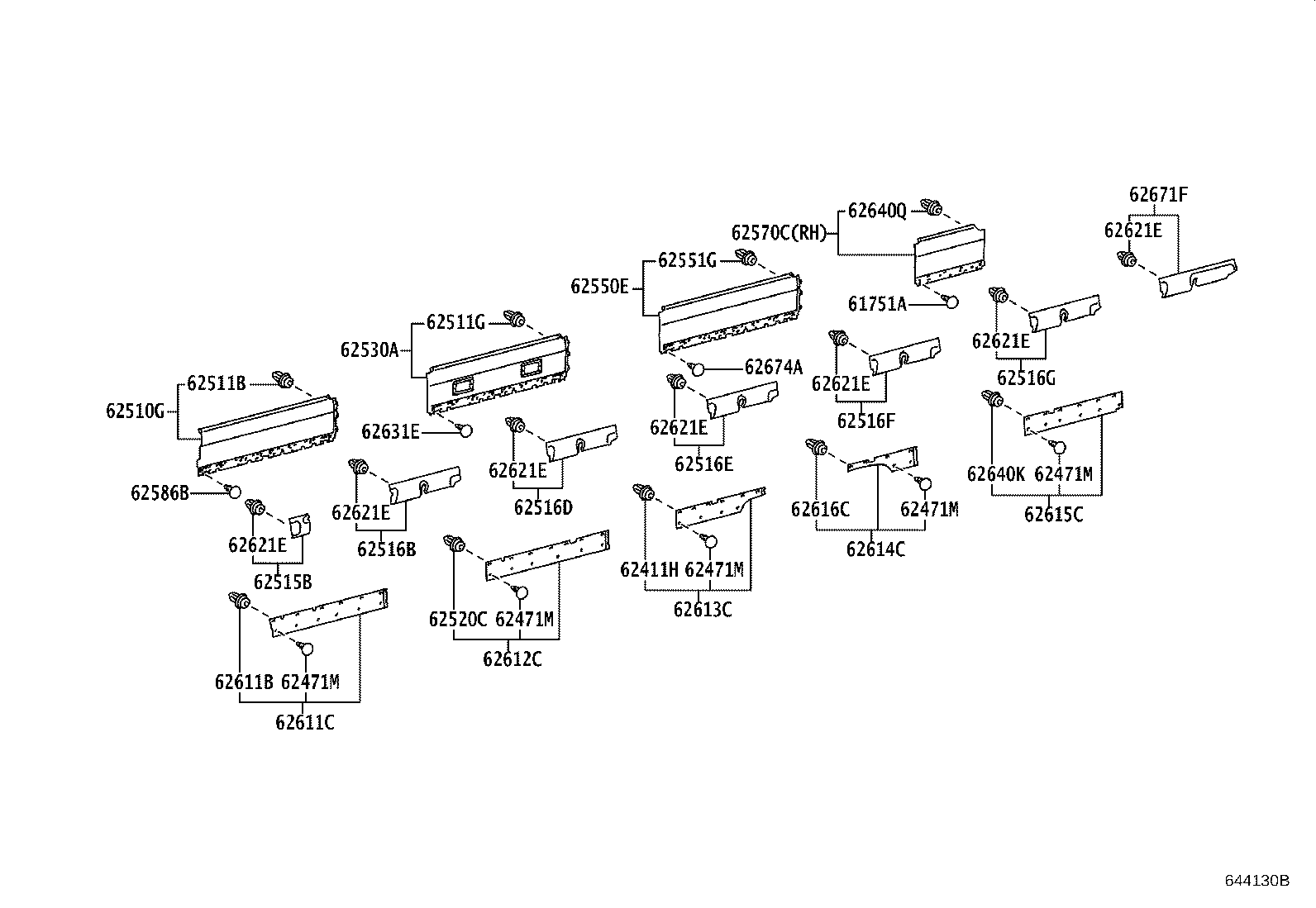

ILLUST NO. 3 OF 5(1701- )29S
ｻｲﾄﾞｶﾞｰﾆｯｼｭ & ﾄﾘﾑ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62550-36230B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62550-36250B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60,70,80 |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60,70,80 |
7 | ||
| 62515B - COVER, SIDE TRIM BASE, NO.1 RH | ||||
| 62515-36210B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62516B - COVER, SIDE TRIM BASE, NO.2 RH | ||||
| 62516-36100B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62516D - COVER, SIDE TRIM BASE, NO.3 RH | ||||
| 62516-36100B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62516E - COVER, SIDE TRIM BASE, NO.4 RH | ||||
| 62516-36100B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62516F - COVER, SIDE TRIM BASE, NO.5 RH | ||||
| 62516-36100B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62516G - COVER, SIDE TRIM BASE, NO.6 RH | ||||
| 62516-36100B0 |
XZB70,80..13S,24S,29S LT.GRAY,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62550-36310B0 |
XZB60,70,80..(13S,24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36310B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
14 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36230B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 62580-36110B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,左側 |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36110B1 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36A30B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62613-36490B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36680B1 |
XZB60,70..24S,25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62614-36700B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36B50B1 |
XZB60,70..25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB60,70,80..13S,21S,24S,25S,29S |
8 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB60,70..21S,25S,29S |
12 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70 |
6 | ||
| 62671F - COVER, SIDE TRIM BOARD, NO.1 RH | ||||
| 62517-36160B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
8 | ||

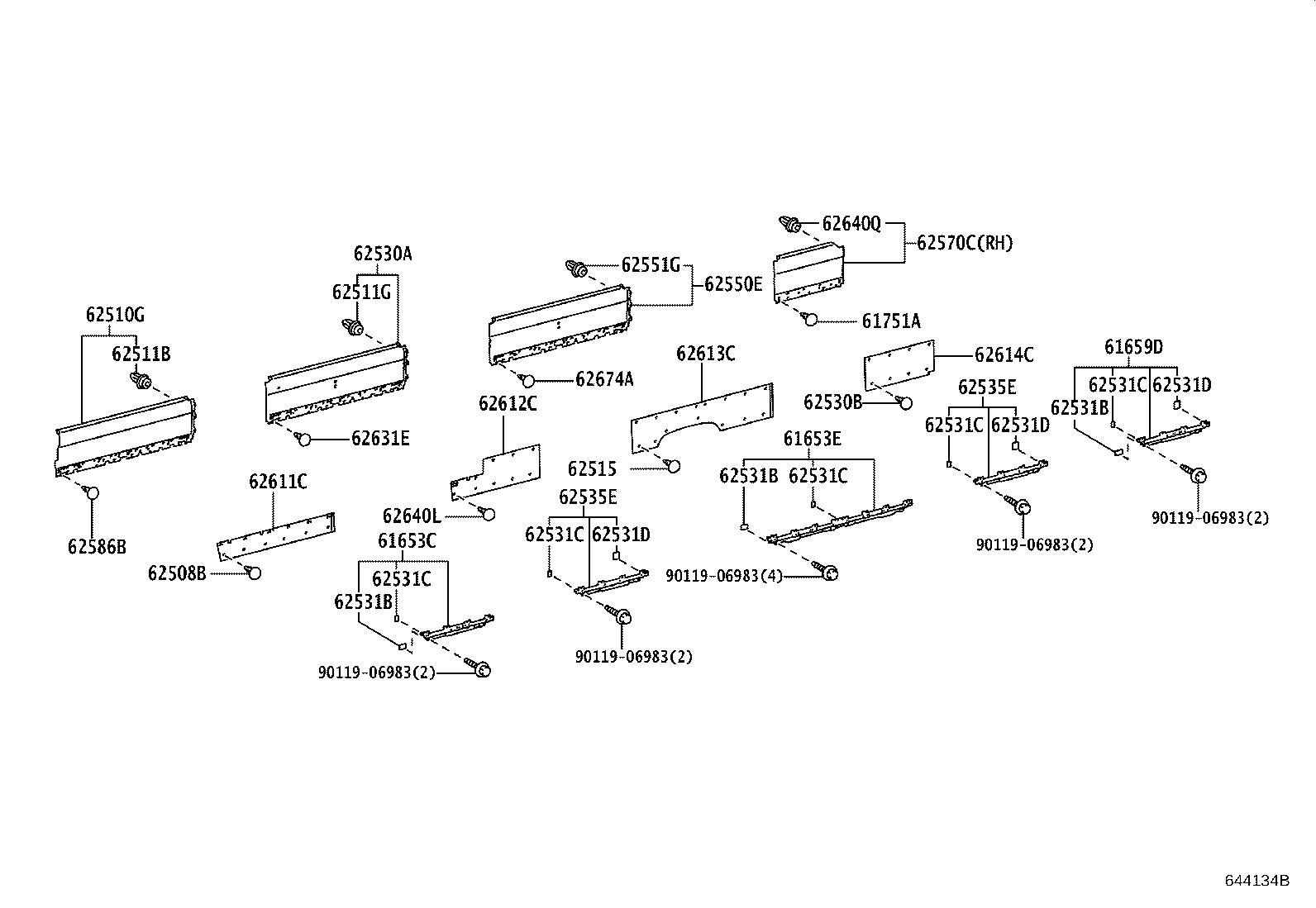

ILLUST NO. 3 OF 5(1701- )XZB70..S
ｻｲﾄﾞｶﾞｰﾆｯｼｭ & ﾄﾘﾑ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-36040 |
XZB60,70..S |
1 | ||
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62508B - CLIP | ||||
| 67771-26230B1 |
XZB70..S MD.GRAY,TRIM1# |
20 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62550-36230B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62550-36250B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60,70,80 |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60,70,80 |
7 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62550-36310B0 |
XZB60,70,80..(13S,24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62530B - CLIP, QUARTER TRIM NO.1 | ||||
| 67771-26230B1 |
XZB60,70..S MD.GRAY,TRIM1# |
18 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36310B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
14 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36230B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 62580-36110B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,左側 |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36110B1 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36A30B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62613-36490B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36680B1 |
XZB60,70..24S,25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62614-36700B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 67771-26230B1 |
XZB70..S MD.GRAY,TRIM1# |
31 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70 |
6 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 90119-06983 | ||||

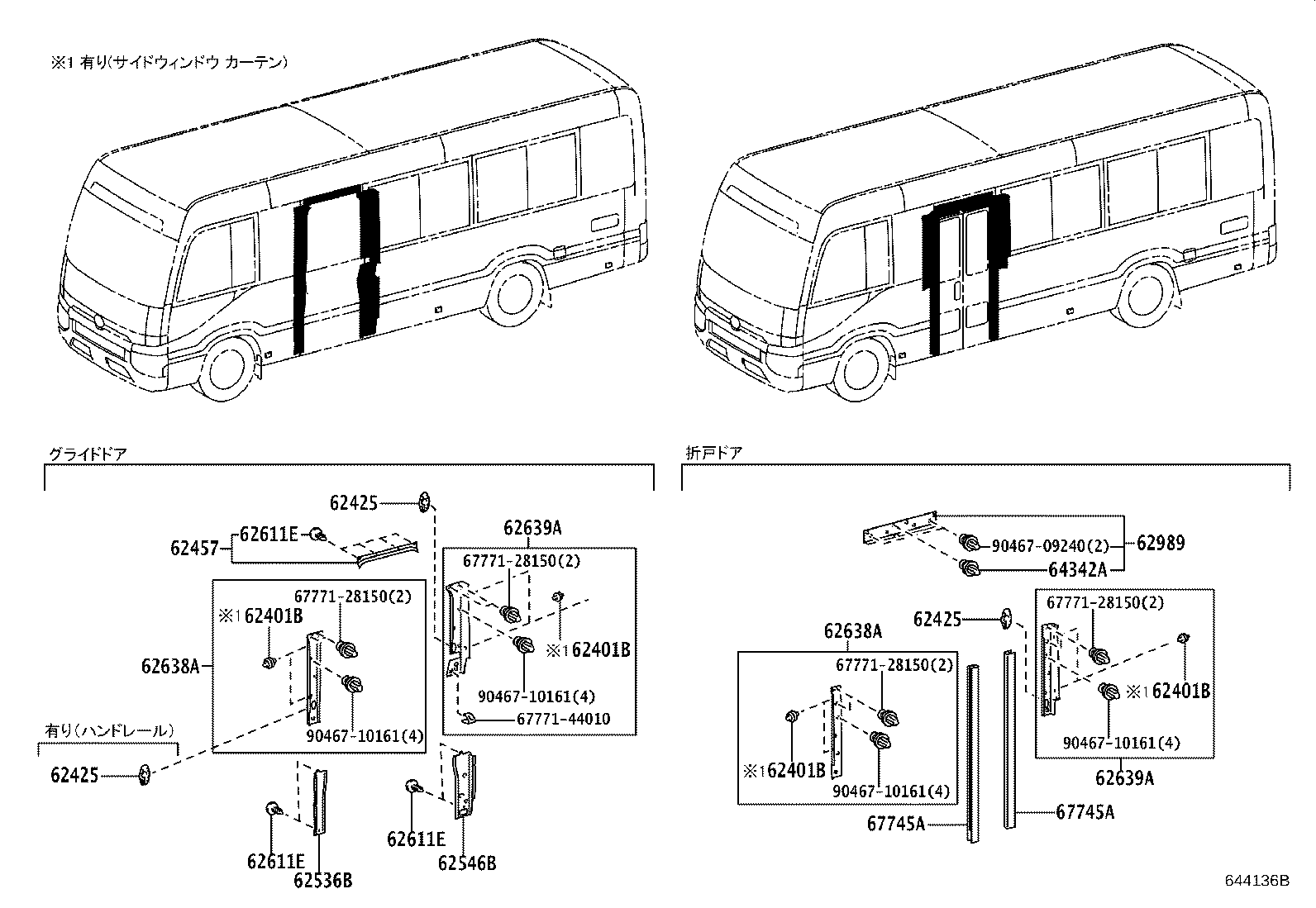

ILLUST NO. 2 OF 5(1701- )
ｾﾝﾀﾄﾞｱｶﾞｰﾆｯｼｭ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62401B - FASTENER, HOOK | ||||
| 90530-06009B3 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 62401B - FASTENER, HOOK | ||||
| 90530-06009B3 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 62401B - FASTENER, HOOK | ||||
| 90530-06009B3 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 62401B - FASTENER, HOOK | ||||
| 90530-06009B3 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
4 | ||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 62425 - COVER, CENTER PILLAR GARNISH | ||||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S LT.GRAY,TRIM1# |
1 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62425 - COVER, CENTER PILLAR GARNISH | ||||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S LT.GRAY,TRIM1# |
1 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62425 - COVER, CENTER PILLAR GARNISH | ||||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S LT.GRAY,TRIM1# |
1 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
2 | ||
| 62421-36060B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
2 | ||
| 62457 - COVER, ROOF SIDE RAIL GARNISH | ||||
| 62457-36030B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62536B - GARNISH, PILLAR NO.2, RH | ||||
| 62536-36210B0 |
XZB70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36200B0 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..EX,GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70,80..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70,80..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..EX,GX ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70,80..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB70,80..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62536-36210B0 |
XZB60,70,80..6FC..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62546B - GARNISH, PILLAR NO.2, LH | ||||
| 62537-36190B0 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
8 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
8 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
8 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-36100B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36080B0 |
XZB60,70,80..13S,24S,25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36130B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..13S,24S,29S ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36200B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36140B0 |
XZB60,70..S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-36100B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36080B0 |
XZB60,70,80..13S,24S,25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36130B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..13S,24S,29S ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36200B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36140B0 |
XZB60,70..S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 62638-36100B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62638-36110B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-36030B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..13S,24S,25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36050B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62639-36010B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36060B0 |
XZB60,70..S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-36030B0 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70..24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70..(24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..13S,24S,25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36050B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62639-36010B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..13S,24S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36060B0 |
XZB60,70..S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..13S,24S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB70,80..(13S,24S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..13S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62639-36030B0 |
XZB60,70,80..(13S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ)&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36050B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62989-36030B0 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 64342A - CLIP | ||||
| 67771-28150 |
XZB60,70..S |
6 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36110B0 |
XZB60,70..S LT.GRAY,TRIM1# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36110B0 |
XZB60,70..S LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 67771-28150 | ||||
| 67771-44010 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||
ILLUST NO. 5 OF 5(1701- )
ﾘﾔｶﾞｰﾆｯｼｭ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞｯｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62227 - COVER, QUARTER PILLAR, LOWER, RH | ||||
| 64163-36010B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62228 - COVER, QUARTER PILLAR, LOWER LH | ||||
| 64164-36010B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36250B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62471-36250B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62471-36260B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60,70,80 |
20 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60,70,80 |
20 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 90530-06009B3 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
8 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36270B0 |
XZB60,70,80..13S,24S,25S,29S,39S,49S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62472-36280B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 62472-36270B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
4 | ||
| 90467-10167 |
XZB60,70..25S,29S |
2 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-36030B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 62487-36030B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-36010B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 62488-36010B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 62511R - TRIM, REAR BODY INSIDE, REAR RH | ||||
| 62570-36460B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62570-36280B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62570-36270B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62512R - TRIM, REAR BODY INSIDE, REAR LH | ||||
| 62580-36070B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62580-36040B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
2 | ||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
2 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
2 | ||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
2 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
XZB60,70,80 |
8 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
XZB60,70,80 |
8 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36070B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36090B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
1 | ||
| 64746-36100B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||

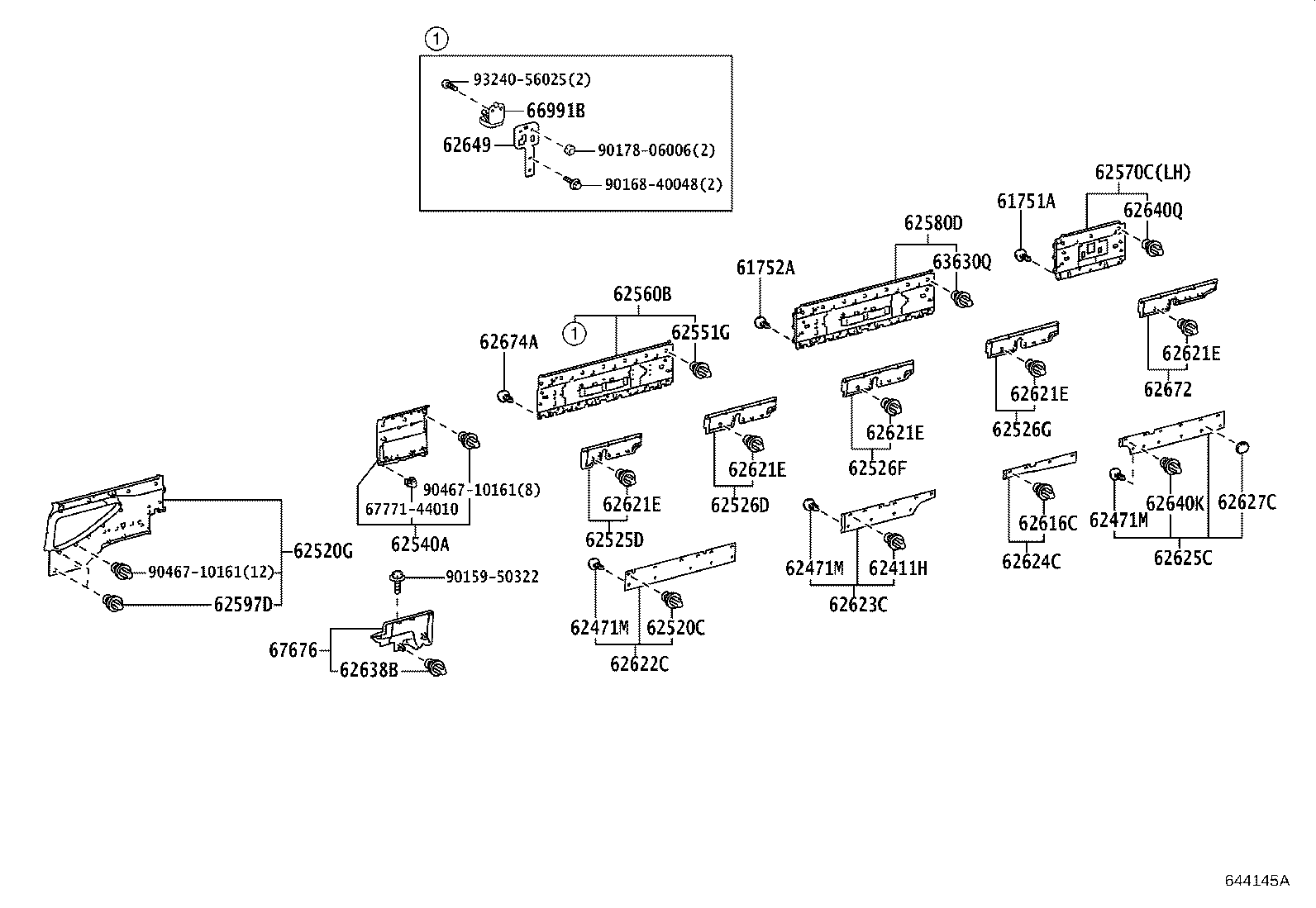

ILLUST NO. 4 OF 5(1701- )29S
ｻｲﾄﾞｶﾞｰﾆｯｼｭ & ﾄﾘﾑ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 61752A - RETAINER, QUARTER TRIM, LH | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..29S..(EX,GX) MD.GRAY,TRIM1# |
14 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36740B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62520-36860B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62525D - COVER, SIDE TRIM BASE, NO.1 LH | ||||
| 62525-36210B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62526D - COVER, SIDE TRIM BASE, NO.2 LH | ||||
| 62526-36090B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62526F - COVER, SIDE TRIM BASE, NO.3 LH | ||||
| 62526-36090B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62526G - COVER, SIDE TRIM BASE, NO.4 LH | ||||
| 62526-36090B0 |
XZB70,80..13S,24S,29S LT.GRAY,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36480B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62540-36410B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62540-36440B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
14 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36310B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62560-36400B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) LT.GRAY,TRIM1# |
1 | ||
| 62560-36260B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36230B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 62580-36110B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,左側 |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62550-36310B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62597D - CLIP | ||||
| 75867-12040 |
XZB60,70,80 |
2 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB60,70,80..13S,21S,24S,25S,29S |
8 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..24S,29S |
12 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36800B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62623-36800B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36740B1 |
XZB60,70..24S,25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62624-36760B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36B00B1 |
XZB60,70..25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62538-36190B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 64718-36010B1 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
XZB60,70,80..EX,GX,LX,PREM |
3 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB60,70..21S,25S,29S |
12 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70 |
6 | ||
| 62649 - BRACKET, SIDE TRIM | ||||
| 62535-36050B0 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62672 - COVER, SIDE TRIM BOARD, NO.1 LH | ||||
| 62518-36160B0 |
XZB60,70,80..13S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
8 | ||
| 63630Q - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
7 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 71398-36050B1 |
XZB60,70,80..13S,24S,25S,29S LT.GRAY,TRIM1# |
1 | ||
| 67676 - COVER, SIDE TRIM BOARD, FRONT LH | ||||
| 67676-36100B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 67676-36070B1 |
XZB60,70..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 90159-50322 | ||||
| 90168-40048 | ||||
| 90178-06006 | ||||
| 90467-10161 | ||||
| 93240-56025 | ||||
ILLUST NO. 4 OF 5(1701- )XZB70..S
ｻｲﾄﾞｶﾞｰﾆｯｼｭ & ﾄﾘﾑ LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
6 | ||
| 61752A - RETAINER, QUARTER TRIM, LH | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 67771-44010 |
XZB60,70..S |
4 | ||
| 62508B - CLIP | ||||
| 67771-26230B1 |
XZB70..S MD.GRAY,TRIM1# |
20 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36740B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62520-36860B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62530B - CLIP, QUARTER TRIM NO.1 | ||||
| 67771-26230B1 |
XZB60,70..S MD.GRAY,TRIM1# |
18 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531B - PAD, SIDE TRIM BASE, NO.1 | ||||
| 61824-36020 |
XZB70..S |
21 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62531C - PAD, SIDE TRIM BASE, NO.2 | ||||
| 61824-36030 |
XZB70..S |
20 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36480B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62540-36410B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 62540-36440B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
14 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36310B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,LT.GRAY,TRIM1# |
1 | ||
| 62560-36400B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) LT.GRAY,TRIM1# |
1 | ||
| 62560-36260B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36230B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 62580-36110B0 |
XZB70..(29S,49S)..(GX,LX,S) LT.GRAY,TRIM1#,左側 |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62550-36310B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 62597D - CLIP | ||||
| 75867-12040 |
XZB60,70,80 |
2 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-36210B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36800B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62623-36800B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36740B1 |
XZB60,70..24S,25S,29S MD.GRAY,TRIM1# |
1 | ||
| 62624-36760B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62538-36190B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62538-36190B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 64718-36010B1 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 67771-26230B1 |
XZB70..S MD.GRAY,TRIM1# |
31 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70 |
6 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
8 | ||
| 63630Q - CLIP | ||||
| 90467-10161 |
XZB60,80;XZB70..24S,29S,49S |
7 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 90119-06983 | ||||
| 90168-40048 | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
