XZB70-ZRTEH (2017)
Toyota Coaster

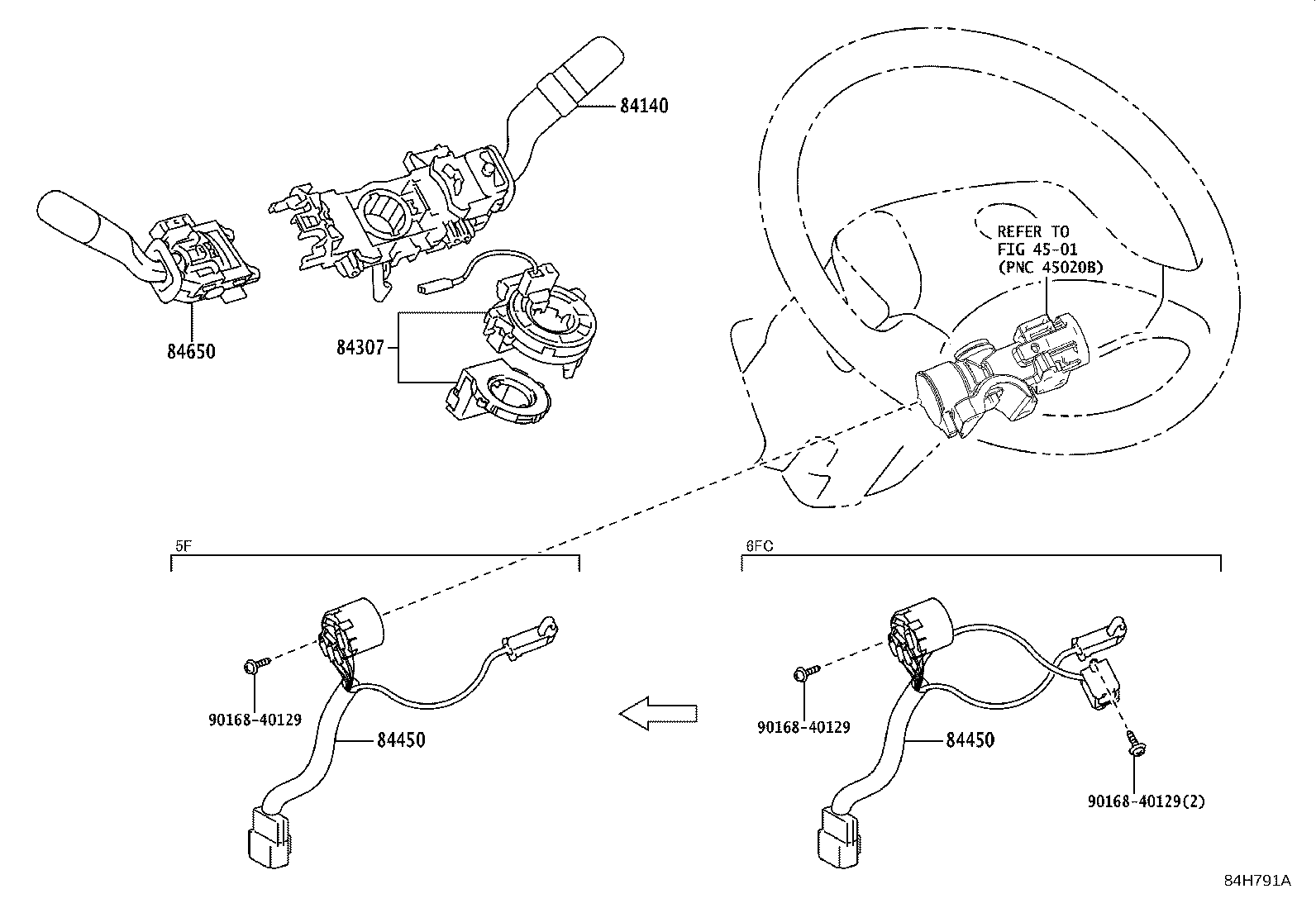

ILLUST NO. 7 OF10(1701- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37151 |
XZB60,70..EX,GX,LX ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-37131 |
XZB60,70..EX,GX,LX |
1 | ||
| 84140-36210 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 84140-36200 |
XZB60,70..S ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-37131 |
XZB60,70..S |
1 | ||
| 84140-36200 |
XZB60,70,80..EX,GX,LX,PREM ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-37151 |
XZB60,70..S ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-36210 |
XZB60,70..S |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-36030 |
XZB60,70,80 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36170 |
XZB60,70,80..6FC |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36170 |
XZB60,70,80..6FC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37300 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 84652-37310 |
XZB60,70..25S,29S |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

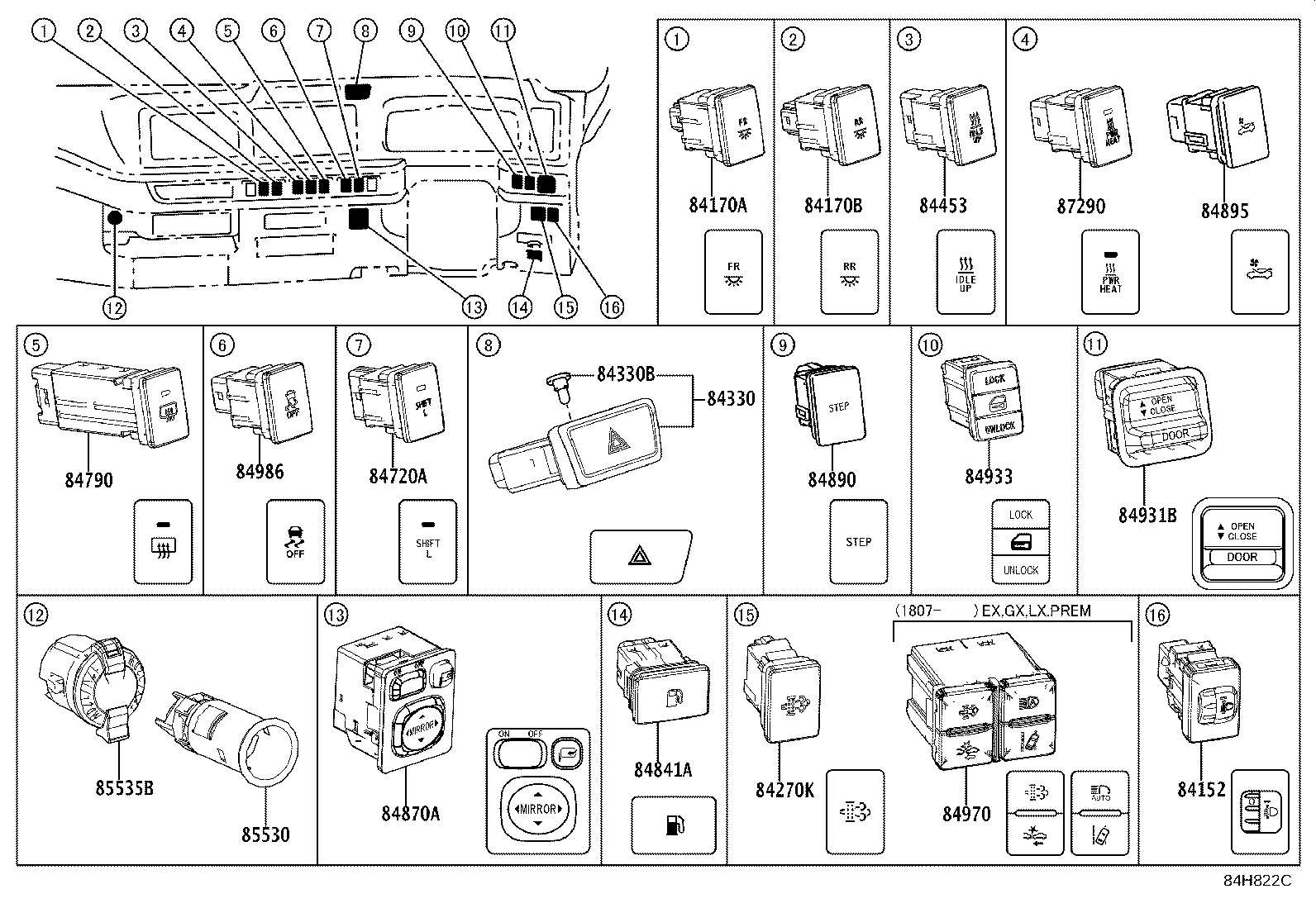

ILLUST NO. 6 OF10(1701- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60060 |
XZB60,70,80 |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36100 |
XZB60,70,80 ﾌﾛﾝﾄ |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36110 |
XZB60,70,80 ﾘﾔ |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-60160 |
XZB60,70..EX,GX,LX |
1 | ||
| 84270-60160 |
XZB60,70..S |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36150 |
XZB60,70,80 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01171 |
XZB60,70,80 |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-36010 |
XZB60,70,80..LX,S |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-36040 |
XZB60,70,80..6FC |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36080 |
XZB60,70..(25S,29S)..GX ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り(左側ﾄﾞｱのみ) |
1 | ||
| 84790-36080 |
XZB60,70..(25S,29S)..GX ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り |
1 | ||
| 84790-36070 |
XZB60,70..S |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-47020 |
XZB60,70,80 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-36060 |
XZB60,70,80..GX,LX,S |
1 | ||
| 84890 - SWITCH ASSY, SIDE AUTO STEP | ||||
| 84890-36030 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84890-36030 |
XZB60,70,80..13S,21S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84890-36030 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84890-36030 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 84895 - SWITCH, VENTILATOR | ||||
| 84895-36020 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-36030 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 84930-36030 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84930-36030 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84930-36030 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 84930-36030 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ) |
1 | ||
| 84930-36030 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84930-36030 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84930-36030 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84933 - SWITCH, DOOR LOCK UNLOCK | ||||
| 84930-36060 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 84930-36060 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84930-36060 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84930-36060 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84930-36060 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-36070 |
XZB60,70..S |
1 | ||
| 84970-36070 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-36010 |
XZB60,70,80 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
XZB60,70,80 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
XZB60,70,80 BLACK |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-36140 |
XZB60,70,80..LX,S 補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||

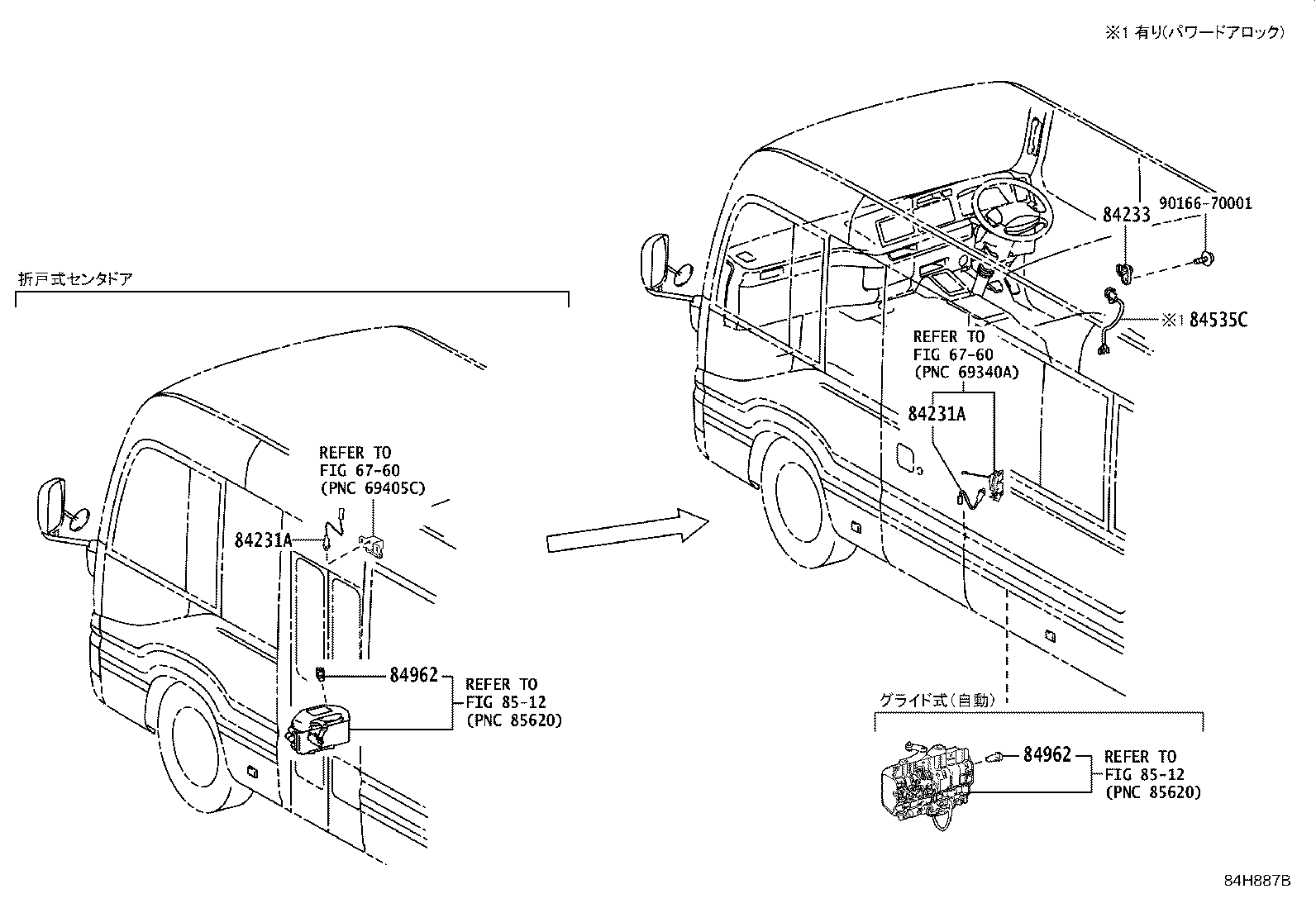

ILLUST NO. 8 OF10(1701- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84231-36020 |
XZB60,70,80..GX,LX,S |
1 | ||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84231-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84231-36020 |
XZB60,70,80..GX,LX,S |
1 | ||
| 84231-36020 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84231-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
XZB60,70,80 |
1 | ||
| 84535C - SWITCH, DOOR LOCK, RH | ||||
| 84931-36020 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84931-36020 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84931-36020 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84931-36020 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84931-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 84962-36010 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 84962-36010 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 84962-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| Common parts | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 6760 | ||||
| 8512 | ||||

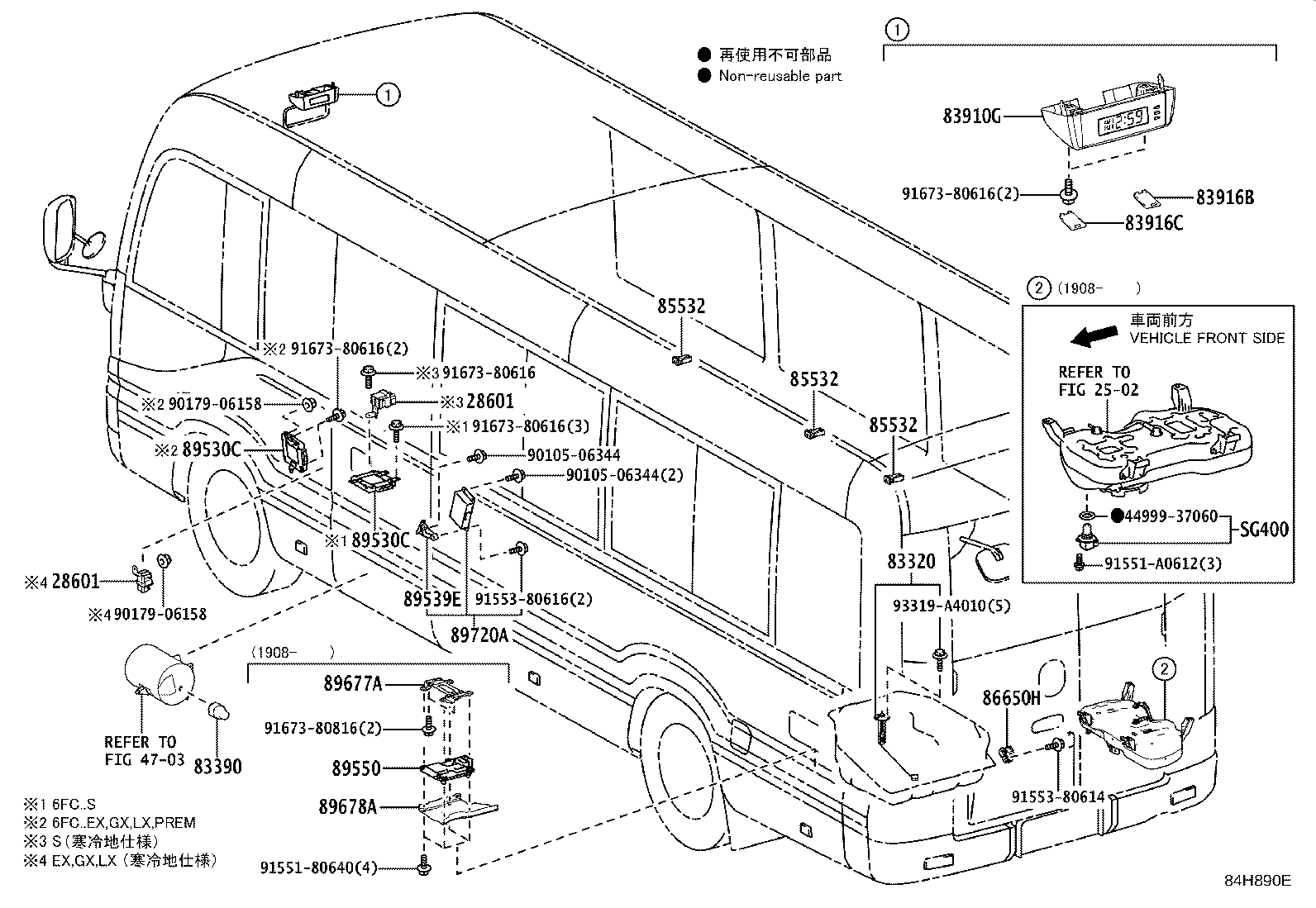

ILLUST NO. 9 OF10(1701- )
ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28601 - GLOW SUB-ASSY, PLUG RELAY SET | ||||
| 28601-17010 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 28601 - GLOW SUB-ASSY, PLUG RELAY SET | ||||
| 28601-17010 |
N04C..XZB60,70,80 寒冷地仕様 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80525 |
XZB60,70,80 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-36020 |
XZB60,70,80 |
1 | ||
| 83910G - CLOCK ASSY | ||||
| 83910-36080B0 |
XZB60,70..S ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 83910-36080B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 83916B - CLIP, CLOCK, NO.1 | ||||
| 83916-36030B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 83916-36030B0 |
XZB60,70..S ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 83916C - CLIP, CLOCK, NO.2 | ||||
| 83916-36040B0 |
XZB60,70..S ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 83916-36040B0 |
XZB60,70,80..EX,GX,LX LT.GRAY,TRIM1# |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36210 |
XZB60,70,80 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-36321 |
XZB60,70..6FC..S |
1 | ||
| 89530-36320 |
XZB60,70..6FC..S |
1 | ||
| 89530-36340 |
XZB70..HDCR |
1 | ||
| 89530-36351 |
XZB60,70,80..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36310 |
XZB60,70..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36371 |
XZB70,80..HDCR |
1 | ||
| 89530-36350 |
XZB60,70,80..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36361 |
XZB60,70..6FC..S |
1 | ||
| 89530-36341 |
XZB70..HDCR |
1 | ||
| 89530-36370 |
XZB70,80..HDCR |
1 | ||
| 89530-36311 |
XZB60,70..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36360 |
XZB60,70..6FC..S |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-36321 |
XZB60,70..6FC..S |
1 | ||
| 89530-36320 |
XZB60,70..6FC..S |
1 | ||
| 89530-36340 |
XZB70..HDCR |
1 | ||
| 89530-36351 |
XZB60,70,80..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36310 |
XZB60,70..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36371 |
XZB70,80..HDCR |
1 | ||
| 89530-36350 |
XZB60,70,80..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36361 |
XZB60,70..6FC..S |
1 | ||
| 89530-36341 |
XZB70..HDCR |
1 | ||
| 89530-36370 |
XZB70,80..HDCR |
1 | ||
| 89530-36311 |
XZB60,70..6FC..(GX,LX)..DCR |
1 | ||
| 89530-36360 |
XZB60,70..6FC..S |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-36010 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 89539-36010 |
XZB60,70,80..13S,21S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 89539-36010 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 89539-36010 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-36230 |
XZB60,70,80 |
1 | ||
| 89550-36231 |
XZB60,70,80 |
1 | ||
| 89677A - BRACKET, UREA PUMP CONTROL, NO.1 | ||||
| 89677-36010 |
XZB60,70,80 |
1 | ||
| 89678A - BRACKET, UREA PUMP CONTROL, NO.2 | ||||
| 89678-36010 |
XZB60,70,80 |
1 | ||
| 89720A - COMPUTER ASSY, SIDE AUTO STEP CONTROLLER | ||||
| 89720-36060 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 89720-36060 |
XZB60,70,80..13S,21S,24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 89720-36050 |
XZB60,70..24S,25S,29S ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 89720-36060 |
XZB60,70..(24S,25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| SG400 - SENSOR ASSY, UREA | ||||
| 83400-37040 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 44999-37060 | ||||
| 90105-06344 | ||||
| 90179-06158 | ||||
| 91551-80640 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 2502 | ||||
| 4703 | ||||

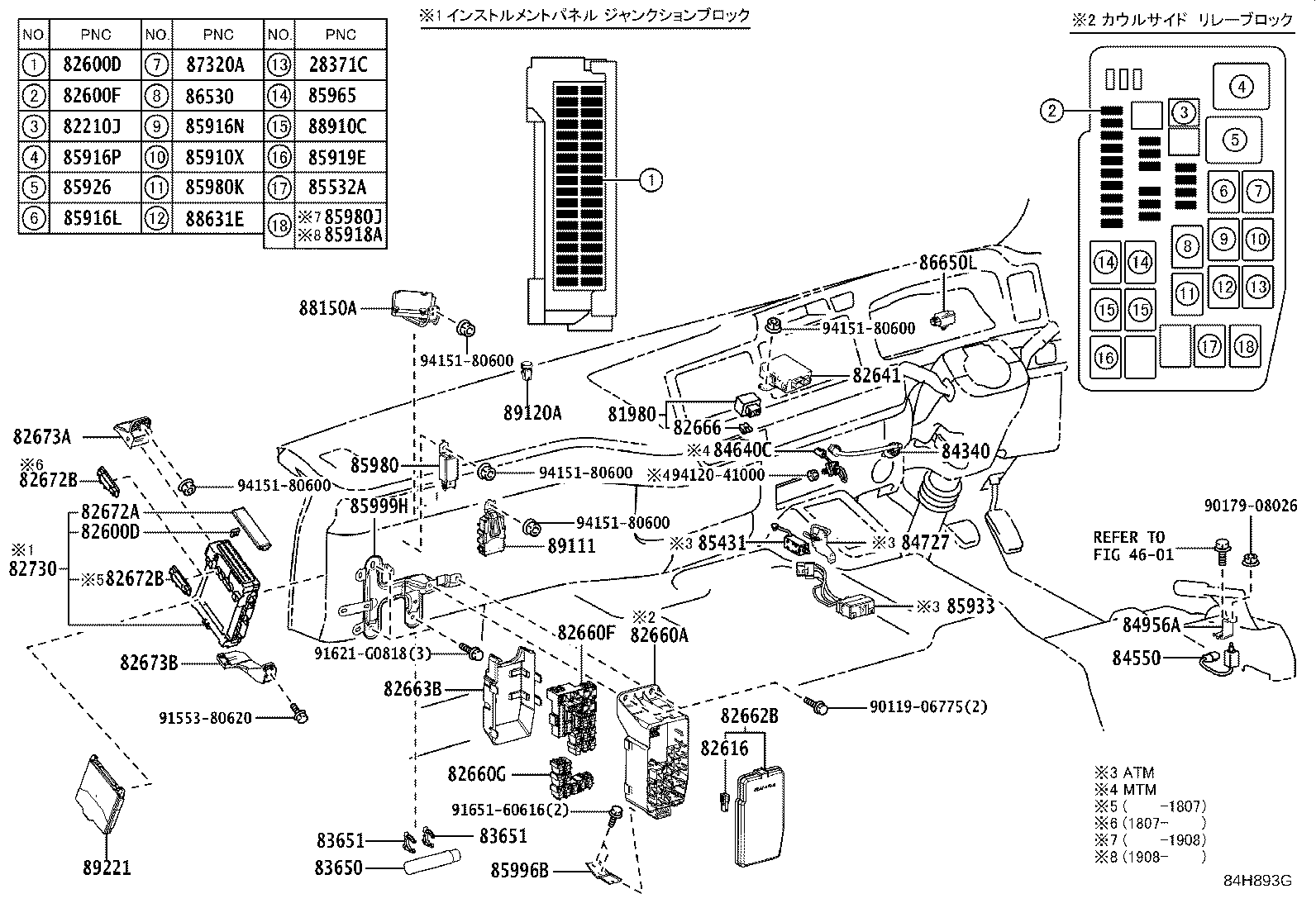

ILLUST NO. 5 OF10(1701- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
N04C..XZB60,70,80 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-36150 |
XZB60,70,80 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
XZB60,70,80 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
XZB60,70,80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XZB60,70,80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZB60,70,80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
XZB60,70,80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09019 |
XZB60,70,80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
XZB60,70,80 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
XZB60,70,80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XZB60,70,80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZB60,70,80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
XZB60,70,80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09019 |
XZB60,70,80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
XZB60,70,80 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
XZB60,70,80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
XZB60,70,80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
XZB60,70,80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZB60,70,80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZB60,70,80 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-36010 |
XZB60,70,80 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82741-36010 |
XZB60,70,80 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-36040 |
XZB60,70,80 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-36030 |
XZB60,70,80 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-36060 |
XZB60,70 |
1 | ||
| 82662-V4010 |
XZB60,70,80 |
1 | ||
| 82662-36062 |
XZB60,70,80 |
1 | ||
| 82662-36061 |
XZB60,70 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-36030 |
XZB60,70,80 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-36230 |
XZB60,70,80 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-36010 |
XZB60,70 |
1 | ||
| 82672-36011 |
XZB60,70 |
1 | ||
| 82672-36012 |
XZB60,70,80 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-36020 |
XZB60,70..S |
1 | ||
| 82672-36020 |
XZB60,70..EX,GX,LX |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-36020 |
XZB60,70..S |
1 | ||
| 82672-36020 |
XZB60,70..EX,GX,LX |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-36020 |
XZB60,70,80 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-36030 |
XZB60,70,80 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-36011 |
XZB60,70 |
1 | ||
| 82730-36010 |
XZB60,70 |
1 | ||
| 82730-36012 |
XZB60,70,80 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZB60,70,80 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
XZB60,70,80 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
XZB60,70,80 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36080 |
XZB60,70,80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36030 |
XZB60,70,80 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 33805-35030 |
XZB60,70,80..6FC |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
XZB60,70,80 |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-36100 |
XZB60,70..6FC..S ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(ﾘﾊﾞｰｽｳｫｰﾆﾝｸﾞﾌﾞｻﾞｰ付き),ﾜﾝﾏﾝﾊﾞｽ用&ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ) |
1 | ||
| 85431-36100 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 85431-36100 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85431-36060 |
XZB60,70,80..6FC |
1 | ||
| 85431-36100 |
XZB60,70,80..(13S,21S,24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式) |
1 | ||
| 85431-36100 |
XZB60,70..6FC..S ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(ﾘﾊﾞｰｽｳｫｰﾆﾝｸﾞﾌﾞｻﾞｰ付き),ﾜﾝﾏﾝﾊﾞｽ用 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
XZB60,70..EX,PREM,S 寒冷地仕様 |
1 | ||
| 90987-02027 |
XZB60,70..(25S,29S)..(GX,LX) 寒冷地仕様&ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り(左側ﾄﾞｱのみ) |
1 | ||
| 90987-02027 |
XZB60,70..(25S,29S)..(GX,LX) 寒冷地仕様&ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
XZB60,70,80 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
XZB60,70..EX,GX,LX |
1 | ||
| 90987-02027 |
XZB60,70..S |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
XZB60,70,80 |
1 | ||
| 85918A - RELAY, DOOR CONTROL | ||||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90987-04004 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 90987-04004 |
XZB60,70..S |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
XZB60,70,80 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-36070 |
XZB60,70,80..6FC |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 90987-02027 |
XZB60,70,80 |
2 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52280 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 85980-52280 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 85980-52280 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 85980-52280 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 85980-52280 |
XZB60,70..(25S,29S)..6FC ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85980J - RELAY ASSY, DOOR LOCK, NO.1 | ||||
| 90987-02027 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 90987-02027 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85980K - RELAY ASSY, DOOR LOCK, NO.2 | ||||
| 90987-04004 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
2 | ||
| 90987-04004 |
XZB60,70..(24S,25S,29S)..6FC 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
2 | ||
| 85996B - BRACKET, RELAY, NO.2 | ||||
| 85996-36010 |
XZB60,70,80 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 82715-36660 |
XZB60,70,80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
XZB60,70,80 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 89747-58010 |
XZB60,70 |
1 | ||
| 87320A - RELAY, POWER HEATER | ||||
| 90987-02027 |
XZB60,70,80..EX,GX,PREM 寒冷地仕様&補助ﾋｰﾀ−有り(ﾊﾟﾜｰﾋｰﾀ) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-36011 |
XZB60,70..S |
1 | ||
| 88150-36011 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 88150-36010 |
XZB60,70..EX,GX,LX |
1 | ||
| 88631E - RELAY, AIRCONDITIONER | ||||
| 90987-02027 |
XZB60,70,80..EX,GX,PREM |
2 | ||
| 88910C - RELAY, BOOST VENTILATOR | ||||
| 90987-02027 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
2 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-36020 |
XZB60,70,80 |
1 | ||
| 89100-36011 |
XZB60,70 |
1 | ||
| 89100-36010 |
XZB60,70 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 89121-30020 |
XZB60,70..S |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-36011 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 89220-36011 |
XZB60,70..S |
1 | ||
| 89220-36010 |
XZB60,70..EX,GX,LX |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08026 | ||||
| 91553-80620 | ||||
| 91621-G0818 | ||||
| 91651-60616 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO.10 OF10(1701- )
ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

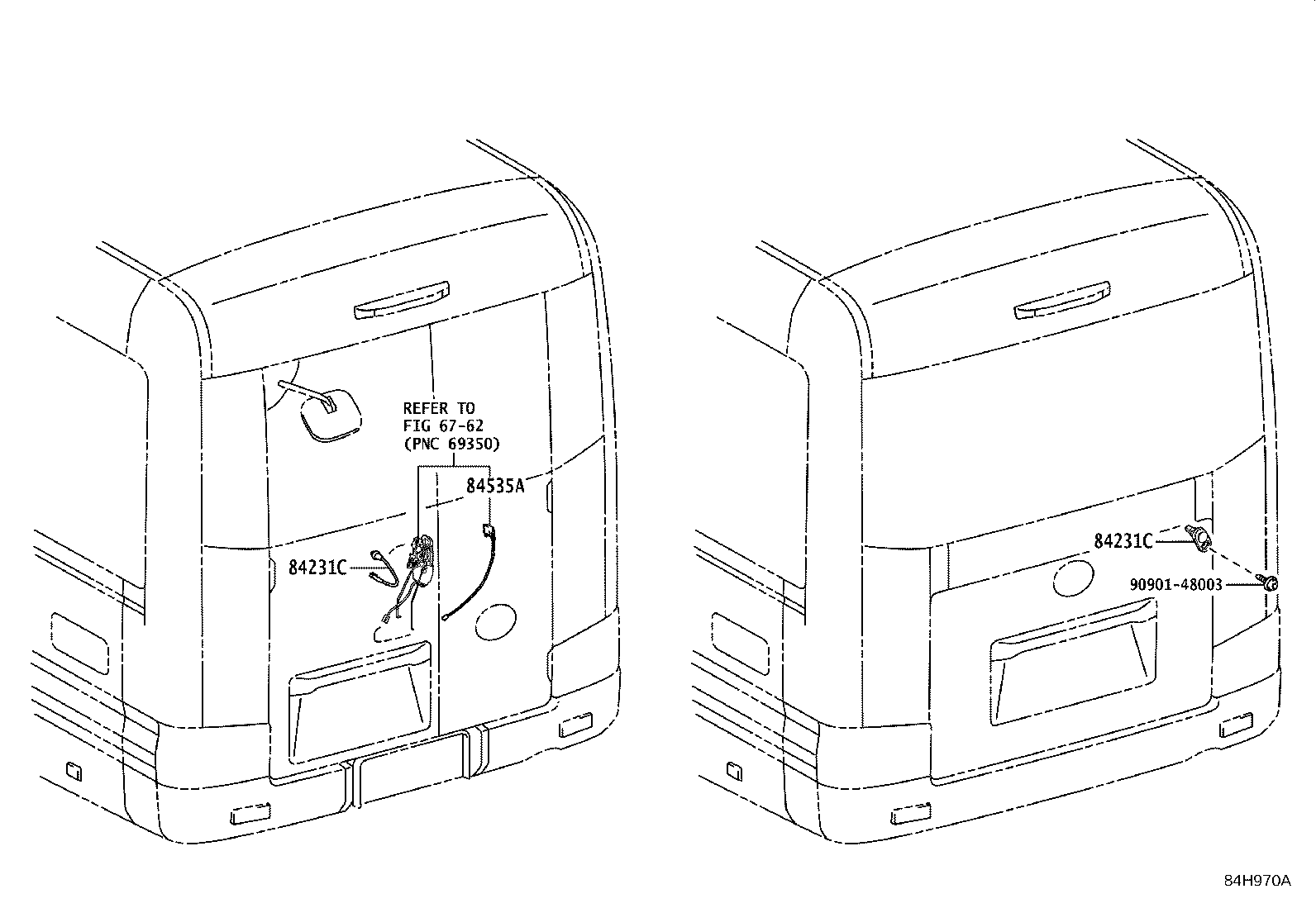

| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 84231-60070 |
XZB60,70..25S,29S |
1 | ||
| 84231-36020 |
XZB60,70..S |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 84231-60070 |
XZB60,70..25S,29S |
1 | ||
| 84231-36020 |
XZB60,70..S |
1 | ||
| Common parts | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 6762 | ||||
ILLUST NO. 4 OF10(1701- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ & ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
N04C..XZB60,70,80 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02027 |
N04C..XZB60,70,80 |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
N04C..XZB60,70,80 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
XZB60,70,80 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08274 |
XZB60,70,80 120A,ｵｽ端子,白 |
1 | ||
| 90982-08296 |
XZB60,70,80 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
XZB60,70,80 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08295 |
XZB60,70,80 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08301 |
XZB60,70,80 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08305 |
XZB60,70,80 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
XZB60,70,80 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
XZB60,70,80 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
XZB60,70,80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZB60,70,80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
XZB60,70,80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
XZB60,70,80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZB60,70,80 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-26110 |
XZB60,70,80 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-36050 |
XZB60,70,80 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36060 |
XZB60,70,80 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-36070 |
XZB60,70,80 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-36080 |
XZB60,70,80 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-36030 |
XZB60,70 |
1 | ||
| 82662-36031 |
XZB60,70,80 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36040 |
XZB60,70,80 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-36050 |
XZB60,70,80 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-36720 |
XZB60,70,80 |
1 | ||

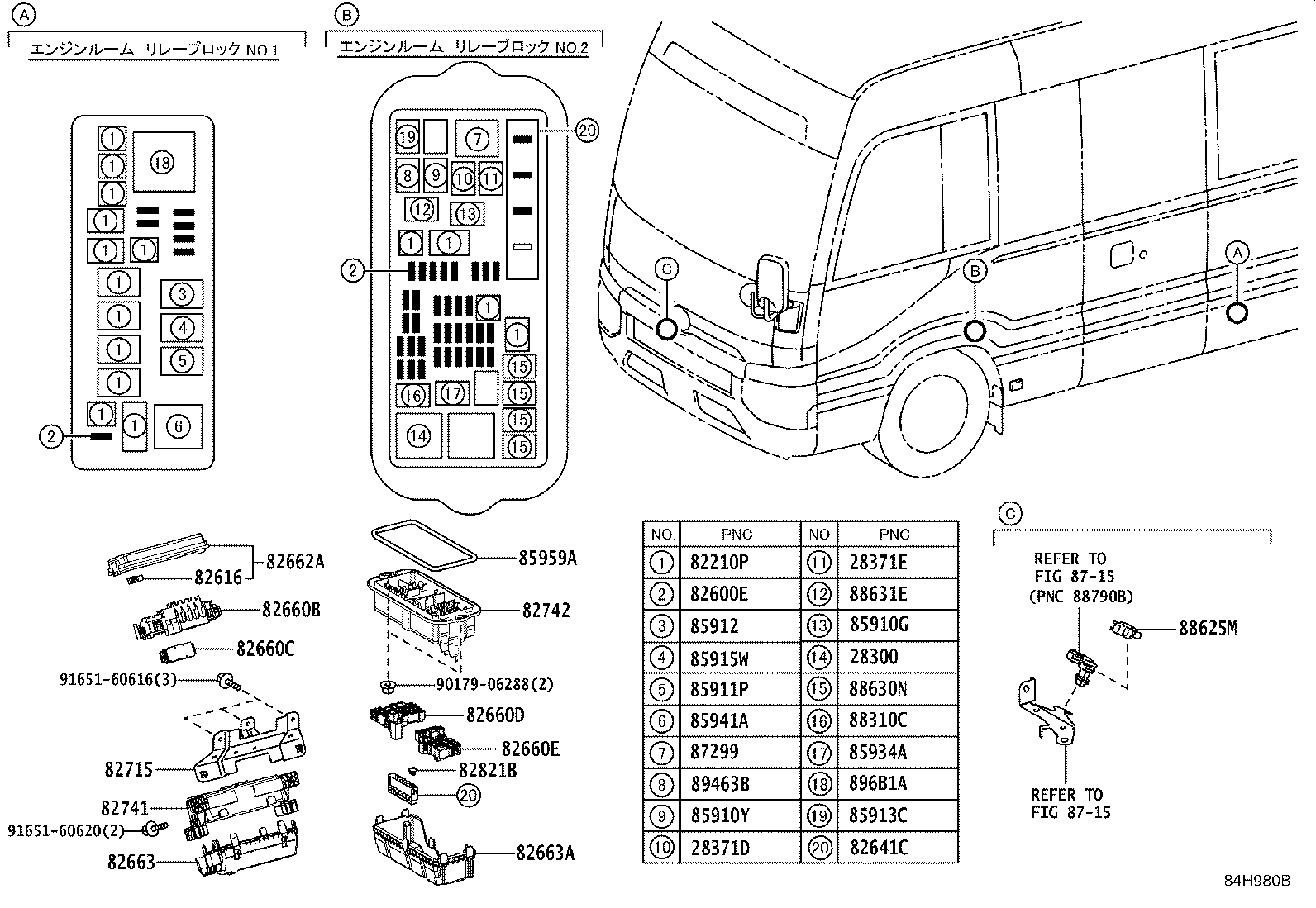

| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-36020 |
XZB60,70,80 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-36030 |
XZB60,70,80 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47090 |
XZB60,70,80 |
1 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02027 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02027 |
XZB60,70,80 |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 90987-02027 |
XZB60,70,80 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り(左側ﾄﾞｱのみ) |
1 | ||
| 90987-02027 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｳｲﾝﾄﾞｳﾃﾞﾌｫｯｶﾞ−有り |
1 | ||
| 90987-02027 |
XZB60,70..EX,PREM,S |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-02027 |
XZB60,70,80 |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02027 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 90987-02027 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 90987-02027 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 90987-02027 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 90987-02027 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
XZB60,70,80 |
1 | ||
| 85941A - RELAY, REAR WINDSHIELD WASHER | ||||
| 90987-02025 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 90987-02025 |
XZB60,70..25S,29S |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36060 |
XZB60,70,80 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
XZB60,70,80 |
1 | ||
| 88310C - RELAY, AIR CONDITIONER COMPRESSOR | ||||
| 90987-02027 |
XZB60,70,80 |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XZB60,70,80 |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-02027 |
XZB60,70,80 |
4 | ||
| 88631E - RELAY, AIRCONDITIONER | ||||
| 90987-02027 |
XZB60,70,80..EX,GX,PREM |
2 | ||
| 89463B - RELAY, NITROGEN OXIDES | ||||
| 90987-02027 |
XZB60,70 |
1 | ||
| 896B1A - RELAY, DCU MAIN | ||||
| 90987-02025 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90179-06288 | ||||
| 91651-60616 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8715 | ||||

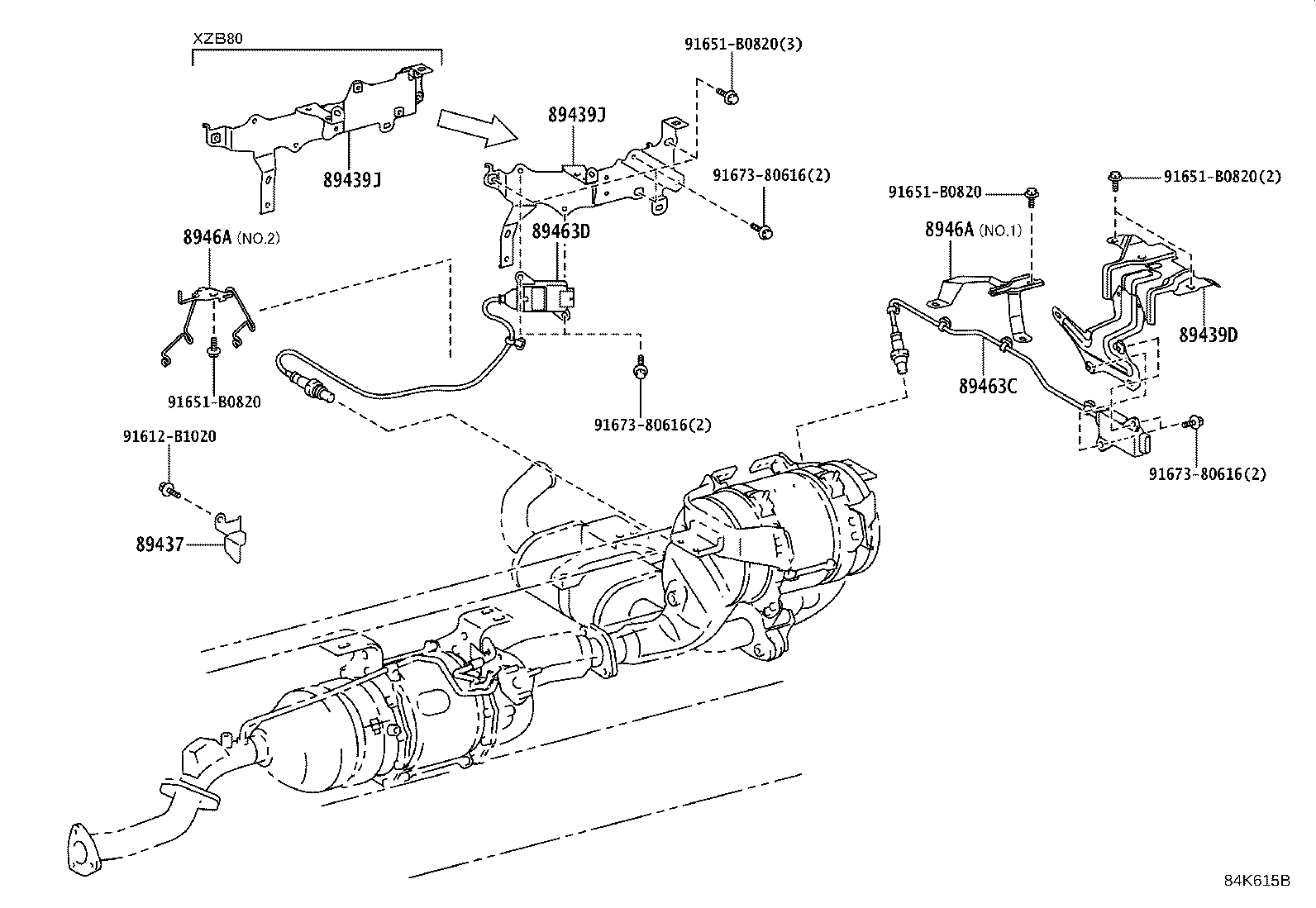

ILLUST NO. 2 OF10(1908- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89437 - COVER, SENSOR | ||||
| 89279-36020 |
XZB60,70,80 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-36060 |
XZB70 |
1 | ||
| 89439-36080 |
XZB60,70,80 |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 89439-36100 |
XZB70 |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 89439-36100 |
XZB70 |
1 | ||
| 89463C - SENSOR, NITROGEN OXIDES, NO.1 | ||||
| 89460-36070 |
XZB60,70,80 |
1 | ||
| 89463D - SENSOR, NITROGEN OXIDES, NO.2 | ||||
| 89460-36080 |
XZB60,70,80 |
1 | ||
| 8946A - BRACKET, EXHAUST SENSOR CLAMP | ||||
| 8946A-36010 |
XZB60,70,80 NO.1 |
1 | ||
| 8946A-36030 |
XZB60,70 NO.2 |
1 | ||
| 8946A - BRACKET, EXHAUST SENSOR CLAMP | ||||
| 8946A-36010 |
XZB60,70,80 NO.1 |
1 | ||
| 8946A-36030 |
XZB60,70 NO.2 |
1 | ||
| Common parts | ||||
| 91612-B1020 | ||||
| 91651-B0820 | ||||
| 91673-80616 | ||||

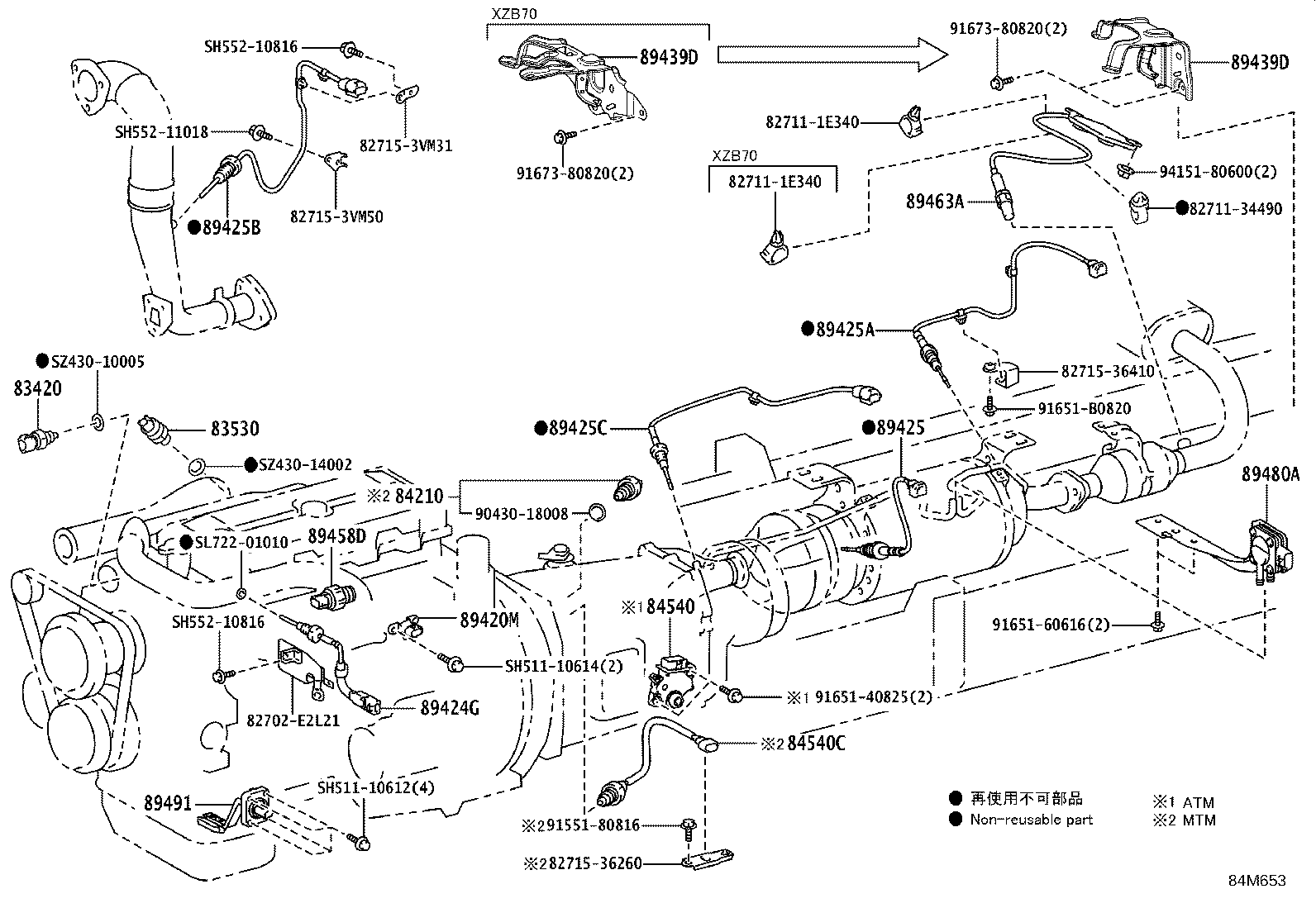

ILLUST NO. 1 OF10(1701-1908)
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZB60,70,80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZB60,70,80 |
1 | ||
| 83530-E0220 |
XZB60,70,80 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37050 |
XZB60,70,80..6FC |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZB60,70,80 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-E0040 |
XZB60,70,80 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-36110 |
XZB60,70 |
1 | ||
| 89425-37200 |
XZB60,70,80 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-36121 |
XZB60,70 |
1 | ||
| 89425-36130 |
XZB60,70,80 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-E0210 |
XZB60,70 |
1 | ||
| 89425-37380 |
XZB60,70,80 |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-36060 |
XZB60,70,80 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-36060 |
XZB70 |
1 | ||
| 89439-36080 |
XZB60,70,80 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-36060 |
XZB70 |
1 | ||
| 89439-36080 |
XZB60,70,80 |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0030 |
XZB60,70 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-36010 |
XZB60,70 |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-36030 |
XZB60,70 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| S8346-01580 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 82702-E2L21 | ||||
| 82711-1E340 | ||||
| 82711-34490 | ||||
| 82715-36260 | ||||
| 82715-36410 | ||||
| 82715-3VM31 | ||||
| 82715-3VM50 | ||||
| 90430-18008 | ||||
| 91551-80816 | ||||
| 91651-40825 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| SH511-10612 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SH552-11018 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

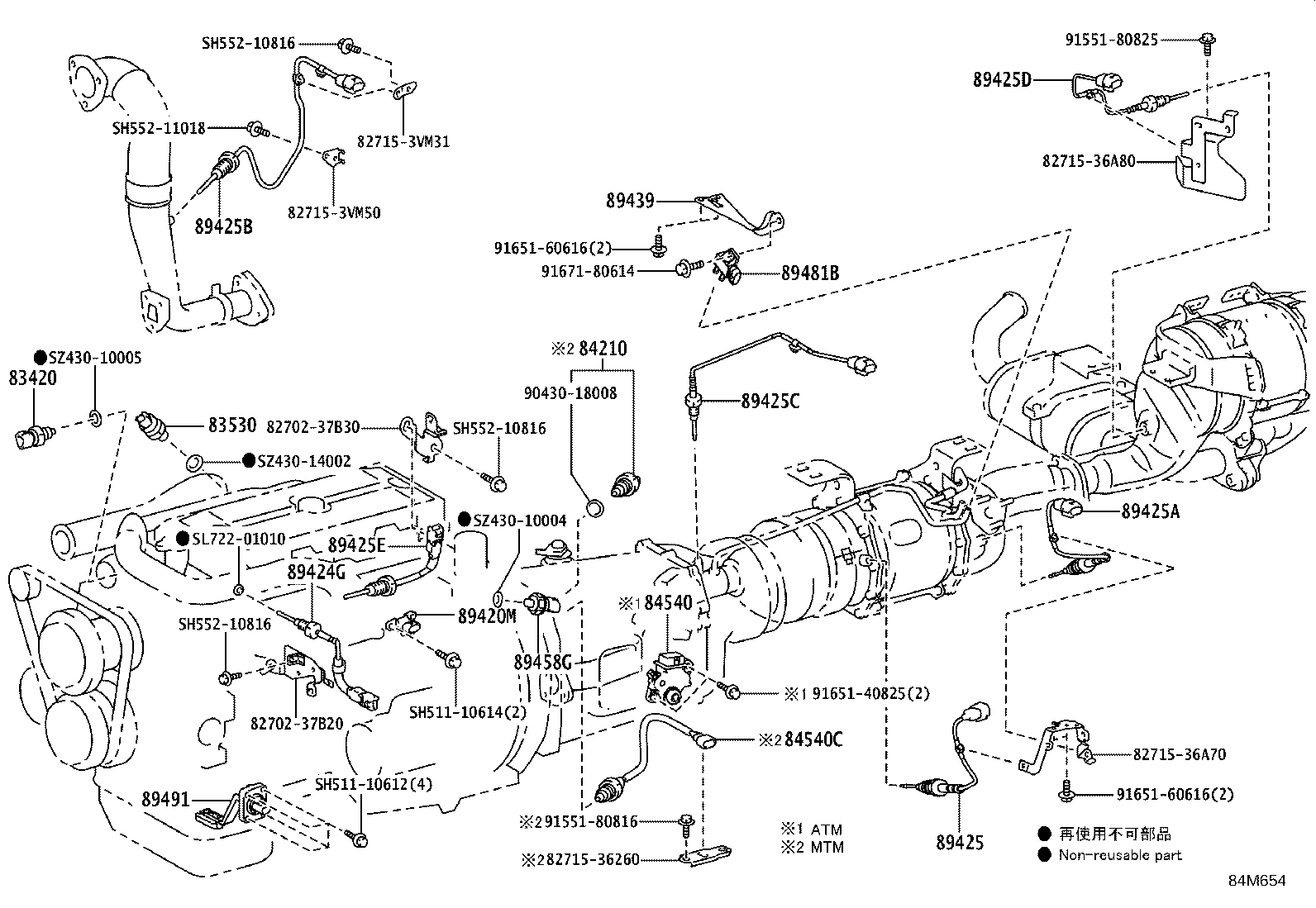

ILLUST NO. 1 OF10(1908- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZB60,70,80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZB60,70,80 |
1 | ||
| 83530-E0220 |
XZB60,70,80 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37050 |
XZB60,70,80..6FC |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZB60,70,80 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-E0040 |
XZB60,70,80 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-36110 |
XZB60,70 |
1 | ||
| 89425-37200 |
XZB60,70,80 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-36121 |
XZB60,70 |
1 | ||
| 89425-36130 |
XZB60,70,80 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-E0210 |
XZB60,70 |
1 | ||
| 89425-37380 |
XZB60,70,80 |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-36060 |
XZB60,70,80 |
1 | ||
| 89425D - SENSOR, EXHAUST GAS TEMPERATURE, NO.5 | ||||
| 89425-37200 |
XZB60,70,80 |
1 | ||
| 89425E - SENSOR, EXHAUST GAS TEMPERATURE, NO.6 | ||||
| 89425-37360 |
XZB60,70,80 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-36140 |
XZB60,70,80 |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZB60,70,80 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZB60,70,80 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| S8346-01580 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 82702-37B20 | ||||
| 82702-37B30 | ||||
| 82715-36260 | ||||
| 82715-36A70 | ||||
| 82715-36A80 | ||||
| 82715-3VM31 | ||||
| 82715-3VM50 | ||||
| 90430-18008 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91651-40825 | ||||
| 91651-60616 | ||||
| 91671-80614 | ||||
| SH511-10612 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SH552-11018 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 3 OF10(1701- )
ﾄﾗﾝｽﾐｯｼｮﾝﾊﾞﾙﾌﾞﾎﾞﾃﾞｰ(A861E)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83380B - SWITCH ASSY, PRESSURE, NO.1 | ||||
| 83380-37050 |
XZB60,70,80..6FC |
1 | ||
| 83380C - SWITCH ASSY, PRESSURE, NO.2 | ||||
| 83380-37050 |
XZB60,70,80..6FC |
1 | ||
| 83380D - SWITCH ASSY, PRESSURE, NO.3 | ||||
| 83380-37040 |
XZB60,70,80..6FC |
1 | ||
| 83380E - SWITCH ASSY, PRESSURE, NO.6 | ||||
| 83380-37040 |
XZB60,70,80..6FC |
1 | ||
| 83380F - SWITCH ASSY, PRESSURE, NO.7 | ||||
| 83380-37050 |
XZB60,70,80..6FC |
1 | ||
| 83380G - SWITCH ASSY, PRESSURE, NO.8 | ||||
| 83380-37040 |
XZB60,70,80..6FC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
