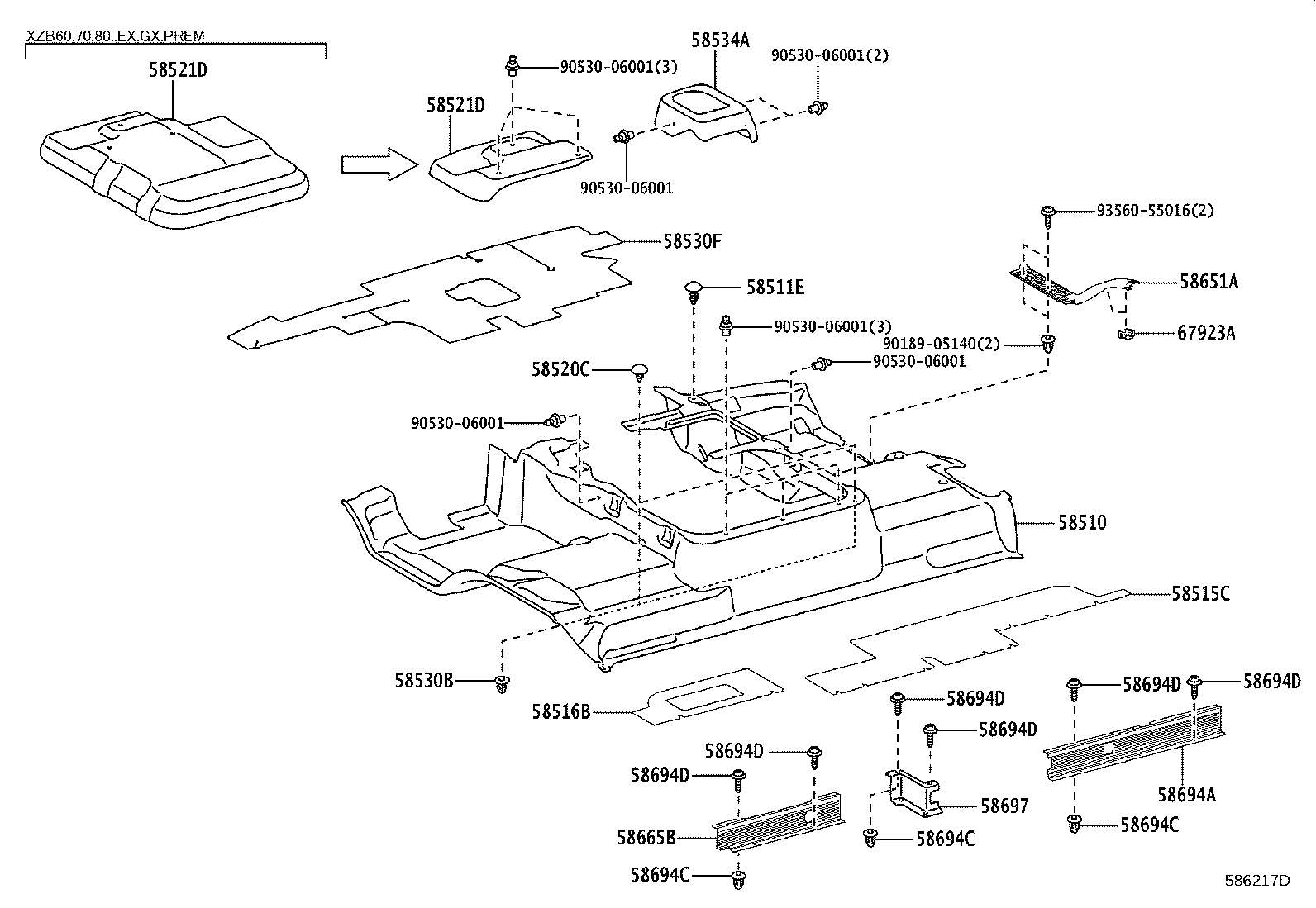

XZB70-ZRTEH (2017)
Toyota Coaster
(1701- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36K60B0 |
XZB60,70..6FC..S MD.GRAY,TRIM1# |
1 | ||
| 58510-36F50B0 |
XZB60,70..6FC..S MD.GRAY,TRIM1# |
1 | ||
| 58510-36G30B0 |
XZB60,70,80..6FC..(EX,GX) MD.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-05164B5 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58540-36A80B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58540-36A90B0 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58516B - MAT, FRONT FLOOR, REAR NO.2 | ||||
| 58540-36B90B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 64726-26010B0 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
2 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36180B0 |
XZB60,70,80..EX,GX MD.GRAY,TRIM1# |
1 | ||
| 58521-36200B0 |
XZB60,70,80..LX,S MD.GRAY,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36180B0 |
XZB60,70,80..EX,GX MD.GRAY,TRIM1# |
1 | ||
| 58521-36200B0 |
XZB60,70,80..LX,S MD.GRAY,TRIM1# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 64779-26020 |
XZB60,70,80 |
2 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36030B0 |
XZB60,70,80..EX,GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 58665B - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58665-36120B0 |
XZB60,70..25S,29S ﾘﾔﾌﾛｱｶｰﾍﾟｯﾄ & ﾏｯﾄ−有り & 無し(ﾘﾔｼｰﾄ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58665-36110B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-36140B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58694-36230B0 |
XZB60,70..25S,29S ﾘﾔﾌﾛｱｶｰﾍﾟｯﾄ & ﾏｯﾄ−有り & 無し(ﾘﾔｼｰﾄ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58694C - GROMMET(FOR MAT SET PLATE) | ||||
| 90189-05140 |
XZB60,70,80..EX,GX,LX,PREM |
12 | ||
| 58694C - GROMMET(FOR MAT SET PLATE) | ||||
| 90189-05140 |
XZB60,70,80..EX,GX,LX,PREM |
12 | ||
| 58694C - GROMMET(FOR MAT SET PLATE) | ||||
| 90189-05140 |
XZB60,70,80..EX,GX,LX,PREM |
12 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58694D - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70,80..EX,GX,LX,PREM |
14 | ||
| 58697 - PLATE, REAR FLOOR MAT VERTICAL, NO.3 | ||||
| 58697-36030B0 |
XZB60,70,80..EX,GX,LX MD.GRAY,TRIM1# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 62566-36010 |
XZB60,70,80 |
2 | ||
| Common parts | ||||
| 90189-05140 | ||||
| 90530-06001 | ||||
| 93560-55016 | ||||

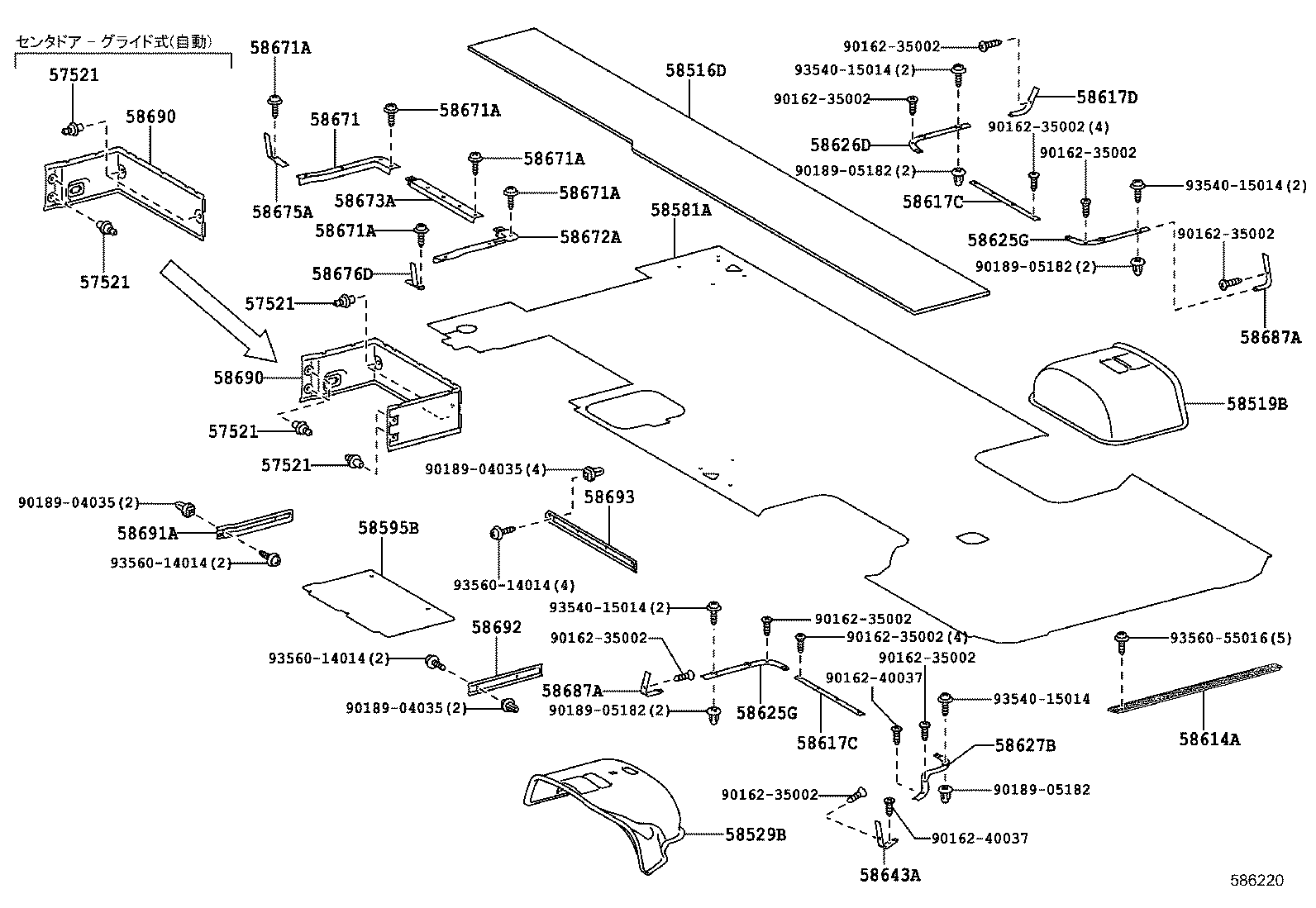

(1701- )EX,GX,LX
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57521 - FASTENER, HOOK | ||||
| 90530-06001 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 90530-06001 |
XZB60,70,80..GX |
6 | ||
| 90530-06001 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
4 | ||
| 90530-06001 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ |
8 | ||
| 90530-06001 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..EX,GX,PREM ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 57521 - FASTENER, HOOK | ||||
| 90530-06001 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 90530-06001 |
XZB60,70,80..GX |
6 | ||
| 90530-06001 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
4 | ||
| 90530-06001 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ |
8 | ||
| 90530-06001 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..EX,GX,PREM ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 57521 - FASTENER, HOOK | ||||
| 90530-06001 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 90530-06001 |
XZB60,70,80..GX |
6 | ||
| 90530-06001 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
4 | ||
| 90530-06001 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ |
8 | ||
| 90530-06001 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..EX,GX,PREM ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 57521 - FASTENER, HOOK | ||||
| 90530-06001 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 90530-06001 |
XZB60,70,80..GX |
6 | ||
| 90530-06001 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
4 | ||
| 90530-06001 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ |
8 | ||
| 90530-06001 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..EX,GX,PREM ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 57521 - FASTENER, HOOK | ||||
| 90530-06001 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 90530-06001 |
XZB60,70,80..GX |
6 | ||
| 90530-06001 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
4 | ||
| 90530-06001 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ |
8 | ||
| 90530-06001 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
6 | ||
| 90530-06001 |
XZB70,80..EX,GX,PREM ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
4 | ||
| 90530-06001 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
4 | ||
| 58516D - CARPET, FLOOR, REAR CENTER | ||||
| 58516-36140B0 |
XZB70..EX,GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58580-36150B0 |
XZB70..GX MD.GRAY,TRIM1# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58590-36140B0 |
XZB70..GX MD.GRAY,TRIM1# |
1 | ||
| 58590-36150B0 |
XZB70..29S..GX ﾘﾔﾌﾛｱｶｰﾍﾟｯﾄ & ﾏｯﾄ−有り & 無し(ﾘﾔｼｰﾄ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58581A - MAT, REAR FLOOR | ||||
| 58581-3CZ80B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA80B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB20B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA90B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA80B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB20B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB40B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA90B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB40B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3CZ90B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA90B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA40B0 |
XZB70..29S..GX MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA20B0 |
XZB70..29S..GX ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA80B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB20B0 |
XZB70..29S..GX ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EC00B0 |
XZB70..29S..GX ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB40B0 |
XZB70..29S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EC30B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58581-3JF90 |
XZB70..29S..GX;XZB70..EX..DCR ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 58581-3JF70 |
XZB70..29S..(EX,GX) ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 58581-3EC01 |
XZB70..29S..(EX,GX) ﾘﾔｼｰﾄ−無し |
1 | ||
| 58581-3JF60 |
XZB70..29S..(EX,GX) ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り |
1 | ||
| 58581-3JF60 |
XZB70..29S..(EX,GX) ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 58581-3JF70 |
XZB70..29S..(EX,GX) ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58581-3JF90 |
XZB70..29S..GX;XZB70..EX..DCR ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58581-3JF80 |
XZB70..29S..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り |
1 | ||
| 58581-3JF80 |
XZB70..29S..(EX,GX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫) |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3CZ81B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA21B0 |
XZB70..29S..GX ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3CZ91B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA81B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..GX ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA41B0 |
XZB70..29S..GX MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA81B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..GX ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA91B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA81B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA91B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EA91B0 |
XZB70..29S..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り,MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB21B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ)&ｱﾝﾌﾞﾚﾗﾎﾟｹｯﾄ−有り&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58581-3EB41B0 |
XZB70..29S..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ)&ｸｰﾙﾎﾞｯｸｽ−有り(冷蔵庫),MD.GRAY,TRIM1# |
1 | ||
| 58595B - CARPET, CENTER DOOR STEP | ||||
| 58595-36030E0 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ,DK.BROWN,TRIM1# |
1 | ||
| 58595-36040E0 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),DK.BROWN,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36040B0 |
XZB60,70,80..GX,LX,S MD.GRAY,TRIM1# |
1 | ||

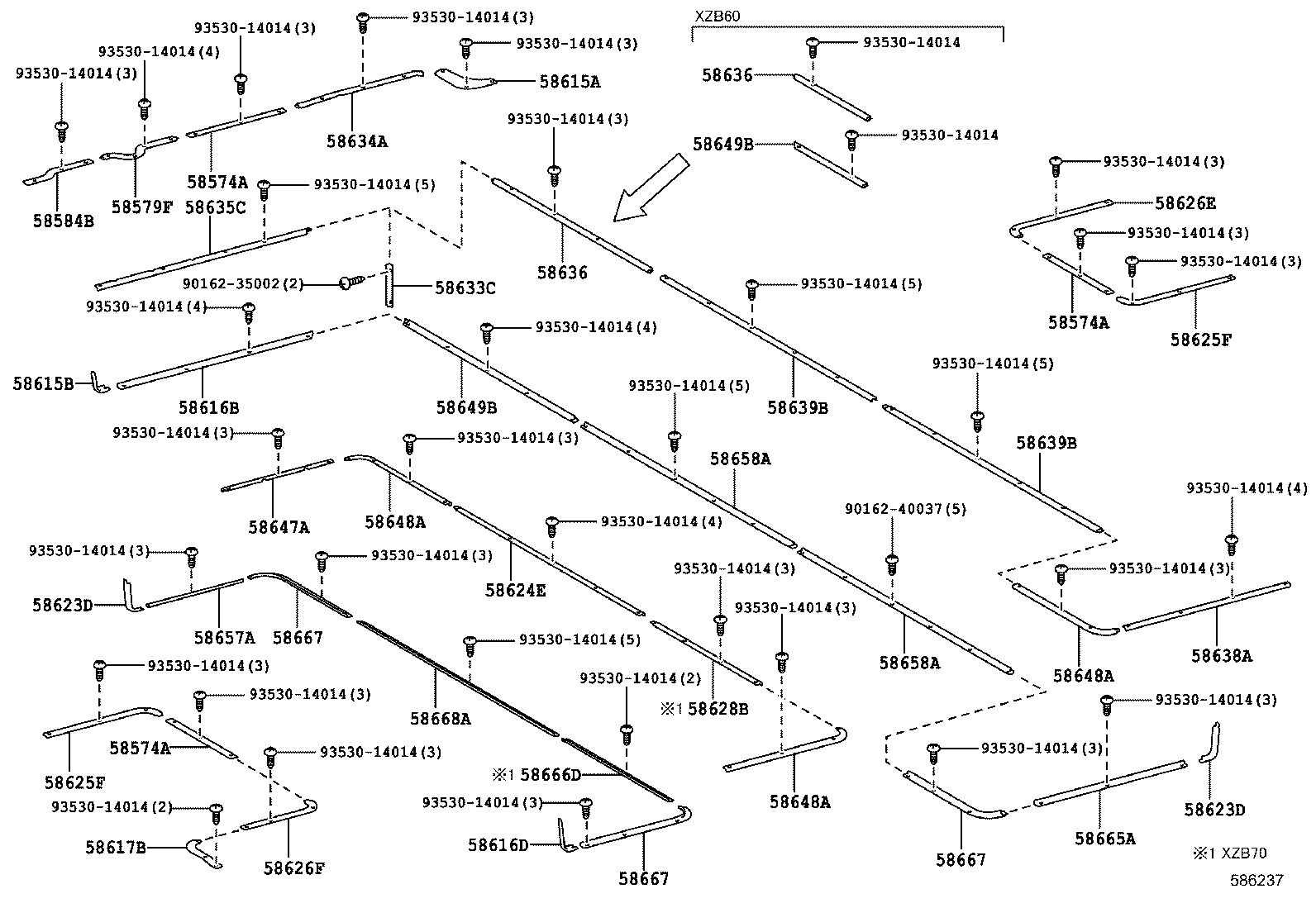

| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36070 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36070 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 58617D - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58615-36030 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36050 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36050 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 58626D - PLATE, REAR FLOOR MAT, NO.2 | ||||
| 58626-36090 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58627B - PLATE, REAR WHEEL HOUSE MAT, LH | ||||
| 58627-36080 |
XZB60,70..24S,25S,29S |
1 | ||
| 58627-36060 |
XZB60,70..25S,29S ﾘﾔﾌﾛｱｶｰﾍﾟｯﾄ & ﾏｯﾄ−有り & 無し(ﾘﾔｼｰﾄ)&ﾘﾔｼｰﾄ−無し |
1 | ||
| 58643A - PLATE, MAT SET, NO.2 A | ||||
| 58624-36060 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36100B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58671-36150B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||

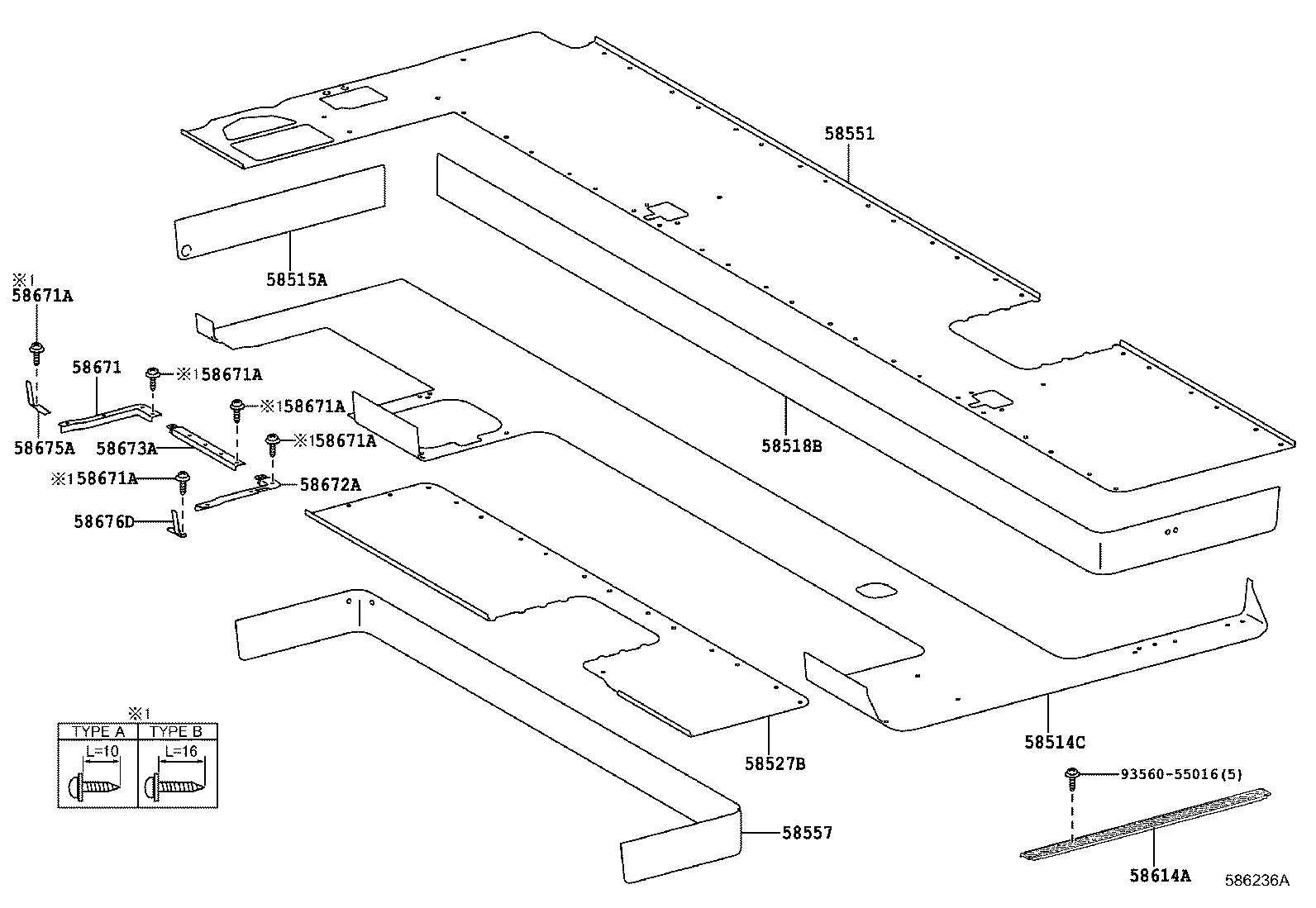

| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36080B0 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58672-36150B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36080B0 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36080B0 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36180B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58672-36140B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36050B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58673-36100B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36060B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58675-36070B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36060B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58676-36070B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58687A - PLATE, MAT SET, NO.7 | ||||
| 58615-36040 |
XZB60,70,80..EX,GX,LX,PREM 左側 |
1 | ||
| 58615-36040 |
XZB60,70,80..EX,GX,LX |
2 | ||
| 58615-V4010 |
XZB60,70,80..EX,GX,LX,PREM 右側 |
1 | ||
| 58687A - PLATE, MAT SET, NO.7 | ||||
| 58615-36040 |
XZB60,70,80..EX,GX,LX,PREM 左側 |
1 | ||
| 58615-36040 |
XZB60,70,80..EX,GX,LX |
2 | ||
| 58615-V4010 |
XZB60,70,80..EX,GX,LX,PREM 右側 |
1 | ||
| 58690 - MAT ASSY, CENTER DOOR STEP | ||||
| 58690-36090B0 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36090B0 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB60,70..GX MD.GRAY,TRIM1# |
1 | ||
| 58690-36090B0 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36091 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 58690-36081 |
XZB60,70..GX |
1 | ||
| 58690-36081 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58690-36111B1 |
XZB60,70,80..GX MD.GRAY,TRIM1# |
1 | ||
| 58690-36081 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58690-36091 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58690-36091 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 58690-36121B1 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36111B1 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36111B1 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690 - MAT ASSY, CENTER DOOR STEP | ||||
| 58690-36090B0 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36090B0 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36080B0 |
XZB60,70..GX MD.GRAY,TRIM1# |
1 | ||
| 58690-36090B0 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36091 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 58690-36081 |
XZB60,70..GX |
1 | ||
| 58690-36081 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58690-36111B1 |
XZB60,70,80..GX MD.GRAY,TRIM1# |
1 | ||
| 58690-36081 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58690-36091 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58690-36091 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 58690-36121B1 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB70,80..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58690-36111B1 |
XZB70..GX ﾚﾝﾀｶｰﾊﾟｯｹｰｼﾞ&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36121B1 |
XZB60,70,80..(13S,24S,25S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58690-36111B1 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58691A - PLATE, CENTER DOOR STEP MAT, LOWER FRONT | ||||
| 58691-36030 |
XZB60,70..EX,GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58691-36030 |
XZB60,70,80..EX,GX,PREM |
1 | ||
| 58692 - PLATE, CENTER DOOR STEP MAT, LOWER REAR | ||||
| 58692-36030 |
XZB60,70,80..GX |
1 | ||
| 58692-36030 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 58693 - PLATE, CENTER DOOR STEP MAT, LOWER SIDE | ||||
| 58693-36050 |
XZB60,70,80..GX |
1 | ||
| 58693-36060 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 58693-36060 |
XZB70..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58693-36060 |
XZB60..25S..6FC..LX;XZB70,80..(13S,24S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)& 有り(中間ｽﾃｯﾌﾟ) |
1 | ||
| 58693-36060 |
XZB60..25S..6FC..LX;XZB70..(24S,29S)..6FC..(GX,LX) 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 58693-36060 |
XZB70,80..6FC..GX 営業車ﾍﾞｰｽﾊﾟｯｹｰｼﾞ,ｾﾝﾀﾄﾞｱ(ｸﾞﾗｲﾄﾞ式)&ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) |
1 | ||
| 58693-36060 |
XZB60,70,80..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 58693-36050 |
XZB60,70..GX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90189-04035 | ||||
| 90189-05182 | ||||
| 93540-15014 | ||||
| 93560-14014 | ||||
| 93560-55016 | ||||
(1701- )S
ﾘﾔﾌﾛｱﾏｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58514C - MAT, FROOR, REAR | ||||
| 58514-36B20B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58514-36B30B0 |
XZB70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58515A - MAT, REAR FLOOR, NO.1 | ||||
| 58515-36100B0 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58515-36090B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-36110B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58527B - MAT, REAR FLOOR, NO.3 | ||||
| 58527-36120B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58551 - MAT, FLOOR, REAR | ||||
| 58511-36600B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58511-36590B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58557 - MAT, REAR FLOOR VERTICAL, NO.1 | ||||
| 58557-36060B0 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36040B0 |
XZB60,70,80..GX,LX,S MD.GRAY,TRIM1# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36100B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58671-36150B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
XZB60,70..24S,25S,29S |
13 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..25S,29S ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55016 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し |
14 | ||
| 93560-55010 |
XZB60,70..S TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 93560-55016 |
XZB60,70..S TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36080B0 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58672-36150B0 |
XZB60,70..(25S,29S)..(GX,LX) ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36080B0 |
XZB60,70..(25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,解除ﾚﾊﾞｰ付き,ﾜﾝﾏﾝﾊﾞｽ用)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36080B0 |
XZB60,70..(25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ)&ﾘﾔｼｰﾄ−無し,MD.GRAY,TRIM1# |
1 | ||
| 58672-36180B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58672-36140B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(中間ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58672-36130B0 |
XZB60,70..(24S,25S,29S)..6FC..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動,ﾜﾝﾏﾝﾊﾞｽ用),MD.GRAY,TRIM1# |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36050B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58673-36100B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36060B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58675-36070B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36060B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58676-36070B0 |
XZB60,70,80..GX,LX MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93560-55016 | ||||
(1701- )S
ﾘﾔﾏｯﾄｾｯﾄﾌﾟﾚｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
XZB60,70..S |
3 | ||
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
XZB60,70..S |
3 | ||
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
XZB60,70..S |
3 | ||
| 58579F - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.3 | ||||
| 58579-36110 |
XZB60,70..S |
1 | ||
| 58579-36100 |
XZB60,70..S |
1 | ||
| 58584B - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.4 | ||||
| 58584-36090 |
XZB60,70..S |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58611-36220B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58615B - PLATE, MAT SET, NO.5 A | ||||
| 58624-36030B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58616-36100B0 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 58616-36040B1 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58616D - PLATE, MAT SET, NO.6 A | ||||
| 58624-36090B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58617B - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58627-36070 |
XZB60,70..S |
1 | ||
| 58623D - PLATE, MAT SET, NO.3 A | ||||
| 58623-36040B0 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58623D - PLATE, MAT SET, NO.3 A | ||||
| 58623-36040B0 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58624E - PLATE, MAT SET, NO.4 A | ||||
| 58624-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58625F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36010 |
XZB60,70..S |
2 | ||
| 58625F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36010 |
XZB60,70..S |
2 | ||
| 58626E - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36010 |
XZB60,70..S |
1 | ||
| 58626F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36020 |
XZB60,70..S |
1 | ||
| 58628B - PLATE, REAR FLOOR MAT, REAR LH | ||||
| 58628-36010B2 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58633C - PLATE, MAT SET, NO.1 A | ||||
| 58633-36040B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36100 |
XZB60,70..S |
1 | ||
| 58635C - PLATE, REAR FLOOR, CENTER UPPER NO.1 RH | ||||
| 58635-36070B0 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58636 - PLATE, REAR FLOOR, CENTER UPPER NO.2 RH | ||||
| 58636-36060B1 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58636 - PLATE, REAR FLOOR, CENTER UPPER NO.2 RH | ||||
| 58636-36060B1 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58638A - PLATE, REAR FLOOR, CENTER UPPER NO.4 RH | ||||
| 58638-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58639B - PLATE, MAT SET, NO.5 | ||||
| 58639-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58639B - PLATE, MAT SET, NO.5 | ||||
| 58639-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58647A - PLATE, REAR FLOOR, CENTER UPPER NO.3 LH | ||||
| 58647-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58648-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58648-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58648A - PLATE, REAR FLOOR, CENTER UPPER NO.4 LH | ||||
| 58648-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58649B - PLATE, MAT SET, NO.6 | ||||
| 58655-36060B1 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58649B - PLATE, MAT SET, NO.6 | ||||
| 58655-36060B1 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58657A - PLATE, REAR FLOOR, CENTER LOWER NO.3 RH | ||||
| 58657-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58658A - PLATE, REAR FLOOR, CENTER LOWER NO.4 RH | ||||
| 58658-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58658A - PLATE, REAR FLOOR, CENTER LOWER NO.4 RH | ||||
| 58658-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
2 | ||
| 58665A - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58665-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| 58666D - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58668-36010B2 |
XZB70..S MD.GRAY,TRIM1# |
1 | ||
| 58667 - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58667-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58667 - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58667-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58667 - PLATE, REAR FLOOR, CENTER LOWER NO.3 LH | ||||
| 58667-36010B2 |
XZB60,70..S MD.GRAY,TRIM1# |
3 | ||
| 58668A - PLATE, REAR FLOOR, CENTER LOWER NO.4 LH | ||||
| 58668-36030B2 |
XZB60,70..S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 93530-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
