XZB70-ZRTEH (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )6FC

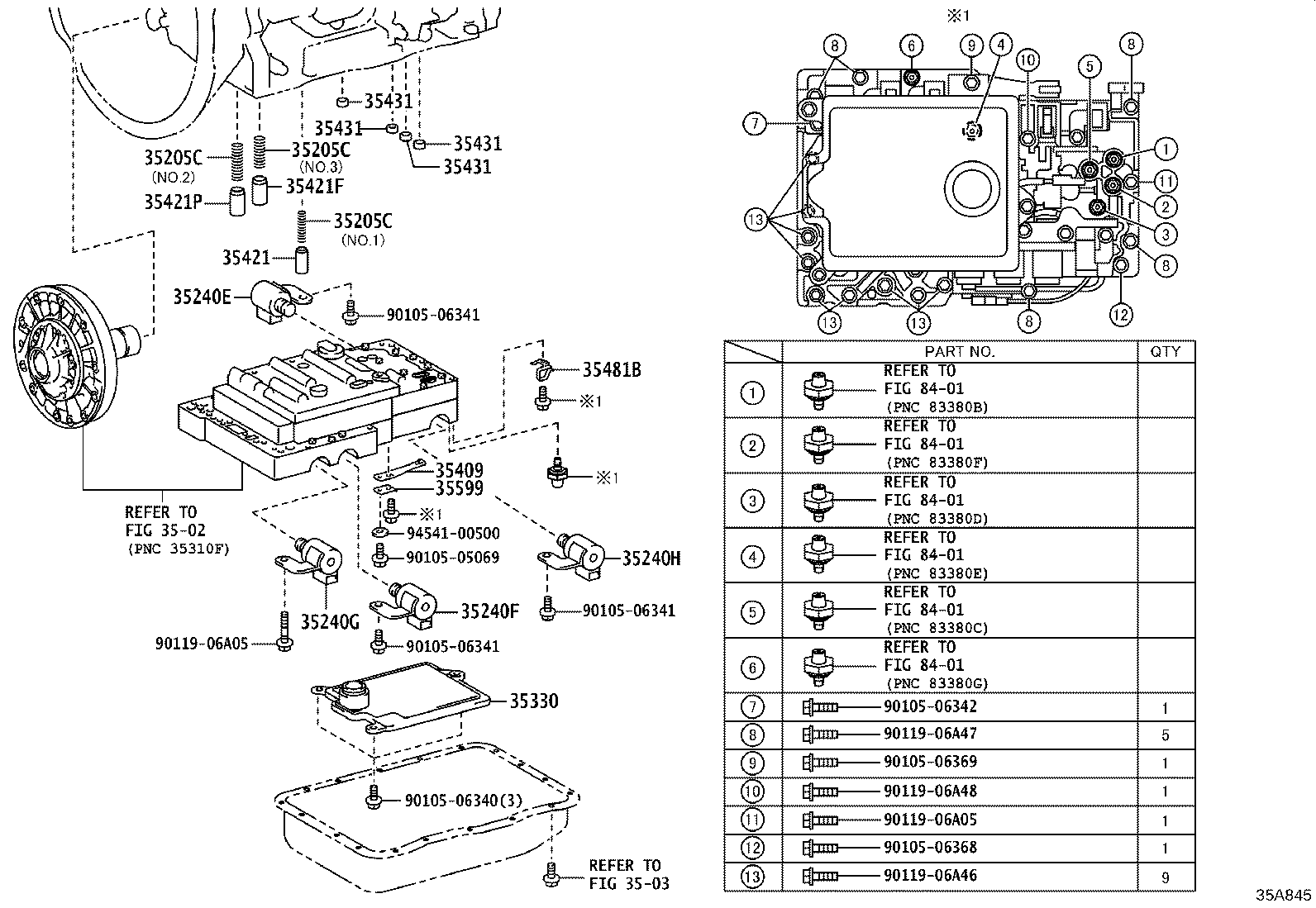

Click highlighted areas on diagram
A861E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35205C - SPRING SUB-ASSY, ACCUMULATOR | ||||
| 35205-37030 |
XZB60,70,80..6FC NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37010 |
XZB60,70,80..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37020 |
XZB60,70,80..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 35205C - SPRING SUB-ASSY, ACCUMULATOR | ||||
| 35205-37030 |
XZB60,70,80..6FC NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37010 |
XZB60,70,80..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37020 |
XZB60,70,80..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 35205C - SPRING SUB-ASSY, ACCUMULATOR | ||||
| 35205-37030 |
XZB60,70,80..6FC NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37010 |
XZB60,70,80..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 35205-37020 |
XZB60,70,80..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 35240E - VALVE, SOLENOID(S1) | ||||
| 85420-37020 |
XZB60,70,80..6FC |
1 | ||
| 35240F - VALVE, SOLENOID(S2) | ||||
| 85420-37020 |
XZB60,70,80..6FC |
1 | ||
| 35240G - VALVE, SOLENOID(S3) | ||||
| 85420-37020 |
XZB60,70,80..6FC |
1 | ||
| 35240H - VALVE, SOLENOID(S4) | ||||
| 85420-37020 |
XZB60,70,80..6FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-37010 |
XZB60,70,80..6FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-37020 |
XZB60,70,80..6FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-37010 |
XZB60,70,80..6FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35421-37020 |
XZB60,70,80..6FC |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-37030 |
XZB60,70,80..6FC |
1 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35431-37010 |
XZB60,70,80..6FC |
4 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35431-37010 |
XZB60,70,80..6FC |
4 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35431-37010 |
XZB60,70,80..6FC |
4 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35431-37010 |
XZB60,70,80..6FC |
4 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-37010 |
XZB60,70,80..6FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-37020 |
XZB60,70,80..6FC |
1 | ||
| Common parts | ||||
| 90105-05069 | ||||
| 90105-06340 | ||||
| 90105-06341 | ||||
| 90105-06342 | ||||
| 90105-06368 | ||||
| 90105-06369 | ||||
| 90119-06A05 | ||||
| 90119-06A46 | ||||
| 90119-06A47 | ||||
| 90119-06A48 | ||||
| 94541-00500 | ||||
| Linked diagrams | ||||
| 3502 | ||||
| 3503 | ||||
| 8401 | ||||
