XZB70-ZRMQY (2017)
Toyota Coaster

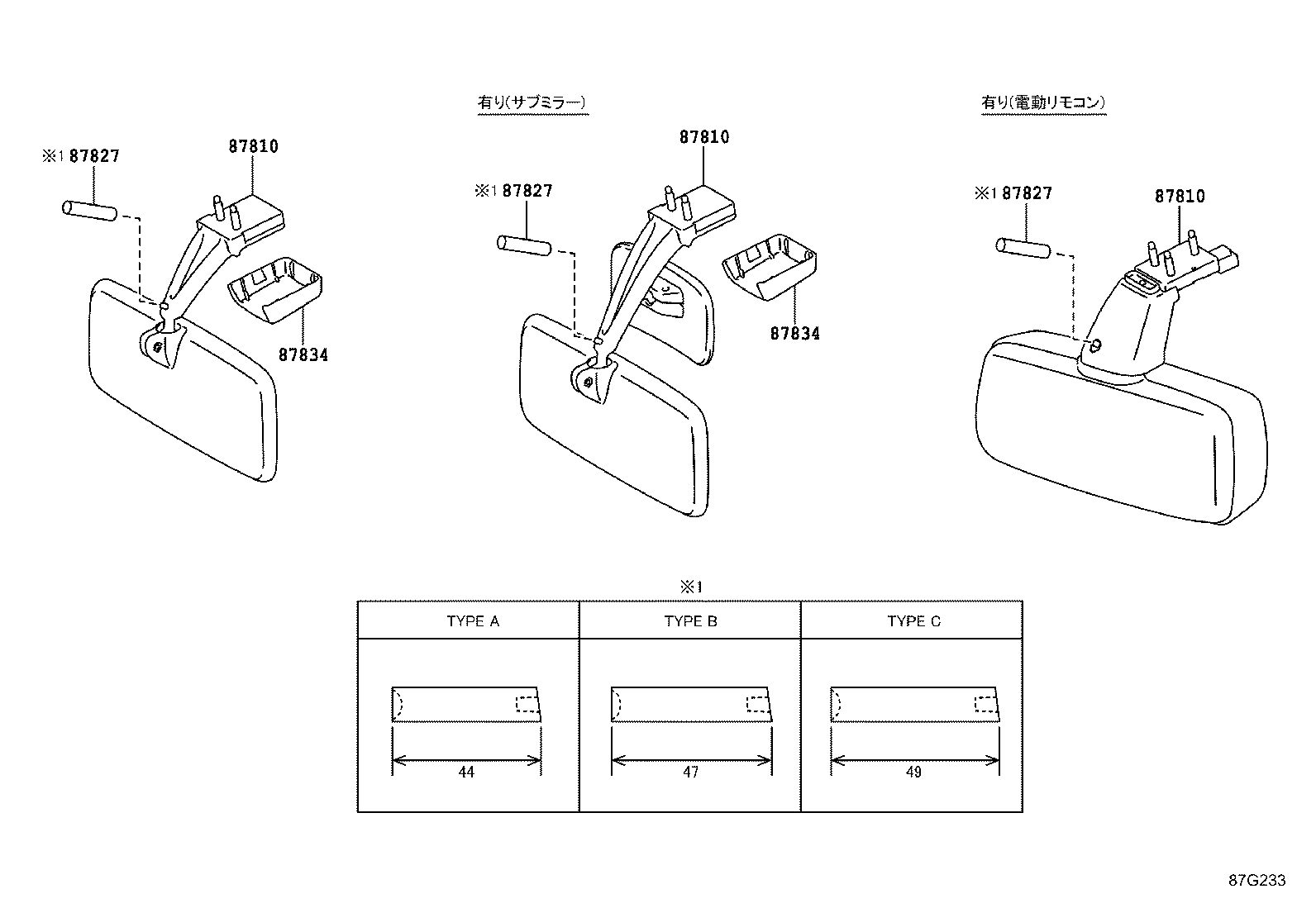

ILLUST NO. 2 OF 3(1701- )
ｲﾝﾅﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-36080 |
XZB70..EX,PREM |
1 | ||
| 87810-36110B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87810-V4020 |
XZB70..EX,PREM |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-36090B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-36080 |
XZB70..EX,PREM |
1 | ||
| 87810-36110B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87810-V4020 |
XZB70..EX,PREM |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-36090B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-36080 |
XZB70..EX,PREM |
1 | ||
| 87810-36110B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87810-V4020 |
XZB70..EX,PREM |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-V4010B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ− 電動ﾘﾓｺﾝ(ｻﾌﾞﾐﾗｰ付き)&ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 87810-36100B0 |
XZB60,70..S ｲﾝﾅﾐﾗｰ−手動(ｻﾌﾞﾐﾗｰ付き),LT.GRAY,TRIM1# |
1 | ||
| 87810-36090B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-92600 |
XZB60,70,80 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 87828-32010 |
XZB60,70,80 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87828-30010 |
XZB60,70,80 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-92600 |
XZB60,70,80 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 87828-32010 |
XZB60,70,80 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87828-30010 |
XZB60,70,80 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-92600 |
XZB60,70,80 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 87828-32010 |
XZB60,70,80 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 87828-30010 |
XZB60,70,80 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-20080B6 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-20080B6 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||

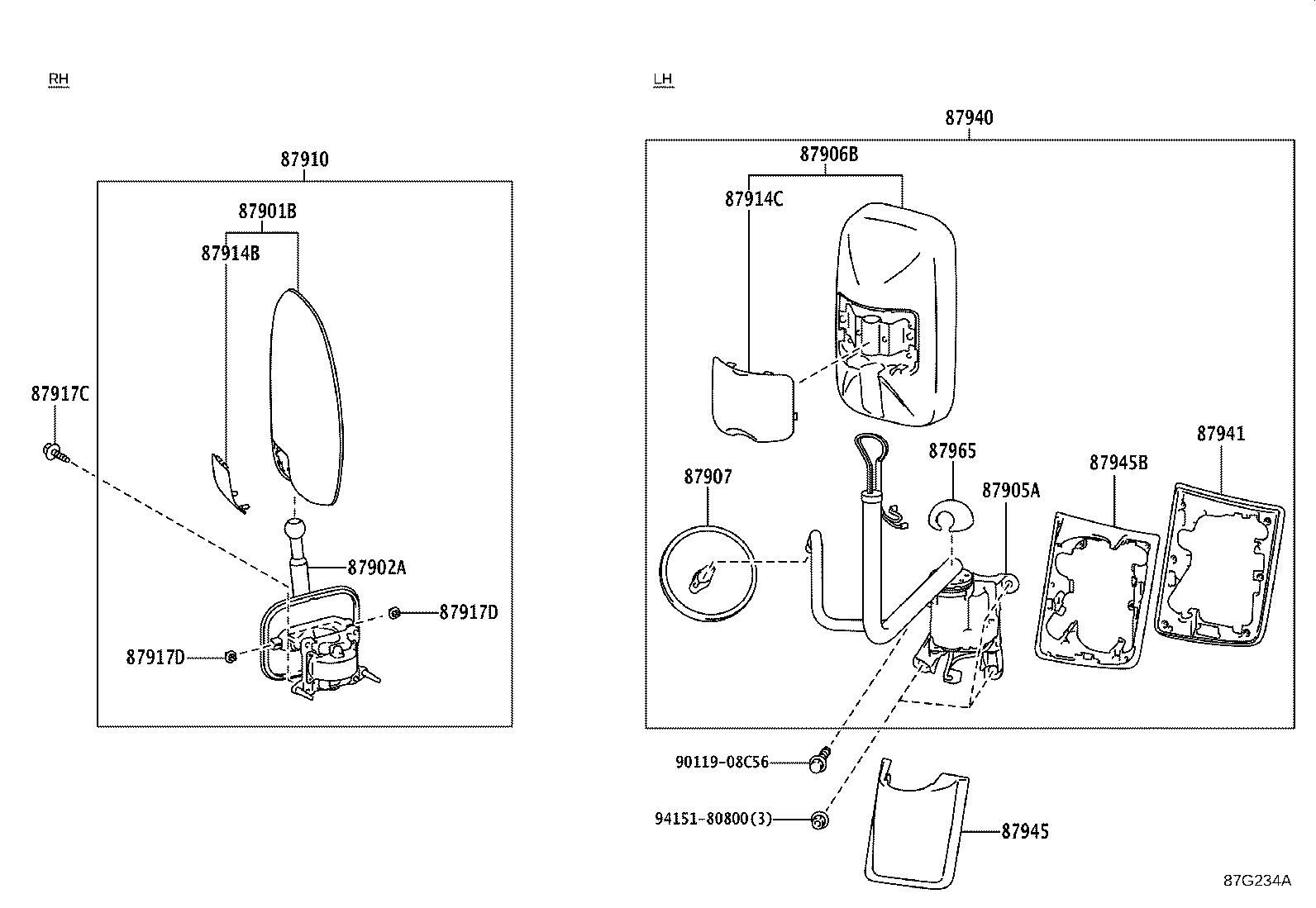

ILLUST NO. 1 OF 3(1701- )
ｱｳﾀﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-V4010 |
XZB60,70,80 |
1 | ||
| 87901-36180 |
XZB60,70,80 |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87902-36090 |
XZB60,70,80 |
1 | ||
| 87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87905-36170 |
XZB60,70 寒冷地仕様 |
1 | ||
| 87905-36120 |
XZB60,70 |
1 | ||
| 87905-36121 |
XZB60,70,80 |
1 | ||
| 87905-V4020 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87905-V4010 |
XZB60,70,80 |
1 | ||
| 87905-36171 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-36190 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87901-V4020 |
XZB60,70,80 |
1 | ||
| 87901-36150 |
XZB60,70,80 |
1 | ||
| 87901-V4030 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-36030 |
XZB60,70,80 |
1 | ||
| 87907-37070 |
XZB60,70,80 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-V4010 |
XZB60,70,80 |
1 | ||
| 87910-36150 |
XZB60,70,80 塗装不要 |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
XZB60,70,80 |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37040 |
XZB60,70,80 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-26020 |
XZB60,70,80 |
4 | ||
| 87917D - CLIP, OUTER MIRROR | ||||
| 62955-50010 |
XZB60,70,80 |
2 | ||
| 87917D - CLIP, OUTER MIRROR | ||||
| 62955-50010 |
XZB60,70,80 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-V4020 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 87940-36161 |
XZB60,70,80 塗装不要,寒冷地仕様 |
1 | ||
| 87940-36160 |
XZB60,70 塗装不要,寒冷地仕様 |
1 | ||
| 87940-36151 |
XZB60,70,80 塗装不要 |
1 | ||
| 87940-V4010 |
XZB60,70,80 |
1 | ||
| 87940-36150 |
XZB60,70 塗装不要 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-36010 |
XZB60,70,80 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-36010 |
XZB60,70,80 |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87944-36010 |
XZB60,70,80 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37030 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 94151-80800 | ||||

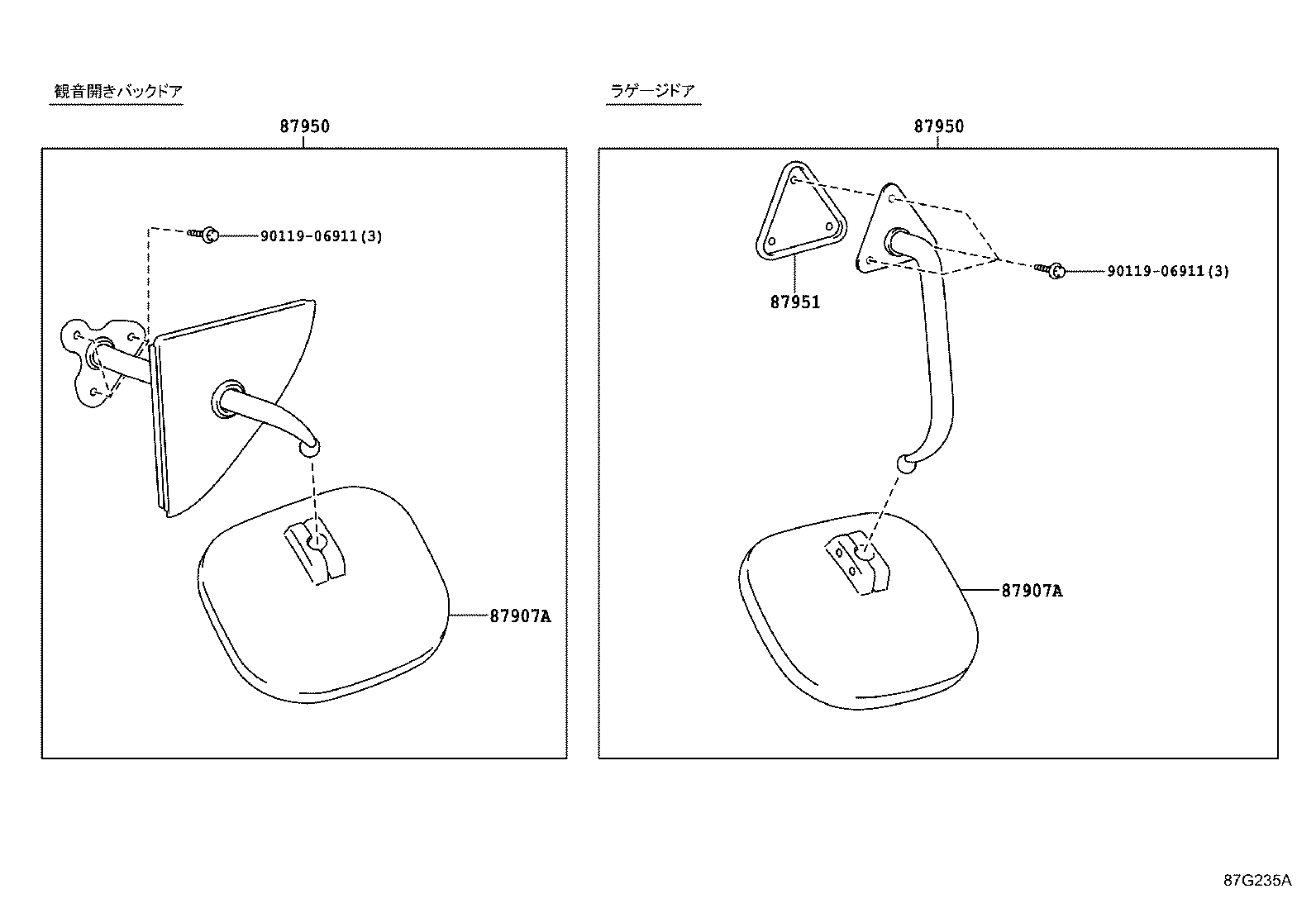

ILLUST NO. 3 OF 3(1701- )
ﾘﾔｱﾝﾀﾞﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW | ||||
| 87907-95J02 |
XZB60,70,80 ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87907-95J02 |
XZB60,70,80 |
1 | ||
| 87907A - MIRROR SUB-ASSY, OUTER UNDER REAR VIEW | ||||
| 87907-95J02 |
XZB60,70,80 ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87907-95J02 |
XZB60,70,80 |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-36080 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り(*DSBD) |
1 | ||
| 87950-36060 |
XZB60,70..25S,29S |
1 | ||
| 87950-36061 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87950-36061 |
XZB60,70..25S,29S |
1 | ||
| 87950-36060 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-36080 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り(*DSBD) |
1 | ||
| 87950-36060 |
XZB60,70..25S,29S |
1 | ||
| 87950-36061 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87950-36061 |
XZB60,70..25S,29S |
1 | ||
| 87950-36060 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87951 - GASKET, OUTER UNDER REAR VIEW MIRROR | ||||
| 87951-36010 |
XZB60,70..25S,29S |
1 | ||
| 87951-36011 |
XZB60,70..25S,29S |
1 | ||
| 87951-36010 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| 87951-36011 |
XZB60,70..25S,29S ﾘﾔｱﾝﾀﾞﾐﾗｰ−無し |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
