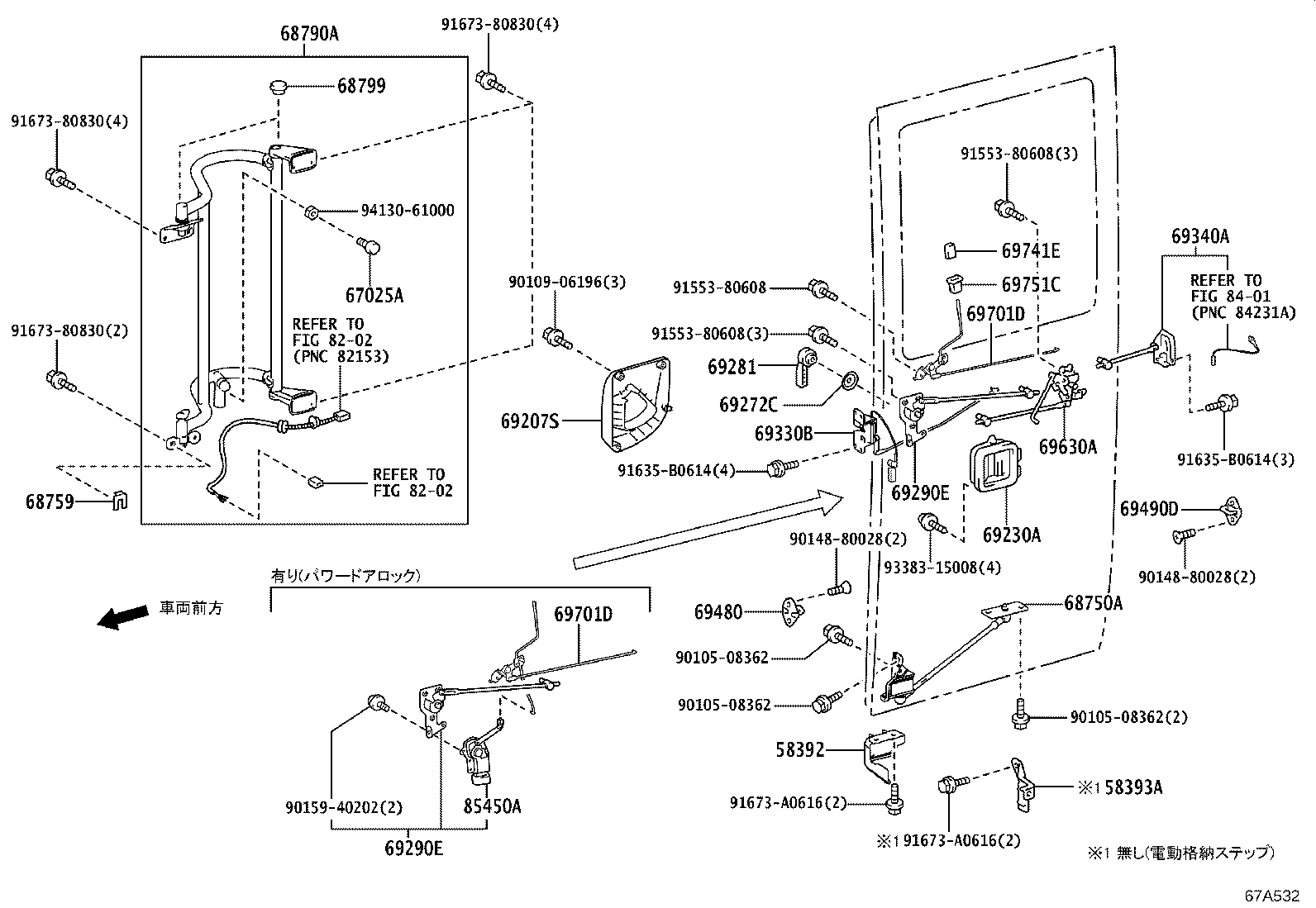

XZB70-ZRMEY (2017)
Toyota Coaster
(1701-1908)
ｸﾞﾗｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58392 - MUDGUARD, GLIDE DOOR LINK, FRONT | ||||
| 58392-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58393A - MUDGUARD, GLIDE DOOR LINK, REAR | ||||
| 58393-36011 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 67025A - STOPPER SUB-ASSY, SLIDE DOOR, FRONT | ||||
| 67025-36010 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36051 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68759 - SPACER, GLIDE DOOR ARM | ||||
| 68759-90B01 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68790A - ARM ASSY, GLIDE DOOR | ||||
| 68790-36080B0 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36070B0 |
XZB60,70..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36071B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 69207S - COVER(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69288-36010B1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE | ||||
| 69230-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69230-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69230-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69272C - PLATE, GLIDE DOOR INSIDE HANDLE | ||||
| 69272-30010 |
XZB60,70,80..GX,LX |
1 | ||
| 69281 - HANDLE, GLIDE DOOR INSIDE | ||||
| 69281-36040B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69281-36010B1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69281-36040B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69330B - LOCK ASSY, GLIDE DOOR, FRONT | ||||
| 69330-36070 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69330-36070 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69330-36050 |
XZB60,70,80..GX,LX |
1 | ||
| 69340A - LOCK ASSY, GLIDE DOOR, REAR | ||||
| 69340-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69340-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69340-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT | ||||
| 69480-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69480-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR | ||||
| 69490-36011 |
XZB60,70,80..GX,LX |
1 | ||
| 69490-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE | ||||
| 69630-36030 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69630-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69701D - BELLCRANK SUB-ASSY, DOOR LOCK CONTROL, UPPER | ||||
| 69701-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69701D - BELLCRANK SUB-ASSY, DOOR LOCK CONTROL, UPPER | ||||
| 69701-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69741E - KNOB, DOOR LOCK CONTROL | ||||
| 69741-90K00P1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69751C - HOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR) | ||||
| 69079-90K00B3 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 85450A - MOTOR ASSY, DOOR CONTROL | ||||
| 85450-36050 |
XZB60,70,80..GX,LX |
1 | ||
| 85453 - MOTOR, DOOR CONTROL | ||||
| 85450-36080 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 85450-36030 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85450-36030 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 85450-36030 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 85450-36080 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85638B - SPACER, AUTOMATIC DOOR | ||||
| 85638-36010 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 85638-36010 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85638-36010 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| Common parts | ||||
| 90105-08362 | ||||
| 90109-06122 | ||||
| 90109-06196 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 90202-08039 | ||||
| 91553-80608 | ||||
| 91635-B0614 | ||||
| 91673-80616 | ||||
| 91673-80830 | ||||
| 91673-A0616 | ||||
| 93383-15008 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

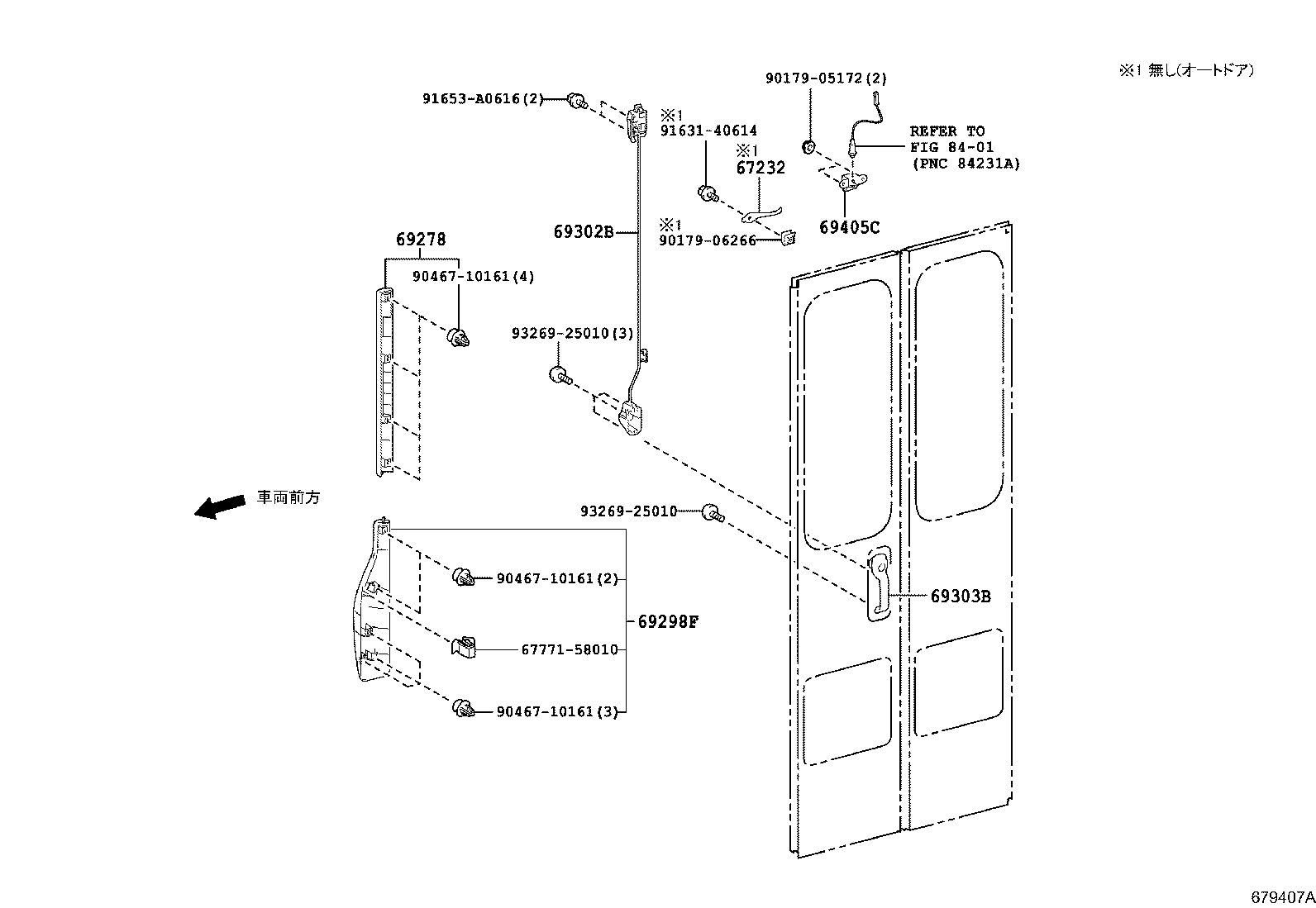

(1701- )XZB60,70
ｵﾘﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67232 - STOPPER, CENTER DOOR OPEN | ||||
| 67255-36011 |
XZB60,70..S |
1 | ||
| 69278 - BEZEL, DOOR INSIDE HANDLE, NO.1 LH | ||||
| 69278-36031B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 69278-36030B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 69298F - BEZEL, DOOR INSIDE HANDLE, NO.2 LH | ||||
| 69298-36041B0 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69298-36050B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 69298-36051B0 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 69298-36040B0 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE | ||||
| 69302-36040B1 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 69302-36030B1 |
XZB60,70..S ｾﾝﾀﾄﾞｱ−折戸式(自動) & 有り(幼児用3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE | ||||
| 69303-36010 |
XZB60,70..S |
1 | ||
| 69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK | ||||
| 69405-90B00 |
XZB60,70..S |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90179-05172 | ||||
| 90179-06266 | ||||
| 90467-10161 | ||||
| 91631-40614 | ||||
| 91653-A0616 | ||||
| 93269-25010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1908- )EX,GX,LX,PREM
ｸﾞﾗｲﾄﾞﾄﾞｱ, ｱﾘ(ｵｰﾄﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58392 - MUDGUARD, GLIDE DOOR LINK, FRONT | ||||
| 58392-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58393A - MUDGUARD, GLIDE DOOR LINK, REAR | ||||
| 58393-36011 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 67025A - STOPPER SUB-ASSY, SLIDE DOOR, FRONT | ||||
| 67025-36010 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36051 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68759 - SPACER, GLIDE DOOR ARM | ||||
| 68759-90B01 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68790A - ARM ASSY, GLIDE DOOR | ||||
| 68790-36080B0 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36070B0 |
XZB60,70..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36071B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 69030B - LOCK ASSY, GLIDE DOOR OPEN | ||||
| 69030-36080 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69030-36080 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE | ||||
| 69230-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69230-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69230-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69281 - HANDLE, GLIDE DOOR INSIDE | ||||
| 69281-36040B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69281-36010B1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69281-36040B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 69330B - LOCK ASSY, GLIDE DOOR, FRONT | ||||
| 69330-36070 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69330-36070 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69330-36050 |
XZB60,70,80..GX,LX |
1 | ||
| 69340A - LOCK ASSY, GLIDE DOOR, REAR | ||||
| 69340-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69340-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69340-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT | ||||
| 69480-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69480-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR | ||||
| 69490-36011 |
XZB60,70,80..GX,LX |
1 | ||
| 69490-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE | ||||
| 69630-36030 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69630-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69714B - LINK, REAR DOOR OPEN CONTROL | ||||
| 69714-36010 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69714-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69775A - LINK, DOOR LOCK CONTROL LOCKING | ||||
| 69775-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69775-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85453 - MOTOR, DOOR CONTROL | ||||
| 85450-36080 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 85450-36030 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 85450-36030 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ) |
1 | ||
| 85450-36030 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 85450-36080 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| Common parts | ||||
| 90105-08362 | ||||
| 90119-08357 | ||||
| 90148-60076 | ||||
| 90148-80028 | ||||
| 91551-80612 | ||||
| 91551-80620 | ||||
| 91553-80614 | ||||
| 91673-80830 | ||||
| 91673-A0616 | ||||
| 94130-61000 | ||||
(1908- )
ｸﾞﾗｲﾄﾞﾄﾞｱ, ﾅｼ(ｵｰﾄﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58392 - MUDGUARD, GLIDE DOOR LINK, FRONT | ||||
| 58392-36020 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 58393A - MUDGUARD, GLIDE DOOR LINK, REAR | ||||
| 58393-36011 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 67025A - STOPPER SUB-ASSY, SLIDE DOOR, FRONT | ||||
| 67025-36010 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36051 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68759 - SPACER, GLIDE DOOR ARM | ||||
| 68759-90B01 |
XZB60,70,80..EX,GX,LX,PREM |
1 | ||
| 68790A - ARM ASSY, GLIDE DOOR | ||||
| 68790-36080B0 |
XZB60,70..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36070B0 |
XZB60,70..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36100B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 68790-36080B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(電動格納ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 68790-36071B0 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
XZB60,70,80..EX,GX,LX,PREM |
2 | ||
| 69207S - COVER(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69288-36010B1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE | ||||
| 69230-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69230-36010 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69230-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69272C - PLATE, GLIDE DOOR INSIDE HANDLE | ||||
| 69272-30010 |
XZB60,70,80..GX,LX |
1 | ||
| 69281 - HANDLE, GLIDE DOOR INSIDE | ||||
| 69281-36040B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 69281-36010B1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69281-36040B0 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動),LT.GRAY,TRIM1# |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69330B - LOCK ASSY, GLIDE DOOR, FRONT | ||||
| 69330-36070 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69330-36070 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69330-36050 |
XZB60,70,80..GX,LX |
1 | ||
| 69340A - LOCK ASSY, GLIDE DOOR, REAR | ||||
| 69340-36020 |
XZB60,70,80..GX,LX |
1 | ||
| 69340-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69340-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT | ||||
| 69480-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69480-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69480-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR | ||||
| 69490-36011 |
XZB60,70,80..GX,LX |
1 | ||
| 69490-36020 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69490-36020 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE | ||||
| 69630-36030 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) |
1 | ||
| 69630-36050 |
XZB60,70,80..GX,LX ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) |
1 | ||
| 69630-36050 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) ｾﾝﾀﾄﾞｱ−ｸﾞﾗｲﾄﾞ式(自動) & 有り(3段ｽﾃｯﾌﾟ) |
1 | ||
| 69701D - BELLCRANK SUB-ASSY, DOOR LOCK CONTROL, UPPER | ||||
| 69701-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69701D - BELLCRANK SUB-ASSY, DOOR LOCK CONTROL, UPPER | ||||
| 69701-36030 |
XZB60,70,80..GX,LX |
1 | ||
| 69741E - KNOB, DOOR LOCK CONTROL | ||||
| 69741-90K00P1 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 69751C - HOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR) | ||||
| 69079-90K00B3 |
XZB60,70,80..GX,LX LT.GRAY,TRIM1# |
1 | ||
| 85450A - MOTOR ASSY, DOOR CONTROL | ||||
| 85450-36050 |
XZB60,70,80..GX,LX |
1 | ||
| Common parts | ||||
| 90105-08362 | ||||
| 90109-06196 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 91553-80608 | ||||
| 91635-B0614 | ||||
| 91673-80830 | ||||
| 91673-A0616 | ||||
| 93383-15008 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
