XZB70-ZRMEY (2017)
Toyota Coaster

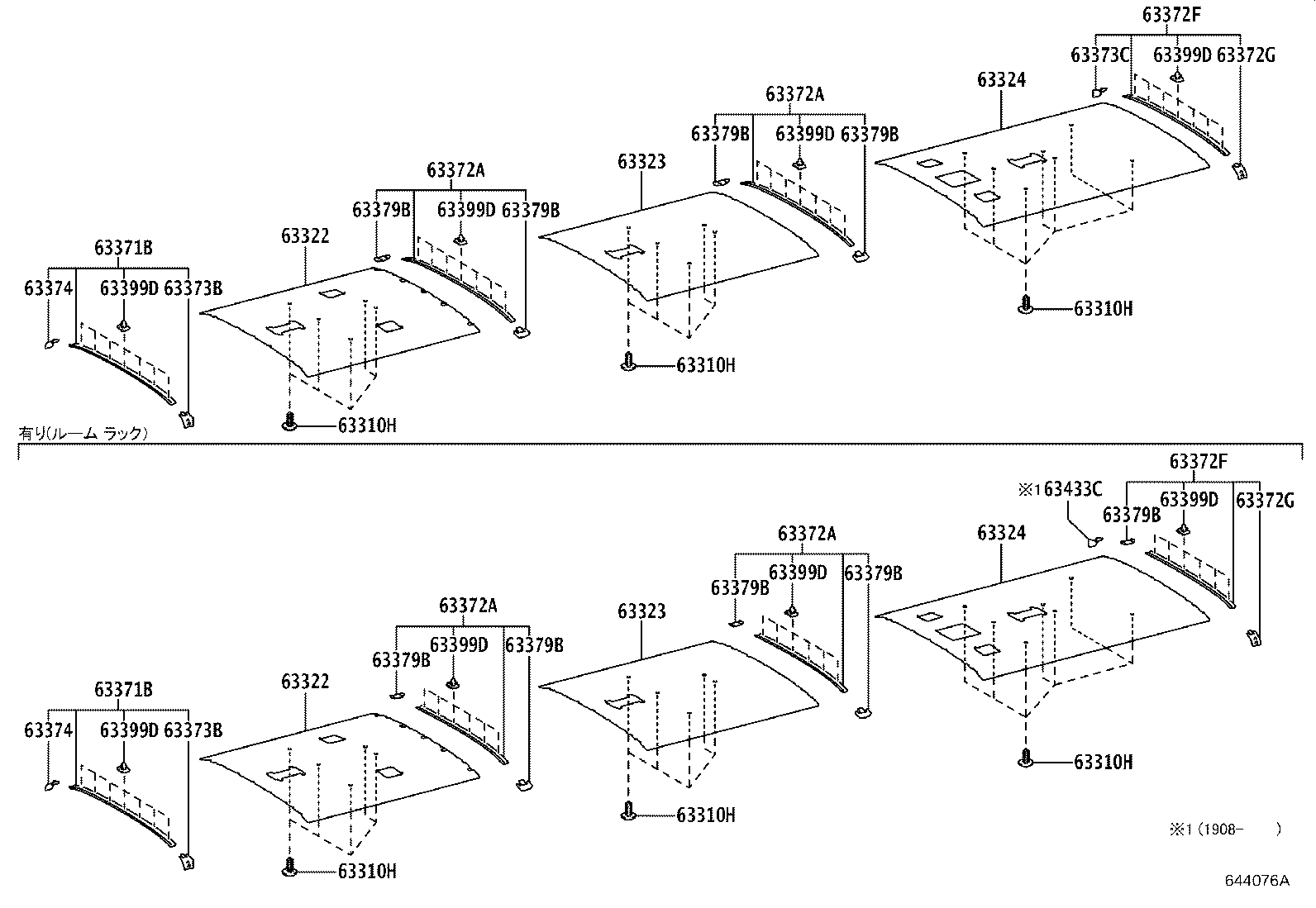

ILLUST NO. 2 OF 4(1701- )21S,24S,29S,49S
ｾﾝﾀﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 63399-26050B0 |
XZB70..EX,GX,LX,S LT.GRAY,TRIM1# |
17 | ||
| 63322 - BOARD, ROOF, NO.2 | ||||
| 63313-36650B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB60,70,80..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63322 - BOARD, ROOF, NO.2 | ||||
| 63313-36650B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB60,70,80..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36760B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63323 - BOARD, ROOF, NO.3 | ||||
| 63313-36731B0 |
XZB60,70,80..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36730B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36710B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63313-36731B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36730B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63323 - BOARD, ROOF, NO.3 | ||||
| 63313-36731B0 |
XZB60,70,80..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36730B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36710B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63313-36731B0 |
XZB60,70,80..(13S,24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63313-36730B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63324 - BOARD, ROOF, NO.4 | ||||
| 63314-36C20B0 |
XZB70..(24S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36C40B0 |
XZB70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36B20B0 |
XZB70..GX 換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36A70B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 63314-36C21B0 |
XZB70..(24S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36C41B0 |
XZB70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63324 - BOARD, ROOF, NO.4 | ||||
| 63314-36C20B0 |
XZB70..(24S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36C40B0 |
XZB70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36B20B0 |
XZB70..GX 換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36A70B0 |
XZB70..(24S,29S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
1 | ||
| 63314-36C21B0 |
XZB70..(24S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63314-36C41B0 |
XZB70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36160B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36160B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
2 | ||
| 63371-36170B0 |
XZB60,70..(24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
2 | ||
| 63371-36170B0 |
XZB60,70..(24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
2 | ||
| 63371-36170B0 |
XZB60,70..(24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36210B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
2 | ||
| 63371-36170B0 |
XZB60,70..(24S,25S,29S,39S,49S)..(GX,LX,S) LT.GRAY,TRIM1# |
2 | ||
| 63371-36210B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63372F - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36290B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63372F - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36290B0 |
XZB60,70,80..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63371-36200B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||
| 63372G - MOULDING, ROOF BOARD SET, NO.4 | ||||
| 63374-36060B0 |
XZB60,70..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63372G - MOULDING, ROOF BOARD SET, NO.4 | ||||
| 63374-36060B0 |
XZB60,70..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-36100B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-36100B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63373C - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-36110B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-36050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-36050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-36050B0 |
XZB60,70..GX,LX,S LT.GRAY,TRIM1# |
4 | ||
| 63379-36050B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
5 | ||
| 63379-36050B0 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り,LT.GRAY,TRIM1# |
5 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
XZB60,70..GX 荷物棚−有り&換気ﾌｧﾝ−有り |
25 | ||
| 63399-26030 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り |
25 | ||
| 63399-26030 |
XZB60,70..GX,LX,S |
28 | ||
| 63433C - COVER, ROOM RACK SIDE, NO.1 | ||||
| 63433-36190B0 |
XZB60,70..(24S,25S,29S)..(GX,LX) 荷物棚−有り,LT.GRAY,TRIM1# |
1 | ||

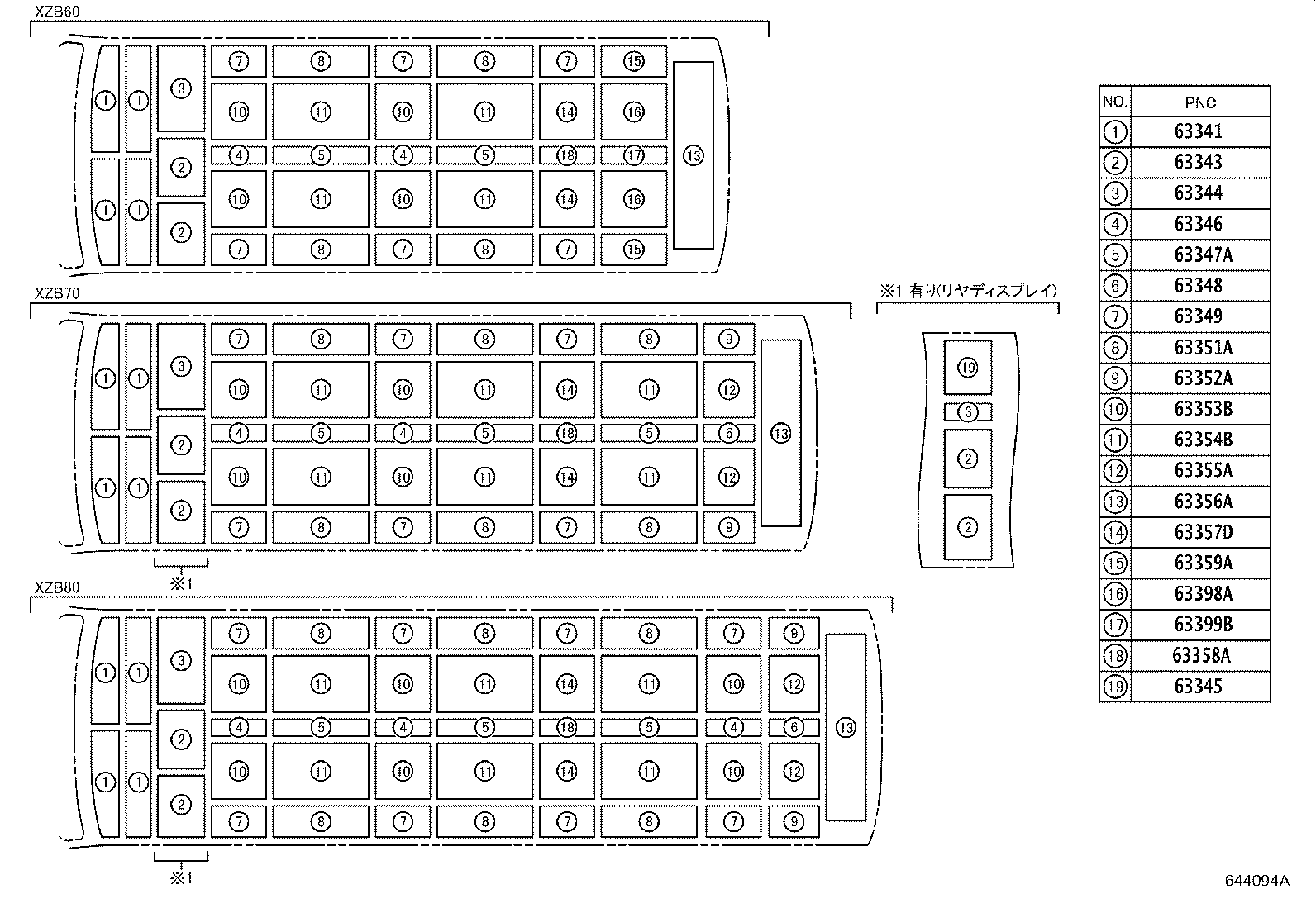

ILLUST NO. 4 OF 4(1701- )
ﾙｰﾌｻｲﾚﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-36040 |
XZB60,70,80 |
4 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-36070 |
XZB60,70,80 |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36060 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63344-36060 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63344-36060 |
XZB70,80..EX,GX,PREM 換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63344-36070 |
XZB60,70,80 |
1 | ||
| 63344-36060 |
XZB70,80..13S,21S,24S,29S ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-36040 |
XZB70,80..13S,21S,24S,29S ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63345-36040 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63345-36040 |
XZB70,80..EX,GX,PREM 換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63345-36040 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63693-36020 |
XZB60,70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
2 | ||
| 63693-36020 |
XZB60,70 寒冷地仕様 |
2 | ||
| 63346-36030 |
XZB60,70 |
2 | ||
| 63693-36020 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63693-36020 |
XZB70..21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63694-36010 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
3 | ||
| 63694-36010 |
XZB70,80 寒冷地仕様 |
3 | ||
| 63694-36010 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
3 | ||
| 63694-36010 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
3 | ||
| 63347-36090 |
XZB70,80 |
3 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63695-36010 |
XZB70 寒冷地仕様 |
1 | ||
| 63695-36010 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
1 | ||
| 63348-36080 |
XZB70 |
1 | ||
| 63695-36010 |
XZB70..21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63695-36010 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36070 |
XZB60,70 |
6 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63351-36040 |
XZB70,80 |
6 | ||
| 63352A - PAD, ROOF SILENCER, NO.11 | ||||
| 63352-36040 |
XZB70 |
2 | ||
| 63353B - PAD, ROOF SILENCER, NO.12 | ||||
| 63696-36010 |
XZB70..21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
4 | ||
| 63353-36030 |
XZB60,70 |
4 | ||
| 63696-36010 |
XZB60,70 寒冷地仕様 |
4 | ||
| 63696-36010 |
XZB60,70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
4 | ||
| 63696-36010 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
4 | ||
| 63354B - PAD, ROOF SILENCER, NO.13 | ||||
| 63697-36010 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
6 | ||
| 63354-36030 |
XZB70,80 |
6 | ||
| 63697-36010 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
6 | ||
| 63697-36010 |
XZB70,80 寒冷地仕様 |
6 | ||
| 63697-36010 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
6 | ||
| 63355A - PAD, ROOF SILENCER, NO.14 | ||||
| 63355-36030 |
XZB70 |
2 | ||
| 63698-36010 |
XZB70 寒冷地仕様 |
2 | ||
| 63698-36010 |
XZB70..21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63698-36010 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63698-36010 |
XZB70..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
2 | ||
| 63356A - PAD, ROOF SILENCER, NO.15 | ||||
| 63356-36020 |
XZB60,70,80 |
1 | ||
| 63357D - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-36190 |
XZB60,70,80 寒冷地仕様 |
2 | ||
| 63357-36190 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63357-36180 |
XZB60,70,80 |
2 | ||
| 63357-36190 |
XZB60,70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
2 | ||
| 63357-36190 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
2 | ||
| 63358A - PAD, ROOF SILENCER, NO.17 | ||||
| 63692-36010 |
XZB60,70,80 |
1 | ||
| 63358-36060 |
XZB60,70,80..EX,GX,PREM 換気ﾌｧﾝ−有り |
1 | ||
| 63692-36020 |
XZB70,80..13S,21S,24S,29S 寒冷地仕様&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63358-36060 |
XZB60,70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り |
1 | ||
| 63358-36060 |
XZB70,80..EX,GX,PREM 寒冷地仕様&換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ& ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 63692-36020 |
XZB60,70,80 寒冷地仕様 |
1 | ||
| 63358-36060 |
XZB70,80..EX,GX,PREM 換気ﾌｧﾝ−有り&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ |
1 | ||

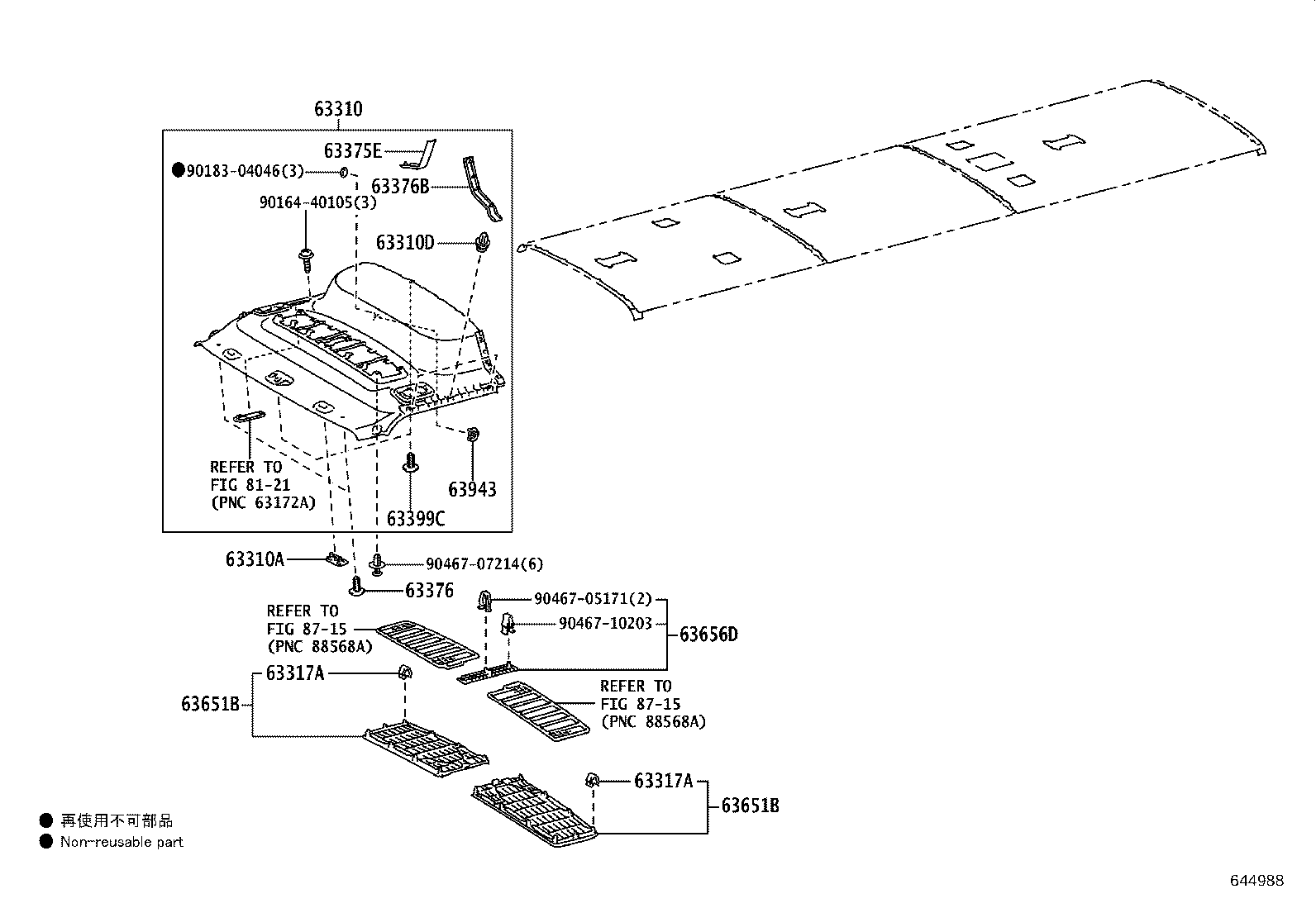

ILLUST NO. 1 OF 4(1701- )
ﾌﾛﾝﾄﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-36070B1 |
XZB60,70..S LT.GRAY,TRIM1# |
1 | ||
| 63310-36190B0 |
XZB60,70..S ｸﾛｯｸ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-36380B0 |
XZB70,80..EX,GX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ,LT.GRAY,TRIM1# |
1 | ||
| 63310-36240B0 |
XZB70,80..EX,GX ｻﾝﾊﾞｲｻﾞ−有り(運転席のみ & 有り(ｵｰﾅｰｽﾞﾎﾞｰﾄﾞ))&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ & ﾘﾔﾃﾞｨｽﾌﾟﾚｲ,LT.GRAY,TRIM1# |
1 | ||
| 63310-36080B1 |
XZB60,70,80..EX,GX ｻﾝﾊﾞｲｻﾞ−有り(運転席のみ & 有り(ｵｰﾅｰｽﾞﾎﾞｰﾄﾞ)),LT.GRAY,TRIM1# |
1 | ||
| 63310-36370B0 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY) | ||||
| 74317-36050B0 |
XZB60,70,80..LX,S LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-10161 |
XZB60,70,80 |
3 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 67771-44010 |
XZB60,70,80 |
16 | ||
| 67771-44010 |
XZB60,70 |
18 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 67771-44010 |
XZB60,70,80 |
16 | ||
| 67771-44010 |
XZB60,70 |
18 | ||
| 63375E - MOULDING, ROOF HEADLINING, FRONT RH | ||||
| 63375-36040B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63376 - CLIP, HEADLINING | ||||
| 63399-26050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 63376B - MOULDING, ROOF HEADLINIG, NO.1 LH | ||||
| 63376-36030B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36020B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36020B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
2 | ||
| 63656D - COVER, AIR INTAKE, CENTER | ||||
| 63656-36020B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63943 - COVER, COOLER THERMISTOR | ||||
| 63943-36010B1 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90183-04046 | ||||
| 90467-05171 | ||||
| 90467-07214 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||

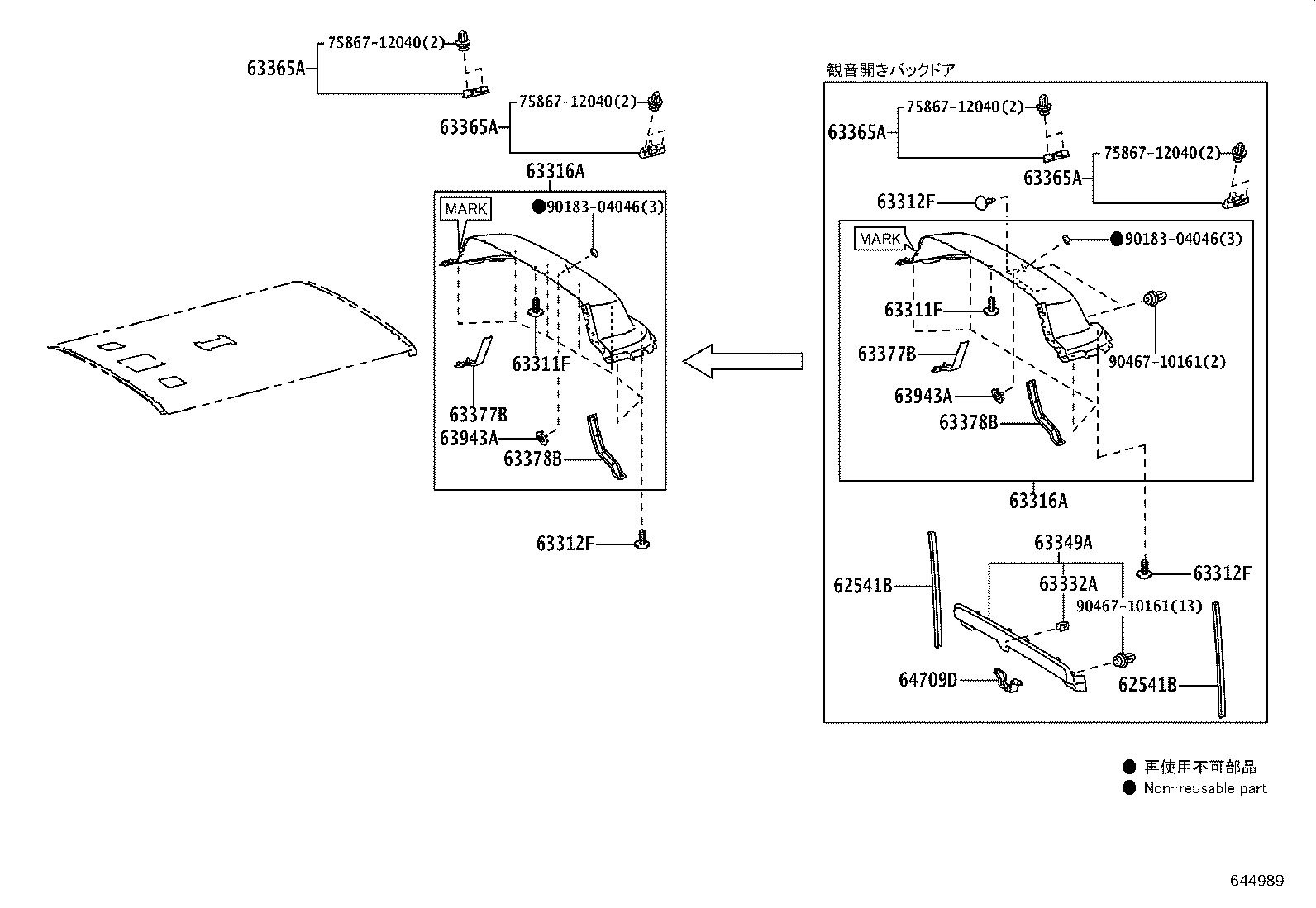

ILLUST NO. 3 OF 4(1701- )
ﾘﾔﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62541B - MOULDING, QUARTER TRIM | ||||
| 62541-36100B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
2 | ||
| 62541B - MOULDING, QUARTER TRIM | ||||
| 62541-36100B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
2 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
7 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
6 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
7 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
6 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
4 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
XZB60,70..25S,29S LT.GRAY,TRIM1# |
7 | ||
| 63399-26050B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
6 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36470B0 |
XZB60,70..(25S,29S)..(EX,GX) ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#,ﾏｰｸ 63316−36470 |
1 | ||
| 63316-36290B1 |
XZB60,70..(25S,29S)..(EX,GX) ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),GRAY,TRIM1#,ﾏｰｸ 63316−3U290 |
1 | ||
| 63316-36390B1 |
XZB60,70..(25S,29S)..(EX,GX) ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 63316-36360B1 |
XZB60,70..(25S,29S)..(EX,GX) GRAY,TRIM1# |
1 | ||
| 63316-36420B0 |
XZB60,70..(25S,29S)..(EX,GX) ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#,ﾏｰｸ 63316−36420 |
1 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36470B0 |
XZB60,70..(25S,29S)..(EX,GX) ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#,ﾏｰｸ 63316−36470 |
1 | ||
| 63316-36290B1 |
XZB60,70..(25S,29S)..(EX,GX) ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),GRAY,TRIM1#,ﾏｰｸ 63316−3U290 |
1 | ||
| 63316-36390B1 |
XZB60,70..(25S,29S)..(EX,GX) ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 63316-36360B1 |
XZB60,70..(25S,29S)..(EX,GX) GRAY,TRIM1# |
1 | ||
| 63316-36420B0 |
XZB60,70..(25S,29S)..(EX,GX) ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1#,ﾏｰｸ 63316−36420 |
1 | ||
| 63332A - RETAINER, ROOF HEADLINING, REAR | ||||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く) |
1 | ||
| 67771-44010 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD |
1 | ||
| 63349A - GARNISH, ROOF HEADLINING, REAR | ||||
| 63349-36060B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 63349-36060B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60,70,80 |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60,70,80 |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60,70,80 |
2 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63367-36030 |
XZB60,70,80 |
2 | ||
| 63377B - MOULDING, ROOF HEADLINING, REAR RH | ||||
| 63377-36080B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63377B - MOULDING, ROOF HEADLINING, REAR RH | ||||
| 63377-36080B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63378B - MOULDING, ROOF HEADLINING, REAR LH | ||||
| 63378-36070B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63378B - MOULDING, ROOF HEADLINING, REAR LH | ||||
| 63378-36070B0 |
XZB60,70,80..EX,GX,LX,S LT.GRAY,TRIM1# |
1 | ||
| 63943A - COVER, COOLER THERMISTOR, NO.2 | ||||
| 63943-36010B1 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 63943A - COVER, COOLER THERMISTOR, NO.2 | ||||
| 63943-36010B1 |
XZB60,70,80..EX,GX LT.GRAY,TRIM1# |
1 | ||
| 64709D - COVER, BACK DOOR STRIKER | ||||
| 64749-36010B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD,LT.GRAY,TRIM1# |
1 | ||
| 64749-36010B0 |
XZB60,70..25S,29S ﾗｹﾞｰｼﾞ & ﾊﾞｯｸﾄﾞｱ−*DSBD&ｻｲﾄﾞｳｲﾝﾄﾞｳ ｶｰﾃﾝ−有り(助手席除く),LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 75867-12040 | ||||
| 90183-04046 | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
