XZB70-ZKTSY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

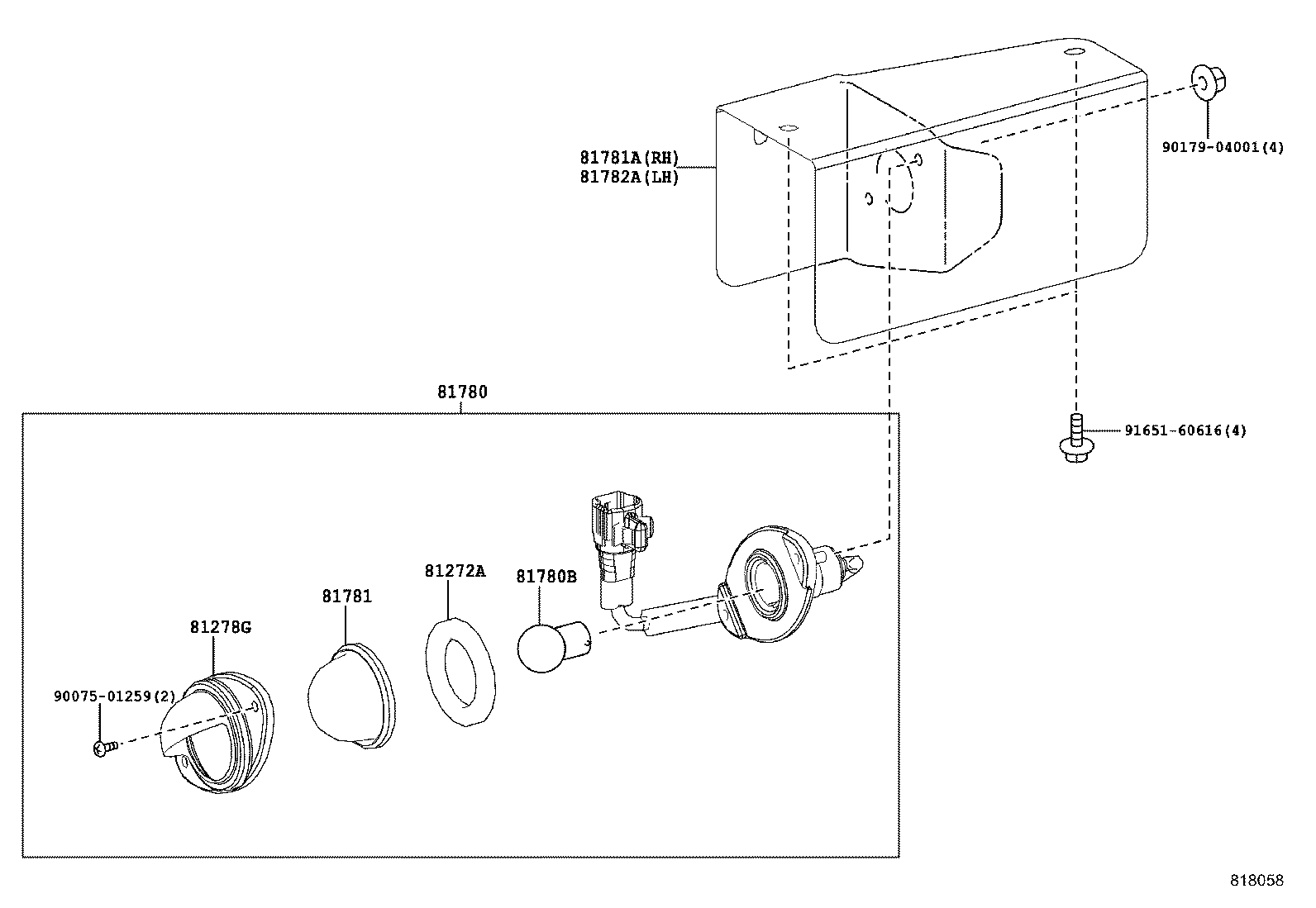

Click highlighted areas on diagram

diagram 81272A 81278G 81780 81780B 81781 81781A 81782A 9007501259 9017904001 9165160616
Part # Description Qty Price
81272A - GASKET, REAR WHEEL LAMP
81272-10010

XZB60,70,80

 2
81278G - COVER, REAR WHEEL LAMP
81276-95016

XZB60,70,80

 2
81780 - LAMP ASSY, REAR WHEEL
81780-36020

XZB60,70,80

 2
81780B - BULB, REAR WHEEL LAMP
90981-12013

XZB60,70,80

 2
81781 - LENS, REAR WHEEL LAMP
81271-10010

XZB60,70,80

 2
81781A - BRACKET, REAR WHEEL LAMP, RH
81781-36010

XZB60,70,80

 1
81782A - BRACKET, REAR WHEEL LAMP, LH
81782-36010

XZB60,70,80

 1
Common parts
90075-01259
90179-04001
91651-60616
