XZB70-ZKTSY (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )S

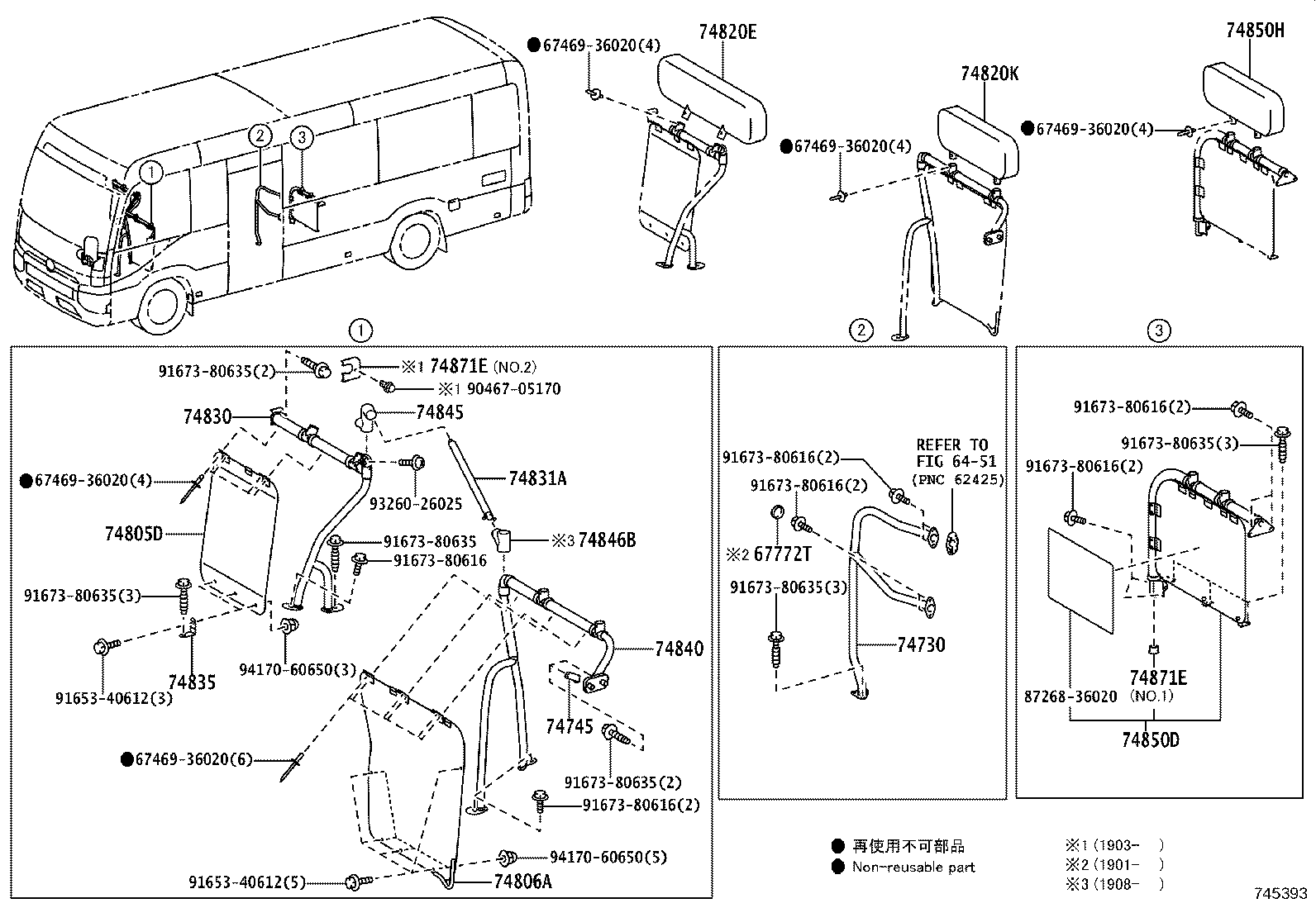

Click highlighted areas on diagram

ﾖｳｼﾞﾊﾞｽ

diagram 6451 6746936020 6746936020 6746936020 6746936020 6746936020 67772T 74730 74745 74805D 74806A 74820E 74820K 74830 74831A 74835 74840 74845 74846B 74850D 74850H 74871E 74871E 8726836020 9046705170 9165340612 9165340612 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9167380635 9167380635 9167380635 9167380635 9167380635 9167380635 9326026025 9417060650 9417060650
Part # Description Qty Price
67772T - CAP, DOOR TRIM RETAINER
67772-52010

XZB60,70..S

 2
74730 - FRAME ASSY, HAND GRIP
74730-36250

XZB60,70..S

 1
74745 - BRACKET, HAND GRIP TO NET, NO.2
74745-36100

XZB60,70..S

 1
74805D - NET SUB-ASSY, FRONT PROTECTOR, RH
74805-36060B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74806A - NET SUB-ASSY, FRONT PROTECTOR, LH
74806-36080B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74820E - PROTECTOR ASSY, FRONT RH
74810-36080E0

XZB60,70..S

ORANGE,TRIM1#

 1
74820K - PROTECTOR ASSY, FRONT LH
74820-36040E0

XZB60,70..S

ORANGE,TRIM1#

 1
74830 - PIPE ASSY, FRONT PROTECTOR, RH
74830-36090B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74830-36091B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74831A - PIPE, FRONT PROTECTOR, CENTER
74831-36020

XZB60,70..S

 1
74835 - BRACKET, FRONT PROTECTOR NET, LOWER RH
74835-36020B0

XZB60,70..S

LT.GRAY,TRIM1#

 3
74840 - PIPE ASSY, FRONT PROTECTOR, LH
74840-36070B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74845 - COVER, FRONT PROTECTOR PIPE HORIZONTAL, RH
74845-36020B1

XZB60,70..S

LT.GRAY,TRIM1#

 1
74846B - COVER, FRONT PROTECTOR PIPE HORIZONTAL, LH
74846-V4010B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74850D - PROTECTOR ASSY, CENTER
74850-36080B0

XZB60,70..S

LT.GRAY,TRIM1#

 1
74850H - PROTECTOR ASSY, CENTER
74850-36060E0

XZB60,70..S

ORANGE,TRIM1#

 1
74871E - PROTECTOR, HAND GRIP PIPE
74871-38010

XZB60,70..S

NO.1:ｲﾗｽﾄ参照

 1
74758-36010B0

XZB60,70..S

LT.GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照

 1
74871E - PROTECTOR, HAND GRIP PIPE
74871-38010

XZB60,70..S

NO.1:ｲﾗｽﾄ参照

 1
74758-36010B0

XZB60,70..S

LT.GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照

 1
Common parts
67469-36020
87268-36020
90467-05170
91653-40612
91673-80616
91673-80635
93260-26025
94170-60650
Linked diagrams
6451
