XZB70-ZKTSY (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

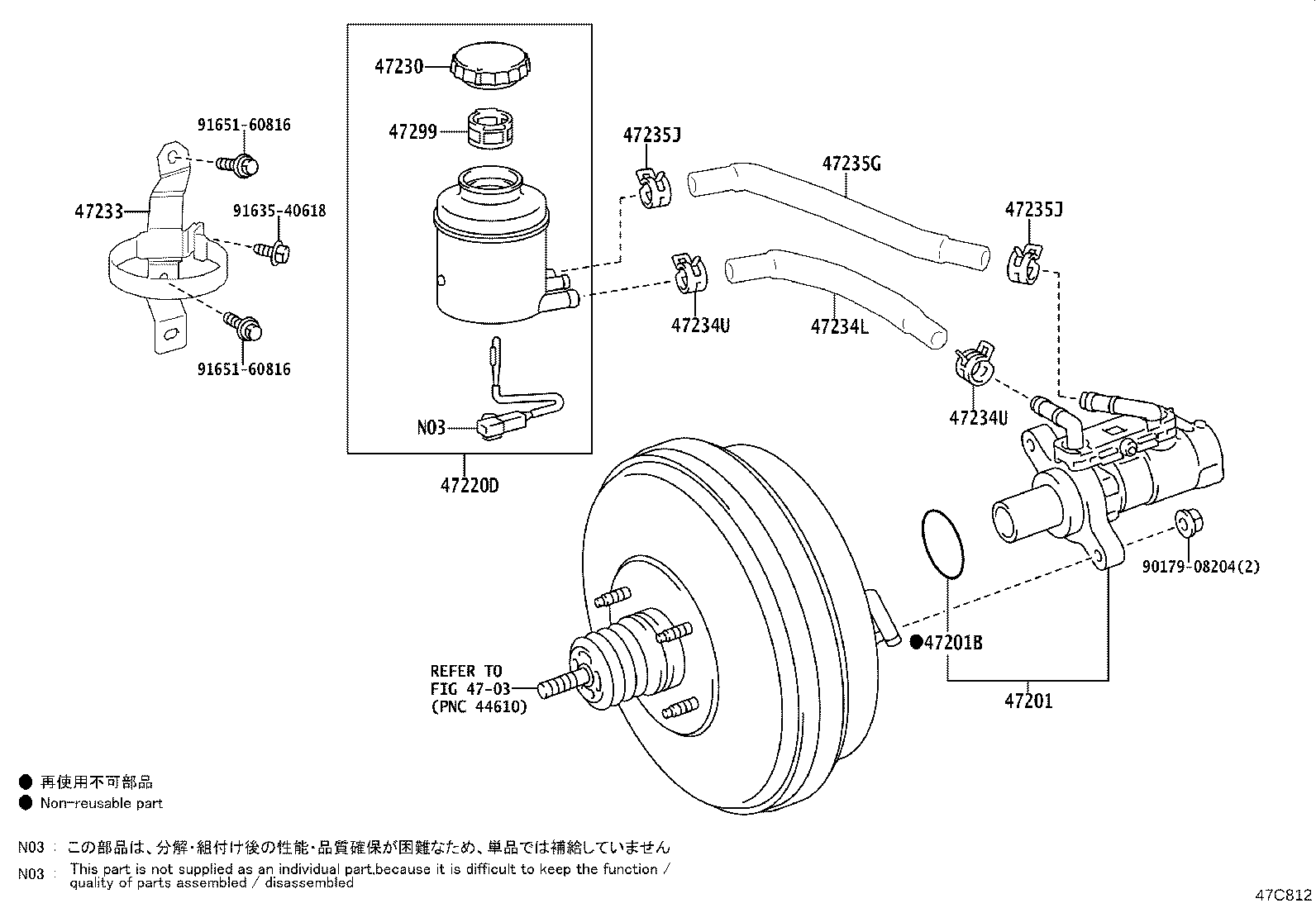

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-37280 |
XZB60,70,80 |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
XZB60,70,80 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36070 |
XZB60,70,80..6FC |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
XZB60,70,80 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
XZB60,70,80 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36210 |
XZB60,70,80 |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60,70,80 |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60,70,80 |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36220 |
XZB60,70,80 |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60,70,80 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60,70,80 |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
XZB60,70,80 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
