XZB51-ZEFQH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )XZB51

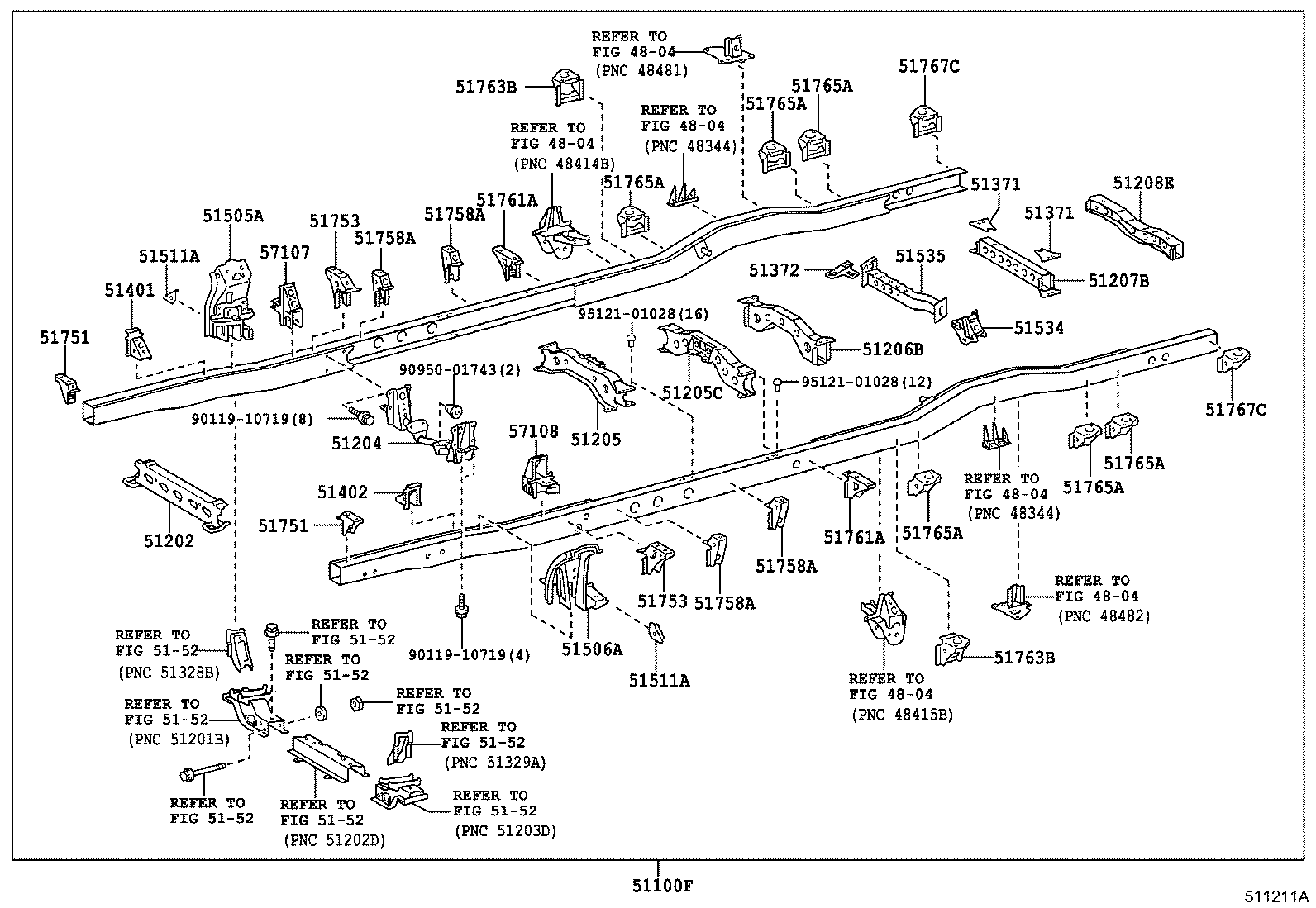

Click highlighted areas on diagram

diagram 4804 4804 4804 4804 4804 4804 51100F 51202 51204 51205 51205C 51206B 51207B 51208E 51371 51371 51372 51401 51402 51505A 51506A 51511A 51511A 5152 5152 5152 5152 5152 5152 5152 5152 5152 51534 51535 51751 51751 51753 51753 51758A 51758A 51758A 51758A 51761A 51761A 51763B 51763B 51765A 51765A 51765A 51765A 51765A 51765A 51767C 51767C 57107 57108 9011910719 9011910719 9095001743 9512101028 9512101028
Part # Description Qty Price
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-36150

BB4#,HDB5#,HZB4#,5#

 1
51201-36150

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36360

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-36190

BB4#,HDB5#,HZB4#,5#

 1
51204-36193

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36171

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-36090

BB4#,HDB5#,HZB4#,5#

 1
51206-36090

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36110

BB4#,HDB5#,HZB4#,5#

 1
51207-36111

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51208E - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51208-36040

XZB50,51..(EX,GX)..(4FC,6F)

 1
51281-36030

BB4#,HDB50,HZB40,5#

 1
51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1
51371-36070

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51371-36070

BB4#,HDB5#,HZB4#,5#

 2
51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1
51371-36070

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51371-36070

BB4#,HDB5#,HZB4#,5#

 2
51372 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.2
51372-36050

XZB51..EX..(4FC,6F)

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-36210

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51421-36210

BB4#,HDB5#,HZB4#,5#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51421-36210

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
51421-36210

BB4#,HDB5#,HZB4#,5#

 1
51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM
51505-36020

XZB51..EX..(4FC,6F)

 1
51505-36030

BB4#,HDB50,HZB40,5#

 1
51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51506-36120

BB4#,HDB50,HZB40,5#

 1
51506-36110

XZB51..EX..(4FC,6F)

 1
51511A - SEAT, FRONT SPRING SUPPORT
51511-36080

BB4#,HDB5#,HZB4#,5#

 2
51511-36080

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51511A - SEAT, FRONT SPRING SUPPORT
51511-36080

BB4#,HDB5#,HZB4#,5#

 2
51511-36080

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51534 - BRACKET, LATERAL ROD SUPPORT, NO.4
51534-36030

XZB51..EX..(4FC,6F)

 1
51535 - CROSSMEMBER, LATERAL ROD SUPPORT
51535-36010

XZB51..EX..(4FC,6F)

 1
51751 - BRACKET, BODY SUPPORT, NO.1
51751-36060

BB4#,HDB5#,HZB4#,5#

 2
51751-36060

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51751 - BRACKET, BODY SUPPORT, NO.1
51751-36060

BB4#,HDB5#,HZB4#,5#

 2
51751-36060

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51753 - BRACKET, BODY SUPPORT, NO.2
51753-36050

BB4#,HDB5#,HZB4#,5#

 2
51753-36051

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51753 - BRACKET, BODY SUPPORT, NO.2
51753-36050

BB4#,HDB5#,HZB4#,5#

 2
51753-36051

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51758-36020

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 4
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51758-36020

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 4
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51758-36020

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 4
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51758-36020

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 4
51761A - BRACKET, BODY SUPPORT, NO.5 RH
51761-36040

BB4#,HDB5#,HZB4#,5#

 2
51761-36041

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51761A - BRACKET, BODY SUPPORT, NO.5 RH
51761-36040

BB4#,HDB5#,HZB4#,5#

 2
51761-36041

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
51763B - BRACKET, BODY SUPPORT, NO.6
51763-36060

BB4#,HDB50,HZB40,5#

 2
51763-36050

XZB51..EX..(4FC,6F)

 2
51763B - BRACKET, BODY SUPPORT, NO.6
51763-36060

BB4#,HDB50,HZB40,5#

 2
51763-36050

XZB51..EX..(4FC,6F)

 2
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH
51765-36050

BB4#,HDB50,HZB40,5#

 2
51765-36060

XZB51..EX..(4FC,6F)

 6
51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH
51767-36150

BB4#,HDB50,HZB40,5#

 2
51767-36140

XZB50,51..(EX,GX)..(4FC,6F)

 2
51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH
51767-36150

BB4#,HDB50,HZB40,5#

 2
51767-36140

XZB50,51..(EX,GX)..(4FC,6F)

 2
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57121-36020

BB4#,HDB5#,HZB4#,5#

 1
57121-36020

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57122-36020

BB4#,HDB5#,HZB4#,5#

 1
57122-36020

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
Common parts
90119-10719
90950-01743
95121-01028
Linked diagrams
4804
5152
