XZB51-ZCTZH (2005)
Toyota Coaster

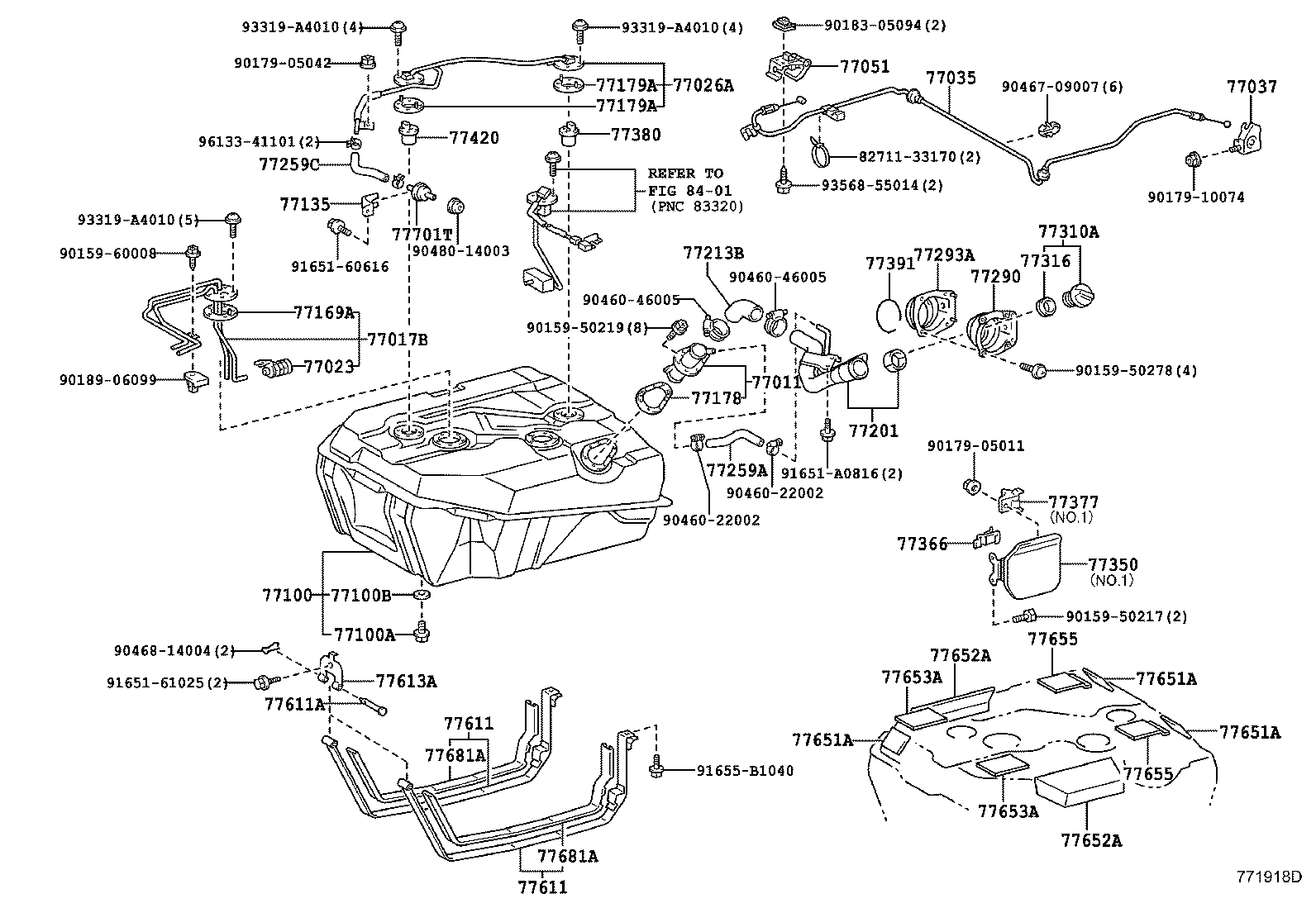

ILLUST NO. 1 OF 2(0602- )XZB4#,5#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-36020 |
XZB51..SULNG |
1 | ||
| 77011-36020 |
XZB4#,5#..4FC,6F |
1 | ||
| 77011-12130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36430 |
HDB5#,HZB4#,5# |
1 | ||
| 77017-36420 |
BB4#,5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB4#,5# |
1 | ||
| 77023-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060E1 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B261 |
XZB4#,5#..5F,6FC |
1 | ||
| 77001-3B262 |
XZB51..SULNG |
1 | ||
| 77001-3B261 |
XZB4#,5#..4FC,6F |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77178-34010 |
XZB4#,5#..4FC,6F |
1 | ||
| 77178-34010 |
XZB51..SULNG |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77201-36180 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77300-52030 |
XZB51..SULNG |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77316-52040 |
XZB51..SULNG |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36011 |
XZB4#,5#..4FC,6F NO.1 |
1 | ||
| 77350-36011 |
BZB40,50,XZB51..STD,SULNG NO.1 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-33170 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 8401 | ||||
