XZB51-ZCTZH (2005)

Toyota Coaster

Production Dec 2005 - Aug 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

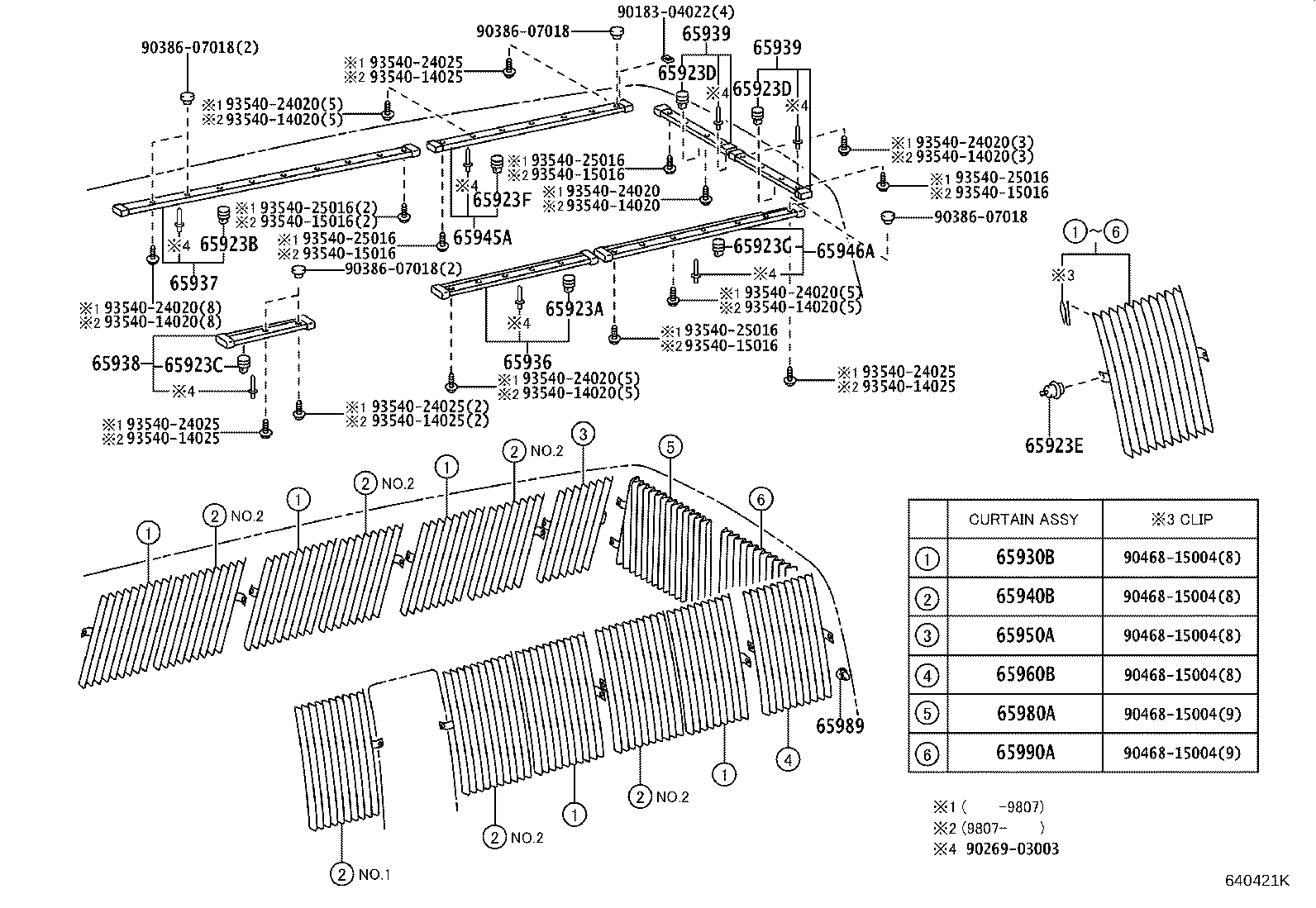

ILLUST NO. 2 OF 2(9301-1501)BB5#,BZB50,HDB5#,HZB5#,XZB5#

Click highlighted areas on diagram

diagram 65923A 65923B 65923C 65923D 65923D 65923E 65923F 65923G 65930B 65936 65937 65938 65939 65939 65940B 65945A 65946A 65950A 65960B 65980A 65989 65990A 9018304022 9026903003 9038607018 9038607018 9038607018 9038607018 9046815004 9046815004 9046815004 9046815004 9046815004 9046815004 9354014020 9354014020 9354014020 9354014020 9354014020 9354014020 9354014025 9354014025 9354014025 9354014025 9354015016 9354015016 9354015016 9354015016 9354015016 9354024020 9354024020 9354024020 9354024020 9354024020 9354024020 9354024025 9354024025 9354024025 9354024025 9354025016 9354025016 9354025016 9354025016 9354025016
Part # Description Qty Price
65923E - HOOK, CURTAIN
65923-36020

BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5

 18
65980A - CURTAIN ASSY, BACK WINDOW, RH
65980-36010A0

BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU

IVORY,TRIM4#

 1
65990A - CURTAIN ASSY, BACK WINDOW, LH
65990-36010A0

BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU

IVORY,TRIM4#

 1
Common parts
90183-04022
90269-03003
90386-07018
90468-15004
93540-14020
93540-14025
93540-15016
93540-24020
93540-24025
93540-25016
