XZB51-ZCTZH (2005)

Toyota Coaster

Production Dec 2005 - Aug 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

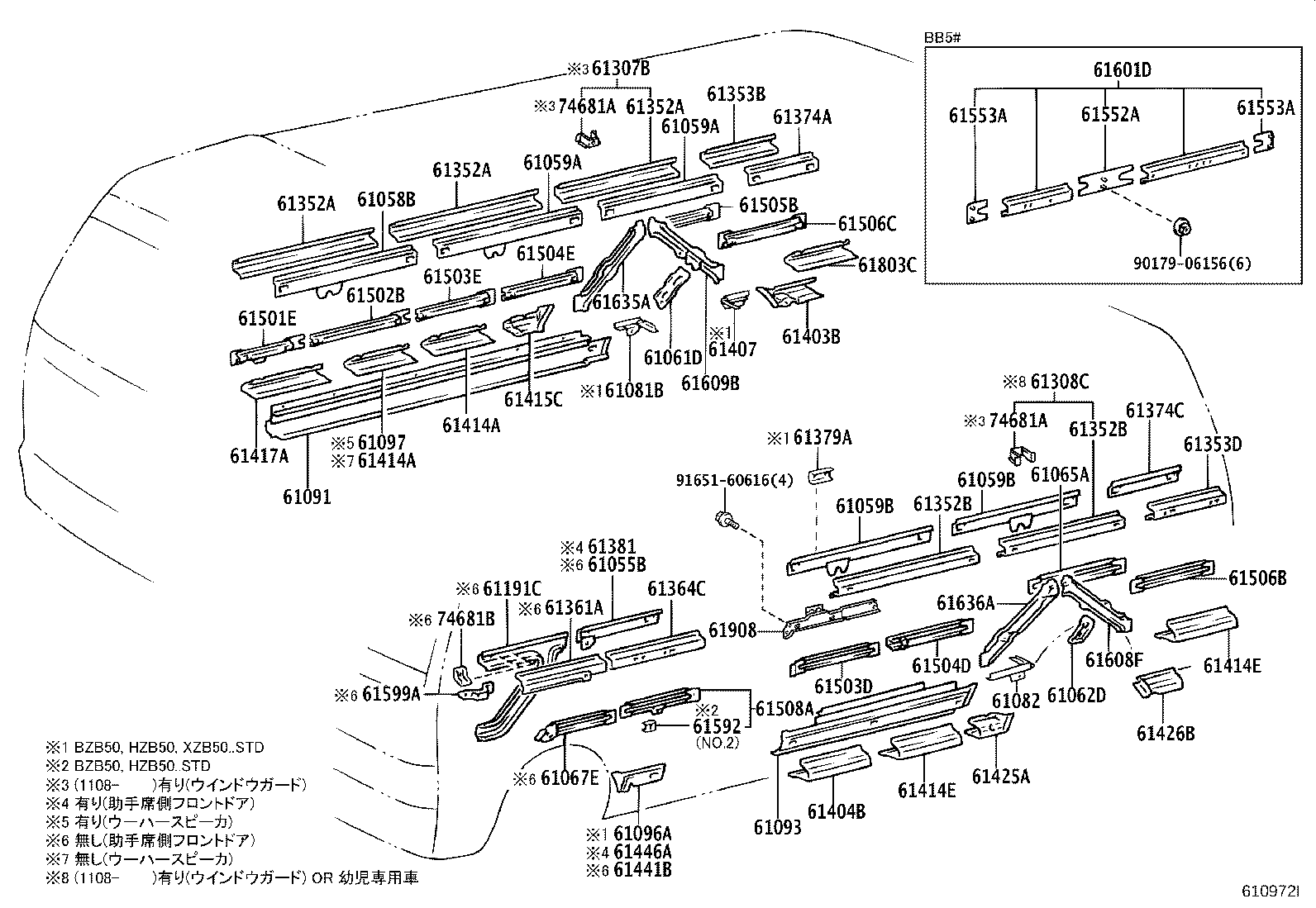

ILLUST NO. 5 OF 5(9301-1501)BB5#,BZB50,HDB5#,HZB5#,XZB5#

Click highlighted areas on diagram

diagram 61055B 61058B 61059A 61059A 61059B 61059B 61061D 61062D 61065A 61067E 61081B 61082 61091 61093 61096A 61097 61191C 61307B 61308C 61352A 61352A 61352A 61352B 61352B 61353B 61353D 61361A 61364C 61374A 61374C 61379A 61381 61403B 61404B 61407 61414A 61414A 61414E 61414E 61415C 61417A 61425A 61426B 61441B 61446A 61501E 61502B 61503D 61503E 61504D 61504E 61505B 61506B 61506C 61508A 61552A 61553A 61553A 61592 61599A 61601D 61608F 61609B 61635A 61636A 61803C 61908 74681A 74681A 74681B 9017906156 9165160616
Part # Description Qty Price
61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH
61055-36020

BB4#,55,HDB50,HZB40,5#

ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ)

 1
61055-36031

XZB51..SULNG

ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ)

 1
61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH
61058-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH
61059-36020

BB40,5#,HDB5#,HZB4#,5#..CBU,IV5

 2
61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH
61059-36020

BB40,5#,HDB5#,HZB4#,5#..CBU,IV5

 2
61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH
61059-36020

BB4#,55,HDB5#,HZB40,5#

 2
61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH
61059-36020

BB4#,55,HDB5#,HZB40,5#

 2
61061D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH
61061-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61062D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2
61062-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH
61067-36020

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH
61191-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61361A - RAIL, NO.1 CENTER OUTER, LH
61361-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61364C - RAIL, NO.4 CENTER OUTER, LH
61354-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH
61403-36010

HDB5#,HZB41,5#

 1
61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH
61404-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61404-36031

BZB40,50,XZB51..STD,SULNG

 1
61415C - RAIL, NO.5 LOWER OUTER, RH
61415-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61417A - RAIL, NO.7 LOWER OUTER, RH
61417-36010

BB4#,HDB5#,HZB4#,5#

 1
61425A - RAIL, NO.5 LOWER OUTER, LH
61425-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61426B - RAIL, NO.6 LOWER OUTER, LH
61426-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61441B - RAIL, NO.1 LOWER INNER, LH
61441-36010

BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5)

 1
61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH
61501-36010

BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S

 1
61501-36060

XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU

 1
61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH
61502-36010

BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5)

 1
61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR
61503-36190

XZB51..CBU;XZB50,56..GX,LX

 1
61503-36290

XZB51..CBU;XZB50..29S..WC

ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ)

 1
61506B - RAIL SUB-ASSY, NO.6
61506-36010

BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S

 1
61506C - RAIL SUB-ASSY, NO.6, RH
61506-36010

BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S

 1
61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR
61508-36101

XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU

 1
61592 - BRACKET, STIFFENER, NO.2
61592-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

NO.1

 2
61599A - BRACKET, STIFFENER, NO.6, LH
61599-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH
61608-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61609B - BRACE SUB-ASSY, QUARTER PANEL
61609-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61635A - BRACE, QUARTER WHEEL HOUSE, RH
61635-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61636A - BRACE, QUARTER WHEEL HOUSE, LH
61636-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH
61803-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61908 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH
61908-36010

XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5

 1
Common parts
90179-06156
91651-60616
