XZB51-ZCTZH (2005)

Toyota Coaster

Production Dec 2005 - Aug 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0512- )XZB5#..6FC

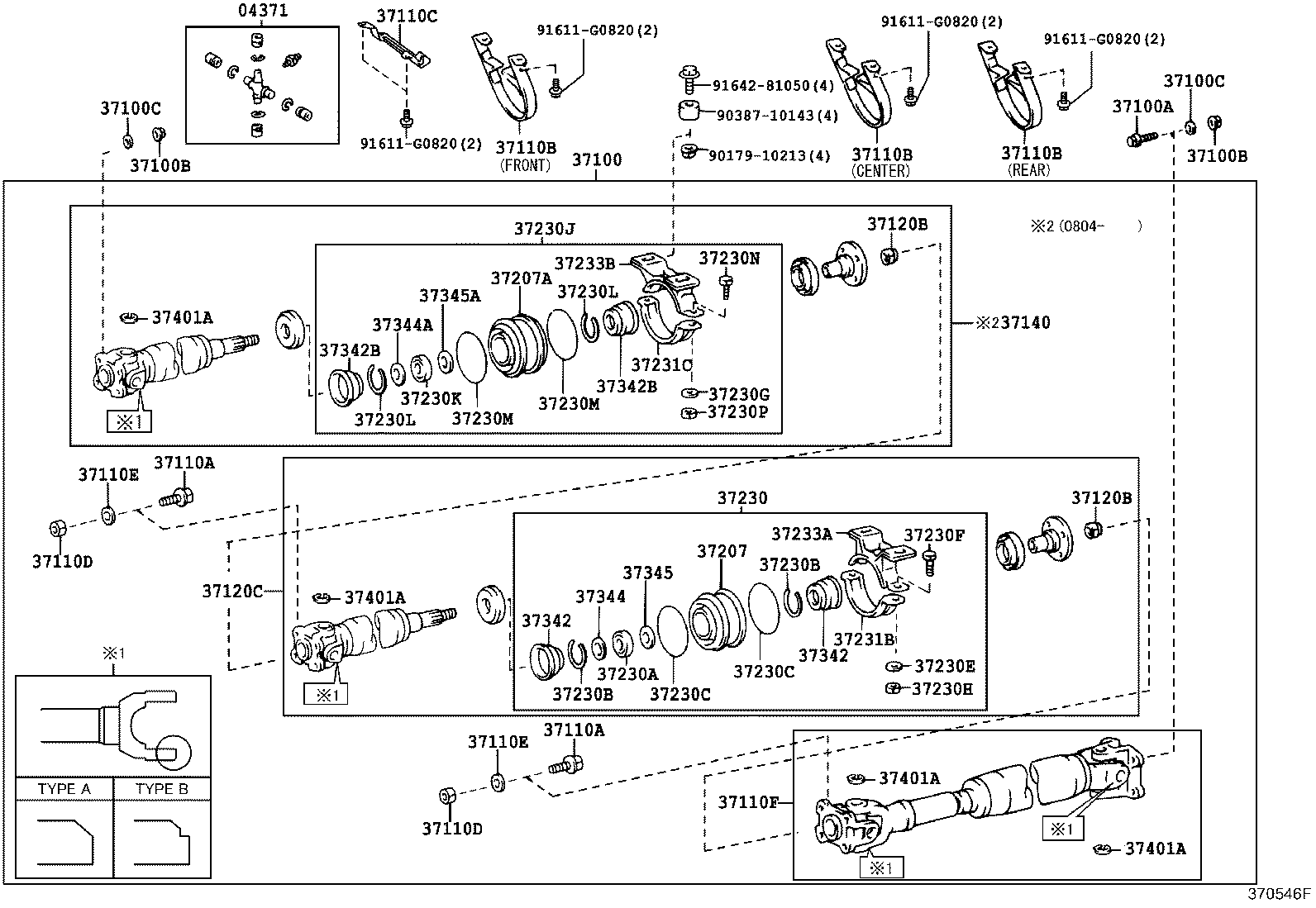

Click highlighted areas on diagram

diagram 04371 37100 37100A 37100B 37100B 37100C 37100C 37110A 37110A 37110B 37110B 37110B 37110C 37110D 37110D 37110E 37110E 37110F 37120B 37120B 37120C 37140 37207 37207A 37230 37230A 37230B 37230B 37230C 37230C 37230E 37230F 37230G 37230H 37230J 37230K 37230L 37230L 37230M 37230M 37230N 37230P 37231B 37231C 37233A 37233B 37342 37342 37342B 37342B 37344 37344A 37345 37345A 37401A 37401A 37401A 37401A 9017910213 9038710143 91611G0820 91611G0820 91611G0820 91611G0820 9164281050
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-36A20

XZB50,51..6FC

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-11013

BB4#,5#,HDB5#,HZB4#,5#

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-11005

BB4#,5#,HDB5#,HZB4#,5#

 8
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-11005

BB4#,5#,HDB5#,HZB4#,5#

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-11013

BB4#,5#,HDB5#,HZB4#,5#

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-11013

BB4#,5#,HDB5#,HZB4#,5#

 8
37110A - BOLT (FOR PROPELLER SHAFT)
90105-11013

BB4#,5#,HZB4#

*11−1.00PX28−16

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90105-11013

BB4#,5#,HZB4#

*11−1.00PX28−16

 4
37110B - GUARD, PROPELLER SHAFT
51569-36190

BB4#,HDB5#,HZB4#,5#

ﾌﾛﾝﾄ

 1
51569-36230

XZB51..SULNG

ﾌﾛﾝﾄ

 1
37110B - GUARD, PROPELLER SHAFT
51569-36190

BB4#,HDB5#,HZB4#,5#

ﾌﾛﾝﾄ

 1
51569-36230

XZB51..SULNG

ﾌﾛﾝﾄ

 1
37110B - GUARD, PROPELLER SHAFT
51569-36190

BB4#,HDB5#,HZB4#,5#

ﾌﾛﾝﾄ

 1
51569-36230

XZB51..SULNG

ﾌﾛﾝﾄ

 1
37110C - BRACKET, PROPELLER SHAFT GUARD
51568-36200

XZB51..SULNG

 1
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

BB4#,5#,HZB4#

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-11005

BB4#,5#,HZB4#

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

BB4#,5#,HZB4#

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90201-11013

BB4#,5#,HZB4#

 4
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006

BB4#,5#,HZB4#

 1
90179-20006

BZB50,XZB51..STD,SULNG

 2
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006

BB4#,5#,HZB4#

 1
90179-20006

BZB50,XZB51..STD,SULNG

 2
37120C - SHAFT ASSY, PROPELLER, CENTER
37120-36550

XZB5#..6FC

 1
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37207-35011

BB4#,5#,HDB5#,HZB4#,5#

 1
37207-35011

BZB50,XZB51..STD,SULNG

 1
37207A - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.2
37207-35011

BZB50,XZB51..STD,SULNG

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-36140

BB4#,HDB5#,HZB4#,5#

 1
37230A - BEARING, NO.1 (FOR CENTER SUPPORT)
90363-30029

BB4#,5#,HDB5#,HZB4#,5#

 1
90363-30029

BZB50,XZB51..STD,SULNG

 1
37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
90521-66077

XZB5#..6FC

 2
90521-66077

BB4#,5#,HDB5#,HZB4#,5#

 2
37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
90521-66077

XZB5#..6FC

 2
90521-66077

BB4#,5#,HDB5#,HZB4#,5#

 2
37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
90522-97001

BB4#,5#,HDB5#,HZB4#,5#

 2
90522-97001

BZB50,XZB51..STD,SULNG

 2
37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
90522-97001

BB4#,5#,HDB5#,HZB4#,5#

 2
90522-97001

BZB50,XZB51..STD,SULNG

 2
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
94512-00800

BB4#,5#,HDB5#,HZB4#,5#

 2
94512-00800

BZB50,XZB51..STD,SULNG

 2
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
91112-80816

BB4#,HDB5#,HZB4#,5#

 2
90101-08157

BZB50,XZB51..STD,SULNG

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
94512-00800

BZB50,XZB51..STD,SULNG

厚さ=2.5

 2
37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING)
94110-50800

BB4#,HDB5#,HZB4#,5#

 2
94130-00802

BZB50,XZB51..STD,SULNG

 2
37230J - BEARING ASSY, CENTER SUPPORT, NO.2
37230-36130

BZB50,XZB51..STD,SULNG

 1
37230K - BEARING, NO.2 (FOR CENTER SUPPORT)
90363-30029

BZB50,XZB51..STD,SULNG

 1
37230L - RING, SNAP, NO.2 (FOR CENTER SUPPORT BEARING)
90521-66077

BZB50,XZB51..STD,SULNG

 2
37230L - RING, SNAP, NO.2 (FOR CENTER SUPPORT BEARING)
90521-66077

BZB50,XZB51..STD,SULNG

 2
37230M - RING, SET, NO.2 (FOR CENTER SUPPORT BEARING CUSHION)
90522-97001

BZB50,XZB51..STD,SULNG

 2
37230M - RING, SET, NO.2 (FOR CENTER SUPPORT BEARING CUSHION)
90522-97001

BZB50,XZB51..STD,SULNG

 2
37230N - BOLT, NO.2 (FOR CENTER SUPPORT BEARING)
90101-08157

BZB50,XZB51..STD,SULNG

 2
37230P - NUT, NO.2 (FOR CENTER SUPPORT BEARING)
94130-00802

BZB50,XZB51..STD,SULNG

 2
37231B - HOUSING, CENTER SUPPORT BEARING, NO.1
37231-36020

BB4#,5#,HDB5#,HZB4#,5#

 1
37231-36021

BZB50,XZB51..STD,SULNG

 1
37231C - HOUSING, CENTER SUPPORT BEARING, NO.3
37231-36021

BZB50,XZB51..STD,SULNG

 1
37233A - HOUSING, CENTER SUPPORT BEARING, NO.2
37233-36080

BB4#,5#,HDB5#,HZB4#,5#

 1
37233-36080

BZB50,XZB51..STD,SULNG

 1
37233B - HOUSING, CENTER SUPPORT BEARING, NO.4
37233-36050

BZB50,XZB51..STD,SULNG

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-36010

BB4#,5#,HDB5#,HZB4#,5#

 2
37342-36010

BZB50,XZB51..STD,SULNG

 2
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-36010

BB4#,5#,HDB5#,HZB4#,5#

 2
37342-36010

BZB50,XZB51..STD,SULNG

 2
37342B - DEFLECTOR, PROPELLER SHAFT DUST, NO.6
37342-36010

BZB50,XZB51..STD,SULNG

 2
37342B - DEFLECTOR, PROPELLER SHAFT DUST, NO.6
37342-36010

BZB50,XZB51..STD,SULNG

 2
37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37344-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
37344-36010

BZB50,XZB51..STD,SULNG

 1
37344A - DEFLECTOR, PROPELLER SHAFT DUST, NO.7
37344-36010

BZB50,XZB51..STD,SULNG

 1
37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4
37345-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
37345-36010

BZB50,XZB51..STD,SULNG

 1
37345A - DEFLECTOR, PROPELLER SHAFT DUST, NO.8
37345-36010

BZB50,XZB51..STD,SULNG

 1
Common parts
90179-10213
90387-10143
91611-G0820
91642-81050
