XZB50-ZXTEY (2015)

Toyota Coaster

Production Jan 2015 - Dec 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

Click highlighted areas on diagram

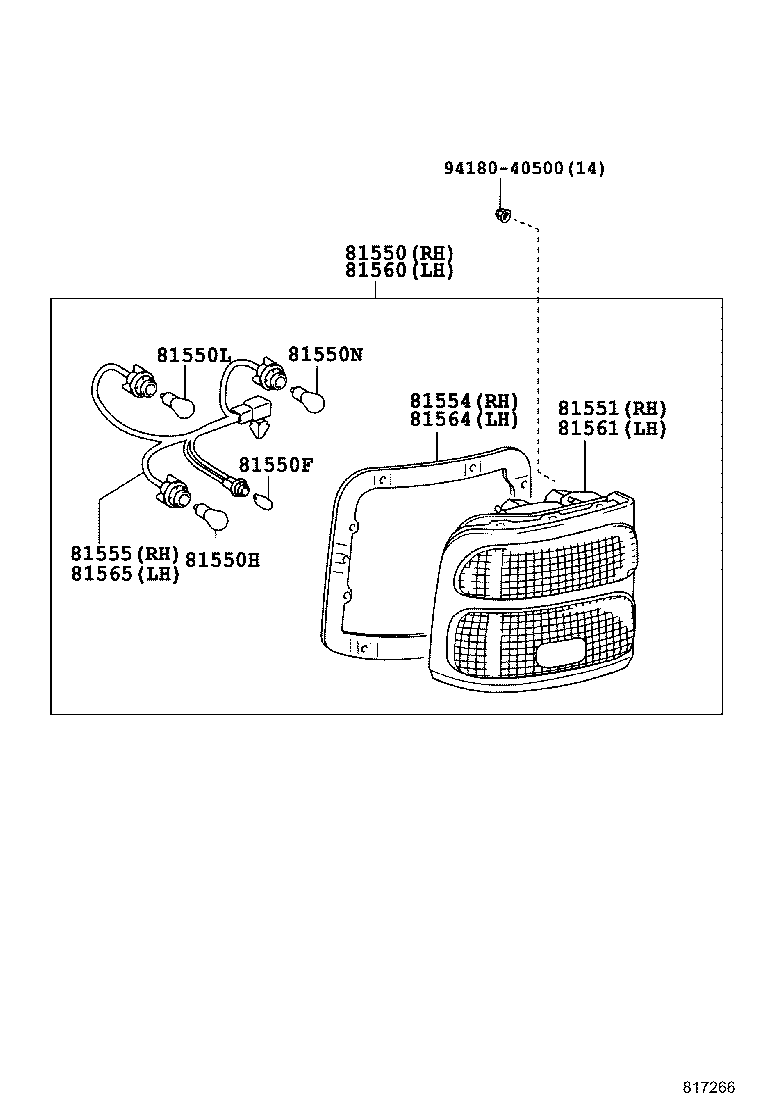

diagram 81550 81550F 81550H 81550L 81550N 81551 81554 81555 81560 81561 81564 81565 9418040500
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-36420

XZB4#,5#..EX,GX,LX

 1
81550-36460

BZB40,50

 1
81550F - BULB, TAIL LAMP
99132-12050

BZB40,50

12V 5W

 2
90981-12015

XZB4#,5#

24V 5W

 2
81550H - BULB, TAIL & STOP LAMP
99132-21210

BZB40,50

12V 21/5W

 2
90981-16015

XZB4#,5#

24V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-16014

XZB4#,5#

24V 21W

 2
99132-11210

BZB40,50

12V 21W

 2
81550N - BULB, BACK UP LAMP
90981-16014

XZB4#,5#

24V 21W

 2
99132-11210

BZB40,50

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-36420

BZB40,50,XZB4#,5#..EX,GX,LX

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-36260

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
81554-36260

BZB40,50,XZB4#,5#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-36260

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
81555-36460

BZB40,50

 1
81555-36420

XZB4#,5#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-36200

BB4#,HDB5#,HZB4#,5#

 1
81560-36330

BZB40,50

 1
81560-36310

XZB4#,5#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-36200

BB4#,HDB5#,HZB4#,5#

 1
81561-36310

BZB40,50,XZB4#,5#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-36260

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
81554-36260

BZB40,50,XZB4#,5#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-36420

XZB4#,5#

 1
81555-36460

BZB40,50

 1
Common parts
94180-40500
