XZB50-ZXTEY (2015)

Toyota Coaster

Production Jan 2015 - Dec 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

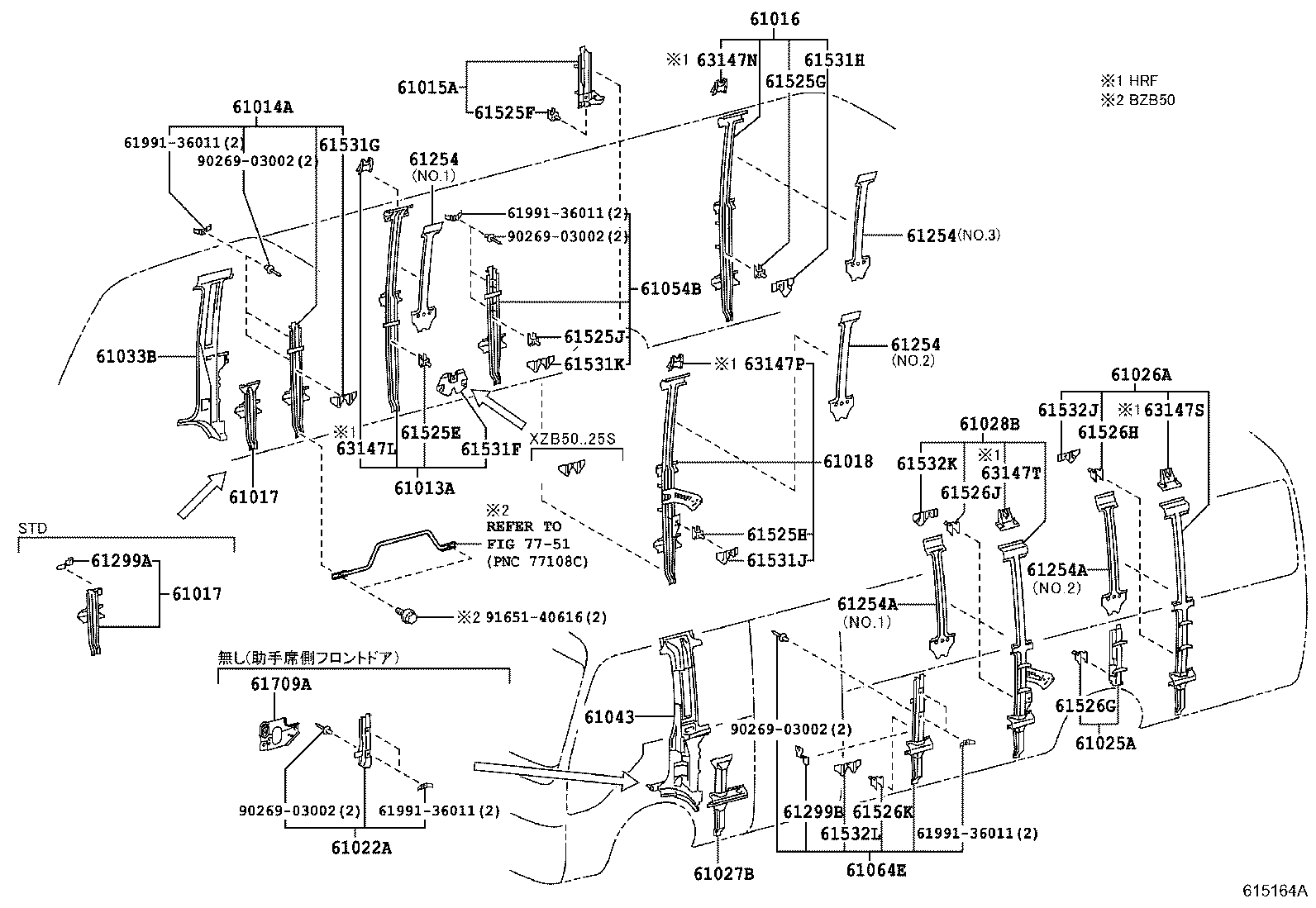

ILLUST NO. 4 OF 5(1501- )BZB50,XZB5#

Click highlighted areas on diagram

diagram 61013A 61014A 61015A 61016 61017 61017 61018 61022A 61025A 61026A 61027B 61028B 61033B 61043 61054B 61064E 61254 61254 61254 61254A 61254A 61299A 61299B 61525E 61525F 61525G 61525H 61525J 61526G 61526H 61526J 61526K 61531F 61531G 61531H 61531J 61531K 61532J 61532K 61532L 61709A 6199136011 6199136011 6199136011 6199136011 63147L 63147N 63147P 63147S 63147T 7751 9026903002 9026903002 9026903002 9026903002 9165140616
Part # Description Qty Price
61013A - PILLAR SUB-ASSY, NO.3 RH
61013-36010

BB4#,HDB5#,HZB4#,5#..HRF

 1
61013-36171

BZB40,50

 1
61013-36191

XZB50..25S

 1
61014A - PILLAR SUB-ASSY, NO.4 RH
61014-36090

XZB4#,5#..EX,GX,LX

 1
61014-36100

BZB40,50

 1
61015A - PILLAR SUB-ASSY, NO.5 RH
61015-36181

XZB50..25S

 1
61016 - PILLAR SUB-ASSY, NO.6 RH
61016-36160

BZB50,XZB5#..HRF

 1
61017 - PILLAR SUB-ASSY, NO.7 RH
61017-36170

XZB4#,5#..EX,GX,LX

 1
61017-36180

BZB40,50

 1
61017 - PILLAR SUB-ASSY, NO.7 RH
61017-36170

XZB4#,5#..EX,GX,LX

 1
61017-36180

BZB40,50

 1
61018 - PILLAR SUB-ASSY, NO.8 RH
61018-36131

BZB50,XZB50,51..25S,29S

 1
61022A - PILLAR SUB-ASSY, NO.2 LH
61022-36030

BZB40,50,XZB4#,5#

 1
61025A - PILLAR SUB-ASSY, NO.5 LH
61025-36181

XZB50..25S

 1
61026A - PILLAR SUB-ASSY, NO.6 LH
61026-36160

BZB50,XZB5#..HRF

 1
61027B - PILLAR SUB-ASSY, NO.7, LH
61027-36110

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61028B - PILLAR SUB-ASSY, NO.8 LH
61028-36151

BZB50,XZB50,51..25S,29S

 1
61033B - PILLAR SUB-ASSY, NO.2 INNER, RH
61033-36050

BB40,HZB40,50..WC

 1
61033-36080

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
61033-36082

BZB40,50,XZB4#,5#..HRF..(EX,GX,LX)

 1
61054B - PILLAR SUB-ASSY, NO.12 RH
61054-36051

BZB50,XZB50,51..25S,29S

 1
61064E - PILLAR SUB-ASSY, NO.12 LH
61064-36071

BZB50,XZB50,51..25S,29S

 1
61254 - PILLAR, NO.3 INNER, RH
61254-36030

BZB50,XZB50,51..HRF

NO.1 OR NO.2 OR NO.3

 3
61254 - PILLAR, NO.3 INNER, RH
61254-36030

BZB50,XZB50,51..HRF

NO.1 OR NO.2 OR NO.3

 3
61254 - PILLAR, NO.3 INNER, RH
61254-36030

BZB50,XZB50,51..HRF

NO.1 OR NO.2 OR NO.3

 3
61254A - PILLAR, NO.3 INNER, LH
61254-36030

BZB50,XZB50,51..HRF

NO.1 OR NO.2

 2
61254A - PILLAR, NO.3 INNER, LH
61254-36030

BZB50,XZB50,51..HRF

NO.1 OR NO.2

 2
61299B - BRACKET, INNER PILLAR BLOWER, LH
61299-36010

BZB40,50,XZB4#,5#

 1
61525E - BRACKET, SEAT ANCHOR, RH
61525-36140

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61525G - BRACKET, SEAT ANCHOR, RH
61525-36150

BZB40,50,XZB4#,5#

 1
61525H - BRACKET, SEAT ANCHOR, RH
61525-36140

BZB40,50,XZB40,50,51..EX,GX,LX

 1
61525J - BRACKET, SEAT ANCHOR, RH
61525-36140

BZB50,XZB50,51..25S,29S

 1
61526H - BRACKET, SEAT ANCHOR, LH
61525-36150

BZB40,50,XZB4#,5#

 1
61526J - BRACKET, SEAT ANCHOR, LH
61525-36140

BZB40,50,XZB40,50,51..EX,GX,LX

 1
61526K - BRACKET, SEAT ANCHOR, LH
61525-36140

BZB50,XZB50,51..25S,29S

 1
61531F - GUSSET, SEAT ANCHOR, RH
61531-36060

XZB50..25S

 1
61531G - GUSSET, SEAT ANCHOR, RH
61531-36110

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61531H - GUSSET, SEAT ANCHOR, RH
61532-36070

BZB40,50,XZB4#,5#

 1
61531J - GUSSET, SEAT ANCHOR, RH
61531-36070

BZB40,50,XZB4#,5#

 1
61531K - GUSSET, SEAT ANCHOR, RH
61531-36060

BZB50,XZB5#

 1
61532J - GUSSET, SEAT ANCHOR, LH
61531-36090

BZB40,50,XZB4#,5#

 1
61532K - GUSSET, SEAT ANCHOR, LH
61532-36080

BZB40,50,XZB4#,5#

 1
61532L - GUSSET, SEAT ANCHOR, LH
61531-36060

BZB50,XZB5#

 1
61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH
61709-36020

BZB40,50,XZB4#,5#

 1
63147L - BRACKET, ROOF PANEL REINFORCEMENT
63147-36011

BZB40,50,XZB4#,5#..HRF

 1
63147N - BRACKET, ROOF PANEL REINFORCEMENT
63147-36011

BZB50,XZB5#..HRF

 1
63147P - BRACKET, ROOF PANEL REINFORCEMENT
63147-36011

BZB50,XZB5#..HRF

 1
63147S - BRACKET, ROOF PANEL REINFORCEMENT
63147-36011

BZB50,XZB5#..HRF

 1
63147T - BRACKET, ROOF PANEL REINFORCEMENT
63147-36011

BZB50,XZB5#..HRF

 1
Common parts
61991-36011
90269-03002
91651-40616
Linked diagrams
7751

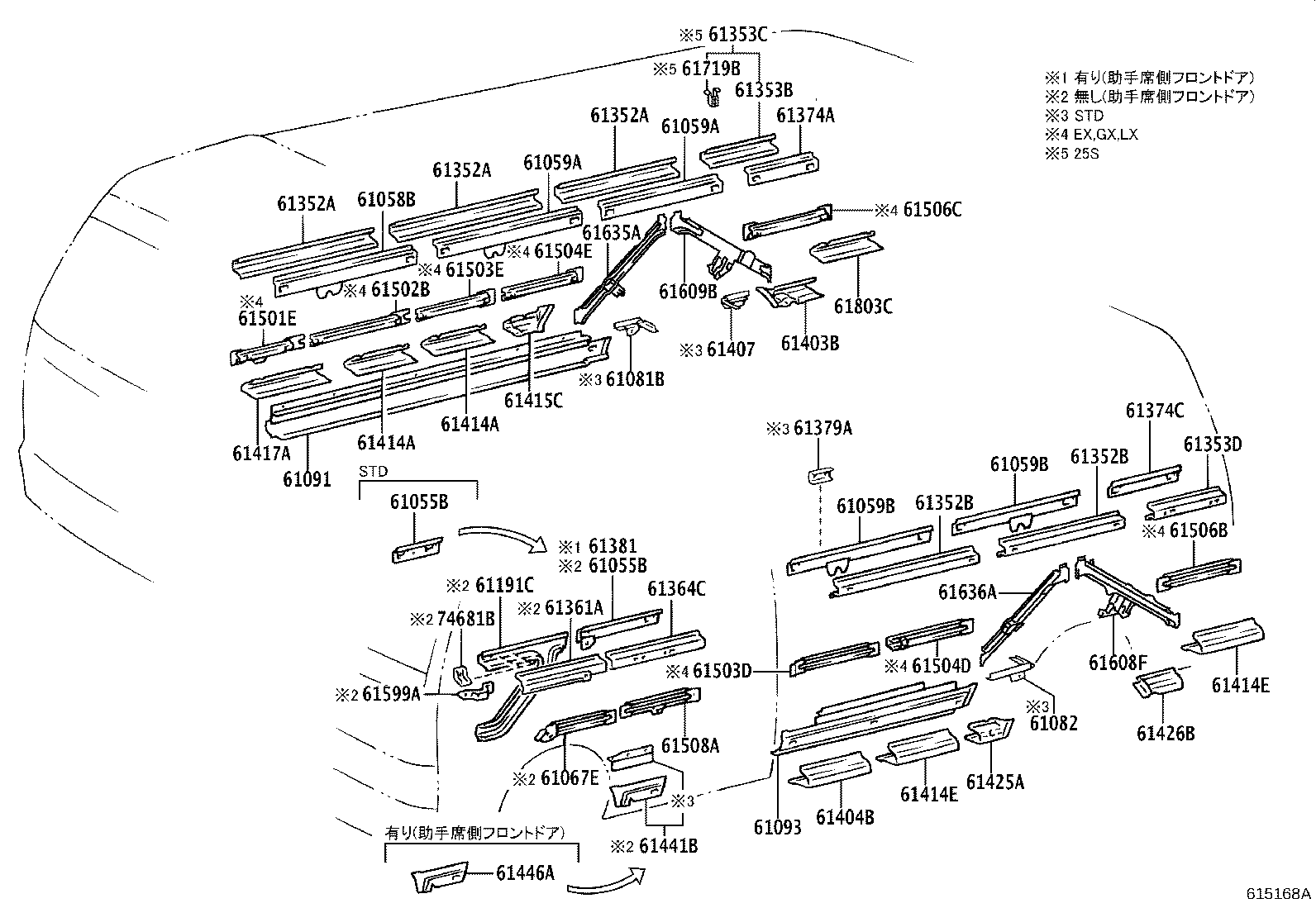

ILLUST NO. 5 OF 5(1501- )BZB50,XZB5#

Click highlighted areas on diagram

diagram 61055B 61055B 61058B 61059A 61059A 61059B 61059B 61067E 61081B 61082 61091 61093 61191C 61352A 61352A 61352A 61352B 61352B 61353B 61353C 61353D 61361A 61364C 61374A 61374C 61379A 61381 61403B 61404B 61407 61414A 61414A 61414E 61414E 61415C 61417A 61425A 61426B 61441B 61446A 61501E 61502B 61503D 61503E 61504D 61504E 61506B 61506C 61508A 61599A 61608F 61609B 61635A 61636A 61719B 61803C 74681B
Part # Description Qty Price
61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH
61055-36020

BB4#,55,HDB50,HZB40,5#

ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ)

 1
61055-36031

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH
61055-36020

BB4#,55,HDB50,HZB40,5#

ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ)

 1
61055-36031

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH
61058-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61058-36010

BZB40,50,XZB4#,5#

 1
61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH
61059-36020

BB40,5#,HDB5#,HZB4#,5#..CBU,IV5

 2
61059-36060

BZB40,50,XZB40,50,51

 2
61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH
61059-36020

BB40,5#,HDB5#,HZB4#,5#..CBU,IV5

 2
61059-36060

BZB40,50,XZB40,50,51

 2
61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH
61059-36020

BB4#,55,HDB5#,HZB40,5#

 2
61059-36060

BZB40,50,XZB40,50,51

 2
61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH
61059-36020

BB4#,55,HDB5#,HZB40,5#

 2
61059-36060

BZB40,50,XZB40,50,51

 2
61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH
61067-36020

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61067-36040

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH
61091-36030

BZB50,XZB5#..EX,GX,LX

 1
61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH
61093-36110

BZB50,XZB5#..EX,GX,LX

 1
61093-36100

BZB50,XZB50,51..25S,29S

ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ)

 1
61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH
61191-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61191-36010

BZB40,50,XZB4#,5#

 1
61352A - RAIL, NO.2 CENTER OUTER, RH
61352-36020

BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)

 3
61352-36020

BZB40,50,XZB4#,5#

 3
61352A - RAIL, NO.2 CENTER OUTER, RH
61352-36020

BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)

 3
61352-36020

BZB40,50,XZB4#,5#

 3
61352A - RAIL, NO.2 CENTER OUTER, RH
61352-36020

BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)

 3
61352-36020

BZB40,50,XZB4#,5#

 3
61352B - RAIL, NO.2 CENTER OUTER, LH
61352-36020

BZB40,50,XZB4#,5#..EX,GX,LX

 2
61352B - RAIL, NO.2 CENTER OUTER, LH
61352-36020

BZB40,50,XZB4#,5#..EX,GX,LX

 2
61353B - RAIL, NO.3 CENTER OUTER, RH
61353-36010

BZB50,XZB5#

 1
61353C - RAIL, NO.3 CENTER OUTER
61309-36040

XZB50..25S

 1
61353D - RAIL, NO.3 CENTER, LH
61309-36050

XZB50..25S

 1
61361A - RAIL, NO.1 CENTER OUTER, LH
61361-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61361-36010

BZB40,50,XZB4#,5#

 1
61364C - RAIL, NO.4 CENTER OUTER, LH
61354-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61354-36010

BZB40,50,XZB4#,5#

 1
61374A - RAIL, NO.4 CENTER INNER
61374-36011

BZB50,XZB5#

 1
61374C - RAIL, NO.4 CENTER INNER, LH
61374-36011

BZB50,XZB5#

 1
61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH
61403-36010

HDB5#,HZB41,5#

 1
61403-36010

BZB40,50,XZB4#,5#

 1
61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH
61404-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61404-36031

BZB40,50,XZB4#,5#

 1
61414A - RAIL,NO.4 LOWER OUTER, RH
61414-36010

BZB50,XZB5#

 2
61414A - RAIL,NO.4 LOWER OUTER, RH
61414-36010

BZB50,XZB5#

 2
61414E - RAIL, NO.4 LOWER OUTER, LH
61414-36010

BZB50,XZB5#

 2
61414E - RAIL, NO.4 LOWER OUTER, LH
61414-36010

BZB50,XZB5#

 2
61415C - RAIL, NO.5 LOWER OUTER, RH
61415-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61415-36010

BZB40,50,XZB4#,5#

 1
61417A - RAIL, NO.7 LOWER OUTER, RH
61417-36010

BB4#,HDB5#,HZB4#,5#

 1
61417-36011

BZB40,50,XZB4#,5#

 1
61425A - RAIL, NO.5 LOWER OUTER, LH
61425-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61425-36010

BZB40,50,XZB4#,5#

 1
61426B - RAIL, NO.6 LOWER OUTER, LH
61426-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61426-36010

BZB40,50,XZB4#,5#

 1
61441B - RAIL, NO.1 LOWER INNER, LH
61441-36011

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH
61501-36101

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH
61502-36101

XZB50..25S

 1
61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR
61503-36481

XZB50..25S

ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ)

 1
61503-36471

XZB50..25S

 1
61503E - RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH
61503-36381

XZB50..25S

 1
61504D - RAIL SUB-ASSY, NO.4 SEAT ANCHOR
61504-36121

XZB50..25S

 1
61504E - RAIL SUB-ASSY, NO.4 SEAT ANCHOR, RH
61504-36091

XZB50..25S

 1
61506B - RAIL SUB-ASSY, NO.6
61506-36151

XZB50..25S

 1
61506C - RAIL SUB-ASSY, NO.6, RH
61506-36101

XZB50..25S

 1
61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR
61508-36231

BZB40,50,XZB4#,5#..EX,GX,LX

 1
61599A - BRACKET, STIFFENER, NO.6, LH
61599-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61599-36010

BZB40,50,XZB4#,5#

 1
61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH
61608-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61608-36111

XZB50..25S

 1
61609B - BRACE SUB-ASSY, QUARTER PANEL
61609-36010

HDB51..IV5;BB4#,5#,HDB50,HZB4#,5#

 1
61609-36111

XZB50..25S

 1
61635A - BRACE, QUARTER WHEEL HOUSE, RH
61635-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61069-36021

XZB50..25S

 1
61636A - BRACE, QUARTER WHEEL HOUSE, LH
61636-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61079-36021

XZB50..25S

 1
61719B - BRACKET, ROOF SIDE, INNER
61719-36010

XZB50..25S

 1
61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH
61803-36010

BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5

 1
61803-36010

BZB40,50,XZB4#,5#

 1
74681B - RETAINER, ASSIST GRIP
74681-36010

BZB40,50,XZB4#,5#..EX,GX,LX

 2
