XZB50-ZRTNY5 (2007)
Toyota Coaster

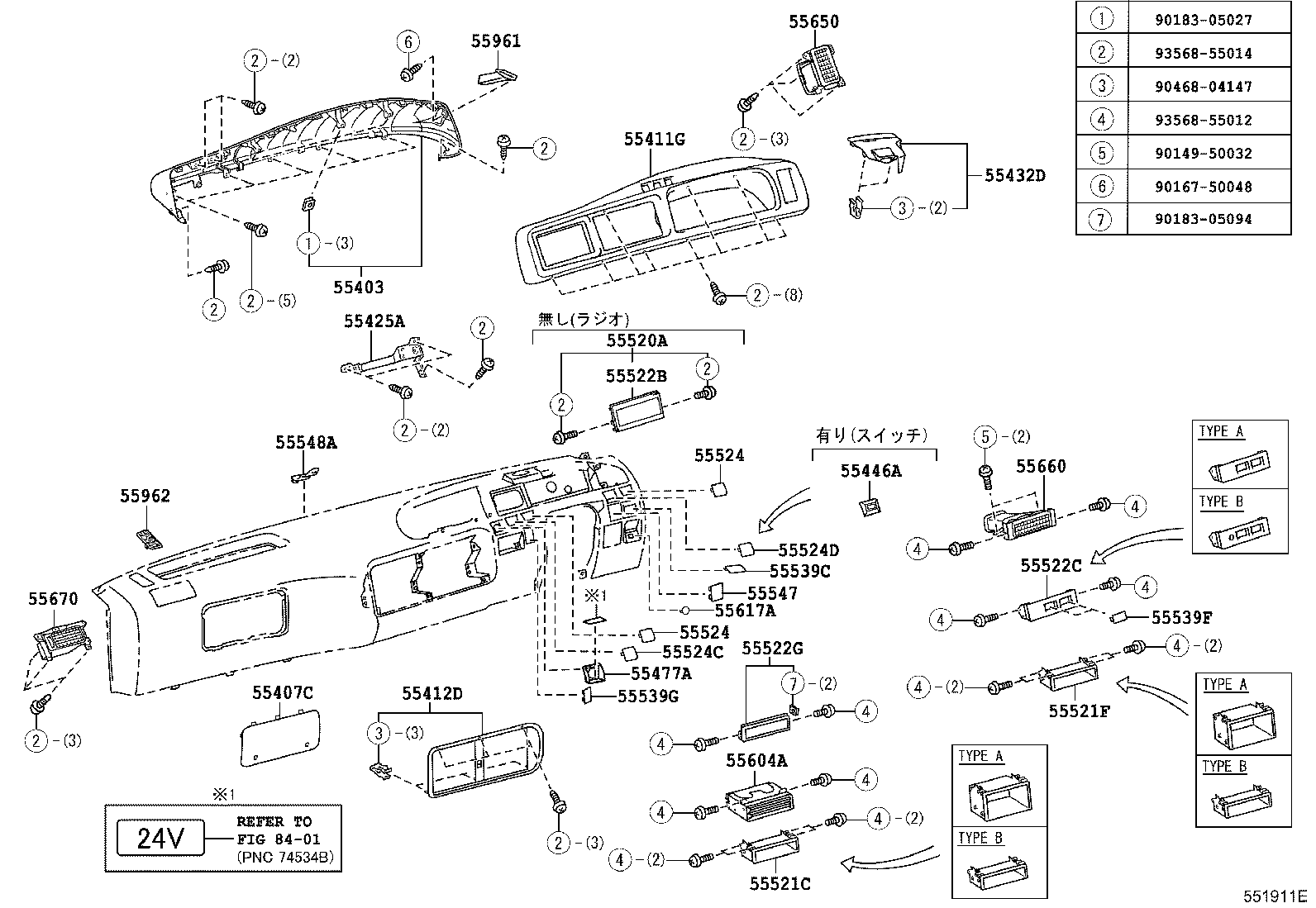

ILLUST NO. 2 OF 2(0708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55421-36010E0 |
BB4#,5#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55421-36030B0 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-36010E0 |
BB4#,5#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55411-36050 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55411-36070 |
BZB40,50,XZB4#,5# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-36020E0 |
BB58,HZB40..LX;BB40,55,HDB5#,HZB41,50..CBU,IV5 ｱﾘ(ﾏｲｸ),GREIGE,TRIM4# |
1 | ||
| 55412-36012B0 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 55412-36022B0 |
BZB40,50,XZB40,50,51 ｱﾘ(ﾏｲｸ),DK.CHARCOAL,TRIM1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-36031 |
XZB40,50;BZB40,50,XZB46,51,56..EX,LX |
1 | ||
| 55425-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55425-36030 |
XZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-36010E0 |
BB4#,5#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
BB40,HDB5#,HZB4#,50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-36030 |
BZB40,50,XZB4#,5#..EX,GX,LX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-44020 |
BZB40,50,XZB4#,5#..EX,GX,LX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-44020 |
XZB40,50;BZB40,50,XZB46,51,56..EX,LX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-36020 |
BZB40,50..LX;XZB40,50..STD..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-36030 |
BZB40,50,XZB4#,5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-36040 |
XZB40..6FC..IV5;XZB50..29S..WC..5F;XZB40,50..(29S,39S,49S)..6FC;XZB4#,51,56..(09S,26S,29S)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522G - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-36010E0 |
HDB51..IV1,IV5;BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-36010E0 |
HDB51..IV1,IV5;BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 55524C - COVER, SWITCH BASE HOLE, NO.4 | ||||
| 55524-36010E0 |
BB4#,HDB50,HZB40,5#..09S,26S,29S GREIGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-20030E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD GREIGE,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020E0 |
BB4#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-36020 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU |
1 | ||
| 55617A - COVER, THROTTLE KNOB HOLE | ||||
| 55617-10010E0 |
BB4#,5#;HDB5#,HZB4#,5#..MTM GREIGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55650-36020C0 |
BZB40,50,XZB4#,5# BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55660-36020 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-36030B0 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-36010E0 |
BB4#,5#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90167-50048 | ||||
| 90183-05027 | ||||
| 90183-05094 | ||||
| 90468-04147 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

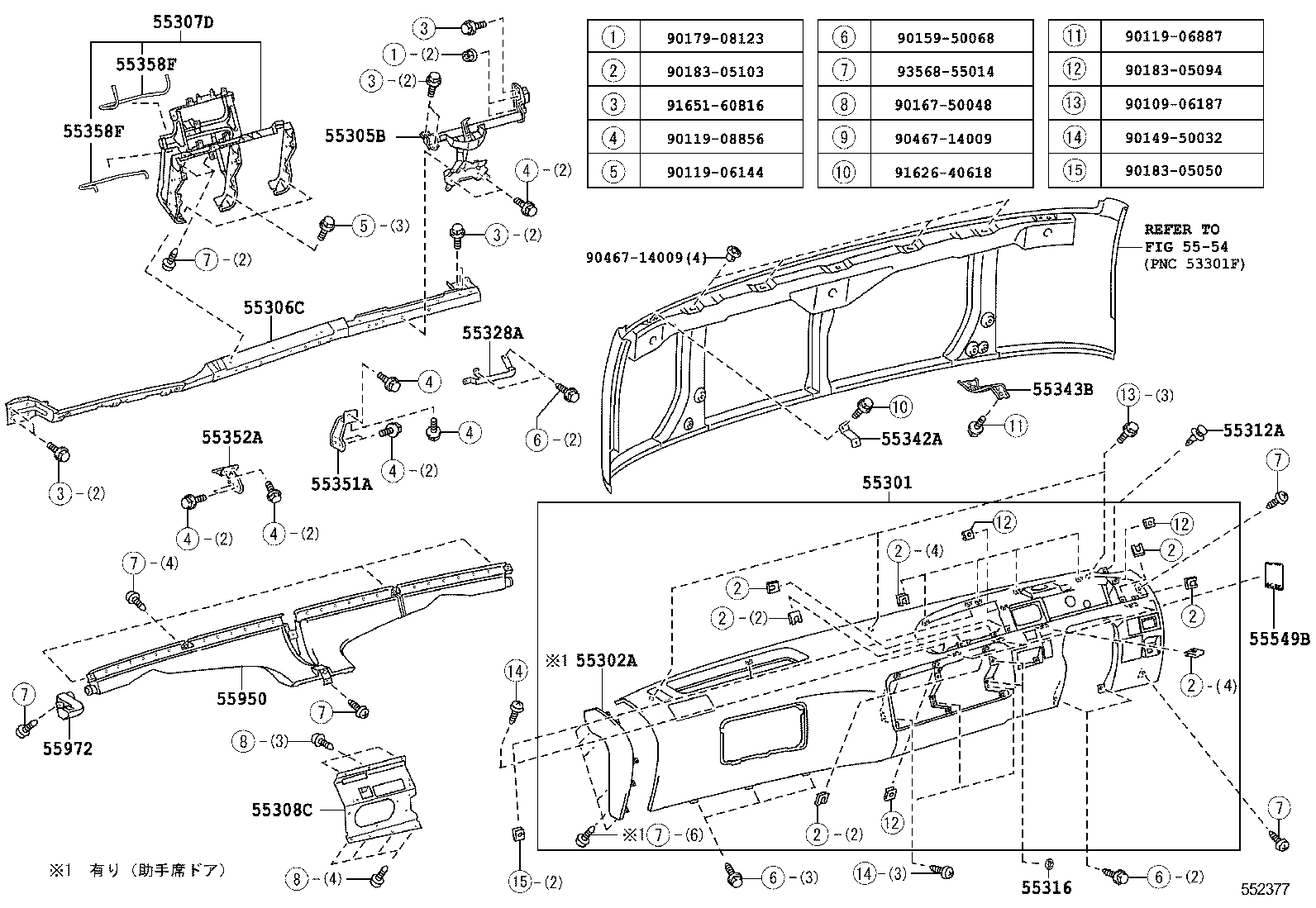

ILLUST NO. 1 OF 2(0708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-36010E0 |
BB4#,5#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 55301-36101B0 |
XZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC DK.CHARCOAL,TRIM1# |
1 | ||
| 55301-36100B0 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55306C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55306-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55306-36024 |
XZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC |
1 | ||
| 55306-36025 |
XZB40,50;BZB40,50,XZB46,51,56..EX,LX |
1 | ||
| 55306-36026 |
BZB40,50,XZB4#,5# |
1 | ||
| 55307D - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55307-36020 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55307-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-36012 |
XZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC |
1 | ||
| 55308-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 55308-36013 |
XZB40,50;BZB40,50,XZB46,51,56..EX,LX |
1 | ||
| 55308-36014 |
BZB40,50,XZB4#,5# |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55342-36050 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-36010 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55358F - PROTECTOR, EDGE | ||||
| 55358-36030 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
2 | ||
| 55358F - PROTECTOR, EDGE | ||||
| 55358-36030 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
2 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-36010B0 |
XZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC DK.CHARCOAL,TRIM1# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55950-36030 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55950-36031 |
BZB40,50,XZB4#,5# |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90109-06187 | ||||
| 90119-06144 | ||||
| 90119-06887 | ||||
| 90119-08856 | ||||
| 90149-50032 | ||||
| 90159-50068 | ||||
| 90167-50048 | ||||
| 90179-08123 | ||||
| 90183-05050 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14009 | ||||
| 91626-40618 | ||||
| 91651-60816 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5554 | ||||
