XZB50-ZRTNY5 (2007)
Toyota Coaster

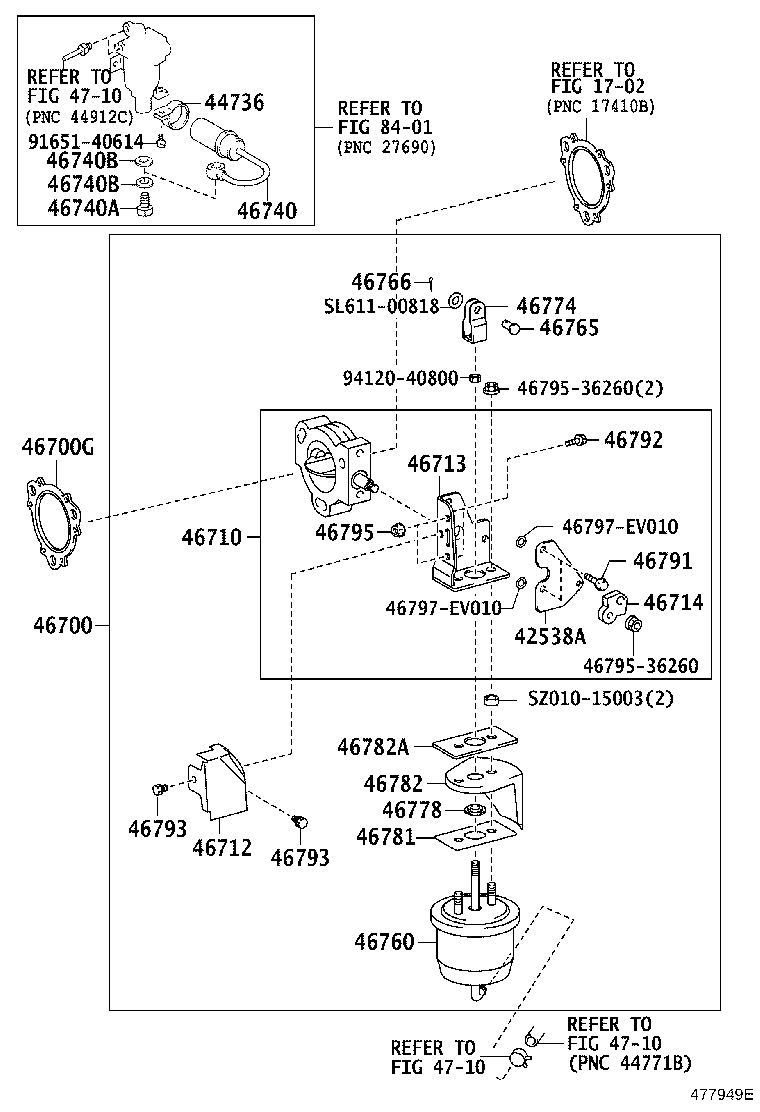

(1304- )XZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42538A - STAY, CONTROL SHAFT BRACKET | ||||
| 42538-EV010 |
XZB4#,5# |
1 | ||
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-E0372 |
XZB4#,5# |
1 | ||
| 46700-E0520 |
XZB4#,5# |
1 | ||
| 46700G - GASKET(FOR EXHAUST BRAKE) | ||||
| 17451-E0110 |
XZB4#,5# |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36170 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 46710-EV030 |
XZB4#,5# |
1 | ||
| 46710-EV010 |
XZB4#,5# |
1 | ||
| 46712 - COVER, EXHAUST VALVE LINK | ||||
| 46712-EV030 |
XZB4#,5# |
1 | ||
| 46712-EV010 |
XZB4#,5# |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36060 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 46713-EV010 |
XZB4#,5# |
1 | ||
| 46713-EV020 |
XZB4#,5# |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46714-EV010 |
XZB4#,5# |
1 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-EV020 |
XZB4#,5# |
1 | ||
| 46760-EV060 |
XZB4#,5# |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-EV010 |
XZB4#,5# |
1 | ||
| 46774-36270 |
XZB4#,5# |
1 | ||
| 46778 - BEARING, VACUUM CYLINDER | ||||
| 46778-EV010 |
XZB4#,5# |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36060 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46782-EV010 |
XZB4#,5# |
1 | ||
| 46782-EV030 |
XZB4#,5# |
1 | ||
| 46782A - PROTECTOR, EXHAUST RETARDER | ||||
| 46782-EV020 |
XZB4#,5# |
1 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 91612-60816 |
BB5#,HDB5#,HZB4#,5# |
2 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| Common parts | ||||
| 46795-36260 | ||||
| 46797-EV010 | ||||
| 91651-40614 | ||||
| 94120-40800 | ||||
| SL611-00818 | ||||
| SZ010-15003 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 4710 | ||||
| 8401 | ||||

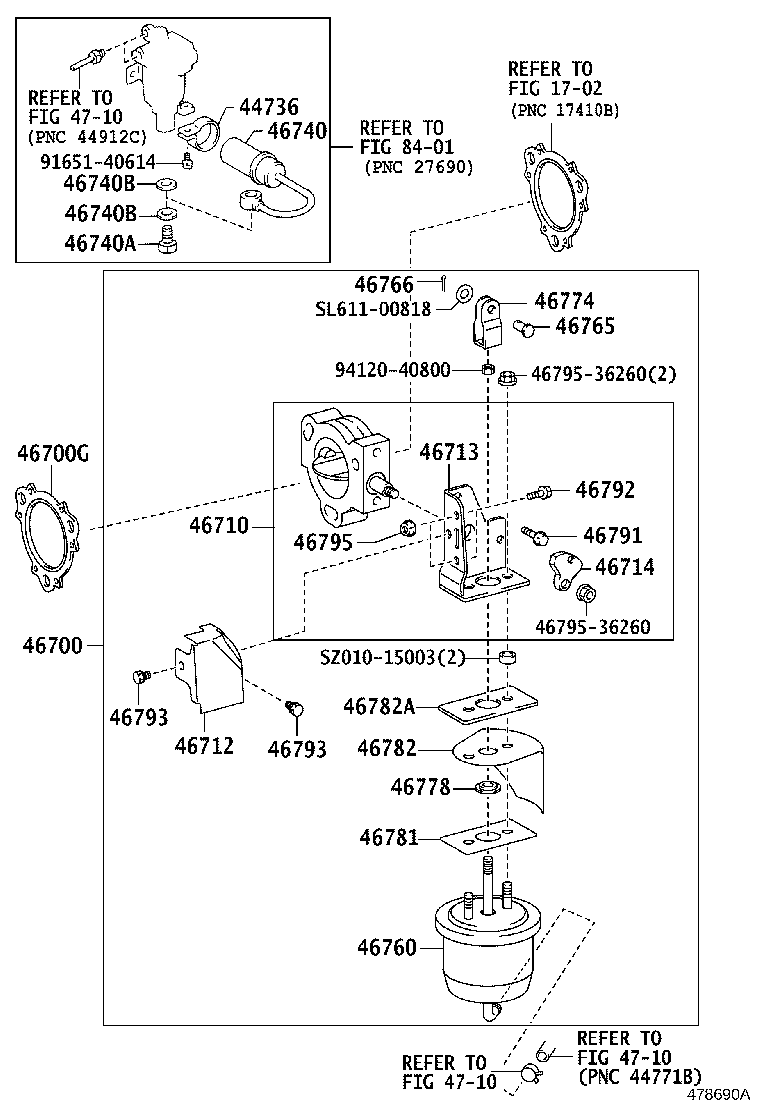

(1108-1304)XZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36050 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-E0372 |
XZB4#,5# |
1 | ||
| 46700-E0520 |
XZB4#,5# |
1 | ||
| 46700G - GASKET(FOR EXHAUST BRAKE) | ||||
| 17451-E0110 |
XZB4#,5# |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36170 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 46710-EV030 |
XZB4#,5# |
1 | ||
| 46710-EV010 |
XZB4#,5# |
1 | ||
| 46712 - COVER, EXHAUST VALVE LINK | ||||
| 46712-EV030 |
XZB4#,5# |
1 | ||
| 46712-EV010 |
XZB4#,5# |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36060 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 46713-EV010 |
XZB4#,5# |
1 | ||
| 46713-EV020 |
XZB4#,5# |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46714-EV010 |
XZB4#,5# |
1 | ||
| 46740 - CLEANER ASSY, EXHAUST RETARDER | ||||
| 46740-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90401-12097 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) | ||||
| 90430-12247 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM | ||||
| 46760-EV020 |
XZB4#,5# |
1 | ||
| 46760-EV060 |
XZB4#,5# |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-EV010 |
XZB4#,5# |
1 | ||
| 46774-36270 |
XZB4#,5# |
1 | ||
| 46778 - BEARING, VACUUM CYLINDER | ||||
| 46778-EV010 |
XZB4#,5# |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-36060 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 46782-EV010 |
XZB4#,5# |
1 | ||
| 46782-EV030 |
XZB4#,5# |
1 | ||
| 46782A - PROTECTOR, EXHAUST RETARDER | ||||
| 46782-EV020 |
XZB4#,5# |
1 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 91612-60816 |
BB5#,HDB5#,HZB4#,5# |
2 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| Common parts | ||||
| 46795-36260 | ||||
| 91651-40614 | ||||
| 94120-40800 | ||||
| SL611-00818 | ||||
| SZ010-15003 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 4710 | ||||
| 8401 | ||||
