Toyota Coaster XZB50 HEATING & AIR CONDITIONING - COMPRESSOR

XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007

Engine N04C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

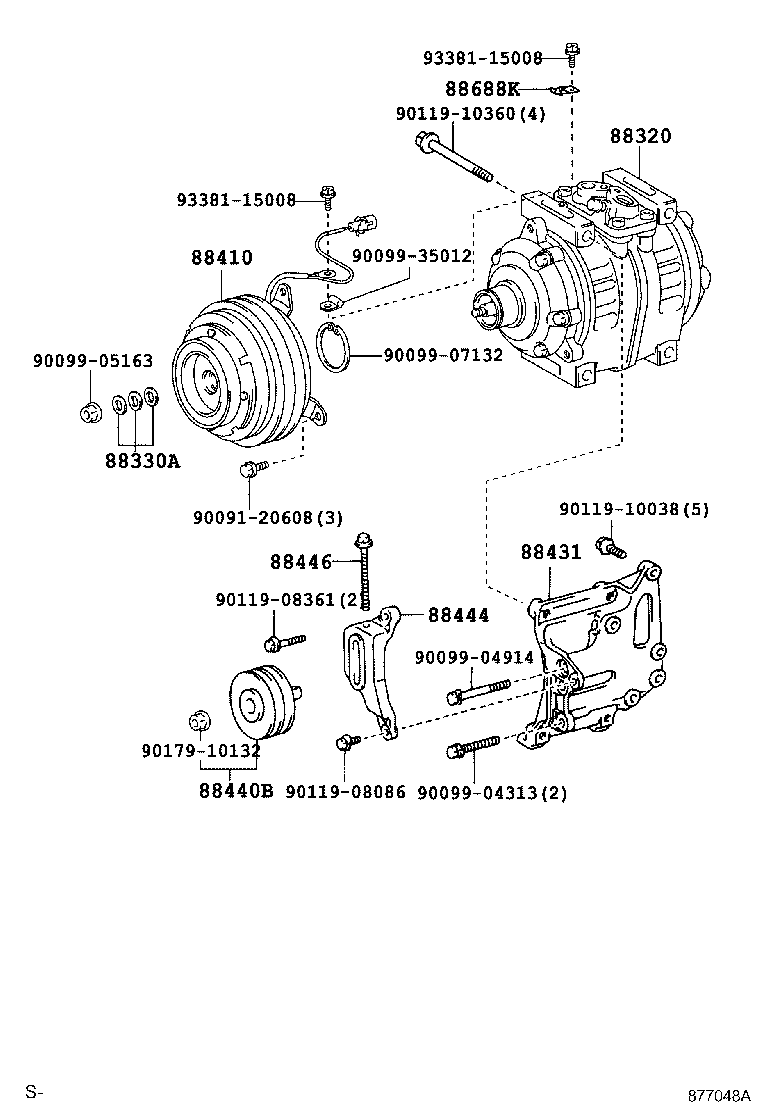

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88320-36530	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88335-12050	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36650	XZB4#,5#..WC	08/2004 - 08/2006	1
88431-36680	XZB4#,5#..WC	08/2006 - 08/2007	1
88440B - PULLEY ASSY, IDLE
88440-36130	XZB4#,5#..WC *196	08/2006 - 08/2007	1
88440-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88440-36130	XZB51..SULNG..6FC;XZB4#,5#..EX,GX,LX,STD	08/2004 - 08/2006	1
88446 - BOLT, IDLE PULLEY
90105-08099	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
90099-04306	BB4#,5#..(LX,STD)..WC	01/1993 - 07/1999	1
90099-04306	XZB4#,5#..WC *196	08/2006 - 08/2007	1
90099-04306	XZB51..SULNG..6FC;XZB4#,5#..EX,GX,LX,STD	08/2004 - 08/2006	1
88688K - BRACKET, COOLER COMPRESSOR
88688-3B120	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
Common parts
90091-20608
90099-04313
90099-04914
90099-05163
90099-07132
90099-35012
90119-08086
90119-08361
90119-10038
90119-10360
90179-10132
93381-15008

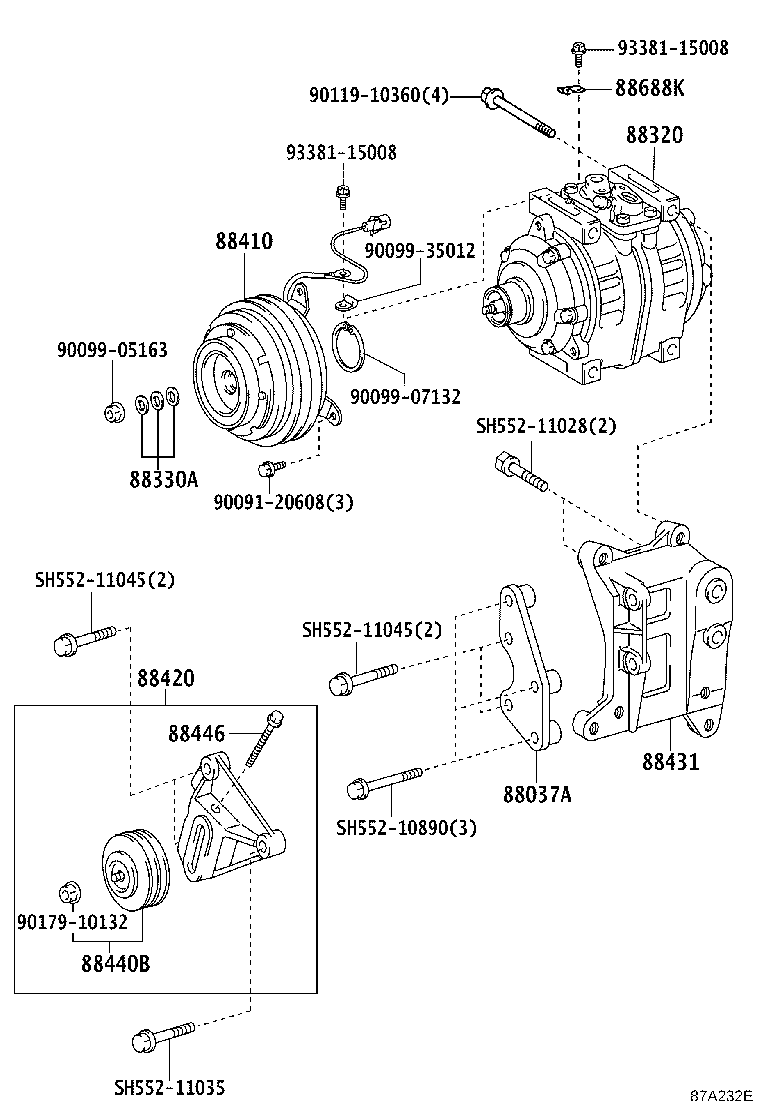

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88320-36530	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	BB4#,55,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 02/1996	1
88335-12050	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-36330	XZB4#,5#..WC *196	08/2006 - 08/2007	1
88420-36310	XZB4#,5#..WC	08/2004 - 07/2006	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36650	XZB4#,5#..WC	08/2004 - 08/2006	1
88431-36680	XZB4#,5#..WC	08/2006 - 08/2007	1
88440B - PULLEY ASSY, IDLE
88440-36130	XZB4#,5#..WC *196	08/2006 - 08/2007	1
88440-36130	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
88440-36130	XZB51..SULNG..6FC;XZB4#,5#..EX,GX,LX,STD	08/2004 - 08/2006	1
88446 - BOLT, IDLE PULLEY
90105-08099	HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC	01/1993 - 07/1999	1
90099-04306	BB4#,5#..(LX,STD)..WC	01/1993 - 07/1999	1
90099-04306	XZB4#,5#..WC *196	08/2006 - 08/2007	1
90099-04306	XZB51..SULNG..6FC;XZB4#,5#..EX,GX,LX,STD	08/2004 - 08/2006	1
88688K - BRACKET, COOLER COMPRESSOR
88688-3B120	XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
Common parts
90091-20608
90099-05163
90099-07132
90099-35012
90119-10360
90179-10132
93381-15008
SH552-10890
SH552-11028
SH552-11035
SH552-11045
