XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

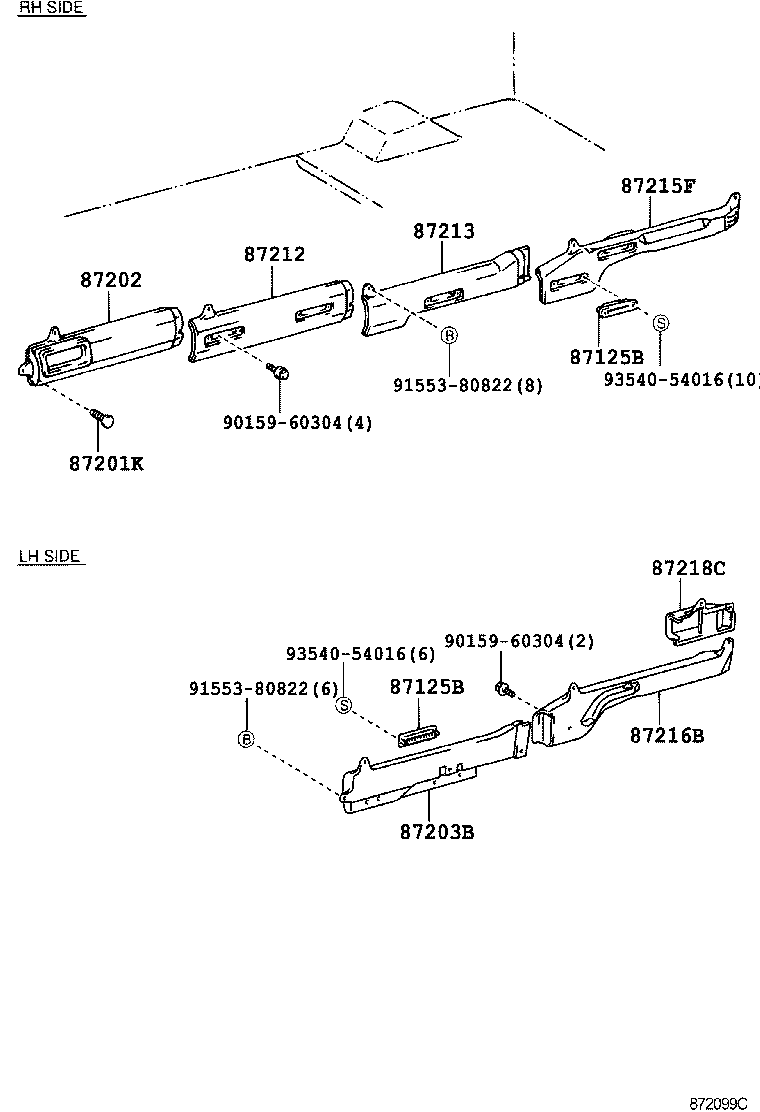

ILLUST NO. 3 OF 6(9301-1501)

Click highlighted areas on diagram

ﾘﾔ ｴｱ ﾀﾞｸﾄ

diagram 87125B 87125B 87201K 87202 87203B 87212 87213 87215F 87216B 87218C 9015960304 9015960304 9155380822 9155380822 9354054016 9354054016
Part # Description Qty Price
Common parts
90159-60304
91553-80822
93540-54016

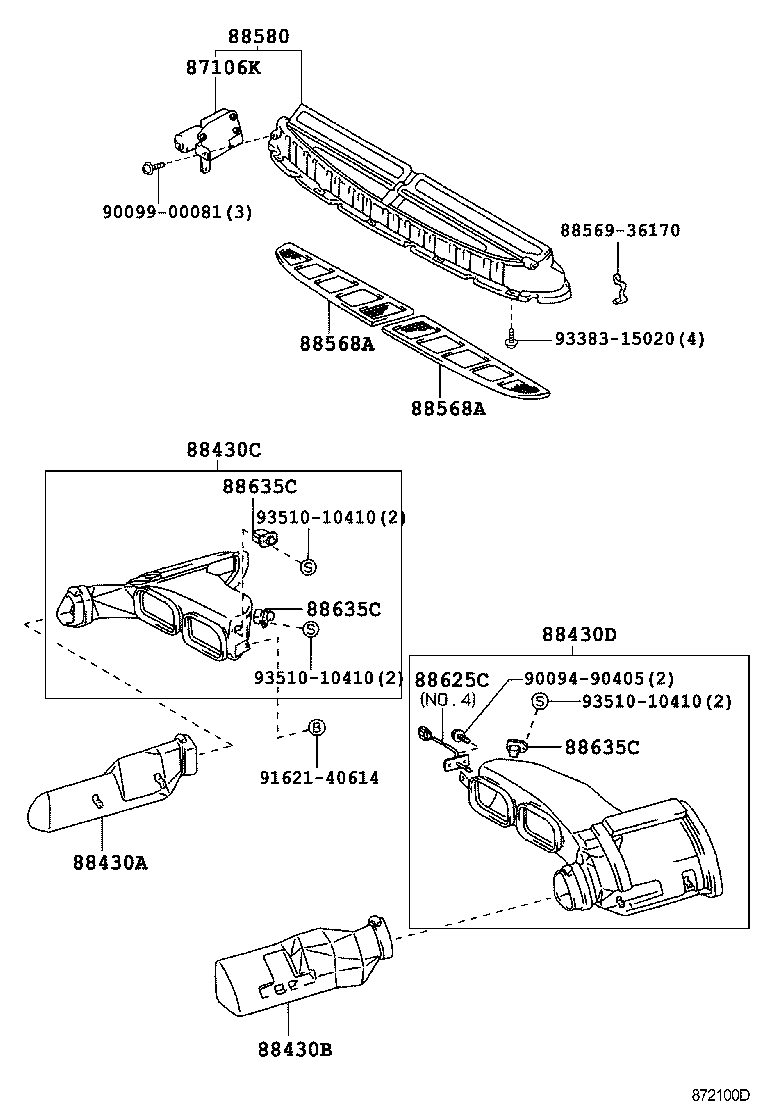

ILLUST NO. 4 OF 6(9301-1501)

Click highlighted areas on diagram

ﾙ-ﾌ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ

diagram 87106K 88430A 88430B 88430C 88430D 88568A 88568A 8856936170 88580 88625C 88635C 88635C 88635C 9009490405 9009900081 9162140614 9338315020 9351010410 9351010410 9351010410
Part # Description Qty Price
87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-36060

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
87106-36061

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
88430A - DUCT ASSY, AIR, NO.1
88430-36110

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88430-36110

XZB4#,5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
88430B - DUCT ASSY, AIR, NO.2
88430-36240

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88430-36240

XZB4#,5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
88430C - DUCT ASSY, AIR, NO.3
88430-36030

HDB51..IV5;BB4#,5#,HZB40,5#..HRF..LX

 1
88430-36031

XZB4#,50,56..HRF..(LX,STD)..(4FC,6F)

 1
88430D - DUCT ASSY, AIR, NO.4
88430-36040

HDB51..IV5;BB4#,5#,HZB40,5#..HRF..LX

 1
88430-36041

XZB4#,50,56..HRF..(LX,STD)..(4FC,6F)

 1
88568A - FILTER, AIR
88568-36010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88568-36011

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
88568A - FILTER, AIR
88568-36010

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88568-36011

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
88580 - DAMPER ASSY, AIR
88580-36020

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88580-36021

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36090

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 3
88635-36090

XZB4#,50,56..(LX,STD)..(4FC,6F)

 3
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36090

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 3
88635-36090

XZB4#,50,56..(LX,STD)..(4FC,6F)

 3
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36090

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 3
88635-36090

XZB4#,50,56..(LX,STD)..(4FC,6F)

 3
Common parts
88569-36170
90094-90405
90099-00081
91621-40614
93383-15020
93510-10410

ILLUST NO. 2 OF 6(0408-0708)

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ

diagram 55084E 55085 55845A 87106E 87114C 87114C 87138B 87138B 87210 87210 87316 87316 87316 87316 87316 87346F 87346F 87441B 87441B 87529A 87529A 88630K 88630K 88630K 88650B 9015950068 9015950068 9018305103 9018305103 9165140616 9165140616 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-36010

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD

 1
55084-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
55085-36010

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
55845-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
87114C - COVER, HEATER
87114-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
87114-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
87114C - COVER, HEATER
87114-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
87114-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
87138B - RESISTOR, HEATER BLOWER
87138-36190

BB4#,HZB40,5#..DX,LX,STD

 1
87138-36200

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138-36190

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87138B - RESISTOR, HEATER BLOWER
87138-36190

BB4#,HZB40,5#..DX,LX,STD

 1
87138-36200

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138-36190

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87210 - DAMPER ASSY, AIR
87210-36040

BB4#,HZB40,5#..DX,LX,STD

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87210-36060

HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD

 1
87210-36041

XZB4#,50,56..(LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87210-36061

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87210 - DAMPER ASSY, AIR
87210-36040

BB4#,HZB40,5#..DX,LX,STD

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87210-36060

HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD

 1
87210-36041

XZB4#,50,56..(LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87210-36061

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5#

 1
85999-12050

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5#

 1
85999-12050

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5#

 1
85999-12050

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5#

 1
85999-12050

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5#

 1
85999-12050

XZB4#,50,56..(LX,STD)..(4FC,6F)

 1
87441B - FILTER, HEATER AIR
87441-36010

BB4#,5#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87441-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87441B - FILTER, HEATER AIR
87441-36010

BB4#,5#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87441-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87529A - PLATE, AIR FILTER CAUTION
87529-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87529-36010

BB4#,5#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87529A - PLATE, AIR FILTER CAUTION
87529-36010

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87529-36010

BB4#,5#,HDB5#,HZB4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88630K - RELAY ASSY
90987-02005

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 1
88630K - RELAY ASSY
90987-02005

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 1
88630K - RELAY ASSY
90987-02005

HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100

BB4#,HZB40,5#..DX,LX,STD

 1
Common parts
90159-50068
90183-05103
91651-40616
93568-55014

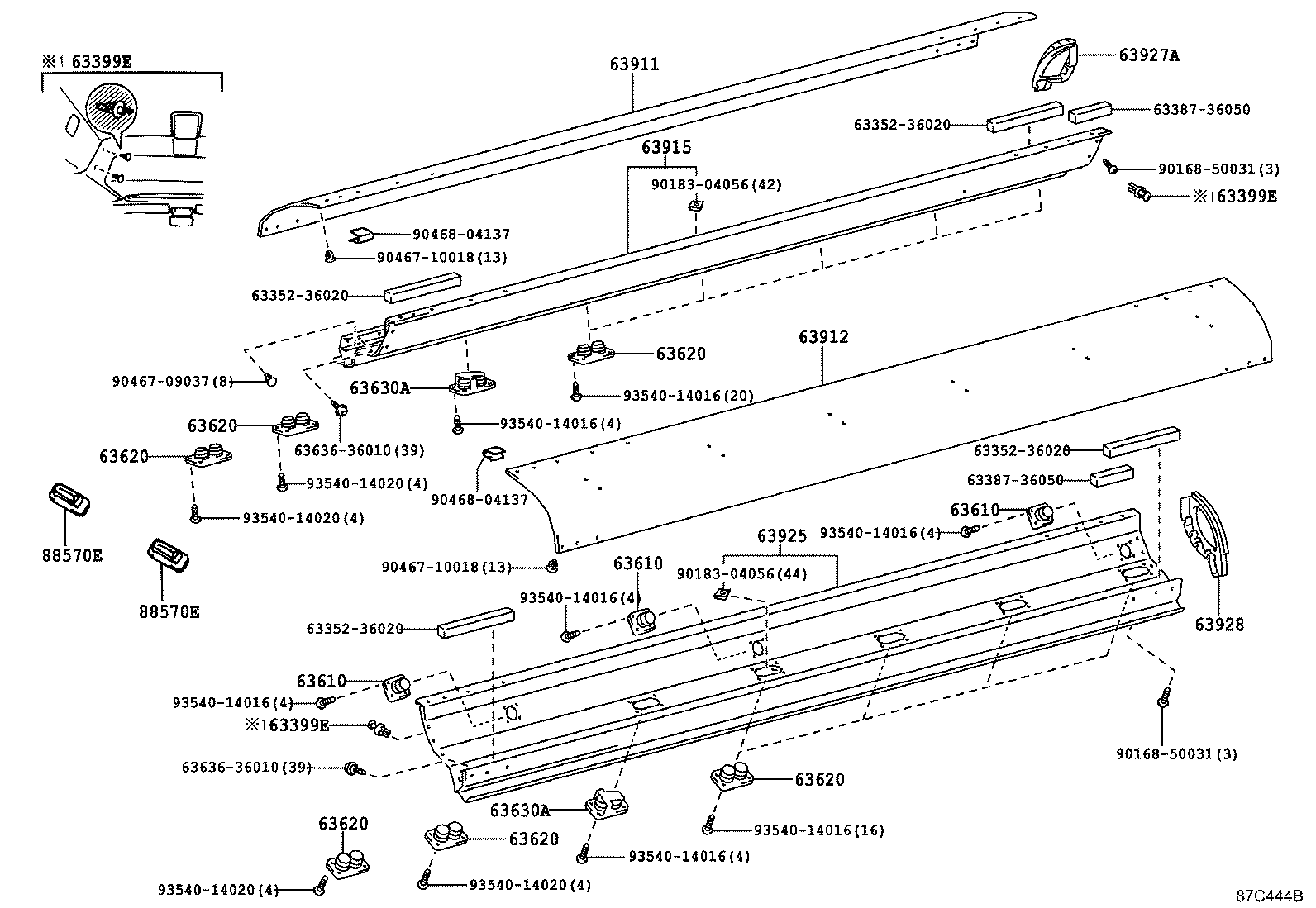

ILLUST NO. 5 OF 6(9301-1501)

Click highlighted areas on diagram

ﾙ-ﾌ ｴｱ ﾀﾞｸﾄ

diagram 6335236020 6335236020 6335236020 6335236020 6338736050 6338736050 63399E 63399E 63399E 63610 63610 63610 63620 63620 63620 63620 63620 63620 63630A 63630A 6363636010 6363636010 63911 63912 63915 63925 63927A 63928 88570E 88570E 9016850031 9016850031 9018304056 9018304056 9046709037 9046710018 9046710018 9046804137 9046804137 9354014016 9354014016 9354014016 9354014016 9354014016 9354014016 9354014016 9354014020 9354014020 9354014020 9354014020
Part # Description Qty Price
63399E - CLIP, ROOF HEADLINING
63399-36030A0

BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 16
63399E - CLIP, ROOF HEADLINING
63399-36030A0

BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 16
63399E - CLIP, ROOF HEADLINING
63399-36030A0

BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 16
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)

IVORY,TRIM4#

 3
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)

IVORY,TRIM4#

 3
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)

IVORY,TRIM4#

 3
63630A - REGISTER ASSY, AIR DUCT, NO.3
63630-36010A0

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 2
63630A - REGISTER ASSY, AIR DUCT, NO.3
63630-36010A0

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#

 2
63911 - DUCT, COOLER, OUTER RH
63911-36080

XZB5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
63912 - DUCT, COOLER, OUTER LH
63911-36080

XZB5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
63915 - DUCT, COOLER, INNER NO.1 RH
63915-36020B0

BZB50,XZB50,56..HRF..WC

MD.CHARCOAL,TRIM1#

 1
63915-36110B0

BZB50,XZB50..HRF..WC

ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1#

 1
63925 - DUCT, COOLER, INNER NO.1 LH
63925-36020B0

BZB50,XZB50,56..HRF..WC

MD.CHARCOAL,TRIM1#

 1
63925-36110B0

BZB50,XZB50..HRF..WC

ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1#

 1
63927A - COVER, COOLER DUCT END, NO.1
63927-36010

HZB40..5F;HZB50..GX,LX;HZB40..LX..4FC..CBU;BB4#,5#,HDB5#,HZB41,56..HRF..(EX,GX,LX,SULNG)..CBU

 1
63927-36040

XZB4#,5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
63928 - COVER, COOLER DUCT END, NO.2
63928-36010

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
63928-36040

XZB4#,5#..HRF..(EX,GX,LX,STD)..(4FC,6F)

 1
Common parts
63352-36020
63387-36050
63636-36010
90168-50031
90183-04056
90467-09037
90467-10018
90468-04137
93540-14016
93540-14020
