XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

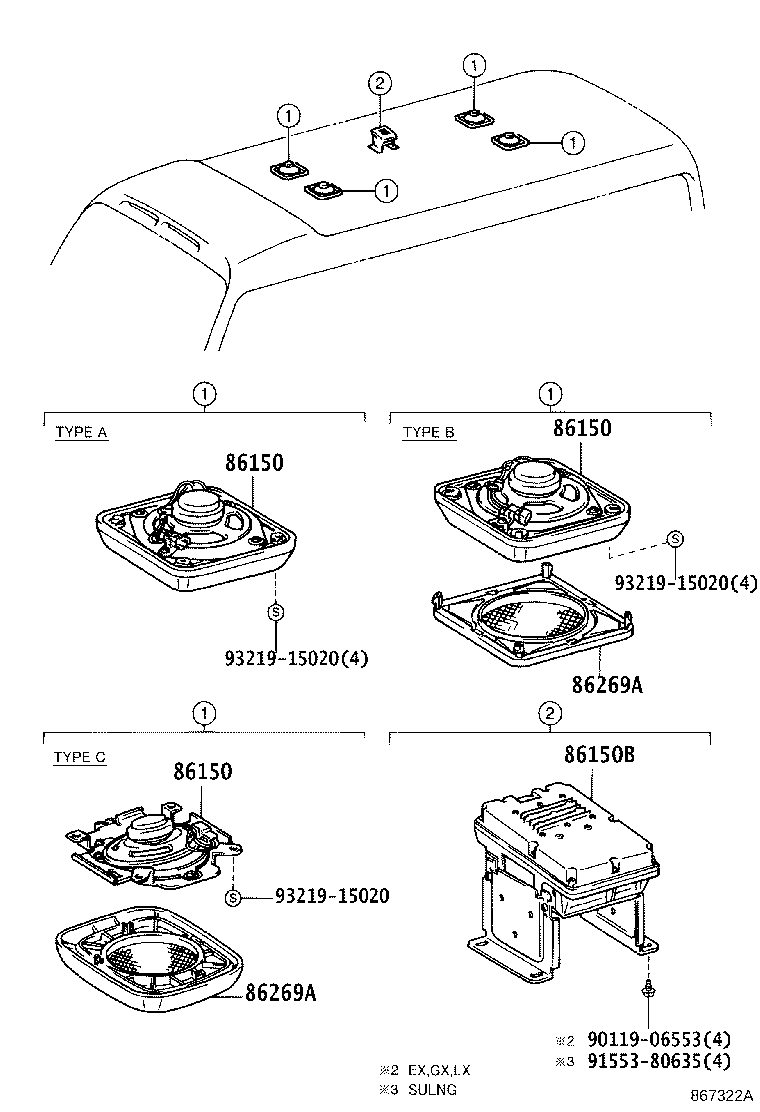

ILLUST NO. 1 OF 3(0408- )

Click highlighted areas on diagram

1,2,4,5 ｽﾋﾟｰｶ

diagram 86150 86150 86150 86150B 86269A 86269A 9011906553 9155380635 9321915020 9321915020 9321915020
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-36090A0

BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#,6.3W

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-36090A0

BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#,6.3W

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-36090A0

BB40,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC

IVORY,TRIM4#,6.3W

 1
86150B - SPEAKER ASSY, W/BOX, NO.2
86150-36051

XZB40,50,51..HRF..(26S,29S)..(4FC,6F)..CBU

 1
86150-36050

BB55,HDB5#,HZB41,50..EX,GX,LX,SULNG

 1
Common parts
90119-06553
91553-80635
93219-15020
