Toyota Coaster XZB50 AUTOMATIC DOOR

XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007

Engine N04C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

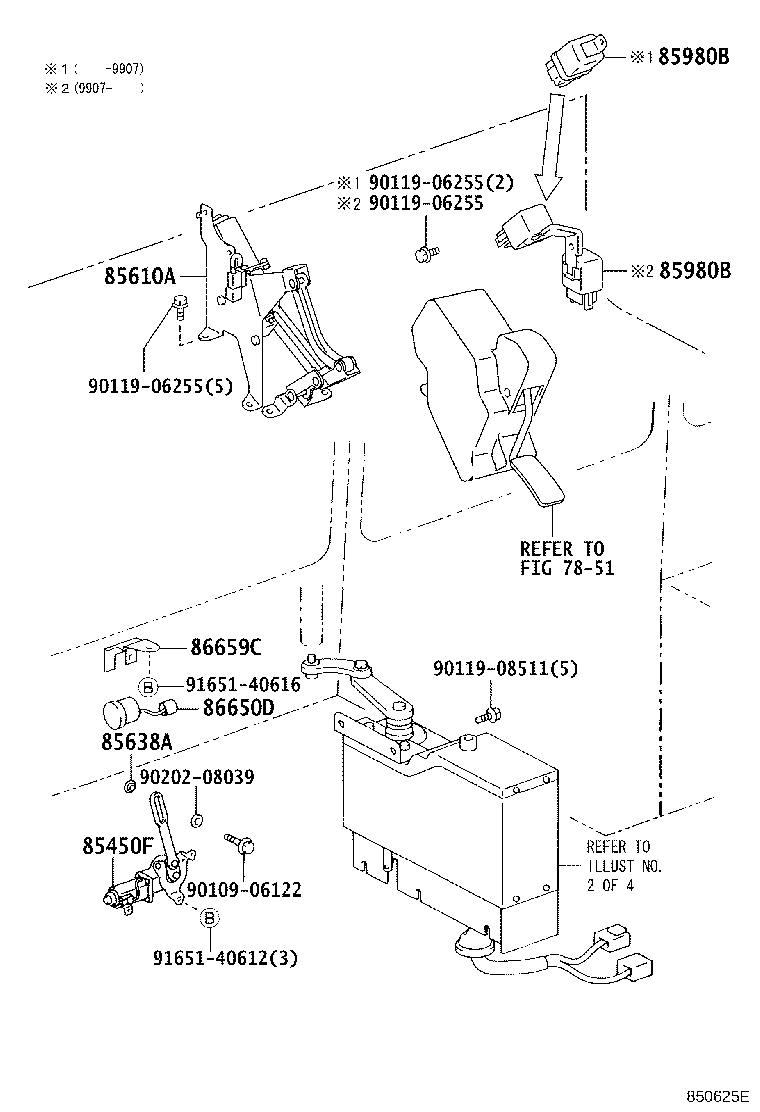

ILLUST NO. 1 OF 4(9301-1209)

Click highlighted areas on diagram

ｸﾞﾗｲﾄﾞｼｷ

Part #	Description	Period	Qty
85450F - MOTOR ASSY, DOOR CONTROL
85450-36040	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU	01/1993 - 07/1999	1
85450-36040	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F)	08/2004 - 08/2007	1
85610A - ACTUATOR ASSY, ACCEL INTER LOCK
85610-36060	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85610-36020	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
85638A - SPACER, AUTOMATIC DOOR
85638-36010	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU	01/1993 - 07/1999	1
85638-36010	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F)	08/2004 - 08/2007	1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85980-36090	BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	2
85980-36110	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85980-36090	BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	2
85980-36110	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
86650D - BUZZER ASSY
86650-36060	HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU	01/1993 - 07/1999	1
86650-36060	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
86659C - BRACKET, BUZZER, AUTOMATIC DOOR
86659-36010	HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU	01/1993 - 07/1999	1
86659-36010	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
Common parts
90109-06122
90119-06255
90119-08511
90202-08039
91651-40612
91651-40616
Linked diagrams
7851

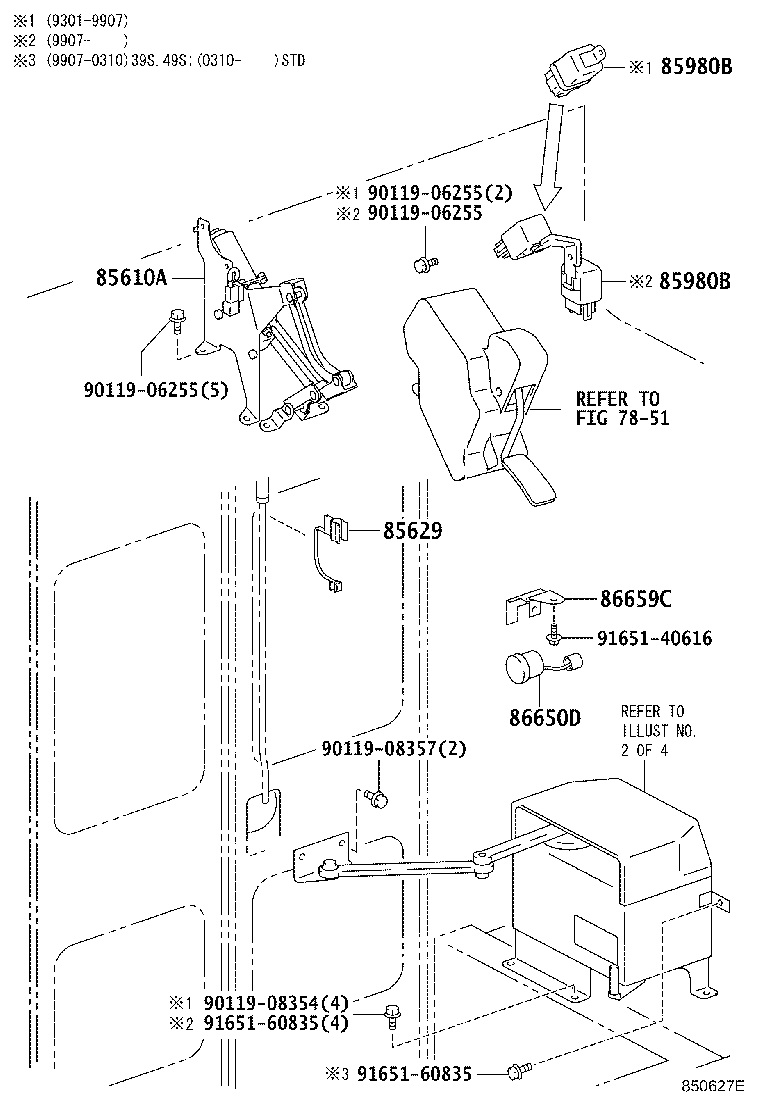

ILLUST NO. 1 OF 4(9301-1209)

Click highlighted areas on diagram

ｵﾘﾄﾞｼｷ

Part #	Description	Period	Qty
85610A - ACTUATOR ASSY, ACCEL INTER LOCK
85610-36060	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85610-36020	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
85629 - HOLDER, AUTOMATIC DOOR
85629-90B01	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S	01/1993 - 05/1995	1
85629-36010	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85980-36090	BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	2
85980-36110	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85980-36090	BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	2
85980-36110	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
86650D - BUZZER ASSY
86650-36060	HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU	01/1993 - 07/1999	1
86650-36060	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) 24V	08/2004 - 08/2007	1
86659C - BRACKET, BUZZER, AUTOMATIC DOOR
86659-36010	HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU	01/1993 - 07/1999	1
86659-36010	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
Common parts
90119-06255
90119-08354
90119-08357
91651-40616
91651-60835
Linked diagrams
7851

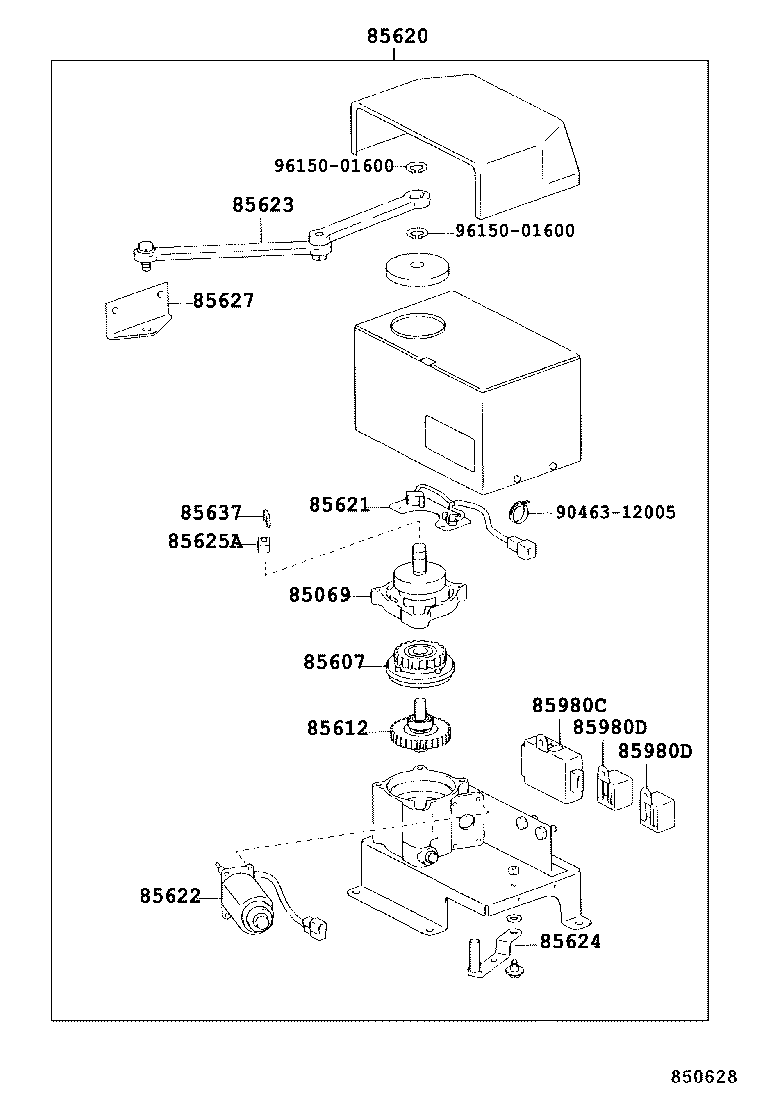

ILLUST NO. 2 OF 4(9301-1209)

Click highlighted areas on diagram

ｵﾘﾄﾞｼｷﾕﾆｯﾄ

Part #	Description	Period	Qty
85069 - HOUSING SUB-ASSY, AUTO DOOR
85069-36020	BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞﾃﾞﾝﾄﾞｳｵ-ﾄ (ﾌﾞｻﾞ- ﾂｷ)	01/1993 - 05/1995	1
85069-36010	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85069-36020	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85069-36010	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85607 - GEAR SUB-ASSY, IDLE
85607-36020	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85607-36010	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85607-36020	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85607-36010	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85612 - GEAR, AUTOMATIC DOOR WORM WHEEL
85612-36010	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S	01/1993 - 05/1994	1
85612-36011	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR
85620-36080	BB40,HDB50,HZB40,50..GX,LX ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 11/1994	1
85620-36120	BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85620-36161	XZB40,50..(26S,29S)..LX..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85620-36221	XZB4#,5#..(09S,20S,26S,29S)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	11/2006 - 08/2007	1
85620-36230	BZB40,50..LX ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 10/2006	1
85620-36220	XZB51..SULNG..6FC;XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 10/2006	1
85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR
85621-36020	BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85621-36010	BB40,HDB50,HZB40,50..GX,LX ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 10/1998	1
85621-36012	XZB4#,5#..(09S,20S,26S,29S)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	11/2006 - 08/2007	1
85621-36021	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	08/2004 - 08/2007	1
85621-36011	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 10/2006	1
85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR
85622-36020	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85622-36040	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85622-36040	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85622-36020	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85623 - LINK, AUTOMATIC DOOR REGULATOR
85623-36010	BB40,HDB50,HZB40,50..GX,LX ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 05/1995	1
85623-36020	BB40,HDB5#,HZB4#,50..EX,GX,LX ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85623-36021	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85623-36011	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85624-90B00	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85624-90B00	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85624-36010	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85624-36010	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85625A - RACK, AUTOMATIC DOOR
85625-36020	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85625-36010	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85625-36020	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85625-36010	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85627 - STAY, AUTOMATIC DOOR REGULATOR
85627-36010	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S	01/1993 - 05/1995	1
85627-36011	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85637 - REMOVER, AUTOMATIC DOOR
85637-90B00	HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU	01/1993 - 07/1999	1
85637-90B00	XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F)	08/2004 - 08/2007	1
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
85980-36030	BB40,HDB50,HZB40,50..GX,LX ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1994	1
85980-36031	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85980-36050	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	1
85980-36050	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵ-ﾄ	01/1993 - 05/1995	1
85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
85980-36090	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85980-36080	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S	01/1993 - 05/1995	2
85980-36090	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85980-36080	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	2
85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
85980-36090	HZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	01/1993 - 07/1999	1
85980-36080	BB46..WOC;BB40,HDB5#,HZB4#,50..15S,26S,29S	01/1993 - 05/1995	2
85980-36090	XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｸﾞﾗｲﾄﾞｼｷｵ-ﾄ	08/2004 - 08/2007	1
85980-36080	XZB40,50..(26S,29S,39S,49S)..(LX,STD)..(4FC,6F) ｵﾘﾄﾞｼｷﾃﾞﾝﾄﾞｳｵｰﾄ	08/2004 - 08/2007	2
Common parts
90463-12005
96150-01600
