XZB50-ZRPNH (2004)
Toyota Coaster

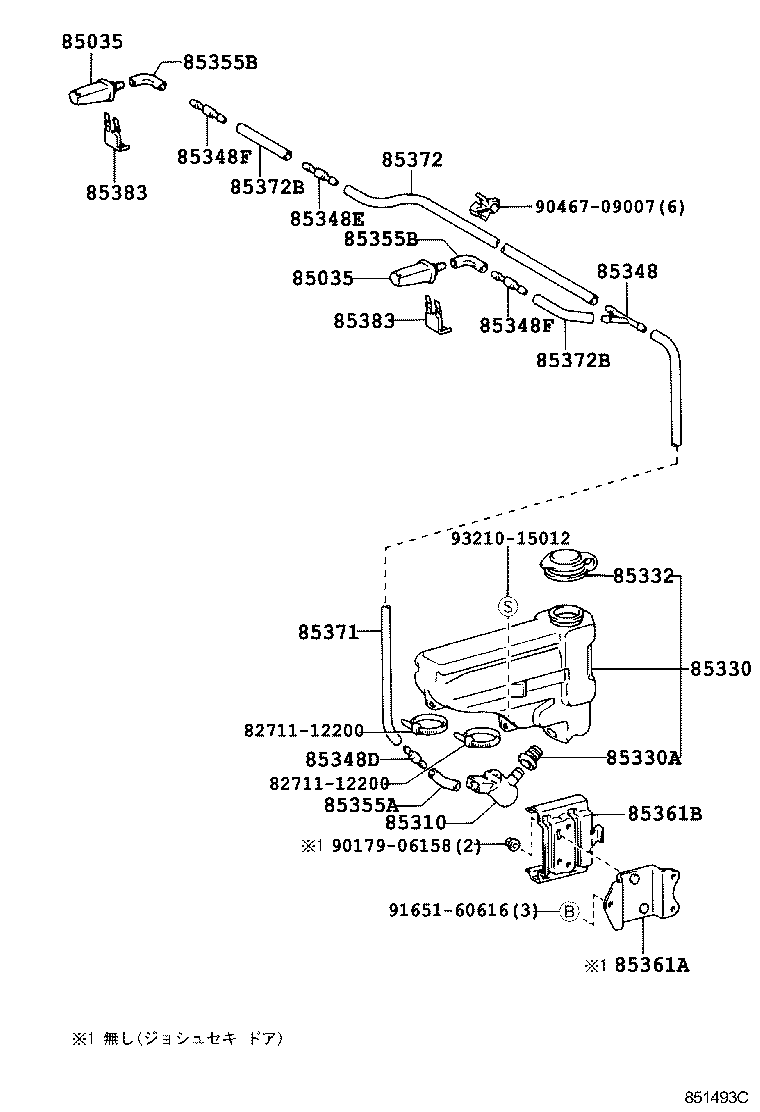

(9301-0703)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85381-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85381-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-36160 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85330-36160 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-36130 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85315-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 90099-32089 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85316-36130 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348-12250 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85349-89122 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85355A - JOINT, WINDSHIELD WASHER ELBOW | ||||
| 85355-14481 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85355B - JOINT, ELBOW NO.2 | ||||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85355-14481 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 85355B - JOINT, ELBOW NO.2 | ||||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85355-14481 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-36160 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85361-36160 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-95A00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85361-95A02 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
BB4#,HDB5#,HZB4#,5# *H,L=1000 |
1 | ||
| 90446-06013 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD *H,L=950 |
1 | ||
| 90099-33080 |
XZB4#,5#..4FC,6F *H,L=80 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5# *H,L=870 |
1 | ||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=870 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=100 |
2 | ||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 *H,L=100 |
2 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=100 |
2 | ||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 *H,L=100 |
2 | ||
| 85383 - HOLDER, FRONT WASHER NOZZLE | ||||
| 85383-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85383-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85383 - HOLDER, FRONT WASHER NOZZLE | ||||
| 85383-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85383-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06158 | ||||
| 90467-09007 | ||||
| 91651-60616 | ||||
| 93210-15012 | ||||

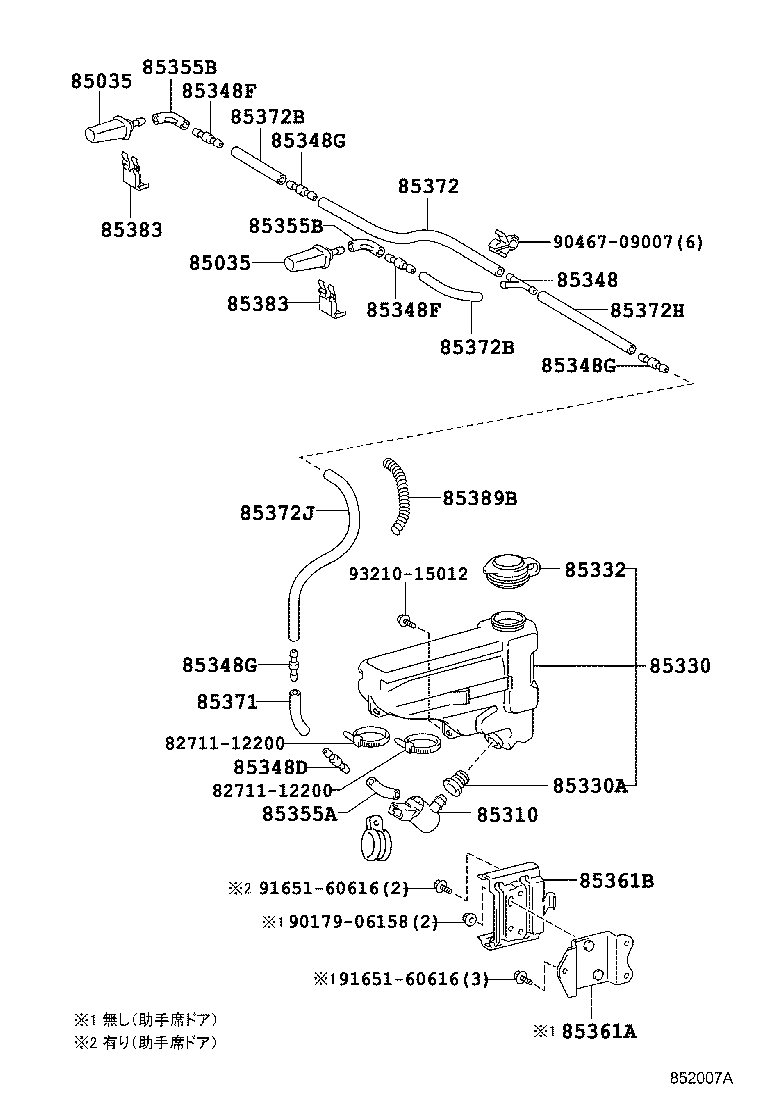

(0703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85381-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85381-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-36160 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85330-36160 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-36130 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85315-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 90099-32089 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85316-36130 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348-12250 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85349-89122 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85349-89122 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
XZB4#,5#..4FC,6F |
3 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
XZB4#,5#..4FC,6F |
3 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
XZB4#,5#..4FC,6F |
3 | ||
| 85355A - JOINT, WINDSHIELD WASHER ELBOW | ||||
| 85355-14481 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85355B - JOINT, ELBOW NO.2 | ||||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85355-14481 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 85355B - JOINT, ELBOW NO.2 | ||||
| 85355-14481 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85355-14481 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-36160 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85361-36160 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-95A00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85361-95A02 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
BB4#,HDB5#,HZB4#,5# *H,L=1000 |
1 | ||
| 90446-06013 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD *H,L=950 |
1 | ||
| 90099-33080 |
XZB4#,5#..4FC,6F *H,L=80 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5# *H,L=870 |
1 | ||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=870 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=100 |
2 | ||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 *H,L=100 |
2 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-06013 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=100 |
2 | ||
| 90446-06013 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 *H,L=100 |
2 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-06013 |
XZB4#,5#..4FC,6F 長さ=480 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-06013 |
XZB4#,5#..4FC,6F *H,L=310 |
1 | ||
| 85383 - HOLDER, FRONT WASHER NOZZLE | ||||
| 85383-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85383-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85383 - HOLDER, FRONT WASHER NOZZLE | ||||
| 85383-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 85383-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-36060 |
XZB4#,5#..4FC,6F |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06158 | ||||
| 90467-09007 | ||||
| 91651-60616 | ||||
| 93210-15012 | ||||
