XZB50-ZRPNH (2004)
Toyota Coaster

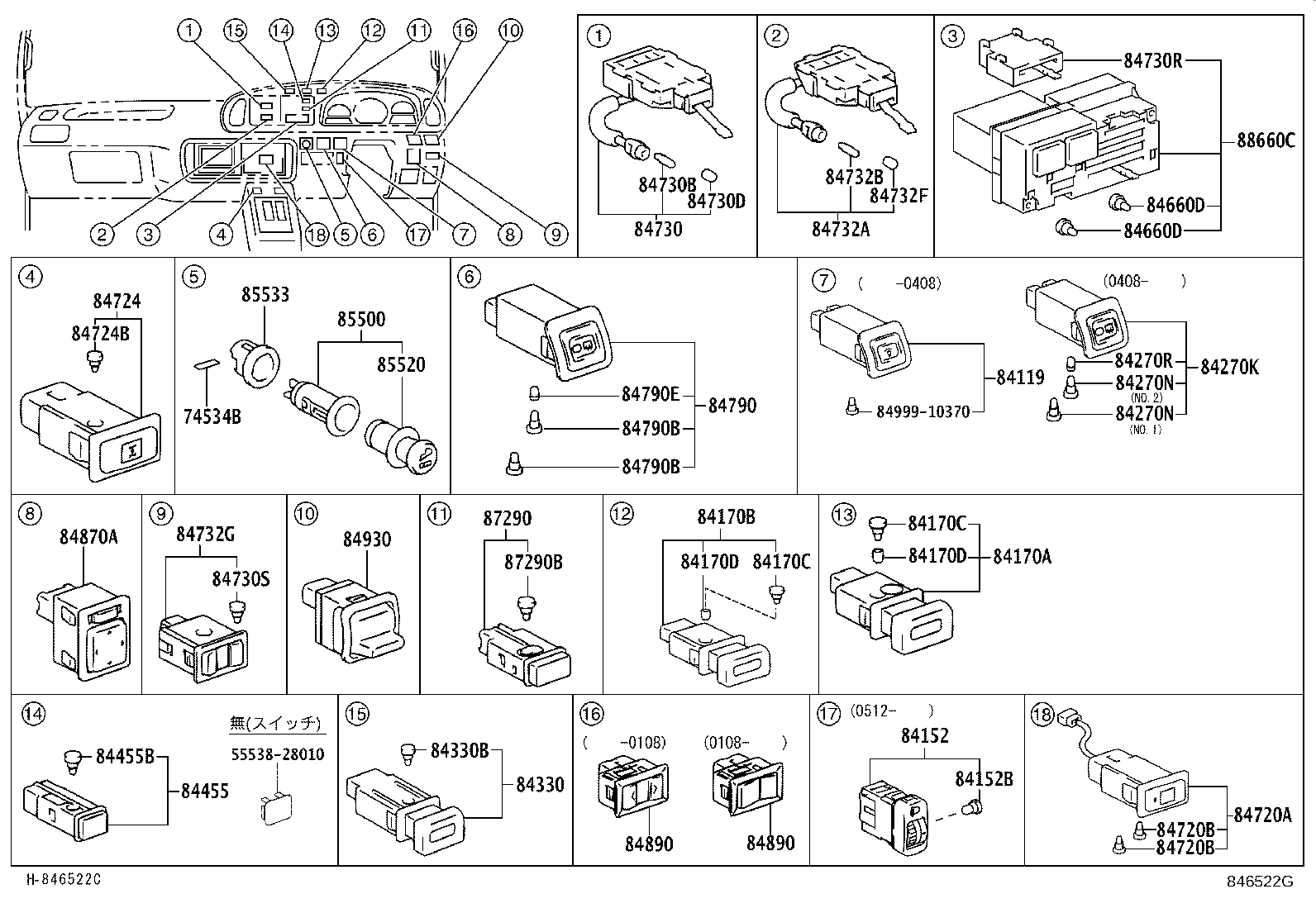

ILLUST NO. 3 OF 8(9301-0708)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-33030 |
XZB4#,50,56..4FC,6F |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
XZB4#,50,56..4FC,6F 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84170-36040 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 84170-36020 |
BZB40,50 |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84170-36050 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 84170-36030 |
BZB40,50 |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84999-10320 |
BZB40,50 |
2 | ||
| 84999-10610 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84999-10320 |
BZB40,50 |
2 | ||
| 84999-10610 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84998-10270 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 84998-10270 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10370 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 84999-10610 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10370 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 84999-10610 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 84270R - CAP, DPR SWITCH BULB | ||||
| 84998-10060 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36080 |
BZB40,50 |
1 | ||
| 84332-36090 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 84332-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5# 28V 0.84W |
1 | ||
| 84999-10610 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 28V 0.84W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-36010 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 84455-36010 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84455B - BULB (FOR WARM UP SWITCH) | ||||
| 84999-10570 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84999-10570 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
XZB4#,50,56..(LX,STD)..(4FC,6F) 14V 1.4W |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
XZB4#,50,56..(LX,STD)..(4FC,6F) 14V 1.4W |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-36070 |
BB40,HZB40,50..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ & ﾌﾛﾝﾄ ﾏﾆﾕｱﾙ ﾋ-ﾀ |
1 | ||
| 84732-36070 |
XZB4#,50,56..(LX,STD)..(4FC,6F) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 84732-36040 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84732-36040 |
HDB51..IV5;BB4#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10590 |
XZB4#,50,56..(LX,STD)..(4FC,6F) 24V 2.0W |
1 | ||
| 84999-10590 |
BB4#,5#,HDB5#,HZB4#,5# 24V 2.0W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 84998-10050 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35010 |
BB4#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 84732-35010 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36050 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 84732-36050 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10590 |
BB4#,HZB40,5#..DX,LX,STD 24V 2.0W |
1 | ||
| 84999-10590 |
XZB4#,50,56..(LX,STD)..(4FC,6F) 24V 2.0W |
1 | ||
| 84732F - CAP, REAR HEATER BLOWER SWITCH | ||||
| 84998-10050 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 84998-10050 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84790-36030 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10370 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10370 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 28V 1.12W |
1 | ||
| 84999-10610 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 28V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10610 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 0.84W |
1 | ||
| 84999-10370 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 28V 1.12W |
1 | ||
| 84999-10370 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 28V 1.12W |
1 | ||
| 84999-10610 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 28V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84998-10060 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 84870-36010 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 84890 - SWITCH ASSY, SIDE AUTO STEP | ||||
| 84890-36020 |
XZB40,50,51..(26S,29S)..(4FC,6F) |
1 | ||
| 84890 - SWITCH ASSY, SIDE AUTO STEP | ||||
| 84890-36020 |
XZB40,50,51..(26S,29S)..(4FC,6F) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-36020 |
XZB4#,5#..(09S,20S,26S,29S,39S,49S)..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 84930-36020 |
HZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85500-36020 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85533-30040 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-36130 |
BB4#,HZB40,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87290-36130 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F) |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 84999-10570 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F) 28V 0.67W |
1 | ||
| 84999-10570 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-36020 |
BB4#,HZB40,5#..(LX,STD)..WC |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||
| 84999-10370 | ||||
