XZB50-ZRPNH (2004)
Toyota Coaster

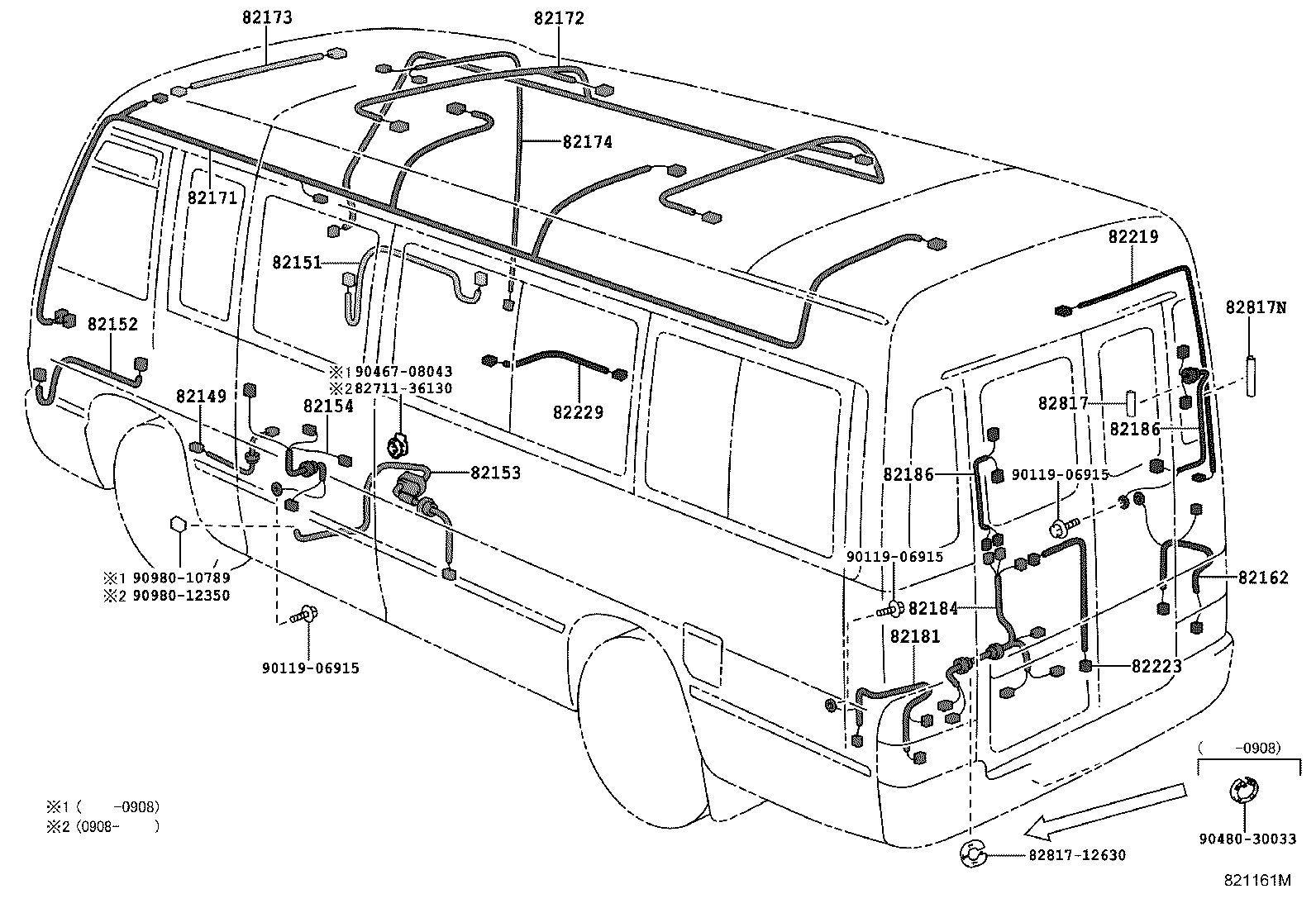

ILLUST NO. 5 OF 9(9301-1501)
ﾙ-ﾌ, ﾄﾞｱ(ｶﾝﾉﾝ ﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-36010 |
XZB4#,5#..(EX,GX,LX)..(4FC,6F) |
1 | ||
| 82151-36010 |
BB46..WC;BB40,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-36010 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 82153-36010 |
XZB4#,5#..(EX,GX,LX)..(4FC,6F) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-36010 |
BB4#,HDB50,HZB40,5#..GX,LX ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 82154-36020 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 82154-36021 |
XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX)..(4FC,6F) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 82154-36011 |
XZB4#,56..LX..4FC..CBU;XZB50..29S..(4FC,6F)..CBU ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｻｲﾄﾞﾄﾞｱ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-36010 |
BB40,55,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG |
1 | ||
| 82162-36081 |
XZB51..SULNG..6FC;XZB40,50,51..(26S,29S)..CBU |
1 | ||
| 82162-36090 |
BZB40,50..LX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-36070 |
HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 82171-36070 |
BZB40,50,XZB4#,5#..HRF..(09S,26S,29S)..WC |
1 | ||
| 82171-36080 |
XZB40,50,51..HRF..(26S,29S)..WC ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-36040 |
BB40,5#,HZB40,50..HRF..(DX,LX) |
1 | ||
| 82172-36050 |
BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ) |
1 | ||
| 82172-36070 |
BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU ｱﾘ(4 ｱﾝﾌﾟ) |
1 | ||
| 82172-36050 |
XZB40,50,51..HRF..(26S,29S,49S)..(4FC,6F) |
1 | ||
| 82172-36250 |
XZB40,50,51..HRF..(26S,29S)..(4FC,6F)..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-36010 |
BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙ ｸﾛﾂｸ) |
1 | ||
| 82173-36050 |
XZB51..EX;XZB51..SULNG..6FC;XZB40,50..HRF..(GX,LX)..(4FC,6F) ｱﾘ(ﾃﾞｼﾞﾀﾙ ｸﾛﾂｸ & ﾌﾛﾝﾄ ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
1 | ||
| 82173-36010 |
XZB4#,50,56..(LX,STD)..(4FC,6F) ｱﾘ(ﾃﾞｼﾞﾀﾙ ｸﾛﾂｸ) |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-36020 |
XZB4#,50,56..(LX,STD)..(4FC,6F) |
1 | ||
| 82174-36020 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-36020 |
BB40,HDB5#,HZB4#,50..DX,EX,GX,LX,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82184-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 82184-36010 |
XZB51..SULNG..6FC;BZB40,50,XZB40,50,51..(DX,EX,GX,LX)..CBU |
1 | ||
| 82184-36021 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-36030 |
HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 82186-36030 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186-36010 |
XZB40,50,51..(EX,GX,LX)..(4FC,6F)..CBU |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-36030 |
HZB40,50..26S,29S;BB4#,58,HDB5#,HZB41,56..(DX,EX,GX,LX,SULNG)..CBU ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186-36010 |
HZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 82186-36030 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷ ﾊﾞﾂｸﾄﾞｱ) |
1 | ||
| 82186-36010 |
XZB40,50,51..(EX,GX,LX)..(4FC,6F)..CBU |
1 | ||
| Common parts | ||||
| 82711-36130 | ||||
| 82817-12630 | ||||
| 90119-06915 | ||||
| 90467-08043 | ||||
| 90480-30033 | ||||
| 90980-10789 | ||||
| 90980-12350 | ||||

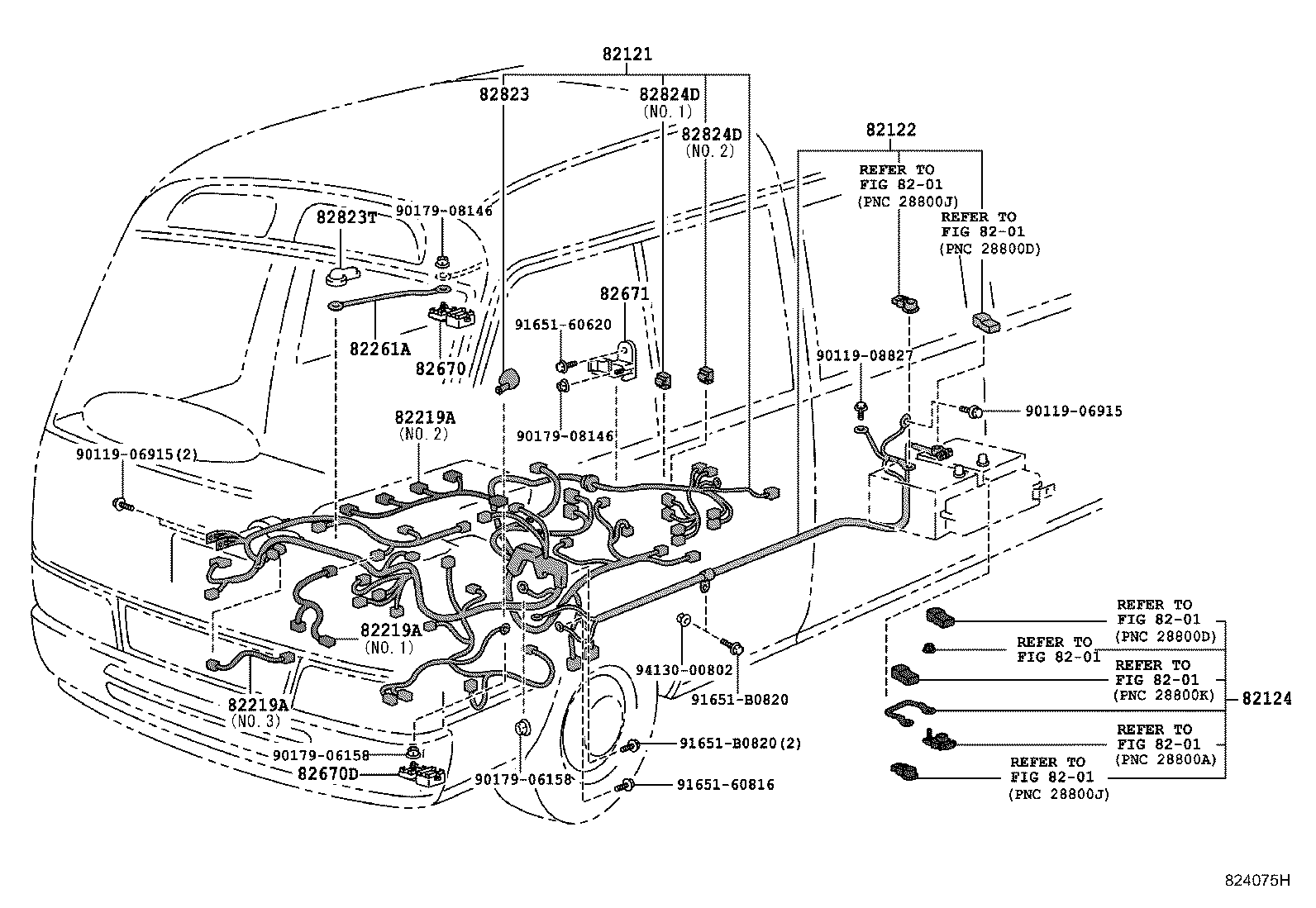

ILLUST NO. 2 OF 9(0408-0708)XZB4#,5#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-36020 |
HDB50,HZB40,5#..4FC |
1 | ||
| 82121-36430 |
XZB4#,5#..(EX,GX,LX)..4FC |
1 | ||
| 82121-36431 |
XZB4#,5#..(EX,GX,LX)..4FC |
1 | ||
| 82121-36340 |
BZB40,50..LX |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-36020 |
HDB5#,HZB4#,5# |
1 | ||
| 82122-36190 |
XZB51..SULNG..6FC;XZB4#,5#..ATM..(EX,GX,LX,STD) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 82124-36011 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82121-37A11 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A12 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A13 |
XZB4#,5# *196,NO.1 |
1 | ||
| 82121-37B30 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82121-37C31 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD *196,NO.3 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82121-37A11 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A12 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A13 |
XZB4#,5# *196,NO.1 |
1 | ||
| 82121-37B30 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82121-37C31 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD *196,NO.3 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82121-37A11 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A12 |
XZB4#,5# NO.1 |
1 | ||
| 82121-37A13 |
XZB4#,5# *196,NO.1 |
1 | ||
| 82121-37B30 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82121-37C31 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD *196,NO.3 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-36010 |
HDB50,HZB40,5#..(GX,LX,STD)..WC |
1 | ||
| 82261-36020 |
HDB50,HZB40,5#..GX,LX ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 82261-36190 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-26010 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 82671-28010 |
BB55,HDB5#,HZB4#,5# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-95401 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 82824-22070 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 82824-22070 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 8201 | ||||

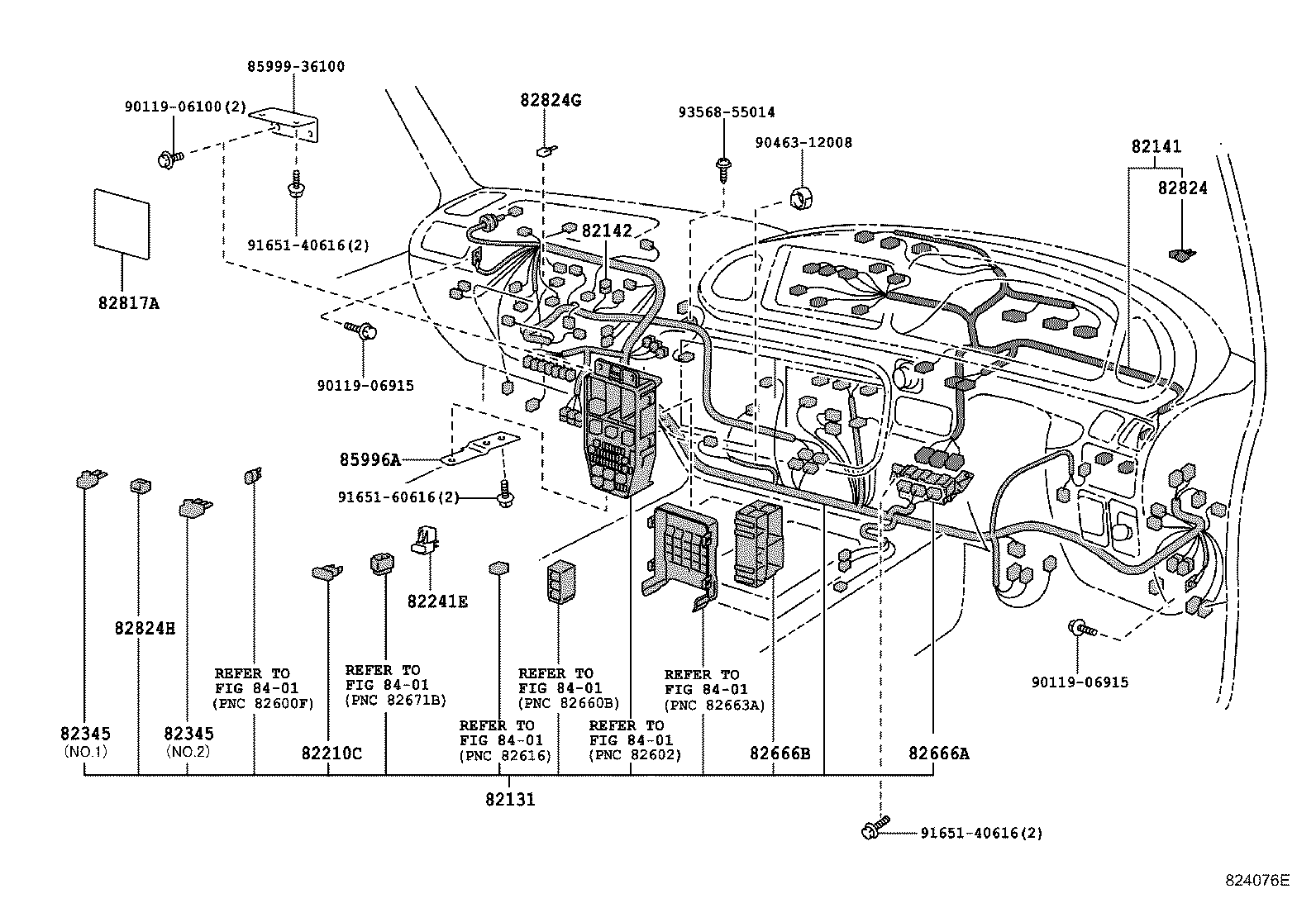

ILLUST NO. 3 OF 9(0408-0708)
ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-36090 |
HDB5#,HZB41,50..HRF..4FC |
1 | ||
| 82131-36140 |
HDB5#,HZB41,50..HRF..4FC ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 82131-36180 |
HZB40,5#..(LX,STD)..4FC |
1 | ||
| 82131-36792 |
BZB40,50 |
1 | ||
| 82131-36A70 |
XZB4#,50,56..(LX,STD)..4FC |
1 | ||
| 82131-36E10 |
XZB40,50..HRF..(26S,29S)..LX..4FC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 82131-36E00 |
XZB4#,50,56..(LX,STD)..4FC |
1 | ||
| 82131-36A90 |
XZB40,50..HRF..(26S,29S)..LX..4FC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 82131-36793 |
BZB40,50 |
1 | ||
| 82131-36A71 |
XZB4#,50,56..(LX,STD)..4FC |
1 | ||
| 82131-36A91 |
XZB40,50..HRF..(26S,29S)..LX..4FC..CBU ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-36300 |
XZB50,56..DX,LX,STD |
1 | ||
| 82141-36301 |
XZB50,56..DX,LX,STD |
1 | ||
| 82141-36210 |
BZB40,50 |
1 | ||
| 82141-36211 |
BZB40,50 |
1 | ||
| 82141-36212 |
BZB40,50 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-36040 |
HZB40,5#..(LX,STD)..4FC |
1 | ||
| 82142-36034 |
XZB4#,50,56 |
1 | ||
| 82142-36182 |
BZB40,50 |
1 | ||
| 82142-36033 |
XZB4#,50,56 |
1 | ||
| 82142-36182 |
BZB40,50 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC |
1 | ||
| 90982-08246 |
BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08202 |
BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08223 |
BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08280 |
BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI |
1 | ||
| 90982-08228 |
BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08202 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
BZB40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08280 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 30A,ﾒｽ端子,桃,YAZAKI |
1 | ||
| 90982-08281 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08283 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08282 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) 50A,ﾒｽ端子,赤 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BB4#,5#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 82345-12050 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 82345-32020 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82345-32020 |
BB4#,5#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BB4#,5#,HDB5#,HZB4#,5# NO.1 |
1 | ||
| 82345-12050 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 82345-32020 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 82345-32020 |
BB4#,5#,HDB5#,HZB4#,5# NO.2 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 82666-36011 |
XZB4#,5#..4FC,6F |
1 | ||
| 82666-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 82666-36030 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-36060 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-36010 |
XZB4#,50,56..ATM |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 85996A - BRACKET, RELAY, NO.2 | ||||
| 85996-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 85996-36010 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| Common parts | ||||
| 85999-36100 | ||||
| 90119-06100 | ||||
| 90119-06915 | ||||
| 90463-12008 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
