XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

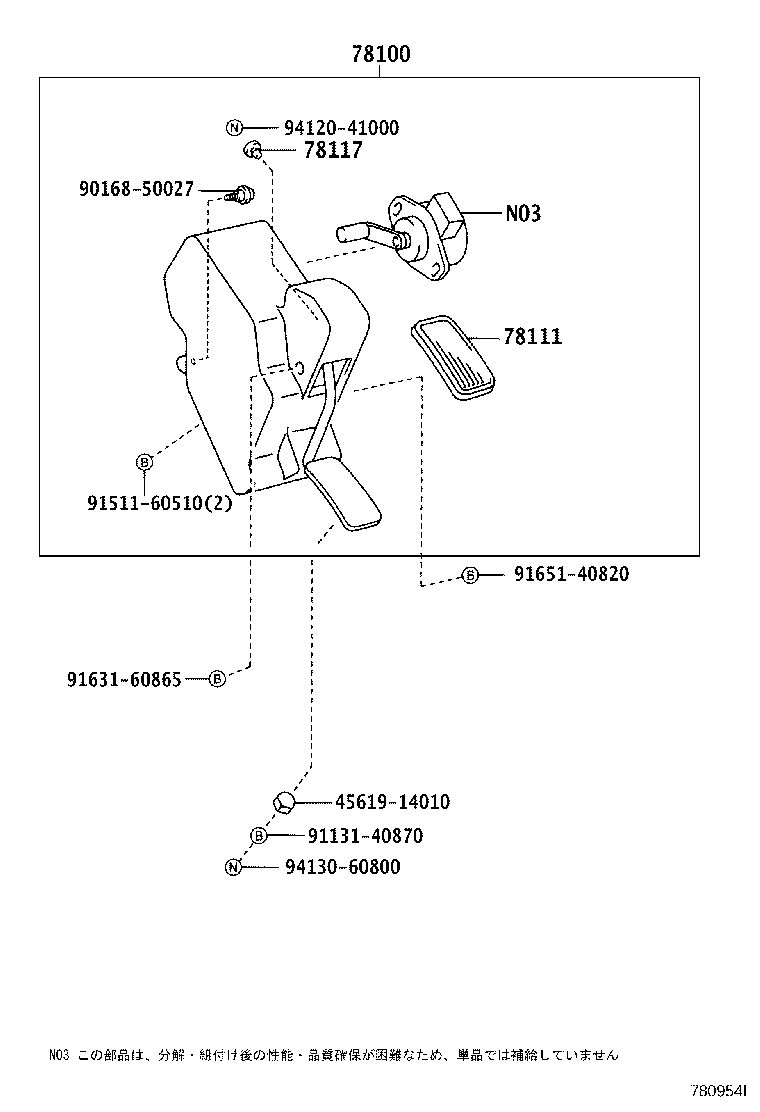

(0408- )XZB4#,5#

Click highlighted areas on diagram

diagram 4561914010 78100 78111 78117 9016850027 9113140870 9151160510 9163160865 9165140820 9412041000 9413060800
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-95110

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
78111-95110

BB4#,5#,HDB5#,HZB4#,5#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

XZB4#,5#

 1
90541-06036

BB4#,5#,HDB5#,HZB4#,5#

 1
90541-06038

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
Common parts
45619-14010
90168-50027
91131-40870
91511-60510
91631-60865
91651-40820
94120-41000
94130-60800

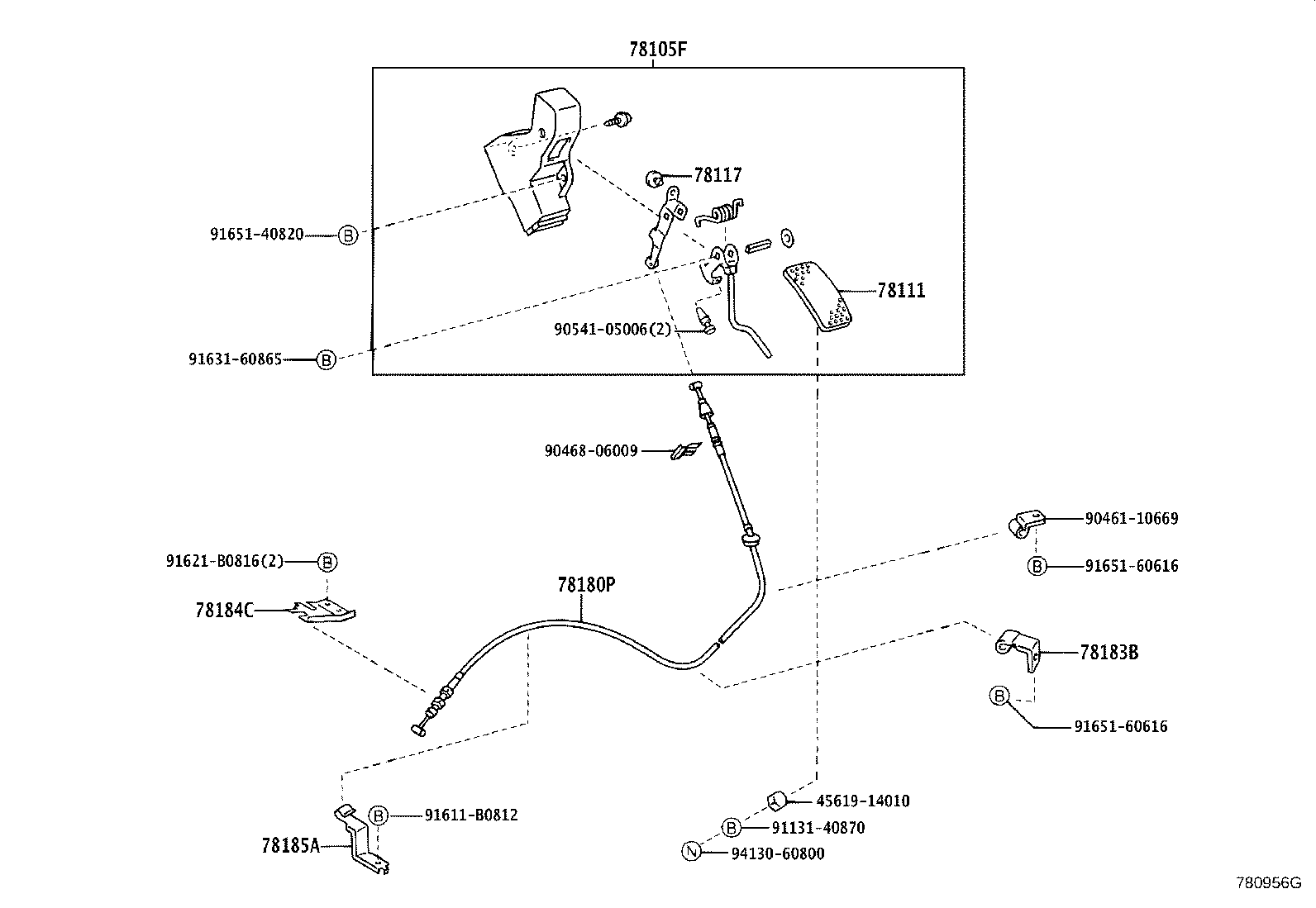

(0408- )BZB40,50

Click highlighted areas on diagram

diagram 4561914010 78105F 78111 78117 78180P 78183B 78184C 78185A 9046110669 9046806009 9054105006 9113140870 91611B0812 91621B0816 9163160865 9165140820 9165160616 9165160616 9413060800
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-95110

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
78111-95110

BB4#,5#,HDB5#,HZB4#,5#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

XZB4#,5#

 1
90541-06036

BB4#,5#,HDB5#,HZB4#,5#

 1
90541-06038

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-36010

BB4#,5#,HDB5#,HZB4#,5#

 1
Common parts
45619-14010
90461-10669
90468-06009
90541-05006
91131-40870
91611-B0812
91621-B0816
91631-60865
91651-40820
91651-60616
94130-60800
