XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-1501)

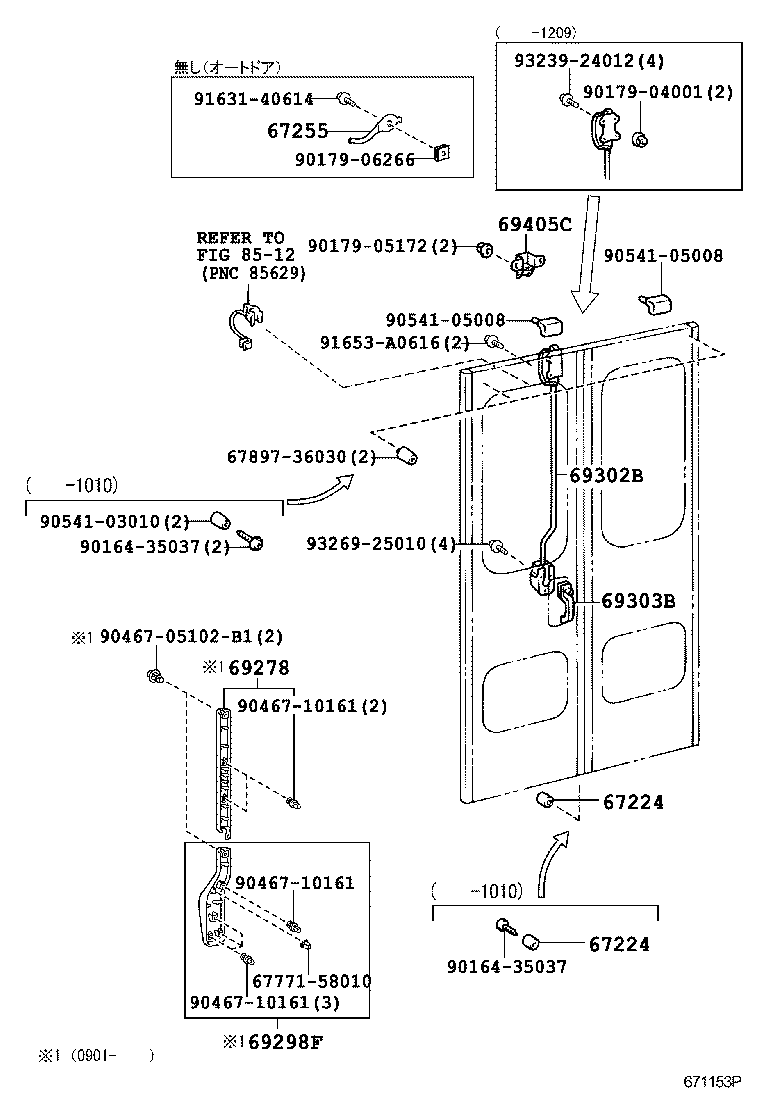

Click highlighted areas on diagram

ｵﾘﾄﾞｼｷﾄﾞｱ

diagram 67224 67224 67255 6777158010 6789736030 69278 69298F 69302B 69303B 69405C 8512 9016435037 9016435037 9017904001 9017905172 9017906266 9046705102B1 9046710161 9046710161 9046710161 9054103010 9054105008 9054105008 9163140614 91653A0616 9323924012 9326925010
Part # Description Qty Price
67224 - GUM, DOOR CUSHION, NO.2
67224-90500

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

 1
67224-90500

XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F)

 1
67224 - GUM, DOOR CUSHION, NO.2
67224-90500

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

 1
67224-90500

XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F)

 1
67255 - STOPPER, CENTER INSIDE LOCK
67255-36011

XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F)

 1
67255-36010

BB4#,HDB50,HZB40,5#

 1
69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE
69302-36010

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

 1
69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE
69303-36010

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

 1
69303-36010

XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F)

 1
69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK
69405-90B00

BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD

 1
69405-90B00

XZB4#,50,56..(09S,26S,29S,39S,49S)..(LX,STD)..(4FC,6F)

 1
Common parts
67771-58010
67897-36030
90164-35037
90179-04001
90179-05172
90179-06266
90467-05102B1
90467-10161
90541-03010
90541-05008
91631-40614
91653-A0616
93239-24012
93269-25010
Linked diagrams
8512
