XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0708)BB4#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5#

Click highlighted areas on diagram

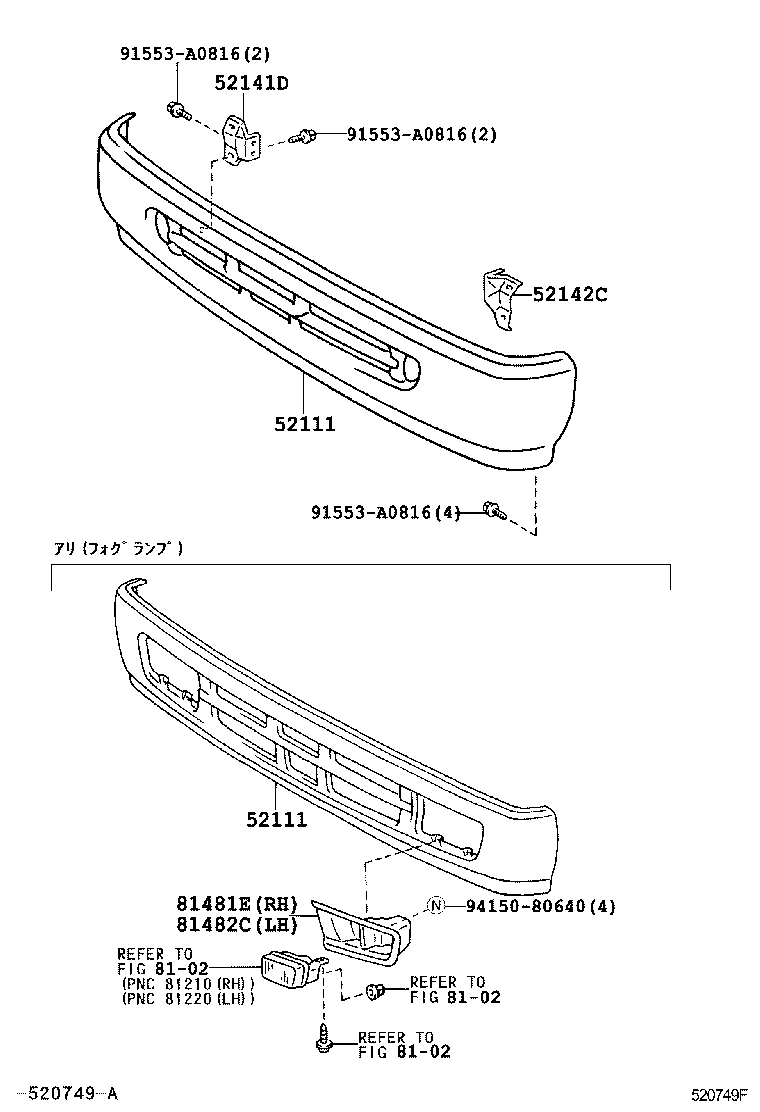

diagram 52111 52111 52141D 52142C 8102 8102 8102 81481E 81482C 91553A0816 91553A0816 91553A0816 9415080640
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52018-36900

BB4#,HDB5#,HZB4#,5#

要塗装

 1
52018-36918

BZB40,50..LX

要塗装

 1
52018-36913

XZB51..SULNG..6FC;XZB50,51..(26S,29S)..HDCR

要塗装

 1
52018-36912

XZB4#,50,56..(DX,GX,LX)..DCR

要塗装,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)

 1
52111 - BUMPER ASSY, FRONT
52018-36900

BB4#,HDB5#,HZB4#,5#

要塗装

 1
52018-36918

BZB40,50..LX

要塗装

 1
52018-36913

XZB51..SULNG..6FC;XZB50,51..(26S,29S)..HDCR

要塗装

 1
52018-36912

XZB4#,50,56..(DX,GX,LX)..DCR

要塗装,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)

 1
52141D - STAY, FRONT BUMPER, RH
52141-36040

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
52141-36040

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
52142C - STAY, FRONT BUMPER, LH
52142-36040

BB4#,HDB5#,HZB4#,5#..CBU,IV5

 1
52142-36040

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
81481E - COVER, FOG LAMP, RH
53155-36020

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX

ﾀﾞ-ｸ ｸﾞﾚ-

 1
81482C - COVER, FOG LAMP, LH
53156-36020

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX

ﾀﾞ-ｸ ｸﾞﾚ-

 1
Common parts
91553-A0816
94150-80640
Linked diagrams
8102
