XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

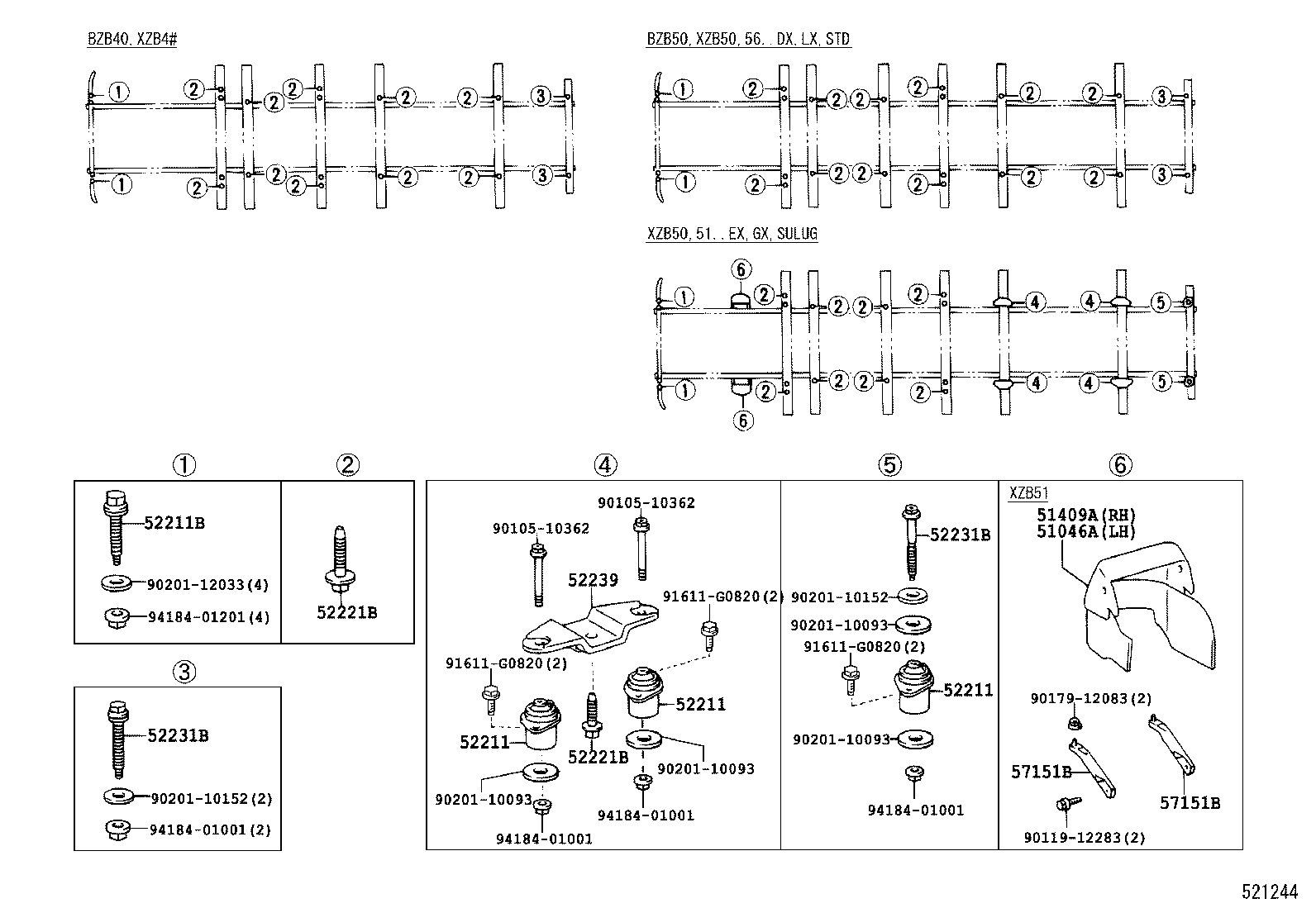

Click highlighted areas on diagram

diagram 51046A 51409A 52211 52211 52211 52211B 52221B 52221B 52231B 52231B 52239 57151B 57151B 9010510362 9010510362 9011912283 9017912083 9020110093 9020110093 9020110093 9020110093 9020110152 9020110152 9020112033 91611G0820 91611G0820 91611G0820 9418401001 9418401001 9418401001 9418401001 9418401201
Part # Description Qty Price
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-12257

BB4#,HDB5#,HZB4#,5#

 4
90119-12275

XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 4
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 16
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90119-10762

XZB5#..(EX,GX,LX,STD)..(4FC,6F)

 16
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90119-10748

BB4#,HDB50,HZB40,5#

 2
90119-10762

XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F)

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90119-10748

BB4#,HDB50,HZB40,5#

 2
90119-10762

XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F)

 2
Common parts
90105-10362
90119-12283
90179-12083
90201-10093
90201-10152
90201-12033
91611-G0820
94184-01001
94184-01201
