XZB50-ZRPNH (2004)
Toyota Coaster

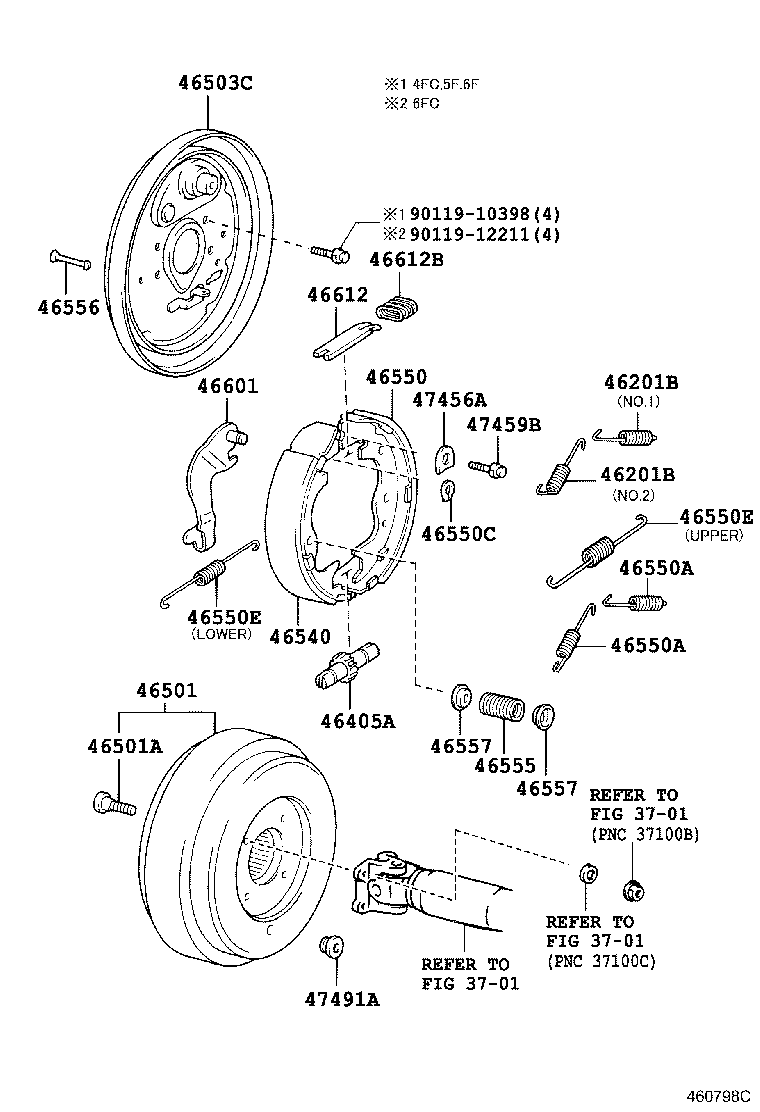

ILLUST NO. 2 OF 2(0408- )XZB5# ; (0708- )XZB4#..6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 90507-20021 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) NO.1 |
1 | ||
| 90507-20021 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) NO.2 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36190 |
BB4#,5#;HZB4#..5F |
1 | ||
| 46501-36210 |
XZB5#..4FC |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 90114-11124 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36060 |
XZB5#..(09S,26S,29S,49S)..(4FC,5F,6F) |
1 | ||
| 46503-37710 |
XZB5#..4FC,6F |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36030 |
BB4#,5#,HZB4# |
1 | ||
| 46540-37030 |
XZB5#..09S,26S,29S,49S |
1 | ||
| 46540-37040 |
XZB5#..4FC,6F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36030 |
BB4#,5#,HZB4# |
1 | ||
| 46550-37030 |
XZB5#..09S,26S,29S,49S |
1 | ||
| 46550-37040 |
XZB5#..4FC,6F |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BB4#,5#,HZB4# |
2 | ||
| 90905-06020 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
BB4#,5#,HZB4# |
2 | ||
| 90905-06020 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 90213-06003 |
BB4#,5#,HZB4# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BB4#,5#,HZB4# |
1 | ||
| 90506-14054 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) 下側 |
1 | ||
| 90506-23049 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) 上側 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BB4#,5#,HZB4# |
1 | ||
| 90506-14054 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) 下側 |
1 | ||
| 90506-23049 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) 上側 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
BB4#,5#,HZB4# |
2 | ||
| 90501-16108 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
BB4#,5#,HZB4# |
2 | ||
| 47447-20030 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36051 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZB5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
| Linked diagrams | ||||
| 3701 | ||||
