XZB50-ZRPNH (2004)
Toyota Coaster
(0408-0708)4FC
A444E

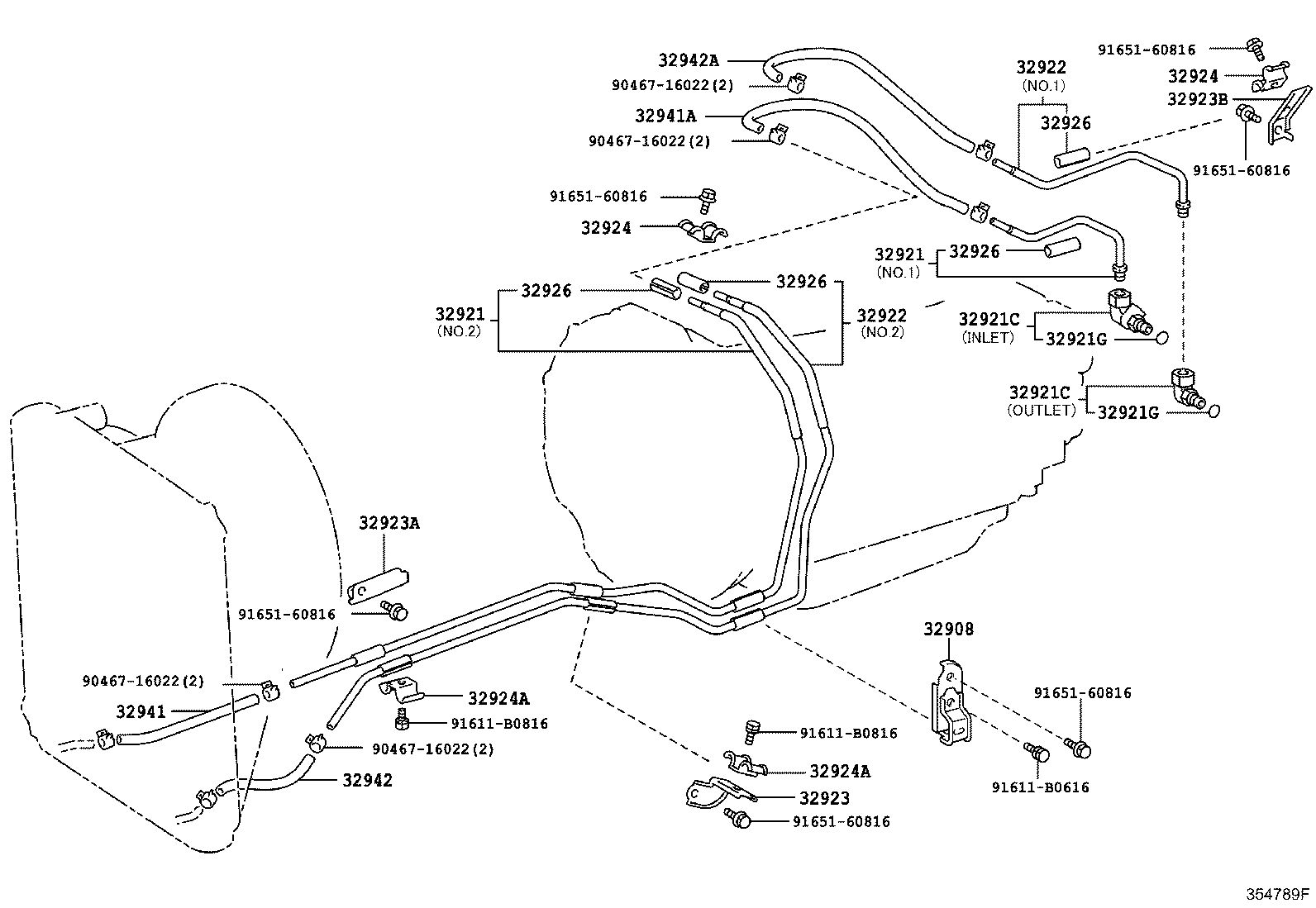

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32908 - CLAMP SUB-ASSY, OIL COOLER HOSE | ||||
| 32909-65010 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36160 |
XZB4#,5#..4FC NO.2 |
1 | ||
| 32921-36150 |
XZB4#,5#..4FC NO.1 |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32921-36160 |
XZB4#,5#..4FC NO.2 |
1 | ||
| 32921-36150 |
XZB4#,5#..4FC NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20004 |
XZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-20007 |
XZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#,HZB4#,5#..4FC |
2 | ||
| 90407-20004 |
XZB4#,5#..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-20007 |
XZB4#,5#..4FC ｲﾝﾚｯﾄ |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
BB5#,HDB5#,HZB4#,5#..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36170 |
XZB4#,5#..4FC NO.2 |
1 | ||
| 32922-36160 |
XZB4#,5#..4FC NO.1 |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-36120 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32922-36170 |
XZB4#,5#..4FC NO.2 |
1 | ||
| 32922-36160 |
XZB4#,5#..4FC NO.1 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-36040 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-65030 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60060 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 32923-65040 |
XZB4#,5#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 90462-12076 |
XZB4#,5#..4FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 90462-12076 |
XZB4#,5#..4FC |
2 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12076 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
2 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12076 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
XZB4#,5#..(EX,GX,LX,STD)..4FC 長さ=45,内径=12 |
10 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
XZB4#,5#..(EX,GX,LX,STD)..4FC 長さ=45,内径=12 |
10 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
XZB4#,5#..(EX,GX,LX,STD)..4FC 長さ=45,内径=12 |
10 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
BB5#,HDB5#,HZB4#,5#..4FC 長さ=45,内径=12 |
8 | ||
| 32926-60010 |
XZB4#,5#..(EX,GX,LX,STD)..4FC 長さ=45,内径=12 |
10 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-36050 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 90445-17117 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 90445-17136 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-17074 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| Common parts | ||||
| 90467-16022 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
