XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)4FC

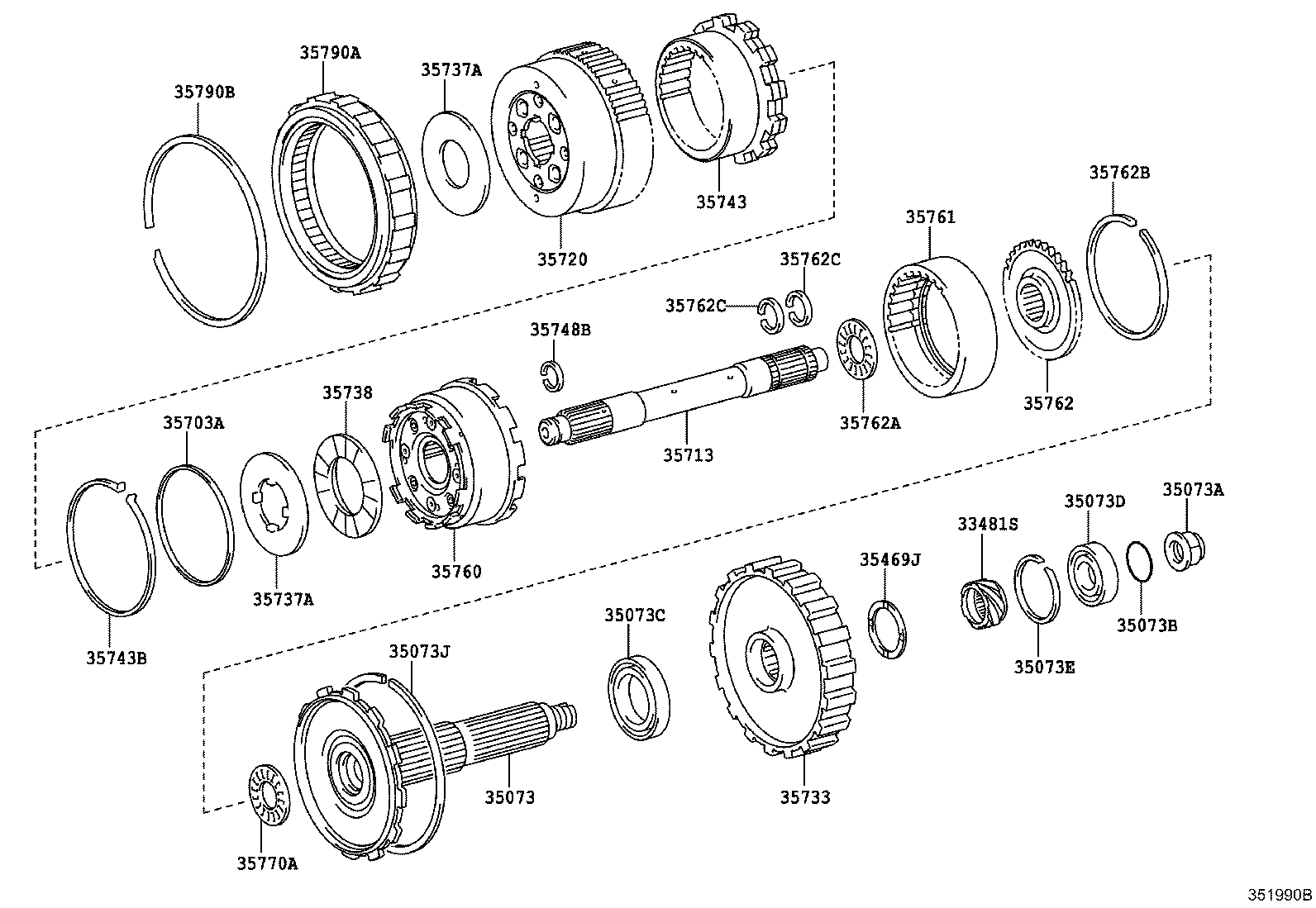

Click highlighted areas on diagram

A444E

diagram 33481S 35073 35073A 35073B 35073C 35073D 35073E 35073J 35469J 35703A 35713 35720 35733 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762A 35762B 35762C 35762C 35770A 35790A 35790B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-36240

HDB5#,HZB4#,5#..4FC

歯数=5

 1
33481-36290

XZB4#,5#..(EX,GX,LX,STD)..4FC

歯数=6

 1
35073 - SHAFT SUB-ASSY, OUTPUT
35073-36030

HDB5#,HZB4#,5#..4FC

 1
35073-36050

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35073A - NUT (FOR OUTPUT SHAFT)
90179-22008

XZB4#,5#..4FC

 1
90179-22008

HDB5#,HZB4#,5#..4FC

 1
35073B - RING, O (FOR OUTPUT SHAFT)
90301-29002

XZB4#,5#..4FC

 1
90301-29002

HDB5#,HZB4#,5#..4FC

 1
35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
90363-45008

BB5#,HDB5#,HZB4#,5#..4FC

 1
90363-45008

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
90363-35019

HDB5#,HZB4#,5#..4FC

 1
90363-36007

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35073E - RING, HOLE SNAP (FOR OUTPUT SHAFT REAR BEARING)
90521-78001

HDB5#,HZB4#,5#..4FC

 1
90521-78001

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT)
90521-99042

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
90521-99042

HDB5#,HZB4#,5#..4FC

 1
35469J - SPACER, PARKING LOCK GEAR
35469-36030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35469-36010

HDB5#,HZB4#,5#..4FC

 1
35703A - RING, O (FOR REAR PLANETARY CARRIER)
90301-99076

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35713 - SHAFT, INTERMEDIATE
35713-36011

HZB4#,5#..4FC

 1
35713-60030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-60010

HZB4#,5#..4FC

 1
35720-60030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35733 - GEAR, PARKING LOCK
35733-36010

HDB5#,HZB4#,5#..4FC

 1
35733-36020

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

BB5#,HDB5#,HZB4#,5#..4FC

 2
35737-60011

XZB4#,5#..(EX,GX,LX,STD)..4FC

 2
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

BB5#,HDB5#,HZB4#,5#..4FC

 2
35737-60011

XZB4#,5#..(EX,GX,LX,STD)..4FC

 2
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-60020

HZB4#,5#..4FC

 1
35738-36020

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-60010

HZB4#,5#..4FC

 1
35743-60030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99018

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
90521-99018

BB5#,HDB5#,HZB4#,5#..4FC

 1
35748B - RING, INTERMEDIATE SHAFT OIL SEAL
35748-36010

BB5#,HDB5#,HZB4#,5#..4FC

 1
35748-36010

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-60010

HZB4#,5#..4FC

 1
35760-60050

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35761 - GEAR, REAR PLANETARY RING
35761-60010

HZB4#,5#..4FC

 1
35761-60030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-60010

HZB4#,5#..4FC

 1
35762-60030

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-32006

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
90374-32005

BB5#,HDB5#,HZB4#,5#..4FC

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-99041

BB5#,HDB5#,HZB4#,5#..4FC

 1
90521-99041

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-23063

XZB4#,5#..(EX,GX,LX,STD)..4FC

 2
90520-22013

HDB5#,HZB4#,5#..4FC

 2
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-23063

XZB4#,5#..(EX,GX,LX,STD)..4FC

 2
90520-22013

HDB5#,HZB4#,5#..4FC

 2
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-32006

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
90374-32005

BB5#,HDB5#,HZB4#,5#..4FC

 1
35790A - CLUTCH ASSY, 1 WAY
35790-36010

HDB5#,HZB4#,5#..4FC

 1
35790-36020

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH)
90521-99021

HDB5#,HZB4#,5#..4FC

 1
90521-99109

XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
