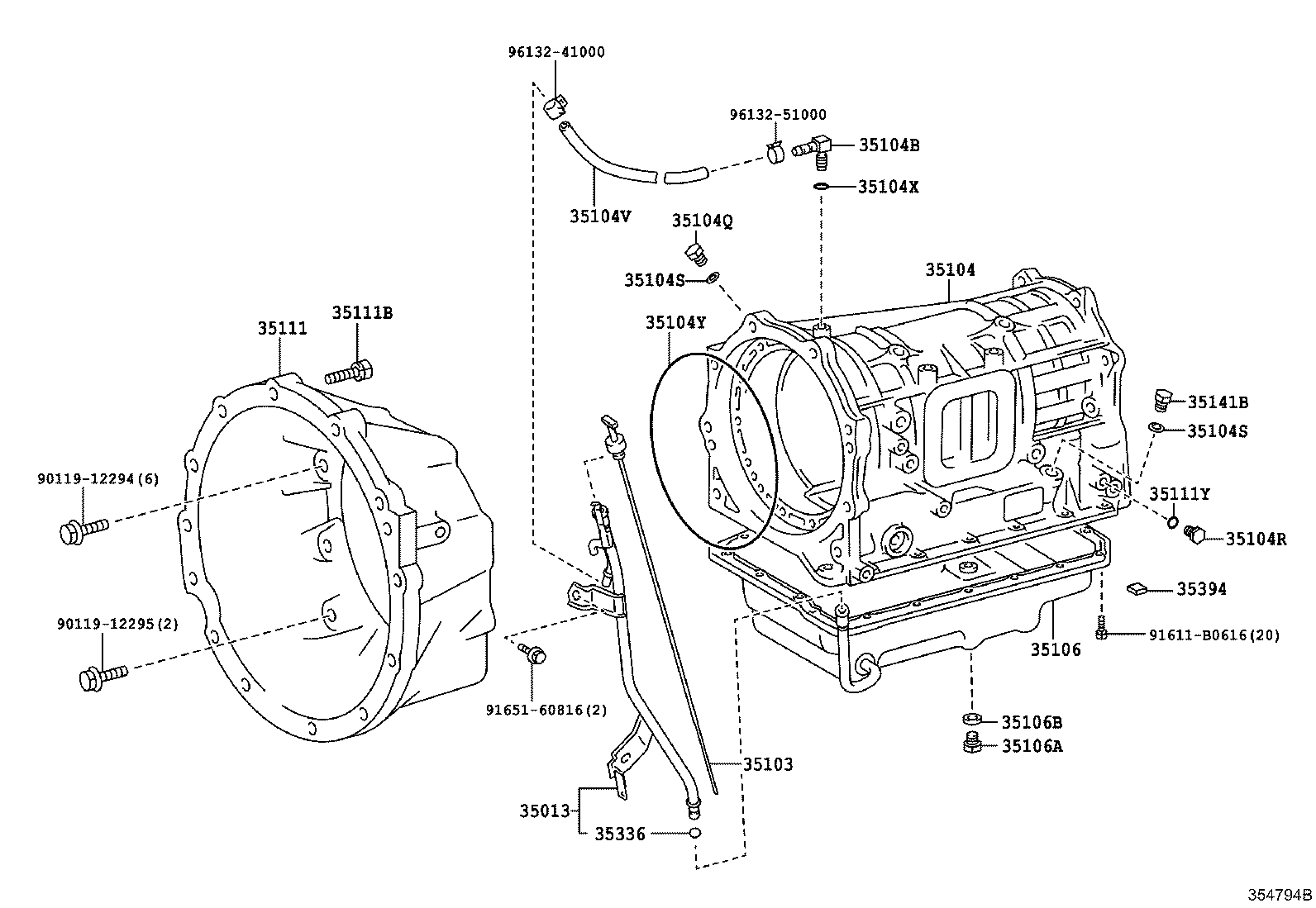

XZB50-ZRPNH (2004)
Toyota Coaster
(0408-0708)4FC
A444E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-36120 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-36100 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-36040 |
HZB4#,5#..4FC |
1 | ||
| 35104-60131 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-13001 |
XZB4#,5#..4FC |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
BB5#,HDB5#,HZB4#,5#..4FC |
7 | ||
| 90341-08001 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
7 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-10189 |
XZB4#,5#..4FC |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-10189 |
XZB4#,5#..4FC |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11123 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 35121-36010 |
XZB4#,5#..4FC |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-36050 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 35106-37020 |
XZB4#,5#..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-60040 |
HDB5#,HZB4#,5#..4FC |
1 | ||
| 35111-65020 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZB4#,5#..(EX,GX,LX,STD)..4FC *14−1.50PX50−26 |
12 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
BB5#,HDB5#,HZB4#,5#..4FC |
7 | ||
| 90301-06196 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
7 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-13001 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 90341-16010 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09009 |
XZB4#,5#..4FC |
1 | ||
| 90301-09173 |
BB5#,HDB5#,HZB4#,5#..4FC |
1 | ||
| 90301-09011 |
XZB4#,5#..(EX,GX,LX,STD)..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
HDB5#,HZB4#,5#..4FC..(CBU,IV5) |
4 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 91611-B0616 | ||||
| 91651-60816 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
