XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)N04C

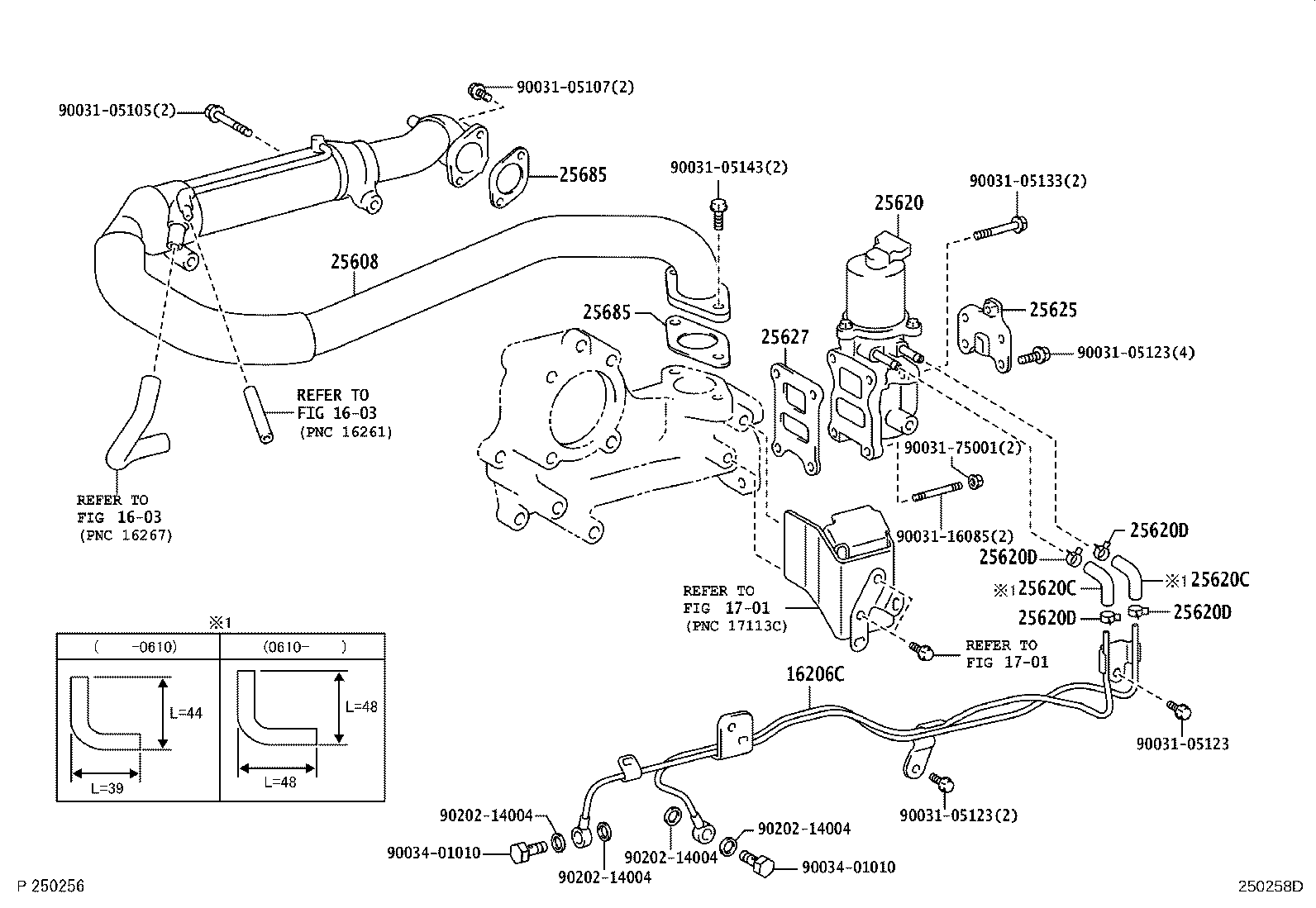

Click highlighted areas on diagram

diagram 1603 1603 16206C 1701 1701 25608 25620 25620C 25620C 25620D 25620D 25620D 25620D 25625 25627 25685 25685 9003105105 9003105107 9003105123 9003105123 9003105123 9003105133 9003105143 9003116085 9003175001 9003401010 9003401010 9020214004 9020214004 9020214004 9020214004
Part # Description Qty Price
16206C - PIPE SUB-ASSY, WATER BY-PASS
16206-78011

N04C..XZB4#,5#

 1
16206-78012

N04C..XZB4#,5#

PNC 25620C 参照

 1
16206-78280

N04C..XZB4#,5#

*196,PNC 25620C 参照

 1
25608 - COOLER SUB-ASSY, EGR
25608-78010

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
25620 - VALVE ASSY, EGR
25620-78020

N04C..XZB4#,5#

 1
25620-78022

N04C..XZB4#,5#

*196

 1
25620-78021

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
25620C - HOSE, WATER BY-PASS, NO.1
90034-45101

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
90034-45094

N04C..XZB4#,5#

 2
16261-78110

N04C..XZB4#,5#..4FC,6F

 2
25620C - HOSE, WATER BY-PASS, NO.1
90034-45101

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
90034-45094

N04C..XZB4#,5#

 2
16261-78110

N04C..XZB4#,5#..4FC,6F

 2
25625 - BRACKET, EGR VALVE
17455-78130

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
25685 - GASKET, EGR COOLER, NO.1
25685-78020

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
25685 - GASKET, EGR COOLER, NO.1
25685-78020

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 2
Common parts
90031-05105
90031-05107
90031-05123
90031-05133
90031-05143
90031-16085
90031-75001
90034-01010
90202-14004
Linked diagrams
1603
1701
