XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408- )N04C

Click highlighted areas on diagram

ﾌﾚｰﾑ ｻｲﾄﾞ

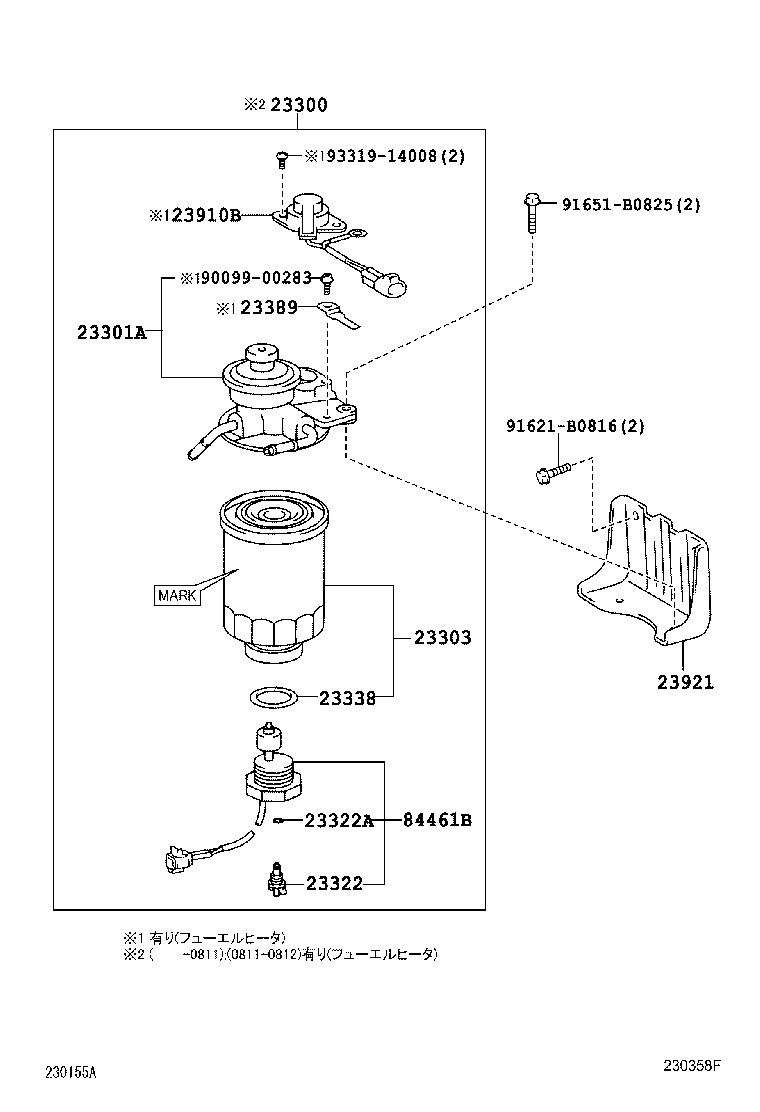

diagram 23300 23301A 23303 23322 23322A 23338 23389 23910B 23921 84461B 9009900283 91621B0816 91651B0825 9331914008
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-78300

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23300-78290

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23301A - CAP ASSY, FUEL FILTER
23380-17440

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23380-17430

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-78280

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23390-78280

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ),ﾏｰｸ=23390−78280

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
23389 - CLAMP, FUEL FILTER
23389-17380

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
23910B - HEATER ASSY, FUEL
23910-17070

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)

 1
84461B - SWITCH, LEVEL WARNING
84461-36080

HDB5#,HZB4#,5#

 1
84461-36080

BB4#,5#

 1
Common parts
90099-00283
91621-B0816
91651-B0825
93319-14008
