XZB50-ZRPNH (2004)
Toyota Coaster

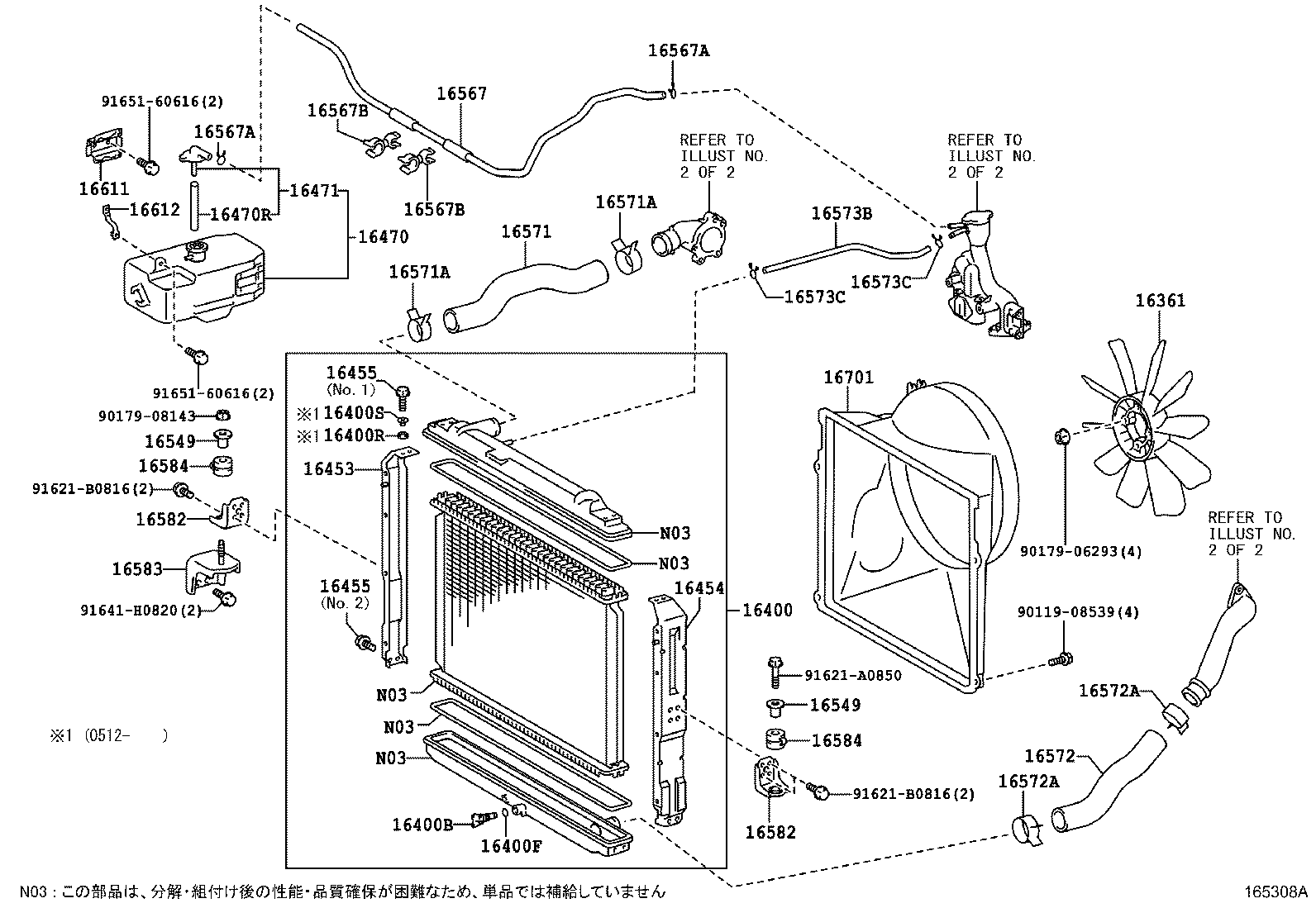

ILLUST NO. 1 OF 2(0408-0708)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-67040 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78450 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..ATM..(EX,GX,LX,STD) |
1 | ||
| 16400-78451 |
N04C..XZB4#,5#..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-67130 |
N04C..XZB4#,5#..4FC,6F |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-67130 |
N04C..XZB4#,5#..4FC,6F |
4 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78450 |
N04C..XZB4#,5# |
1 | ||
| 16453-78440 |
N04C..XZB4#,5# |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78450 |
N04C..XZB4#,5# |
1 | ||
| 16454-78440 |
N04C..XZB4#,5# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
N04C..XZB4#,5#..4FC,5F,6F NO.2 |
4 | ||
| 16455-67020 |
N04C..XZB4#,5# NO.1 & NO.2 |
8 | ||
| 16455-67130 |
N04C..XZB4#,5#..4FC,6F NO.1 |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
N04C..XZB4#,5#..4FC,5F,6F NO.2 |
4 | ||
| 16455-67020 |
N04C..XZB4#,5# NO.1 & NO.2 |
8 | ||
| 16455-67130 |
N04C..XZB4#,5#..4FC,6F NO.1 |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17061 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) *H,L=135 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78350 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78170 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78210 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-43002 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-43002 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 16573-78081 |
N04C..XZB4#,5# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-13001 |
N04C..XZB4#,5# |
2 | ||
| 90467-11085 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-13001 |
N04C..XZB4#,5# |
2 | ||
| 90467-11085 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-78150 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 90179-06293 | ||||
| 90179-08143 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||

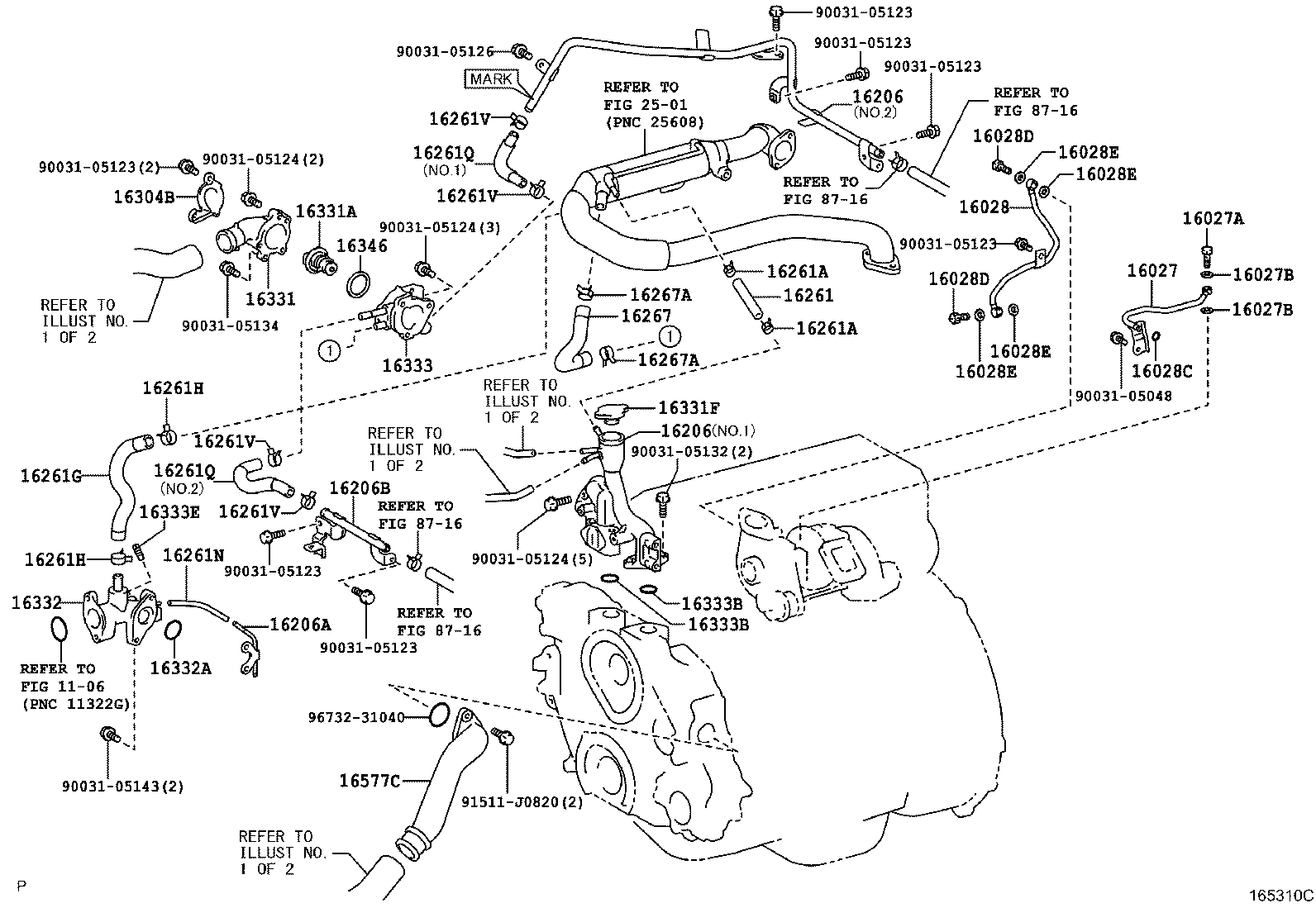

ILLUST NO. 2 OF 2(0408-0708)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16206-78050 |
N04C..XZB4#,5# *196 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16206-78070 |
N04C..XZB4#,5# *196 |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78181 |
N04C..XZB4#,5# ﾏ-ｸ=ﾎﾜｲﾄ,NO.2 |
1 | ||
| 16206-78020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD NO.1 |
1 | ||
| 16206-78200 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD ﾏｰｸ=ﾌﾞﾙｰ,*196,NO.2 |
1 | ||
| 16206-78021 |
N04C..XZB4#,5# *196,NO.1 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78181 |
N04C..XZB4#,5# ﾏ-ｸ=ﾎﾜｲﾄ,NO.2 |
1 | ||
| 16206-78020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD NO.1 |
1 | ||
| 16206-78200 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD ﾏｰｸ=ﾌﾞﾙｰ,*196,NO.2 |
1 | ||
| 16206-78021 |
N04C..XZB4#,5# *196,NO.1 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-78141 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 90034-45092 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD 長さ=61 |
1 | ||
| 16261-78170 |
N04C..XZB4#,5#..4FC,6F 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45091 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 90034-45097 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
1 | ||
| 90034-45098 |
N04C..XZB4#,5# PNC 16206 ﾏｰｸ=ﾎﾜｲﾄ,NO.1 |
1 | ||
| 16261-78130 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD PNC 16206 ﾏｰｸ=ﾌﾞﾙｰ,*196,NO.1 |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 90034-45097 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
1 | ||
| 90034-45098 |
N04C..XZB4#,5# PNC 16206 ﾏｰｸ=ﾎﾜｲﾄ,NO.1 |
1 | ||
| 16261-78130 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD PNC 16206 ﾏｰｸ=ﾌﾞﾙｰ,*196,NO.1 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67032 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67032 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67032 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67032 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
4 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90034-45093 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90034-67032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90034-67032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16304B - COVER SUB-ASSY, WATER OUTLET | ||||
| 16302-78040 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16332A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 90033-01064 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78100 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 90910-09080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78130 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05132 | ||||
| 90031-05134 | ||||
| 90031-05143 | ||||
| 91511-J0820 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2501 | ||||
| 8716 | ||||
