XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )N04C

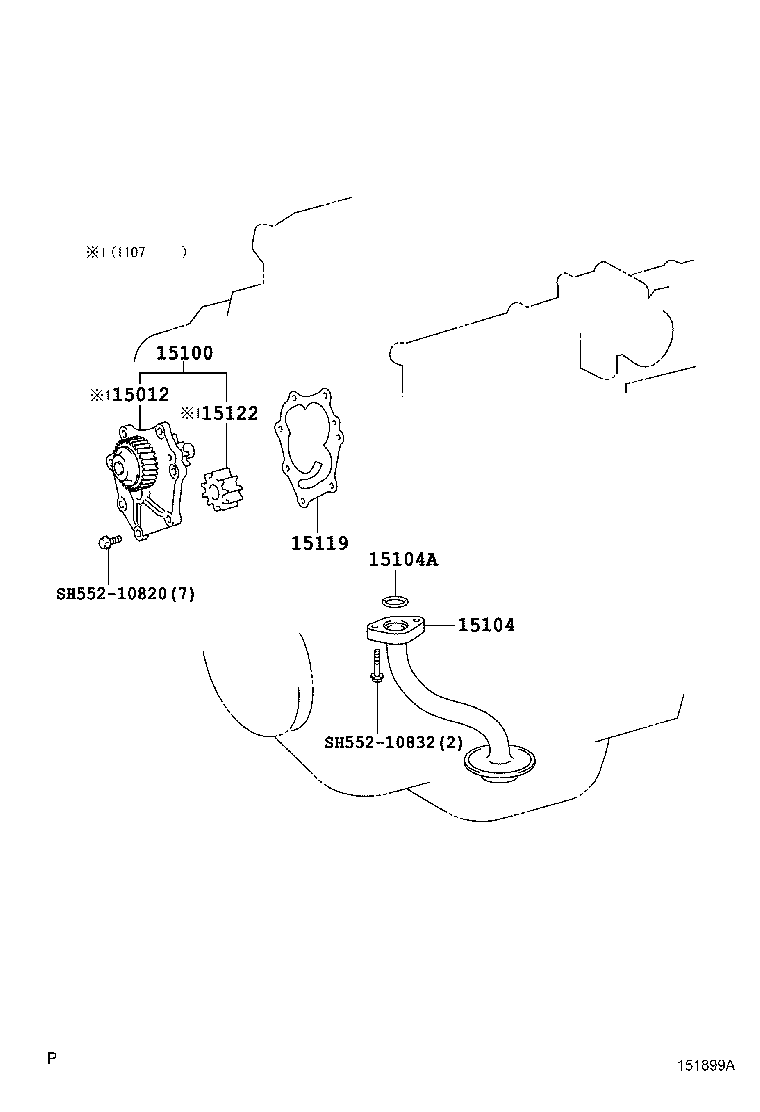

Click highlighted areas on diagram

diagram 15012 15100 15104 15104A 15119 15122 SH55210820 SH55210832
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-78030

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
15104 - STRAINER SUB-ASSY, OIL
15401-78050

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
15104A - RING, O(FOR OIL STRAINER)
90301-21003

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
15119 - GASKET, OIL PUMP COVER
15193-78010

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
Common parts
SH552-10820
SH552-10832
