XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )N04C

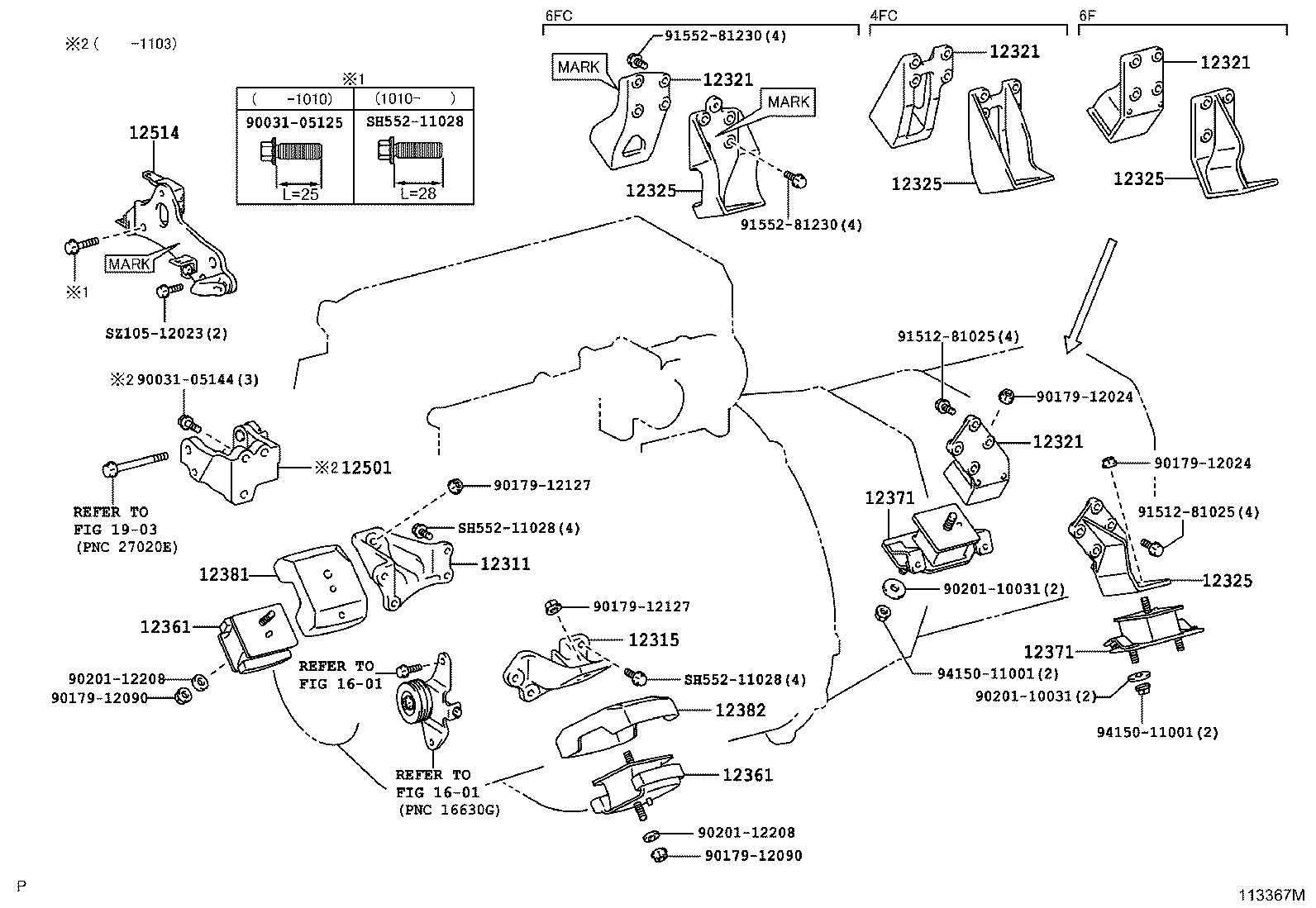

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12321 12321 12325 12325 12325 12325 12361 12361 12371 12371 12381 12382 12501 12514 1601 1601 1903 9003105125 9003105144 9017912024 9017912024 9017912090 9017912090 9017912127 9017912127 9020110031 9020110031 9020112208 9020112208 9151281025 9151281025 9155281230 9155281230 9415011001 9415011001 SH55211028 SH55211028 SH55211028 SZ10512023
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78101

N04C..XZB4#,5#

 1
12311-78102

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78081

N04C..XZB4#,5#

 1
12315-78082

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78400

N04C..XZB4#,5#..4FC

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78400

N04C..XZB4#,5#..4FC

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78400

N04C..XZB4#,5#..4FC

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78400

N04C..XZB4#,5#..4FC

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78380

N04C..XZB4#,5#..4FC

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78380

N04C..XZB4#,5#..4FC

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78380

N04C..XZB4#,5#..4FC

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78380

N04C..XZB4#,5#..4FC

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78140

N04C..XZB4#,5#..4FC,6F

 2
12361-78140

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78140

N04C..XZB4#,5#..4FC,6F

 2
12361-78140

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78050

N04C..XZB4#,5#

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-78050

N04C..XZB4#,5#

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-78130

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..HRF..(EX,GX,LX)

ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ),*196

 1
12501-78120

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU

*196

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-78131

N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)

ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ),*196,ﾏｰｸ=017

 1
12514-78120

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU

ﾏｰｸ=016

 1
12514-78121

N04C..XZB4#,5#..CBU

*196,ﾏｰｸ=016

 1
12514-78130

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..HRF..(EX,GX,LX)

ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ),ﾏｰｸ=017

 1
Common parts
90031-05125
90031-05144
90179-12024
90179-12090
90179-12127
90201-10031
90201-12208
91512-81025
91552-81230
94150-11001
SH552-11028
SZ105-12023
Linked diagrams
1601
1903
