XZB50-ZRPNH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)N04C

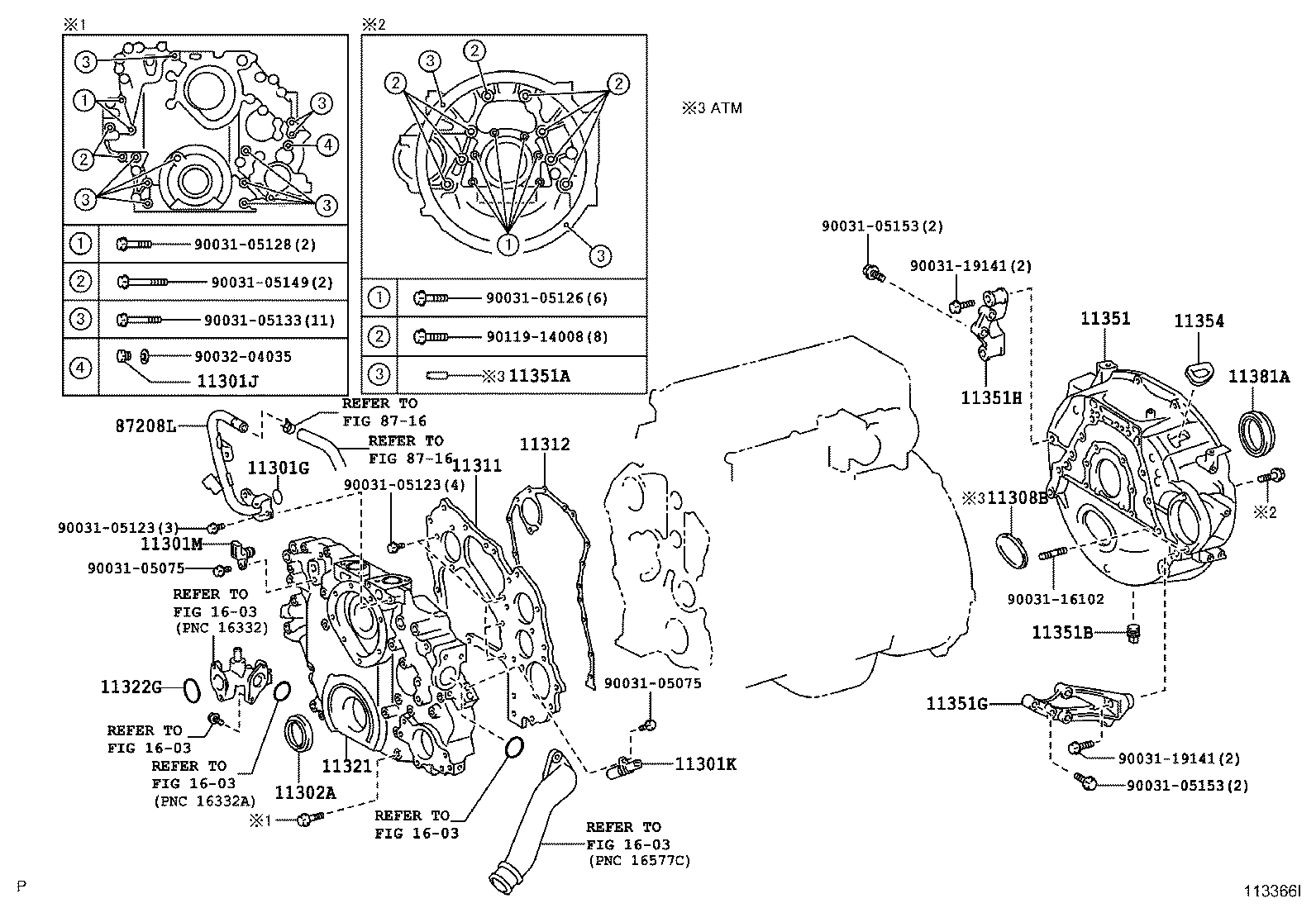

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301M 11302A 11308B 11311 11312 11321 11322G 11351 11351A 11351B 11351G 11351H 11354 11381A 1603 1603 1603 1603 1603 8716 8716 87208L 9003105075 9003105075 9003105123 9003105123 9003105126 9003105128 9003105133 9003105149 9003105153 9003105153 9003116102 9003119141 9003119141 9003204035 9011914008
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90033-01086

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90033-41004

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90033-11040

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11311 - PLATE, FRONT END
11429-78020

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11312 - GASKET, FRONT END PLATE
11312-78011

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11321 - CASE, TIMING GEAR
11321-78086

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
11321-78085

N04C..XZB4#,5#

 1
11321-78084

N04C..XZB4#,5#

 1
11322G - RING, O(FOR TIMING GEAR COVER)
90033-01064

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
11351 - HOUSING, FLYWHEEL
11351-78110

N04C..XZB4#,5#..(EX,GX,LX,STD)..4FC

 1
11351A - PIN, STRAIGHT(FOR FLYWHEEL HOUSING)
90250-08015

N04C..XZB4#,5#..(EX,GX,LX,STD)..4FC

 2
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
90033-45015

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-78012

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
11353-78020

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78070

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
11381A - SEAL, ENGINE REAR OIL
90311-99002

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
87208L - PIPE SUB-ASSY, WATER
16206-78130

XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD

 1
16206-78240

XZB4#,5#..4FC,6F

 1
Common parts
90031-05075
90031-05123
90031-05126
90031-05128
90031-05133
90031-05149
90031-05153
90031-16102
90031-19141
90032-04035
90119-14008
Linked diagrams
1603
8716
