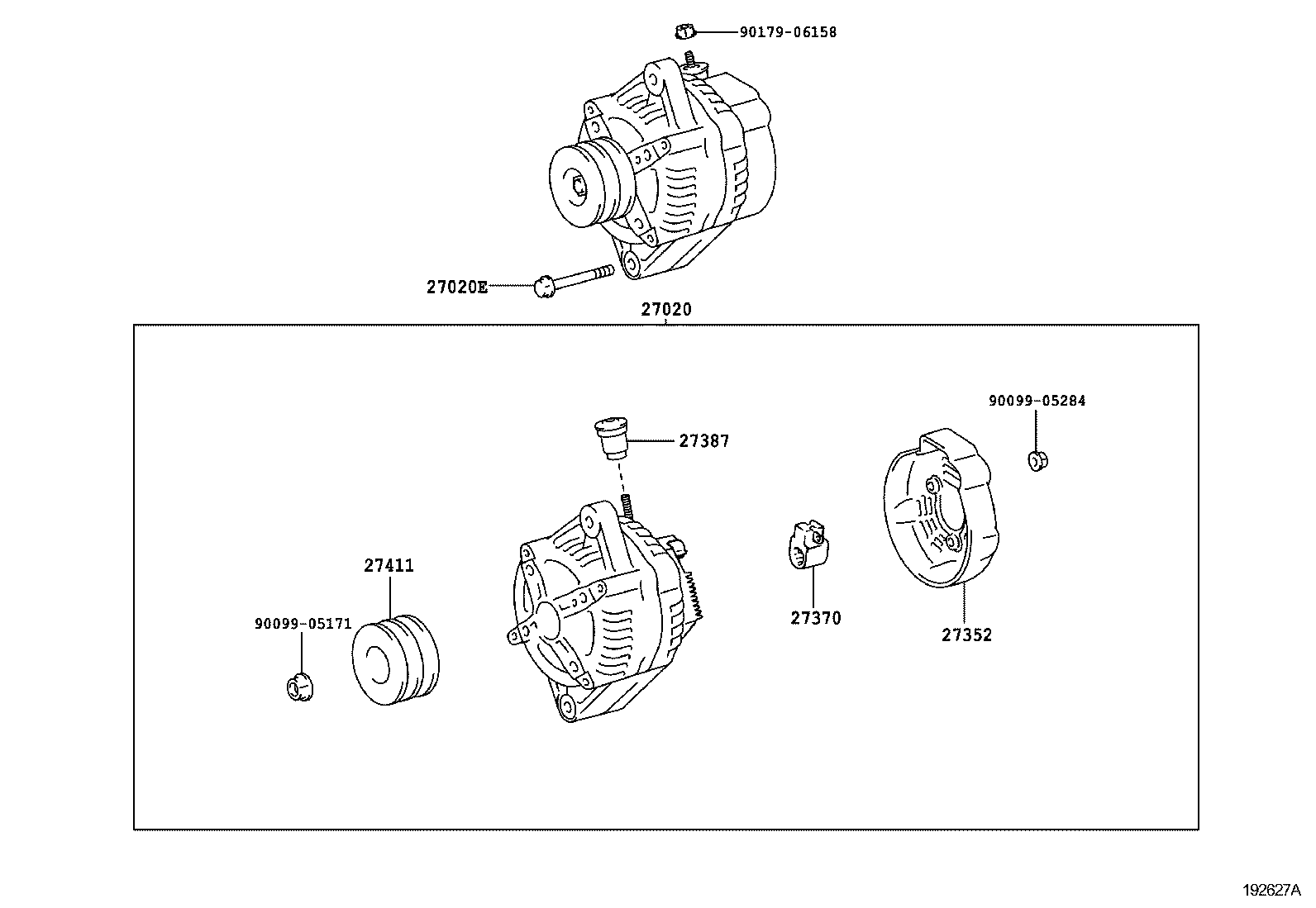

XZB50-ZRMNY5 (2004)
Toyota Coaster
(0408-1010)N04C..HRF..EX,GX,LX,SULNG
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
(1010-1501)N04C..EX,GX,LX,SULNG
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
N04C..XZB40,50..IV5 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB40,50..IV5 |
1 | ||
| S2733-02010 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27356-89104 |
N04C..XZB40,50..IV5 |
1 | ||
| S2735-61461 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
