XZB50-ZRMEY (2004)
Toyota Coaster

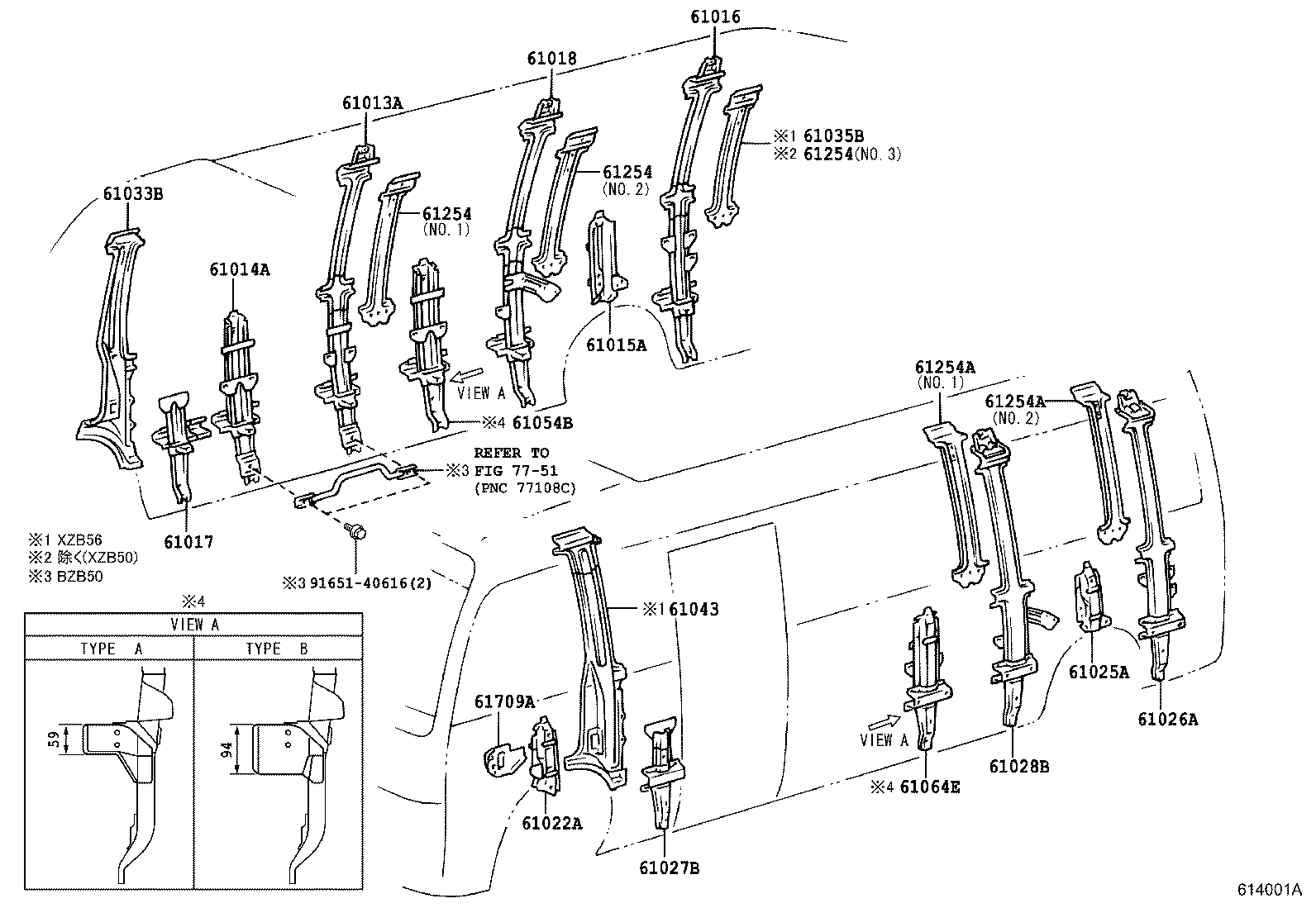

ILLUST NO. 5 OF 5(9301-1501)BB5#,BZB50,HDB5#,HZB5#,XZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36030 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BB4#,55,HDB50,HZB40,5# ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BZB40,50,XZB51..(EX,STD)..CBU;XZB40,50..(26S,29S,39S,49S)..CBU |
1 | ||
| 61055-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36030 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36021 |
XZB40..26S..(5F,6FC)..CBU;XZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,STD)..(5F,6FC)..CBU |
1 | ||
| 61055-36031 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61058-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61058-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61058-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61061D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH | ||||
| 61061-36010 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61061-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61062D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 | ||||
| 61062-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61062-36010 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61065A - RAIL SUB-ASSY, NO.5 SEAT ANCHOR, LH | ||||
| 61065-36030 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61065-36011 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH | ||||
| 61067-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61067-36040 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61067-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-36030 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61091-36030 |
XZB51..EX..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-36050 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61093-36070 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50..29S..WC..(5F,6FC) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61093-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61093-36100 |
BZB50,XZB50,51..26S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61093-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61093-36100 |
BZB50,XZB50,51..25S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61097 - RAIL SUB-ASSY, NO.5 LOWER OUTER, RH | ||||
| 61097-36010 |
BB5#,HDB5#,HZB41,50..(EX,GX,LX,SULNG)..CBU |
1 | ||
| 61097-36010 |
XZB40,50,51..HRF..(20S,26S,29S)..WC..(5F,6FC)..CBU |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 61191-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61191-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61191-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61307B - RAIL SUB-ASSY, NO.5 CENTER, OUTER RH | ||||
| 61309-36020 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61308C - RAIL SUB-ASSY, NO.5 CENTER OUTER, LH | ||||
| 61309-36030 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 61353B - RAIL, NO.3 CENTER OUTER, RH | ||||
| 61353-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61353-36010 |
BZB50,XZB5# |
1 | ||
| 61353D - RAIL, NO.3 CENTER, LH | ||||
| 61353-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61353-36010 |
BZB50,XZB5#..09S,29S,49S |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61361-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61361-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61354-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61354-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61354-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61374A - RAIL, NO.4 CENTER INNER | ||||
| 61374-36011 |
BZB50,XZB5# |
1 | ||
| 61374-36011 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61374C - RAIL, NO.4 CENTER INNER, LH | ||||
| 61374-36011 |
BZB50,XZB5# |
1 | ||
| 61374-36011 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-36010 |
HDB5#,HZB41,5# |
1 | ||
| 61403-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61403-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61404-36031 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 61404-36030 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 61404-36031 |
BZB40,50,XZB4#,5# |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ﾗｼﾞｵ) |
2 | ||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50,51..(20S,26S,29S)..WC..(5F,6FC)..CBU |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ﾗｼﾞｵ) |
2 | ||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50,51..(20S,26S,29S)..WC..(5F,6FC)..CBU |
1 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61415-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61415-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61417-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 61417-36011 |
BZB40,50,XZB4#,5# |
1 | ||
| 61417-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61425-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61425-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61425-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61426B - RAIL, NO.6 LOWER OUTER, LH | ||||
| 61426-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61426-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61426-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61441-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61441-36011 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH | ||||
| 61501-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61501-36011 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX |
1 | ||
| 61501-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61501-36060 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61501-36101 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61501-36110 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH | ||||
| 61502-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61502-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61502-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61502-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61502-36081 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR | ||||
| 61503-36110 |
XZB51..SULNG..6FC;XZB50,51..(26S,29S)..WC ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36050 |
XZB51..EX..CBU;XZB50,56..09S,29S;XZB51..SULNG..6FC |
1 | ||
| 61503-36220 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61503-36190 |
XZB51..CBU;XZB50,56..GX,LX |
1 | ||
| 61503-36290 |
XZB51..CBU;XZB50..29S..WC ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36230 |
BZB50,XZB50,51..26S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36411 |
BZB50,XZB50,51..29S |
1 | ||
| 61503-36451 |
BZB50,XZB50,51..29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36490 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61503-36510 |
XZB50,51..29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ),ﾘﾔｼｰﾄ 無し |
1 | ||
| 61503E - RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH | ||||
| 61503-36321 |
BZB50,XZB50,51..29S |
1 | ||
| 61503-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61503-36200 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61503-36360 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504D - RAIL SUB-ASSY, NO.4 SEAT ANCHOR | ||||
| 61504-36101 |
BZB50,XZB50,51..29S |
1 | ||
| 61504-36060 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61504-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61504-36130 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504E - RAIL SUB-ASSY, NO.4 SEAT ANCHOR, RH | ||||
| 61504-36060 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61504-36071 |
BZB50,XZB50,51..29S |
1 | ||
| 61504-36080 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61505B - RAIL SUB-ASSY, NO.5 SEAT ANCHOR, RH | ||||
| 61505-36011 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61505-36030 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61506B - RAIL SUB-ASSY, NO.6 | ||||
| 61506-36010 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61506-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61506-36131 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61506-36140 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61506C - RAIL SUB-ASSY, NO.6, RH | ||||
| 61506-36010 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61506-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61506-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61506-36081 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR | ||||
| 61508-36040 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61508-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 61508-36100 |
XZB51..SULNG..6FC;BZB40,50,XZB40,50,51..DX,EX,GX,LX |
1 | ||
| 61508-36101 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61508-36200 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508-36260 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61508-36231 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61508-36101 |
XZB50,51..(26S,29S)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 61592-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 NO.1 |
2 | ||
| 61592-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 61592-36010 |
BZB40,50,XZB4#,5# |
2 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 61599-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61599-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61599-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61608-36021 |
XZB50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 61608-36011 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61608-36101 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61608-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61608-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61609-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609-36011 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61609-36050 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61609-36101 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61609-36021 |
XZB50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61069-36011 |
BZB50,XZB50,51..29S |
1 | ||
| 61635-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61069-36030 |
XZB5#..09S,29S,49S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61636-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61079-36030 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61079-36011 |
BZB50,XZB50,51..29S |
1 | ||
| 61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH | ||||
| 61803-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61803-36010 |
XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 61803-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61908 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH | ||||
| 61908-36010 |
XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 |
1 | ||
| 74681A - RETAINER, ASSIST GRIP | ||||
| 74681-36030 |
BZB40,50,XZB40,50,51..26S,29S |
2 | ||
| 74681A - RETAINER, ASSIST GRIP | ||||
| 74681-36030 |
BZB40,50,XZB40,50,51..26S,29S |
2 | ||
| 74681B - RETAINER, ASSIST GRIP | ||||
| 74681-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 74681-36010 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 91651-60616 | ||||
ILLUST NO. 4 OF 5(0408-1501)BZB50,XZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 61013-36010 |
XZB51..(5F,6FC)..CBU;XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61013-36130 |
XZB5#..EX,GX,LX |
1 | ||
| 61013-36181 |
XZB5#..09S,29S |
1 | ||
| 61013-36171 |
BZB40,50 |
1 | ||
| 61013-36140 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-36040 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 61014-36040 |
XZB50..6FC;XZB40..6FC..IV5;XZB50..29S..WC..5F;XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 61014-36110 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61014-36090 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61014-36100 |
BZB40,50 |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-36032 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61015-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61015-36170 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61015-36161 |
BZB50,XZB50,51..29S |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-36031 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61016-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61016-36160 |
BZB50,XZB5#..HRF |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36100 |
BZB40,50..26S,29S,39S |
1 | ||
| 61017-36011 |
XZB51..SULNG..6FC;XZB4#,5#..(08S,09S,20S,26S,29S,39S)..(DX,EX,GX,LX,STD) |
1 | ||
| 61017-36170 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61017-36180 |
BZB40,50 |
1 | ||
| 61017-36130 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..CBU |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-36021 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61018-36160 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61018-36131 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61018-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61022-36020 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61022-36030 |
BZB40,50,XZB4#,5# |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-36032 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61025-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61025-36170 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61025-36161 |
BZB50,XZB50,51..29S |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-36031 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61026-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61026-36160 |
BZB50,XZB5#..HRF |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 61027-36050 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61027-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-36151 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61028-36180 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61028-36120 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61028-36021 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36050 |
BB40,HZB40,50..WC |
1 | ||
| 61033-36080 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 61033-36081 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..HRF..(EX,GX,LX)..CBU |
1 | ||
| 61033-36082 |
BZB40,50,XZB4#,5#..HRF..(EX,GX,LX)..(5F,6FC)..CBU ｱﾘ(ｶ-ﾃﾝ) |
1 | ||
| 61033-36082 |
BZB40,50,XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 61054B - PILLAR SUB-ASSY, NO.12 RH | ||||
| 61054-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61054-36060 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61054-36051 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61064E - PILLAR SUB-ASSY, NO.12 LH | ||||
| 61064-36080 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61064-36071 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61064-36010 |
XZB51..SULNG..6FC;XZB5#..09S,26S,29S,49S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61064-36060 |
BZB50,XZB5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61064-36050 |
XZB51..CBU;XZB50,56..WC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 |
2 | ||
| 61036-36090 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｶ-ﾃﾝ),NO.1 |
1 | ||
| 61036-36080 |
BZB50,XZB50,51..(26S,29S)..CBU NO.1 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 |
2 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 |
2 | ||
| 61036-36090 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｶ-ﾃﾝ),NO.1 |
1 | ||
| 61036-36080 |
BZB50,XZB50,51..(26S,29S)..CBU NO.1 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 |
2 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61709-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61709-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 4 OF 5(1501- )BZB50,XZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36010 |
BB4#,HDB5#,HZB4#,5#..HRF |
1 | ||
| 61013-36010 |
XZB51..(5F,6FC)..CBU;XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61013-36130 |
XZB5#..EX,GX,LX |
1 | ||
| 61013-36181 |
XZB5#..09S,29S |
1 | ||
| 61013-36171 |
BZB40,50 |
1 | ||
| 61013-36140 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-36040 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 61014-36040 |
XZB50..6FC;XZB40..6FC..IV5;XZB50..29S..WC..5F;XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 61014-36110 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61014-36090 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61014-36100 |
BZB40,50 |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-36032 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61015-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61015-36170 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61015-36161 |
BZB50,XZB50,51..29S |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-36031 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61016-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61016-36160 |
BZB50,XZB5#..HRF |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36100 |
BZB40,50..26S,29S,39S |
1 | ||
| 61017-36011 |
XZB51..SULNG..6FC;XZB4#,5#..(08S,09S,20S,26S,29S,39S)..(DX,EX,GX,LX,STD) |
1 | ||
| 61017-36170 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61017-36180 |
BZB40,50 |
1 | ||
| 61017-36130 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..CBU |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36100 |
BZB40,50..26S,29S,39S |
1 | ||
| 61017-36011 |
XZB51..SULNG..6FC;XZB4#,5#..(08S,09S,20S,26S,29S,39S)..(DX,EX,GX,LX,STD) |
1 | ||
| 61017-36170 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61017-36180 |
BZB40,50 |
1 | ||
| 61017-36130 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..CBU |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-36021 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61018-36160 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61018-36131 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61018-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61022-36020 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61022-36030 |
BZB40,50,XZB4#,5# |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-36032 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61025-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61025-36170 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61025-36161 |
BZB50,XZB50,51..29S |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-36031 |
XZB50,51..(EX,GX,SULNG)..(5F,6FC)..CBU |
1 | ||
| 61026-36130 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61026-36160 |
BZB50,XZB5#..HRF |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S,39S |
1 | ||
| 61027-36050 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61027-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-36151 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61028-36180 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61028-36120 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61028-36021 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36050 |
BB40,HZB40,50..WC |
1 | ||
| 61033-36080 |
BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) |
1 | ||
| 61033-36081 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..HRF..(EX,GX,LX)..CBU |
1 | ||
| 61033-36082 |
BZB40,50,XZB4#,5#..HRF..(EX,GX,LX)..(5F,6FC)..CBU ｱﾘ(ｶ-ﾃﾝ) |
1 | ||
| 61033-36082 |
BZB40,50,XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 61054B - PILLAR SUB-ASSY, NO.12 RH | ||||
| 61054-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61054-36060 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61054-36051 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61064E - PILLAR SUB-ASSY, NO.12 LH | ||||
| 61064-36080 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61064-36071 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61064-36010 |
XZB51..SULNG..6FC;XZB5#..09S,26S,29S,49S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61064-36060 |
BZB50,XZB5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61064-36050 |
XZB51..CBU;XZB50,56..WC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61036-36080 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.2 |
1 | ||
| 61036-36090 |
BZB40,50,XZB40,50,51..HRF..(26S,29S)..WC..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ & ｶｰﾃﾝ),NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｳｲﾝﾄﾞｳ ｶﾞ-ﾄﾞ),NO.1 OR NO.3 |
2 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 OR NO.3 |
3 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 |
2 | ||
| 61036-36090 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｶ-ﾃﾝ),NO.1 |
1 | ||
| 61036-36080 |
BZB50,XZB50,51..(26S,29S)..CBU NO.1 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 |
2 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
XZB50,51..HRF..(26S,29S,49S)..WC..(5F,6FC)..CBU NO.1 OR NO.2 |
2 | ||
| 61036-36090 |
BZB50,XZB50,51..(26S,29S)..CBU ｱﾘ(ｶ-ﾃﾝ),NO.1 |
1 | ||
| 61036-36080 |
BZB50,XZB50,51..(26S,29S)..CBU NO.1 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..(26S,29S)..CBU NO.2 |
1 | ||
| 61254-36030 |
BZB50,XZB50,51..HRF NO.1 OR NO.2 |
2 | ||
| 61299B - BRACKET, INNER PILLAR BLOWER, LH | ||||
| 61299-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61525E - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36140 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61525-36150 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61525F - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36190 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61525-36180 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61525G - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36150 |
BZB40,50,XZB4#,5# |
1 | ||
| 61525H - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36140 |
BZB40,50,XZB40,50,51..EX,GX,LX |
1 | ||
| 61525-36150 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61525J - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36140 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61525-36150 |
XZB5#..09S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61526G - BRACKET, SEAT ANCHOR, LH | ||||
| 61526-36190 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61526-36200 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61526H - BRACKET, SEAT ANCHOR, LH | ||||
| 61525-36150 |
BZB40,50,XZB4#,5# |
1 | ||
| 61526J - BRACKET, SEAT ANCHOR, LH | ||||
| 61525-36140 |
BZB40,50,XZB40,50,51..EX,GX,LX |
1 | ||
| 61525-36150 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61526K - BRACKET, SEAT ANCHOR, LH | ||||
| 61525-36150 |
XZB5#..09S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61525-36140 |
BZB50,XZB50,51..25S,29S |
1 | ||
| 61531F - GUSSET, SEAT ANCHOR, RH | ||||
| 61532-36100 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 61531G - GUSSET, SEAT ANCHOR, RH | ||||
| 61531-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61531-36050 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61531H - GUSSET, SEAT ANCHOR, RH | ||||
| 61532-36070 |
BZB40,50,XZB4#,5# |
1 | ||
| 61531J - GUSSET, SEAT ANCHOR, RH | ||||
| 61531-36070 |
BZB40,50,XZB4#,5# |
1 | ||
| 61531K - GUSSET, SEAT ANCHOR, RH | ||||
| 61531-36060 |
BZB50,XZB5# |
1 | ||
| 61532J - GUSSET, SEAT ANCHOR, LH | ||||
| 61531-36090 |
BZB40,50,XZB4#,5# |
1 | ||
| 61532K - GUSSET, SEAT ANCHOR, LH | ||||
| 61532-36080 |
BZB40,50,XZB4#,5# |
1 | ||
| 61532L - GUSSET, SEAT ANCHOR, LH | ||||
| 61531-36060 |
BZB50,XZB5# |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61709-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61709-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 63147L - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 63147N - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB50,XZB5#..HRF |
1 | ||
| 63147P - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB50,XZB5#..HRF |
1 | ||
| 63147S - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB50,XZB5#..HRF |
1 | ||
| 63147T - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB50,XZB5#..HRF |
1 | ||
| Common parts | ||||
| 61991-36011 | ||||
| 90269-03002 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 5 OF 5(1501- )BZB50,XZB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36030 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BB4#,55,HDB50,HZB40,5# ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BZB40,50,XZB51..(EX,STD)..CBU;XZB40,50..(26S,29S,39S,49S)..CBU |
1 | ||
| 61055-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36030 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36021 |
XZB40..26S..(5F,6FC)..CBU;XZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,STD)..(5F,6FC)..CBU |
1 | ||
| 61055-36031 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36030 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BB4#,55,HDB50,HZB40,5# ﾅｼ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36020 |
BZB40,50,XZB51..(EX,STD)..CBU;XZB40,50..(26S,29S,39S,49S)..CBU |
1 | ||
| 61055-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36030 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61055-36021 |
XZB40..26S..(5F,6FC)..CBU;XZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,STD)..(5F,6FC)..CBU |
1 | ||
| 61055-36031 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61058-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61058-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61058-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB40,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB4#,55,HDB5#,HZB40,5# |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61059-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB40,51..(5F,6FC)..CBU |
2 | ||
| 61059-36060 |
BZB40,50,XZB40,50,51 |
2 | ||
| 61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH | ||||
| 61067-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61067-36040 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61067-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-36030 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61091-36030 |
XZB51..EX..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-36050 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61093-36070 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50..29S..WC..(5F,6FC) ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61093-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61093-36100 |
BZB50,XZB50,51..26S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61093-36110 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61093-36100 |
BZB50,XZB50,51..25S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ﾃﾞﾝﾄﾞｳ ｵ-ﾄ ﾄﾞｱ, ｶｸﾉｳ ｽﾃﾂﾌﾟﾂｷ) |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 61191-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61191-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61191-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
3 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
2 | ||
| 61353B - RAIL, NO.3 CENTER OUTER, RH | ||||
| 61353-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61353-36010 |
BZB50,XZB5# |
1 | ||
| 61353D - RAIL, NO.3 CENTER, LH | ||||
| 61353-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61353-36010 |
BZB50,XZB5#..09S,29S,49S |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61361-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61361-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61354-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61354-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61354-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61374A - RAIL, NO.4 CENTER INNER | ||||
| 61374-36011 |
BZB50,XZB5# |
1 | ||
| 61374-36011 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61374C - RAIL, NO.4 CENTER INNER, LH | ||||
| 61374-36011 |
BZB50,XZB5# |
1 | ||
| 61374-36011 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-36010 |
HDB5#,HZB41,5# |
1 | ||
| 61403-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61403-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61404-36031 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 61404-36030 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 61404-36031 |
BZB40,50,XZB4#,5# |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ﾗｼﾞｵ) |
2 | ||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50,51..(20S,26S,29S)..WC..(5F,6FC)..CBU |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ﾗｼﾞｵ) |
2 | ||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50,51..(20S,26S,29S)..WC..(5F,6FC)..CBU |
1 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BZB50,XZB5# |
2 | ||
| 61414-36010 |
XZB50..WC..(5F,6FC);BZB50,XZB51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61415-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61415-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61417-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 61417-36011 |
BZB40,50,XZB4#,5# |
1 | ||
| 61417-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61425-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61425-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61425-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61426B - RAIL, NO.6 LOWER OUTER, LH | ||||
| 61426-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61426-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61426-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61441-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61441-36011 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH | ||||
| 61501-36010 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61501-36011 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX |
1 | ||
| 61501-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61501-36060 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61501-36101 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61501-36110 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH | ||||
| 61502-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61502-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 61502-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61502-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61502-36081 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR | ||||
| 61503-36110 |
XZB51..SULNG..6FC;XZB50,51..(26S,29S)..WC ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36050 |
XZB51..EX..CBU;XZB50,56..09S,29S;XZB51..SULNG..6FC |
1 | ||
| 61503-36220 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61503-36190 |
XZB51..CBU;XZB50,56..GX,LX |
1 | ||
| 61503-36290 |
XZB51..CBU;XZB50..29S..WC ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36230 |
BZB50,XZB50,51..26S,29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36411 |
BZB50,XZB50,51..29S |
1 | ||
| 61503-36451 |
BZB50,XZB50,51..29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ) |
1 | ||
| 61503-36490 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61503-36510 |
XZB50,51..29S ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ & ｵ-ﾄ ｽﾃﾂﾌﾟ),ﾘﾔｼｰﾄ 無し |
1 | ||
| 61503E - RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH | ||||
| 61503-36321 |
BZB50,XZB50,51..29S |
1 | ||
| 61503-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61503-36200 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61503-36360 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504D - RAIL SUB-ASSY, NO.4 SEAT ANCHOR | ||||
| 61504-36101 |
BZB50,XZB50,51..29S |
1 | ||
| 61504-36060 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61504-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61504-36130 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504E - RAIL SUB-ASSY, NO.4 SEAT ANCHOR, RH | ||||
| 61504-36060 |
BZB50,XZB5#..EX,GX,LX |
1 | ||
| 61504-36071 |
BZB50,XZB50,51..29S |
1 | ||
| 61504-36080 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61504-36010 |
XZB51..(5F,6FC)..CBU;BZB50,XZB50,56..(GX,LX)..(5F,6FC) |
1 | ||
| 61506B - RAIL SUB-ASSY, NO.6 | ||||
| 61506-36010 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61506-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61506-36131 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61506-36140 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61506C - RAIL SUB-ASSY, NO.6, RH | ||||
| 61506-36010 |
BB4#,55,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
1 | ||
| 61506-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 61506-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61506-36081 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR | ||||
| 61508-36040 |
BB40,HDB50,HZB40,50..26S,29S ｱﾘ(3ﾃﾝｼｷ ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ) |
1 | ||
| 61508-36010 |
BB4#,55,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 61508-36100 |
XZB51..SULNG..6FC;BZB40,50,XZB40,50,51..DX,EX,GX,LX |
1 | ||
| 61508-36101 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61508-36200 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508-36260 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61508-36231 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61508-36101 |
XZB50,51..(26S,29S)..CBU ｱﾘ(ﾚｲｿﾞｳｺ) |
1 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 61599-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61599-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61599-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61608-36021 |
XZB50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 61608-36011 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61608-36101 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61608-36090 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61608-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-36010 |
HDB51..IV5;BB4#,5#,HDB50,HZB4#,5# |
1 | ||
| 61609-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609-36011 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB46,56..5F,6FC;XZB40..26S..(5F,6FC)..CBU |
1 | ||
| 61609-36050 |
XZB40,50,51..26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61609-36101 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 61609-36021 |
XZB50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61069-36011 |
BZB50,XZB50,51..29S |
1 | ||
| 61635-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61069-36030 |
XZB5#..09S,29S,49S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 61636-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61079-36030 |
XZB50,51..29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61079-36011 |
BZB50,XZB50,51..29S |
1 | ||
| 61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH | ||||
| 61803-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 61803-36010 |
XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 61803-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 74681B - RETAINER, ASSIST GRIP | ||||
| 74681-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 74681-36010 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
