XZB50-ZRMDY (2004)

Toyota Coaster

Production Aug 2004 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )

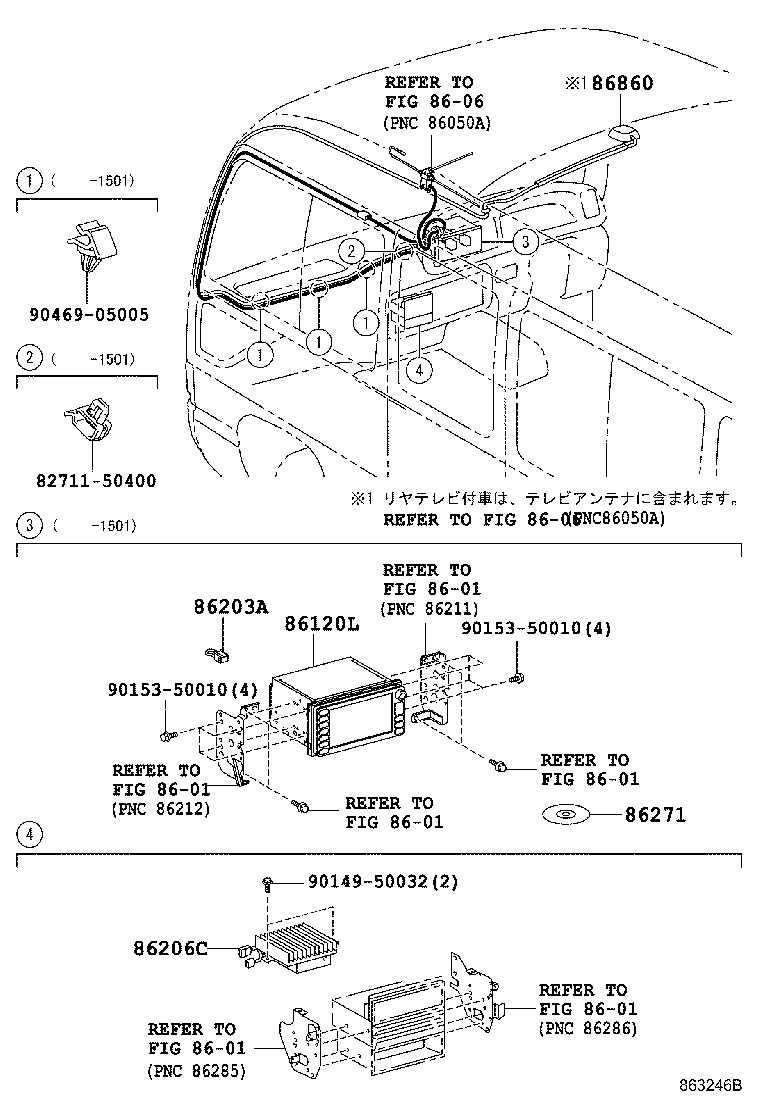

Click highlighted areas on diagram

diagram 8271150400 8601 8601 8601 8601 8601 8601 8606 8606 86120L 86203A 86206C 86271 86860 9014950032 9015350010 9015350010 9046905005
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-52650

XZB50..WOC;XZB51..IV5;XZB40..5F..IV5

FUJITSU TEN,ID=26006

 1
86206C - CONVERTER SUB-ASSY, VOLTAGE
86206-36050

XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5

 1
86271 - DISC, DISC PLAYER
86271-13031

XZB40..HRF..WC;BZB40,50,XZB50,51..20S,26S,29S

 1
86271-13033

XZB40..HRF..WC;BZB40,50,XZB50,51..20S,26S,29S

 1
86271-13036

XZB40..HRF..WC;BZB40,50,XZB50,51..20S,26S,29S

 1
86271-13035

XZB40..HRF..WC;BZB40,50,XZB50,51..20S,26S,29S

 1
86271-13068

BZB40,50,XZB40,50,51

 1
86271-13034

XZB40..HRF..WC;XZB51..SULNG..6FC;BZB40,50,XZB50,51..26S,29S

 1
86271-52070

BZB40,50,XZB40,50,51

 1
86271-13069

BZB40,50,XZB40,50,51

 1
86271-52071

XZB50..WOC;XZB51..IV5;XZB40..5F..IV5

 1
86271-13037

XZB40..HRF..WC;BZB40,50,XZB50,51..20S,26S,29S

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-36030

XZB40..HRF..WC;XZB51..SULNG..6FC;BZB40,50,XZB50,51..26S,29S

 1
86860-36050

XZB50..WOC;XZB51..IV5;XZB40..5F..IV5

 1
Common parts
82711-50400
90149-50032
90153-50010
90469-05005
Linked diagrams
8601
8606
