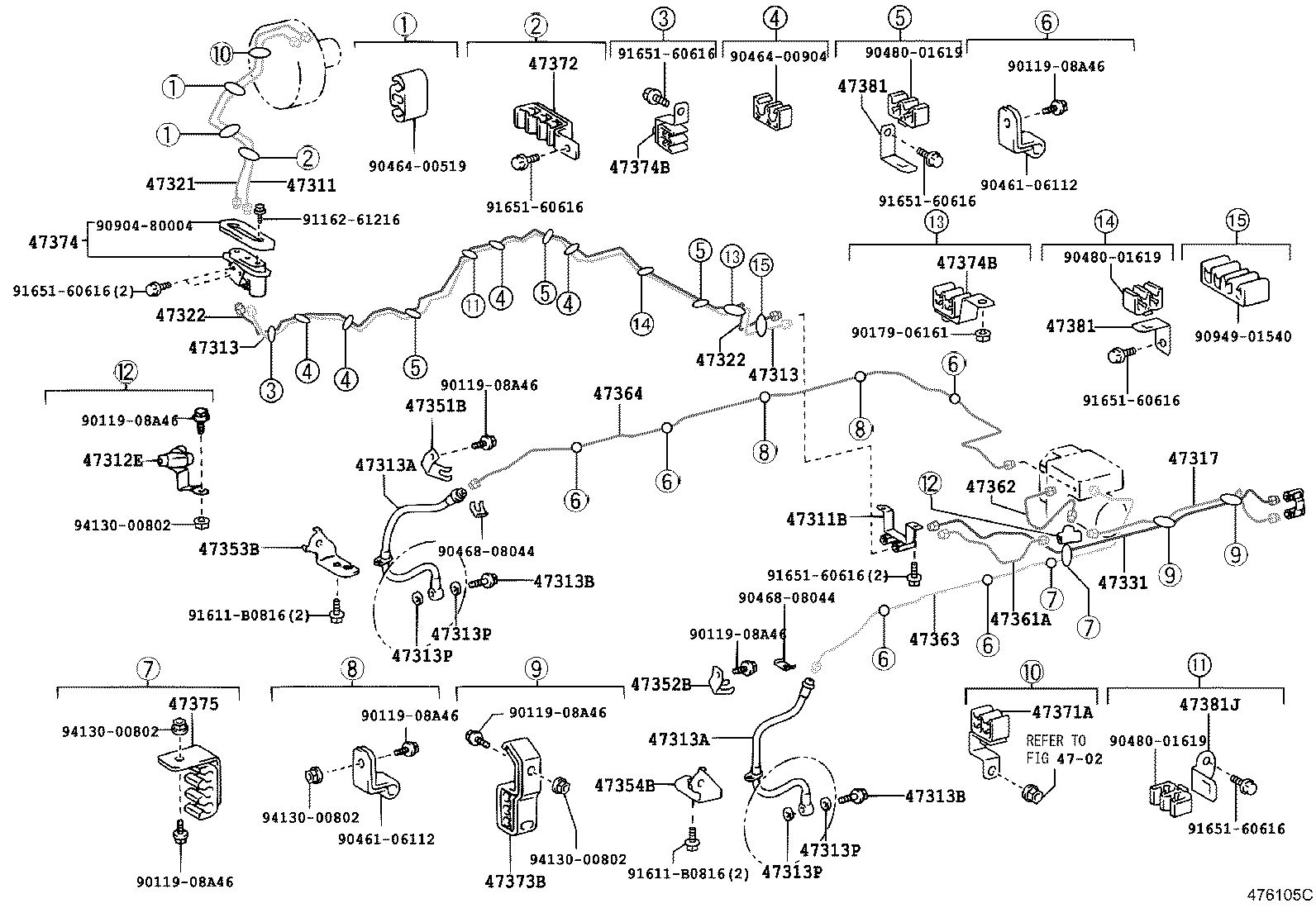

Toyota Coaster XZB50 BRAKE TUBE & CLAMP

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-36551	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47311-36480	BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12045	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
90904-12083	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
90904-13517	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
47313-36321	XZB40,50,51..MTM	08/2004 - 08/2007	1
47313-36390	XZB50..WOC;XZB40..5F..IV5	08/2007 - 08/2009	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
47313-36321	XZB40,50,51..MTM	08/2004 - 08/2007	1
47313-36390	XZB50..WOC;XZB40..5F..IV5	08/2007 - 08/2009	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B91	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B91	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	4
90430-10074	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	4
90430-10074	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	4
90430-10074	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	4
90430-10074	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	4
47317 - TUBE, FRONT BRAKE, NO.7
47317-36120	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
47317-36171	XZB50..WOC;XZB40..5F..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47321 - TUBE, REAR BRAKE, NO.1
47321-36300	BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
47321-36371	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
47322-36490	XZB50..WOC;XZB40..5F..IV5	08/2007 - 08/2009	1
47322-36411	XZB40,50,51..MTM	08/2004 - 08/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1997	1
47322-36490	XZB50..WOC;XZB40..5F..IV5	08/2007 - 08/2009	1
47322-36411	XZB40,50,51..MTM	08/2004 - 08/2007	1
47331 - TUBE, REAR BRAKE, NO.10
47331-36261	XZB50..WOC;XZB40..5F..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47351-36210	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47352-36200	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47353-36210	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47354-36090	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47361A - TUBE, FRONT BRAKE, NO.10
47361-36071	BZB40,50,XZB4#,5#	08/2004 - 11/2005	1
47361-36072	XZB50..WOC;XZB40..5F..IV5	12/2005 - 08/2009	1
47362 - TUBE, FRONT BRAKE, NO.11
47362-36031	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47363 - TUBE, FRONT BRAKE, NO.12
47363-36060	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47364 - TUBE, FRONT BRAKE, NO.13
47364-36080	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5 ｱﾘ(ABS)	08/2004 - 08/2009	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
47372 - CLAMP, BRAKE TUBE, NO.2
47373-35040	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	1
47371-36060	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
47373B - CLAMP, BRAKE TUBE, NO.3
47372-36050	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
90949-01536	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47374 - CONNECTOR, TUBE
47307-36010	BB4#,HDB5#,HZB4#,5#..CBU,IV5	01/1993 - 07/1999	1
47307-36100	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	1
47307-36090	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(ABS)	08/2004 - 08/2007	1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-36060	BB4#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
47371-35130	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 08/2007	2
47371-28020	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	2
47374B - CLAMP, BRAKE TUBE, NO.4
47372-36060	BB4#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
47371-35130	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 08/2007	2
47371-28020	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	2
47375 - CLAMP, BRAKE TUBE, NO.5
47371-36060	XZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5	08/2004 - 08/2009	2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47381-36160	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 08/2007	5
47381-36160	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	4
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
47381-36160	XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 08/2007	5
47381-36160	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	4
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
47381-20320	XZB50..WOC;XZB51..IV5;XZB40..5F..IV5	08/2007 - 08/2009	1
Common parts
90119-08A46
90179-06161
90461-06112
90464-00519
90464-00904
90468-08044
90480-01619
90904-80004
90949-01540
91162-61216
91611-B0816
91651-60616
94130-00802
Linked diagrams
4702

XZB50-ZRMDY (2004)

ILLUST NO. 1 OF 4(0708- )BZB40,50,XZB4#,50,56
