XZB50-ZRMDY (2004)
Toyota Coaster
(0408- )XZB40,50,51..5F
M551

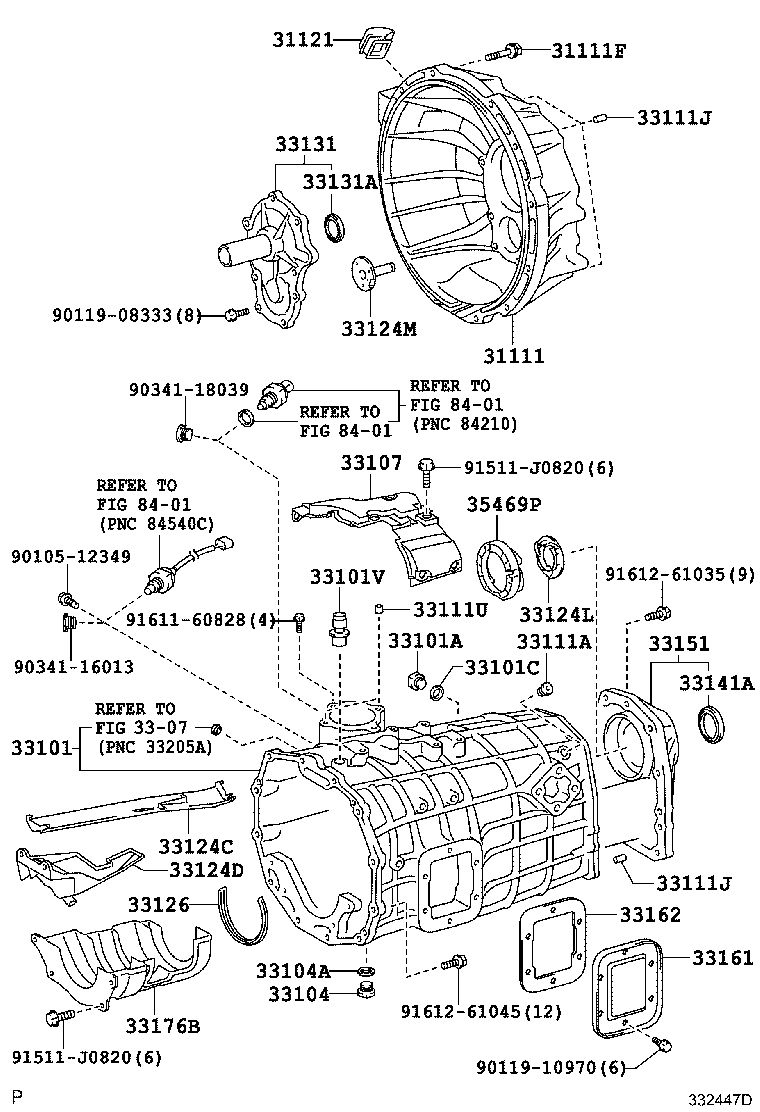

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36320 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 31111-37100 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BB4#,HDB5#,HZB4#,5#..5F |
1 | ||
| 31121-28041 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 31121-36040 |
BZB40,50 |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36080 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33101-36130 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 90341-18006 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 90430-18008 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90930-03090 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 90341-18006 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 90430-18008 |
BB4#,HDB5#,HZB4#,5#..MTM |
1 | ||
| 33107 - COVER SUB-ASSY, TRANSMISSION, UPPER | ||||
| 33107-36010 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-14008 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 90250-10232 |
XZB50..WOC;XZB40..5F..IV5 長さ=15,外径=8 |
5 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=16,外径=12 |
4 | ||
| 90250-10232 |
XZB50..WOC;XZB40..5F..IV5 長さ=15,外径=8 |
5 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11021 |
XZB50..WOC;XZB40..5F..IV5 長さ=8,外径=11 |
2 | ||
| 90253-13017 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
BB4#,HDB5#,HZB4#,5#..5F 長さ=11,外径=11 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33124-37020 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-37030 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-37040 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33124M - PIPE, OIL RECEIVER, N0.4(MTM) | ||||
| 33124-37050 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33126 - SEAL, OIL RECEIVER | ||||
| 33126-37010 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36080 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 33018-37050 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36030 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33017-36080 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BB4#,HZB4#,5#..5F |
1 | ||
| 33161-36010 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 33162-36020 |
HDB5#..6F;BB4#,HZB4#,5#..5F |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-37010 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| 35469P - SPACER (FOR TRANSMISSION REAR RETAINER) | ||||
| 35469-37010 |
XZB50..WOC;XZB40..5F..IV5 |
1 | ||
| Common parts | ||||
| 90105-12349 | ||||
| 90119-08333 | ||||
| 90119-10970 | ||||
| 90341-16013 | ||||
| 90341-18039 | ||||
| 91511-J0820 | ||||
| 91611-60828 | ||||
| 91612-61035 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
