XZB50-ZRMDY (2004)

Toyota Coaster

Production Aug 2004 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

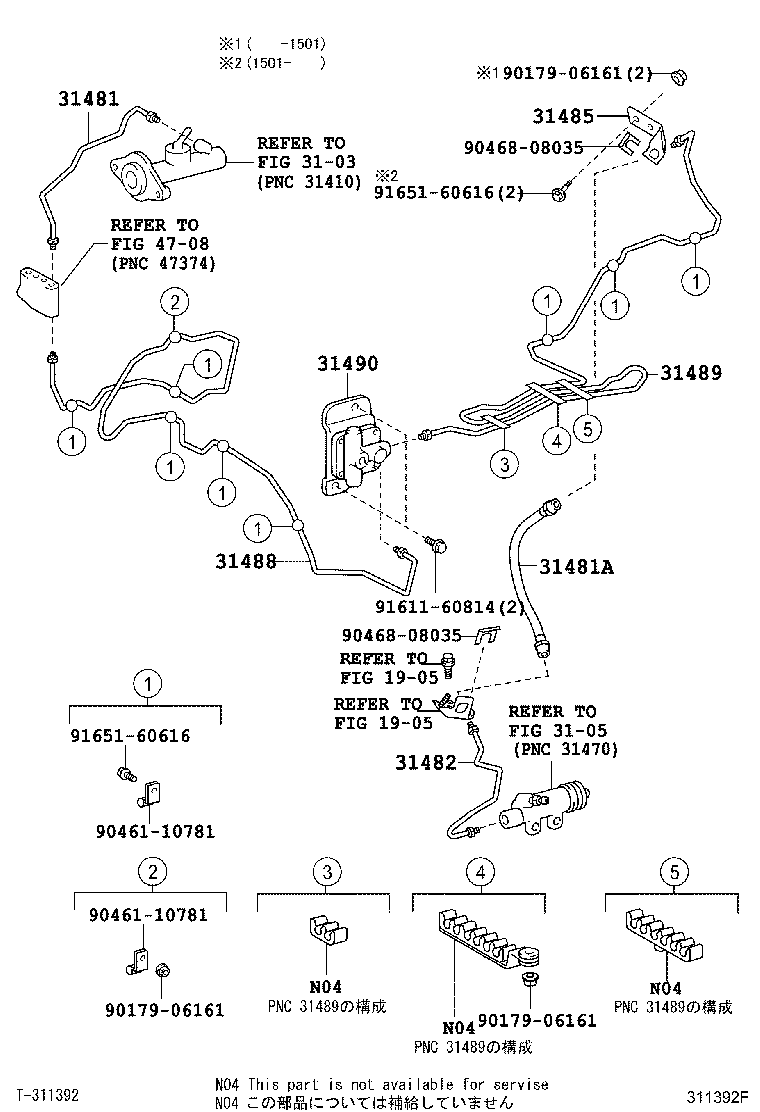

ILLUST NO. 2 OF 2(0408- )XZB40,50,51..MTM

Click highlighted areas on diagram

diagram 1905 1905 3103 3105 31481 31481A 31482 31485 31488 31489 31490 4708 9017906161 9017906161 9017906161 9046110781 9046110781 9046808035 9046808035 9161160814 9165160616 9165160616
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36380

HDB5#,HZB4#,5#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96932-33005

BB4#,HDB5#,HZB4#,5#..5F

 1
90947-02E18

XZB50..WOC;XZB40..5F..IV5

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36330

XZB50..WOC;XZB40..5F..IV5

 1
31482-36230

HDB5#,HZB4#,5#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-36240

XZB50..WOC;XZB40..5F..IV5

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36450

HDB5#,HZB4#,5#..5F

 1
31488-36621

XZB50..WOC;XZB40..5F..IV5

 1
31488-36690

BZB40,50

 1
31488-36620

XZB40,50,51..MTM

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36200

HDB5#,HZB4#,5#..5F

 1
31480-36010

XZB50..WOC;XZB40..5F..IV5

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-36030

HDB5#,HZB4#,5#..MTM

 1
31490-36030

XZB50..WOC;XZB40..5F..IV5

 1
Common parts
90179-06161
90461-10781
90468-08035
91611-60814
91651-60616
Linked diagrams
1905
3103
3105
4708
