XZB50-ZRMDY (2004)

Toyota Coaster

Production Aug 2004 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

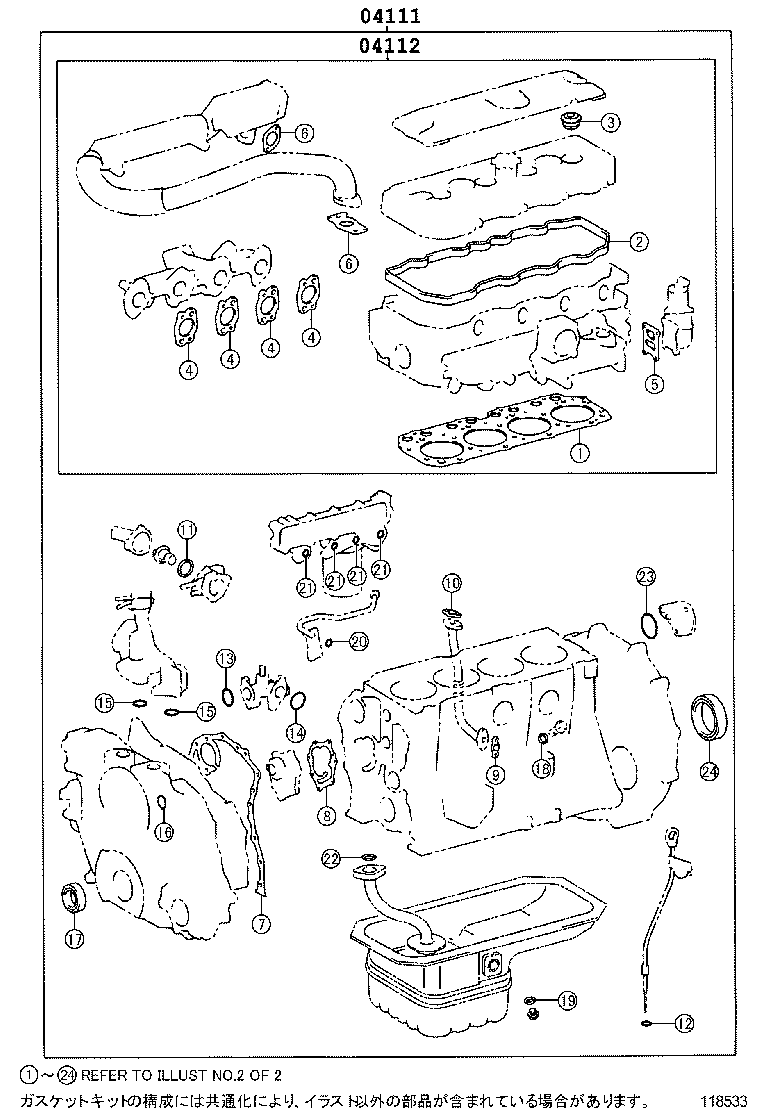

ILLUST NO. 1 OF 2(0408-0802)N04C

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-80310

N04C..XZB51;N04C..XZB50..HDCR..6FC;N04C..XZB4#,50,56..4FC,5F,6F

 1
04111-78780

N04C..XZB4#,5#

 1
04111-80241

N04C..XZB51;N04C..XZB50..HDCR;N04C..XZB40,50..5F

 1
04111-78990

N04C..XZB4#,5#

 1
04111-80242

N04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5

 1

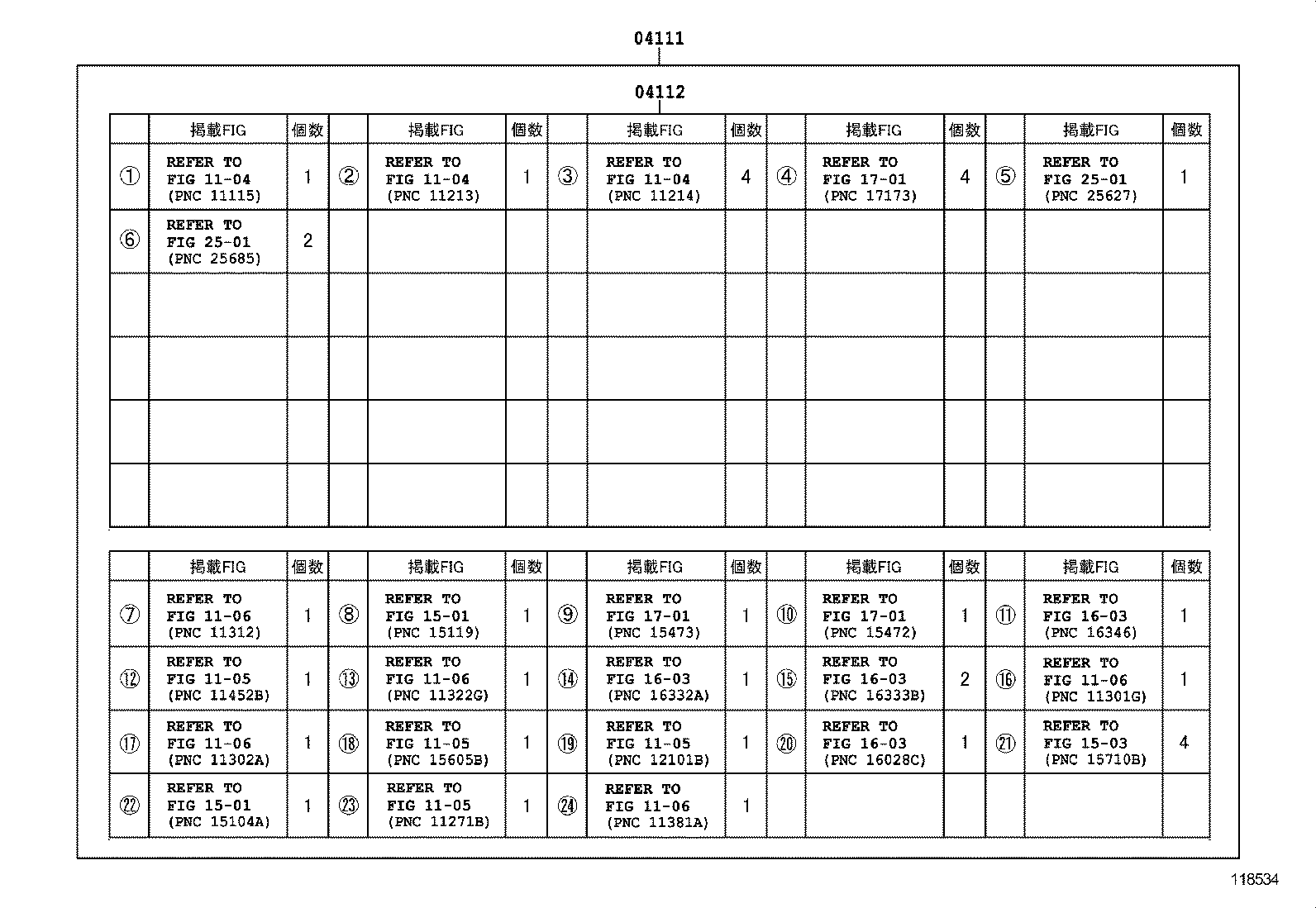

ILLUST NO. 2 OF 2(0408-0802)N04C

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1501 1501 1503 1603 1603 1603 1603 1701 1701 1701 2501 2501
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-80310

N04C..XZB51;N04C..XZB50..HDCR..6FC;N04C..XZB4#,50,56..4FC,5F,6F

 1
04111-78780

N04C..XZB4#,5#

 1
04111-80241

N04C..XZB51;N04C..XZB50..HDCR;N04C..XZB40,50..5F

 1
04111-78990

N04C..XZB4#,5#

 1
04111-80242

N04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5

 1
Linked diagrams
1104
1105
1106
1501
1503
1603
1701
2501
