XZB50-ZRFNH (2004)
Toyota Coaster
Production
Aug 2004
-
Aug 2007
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0408-0708)N04C

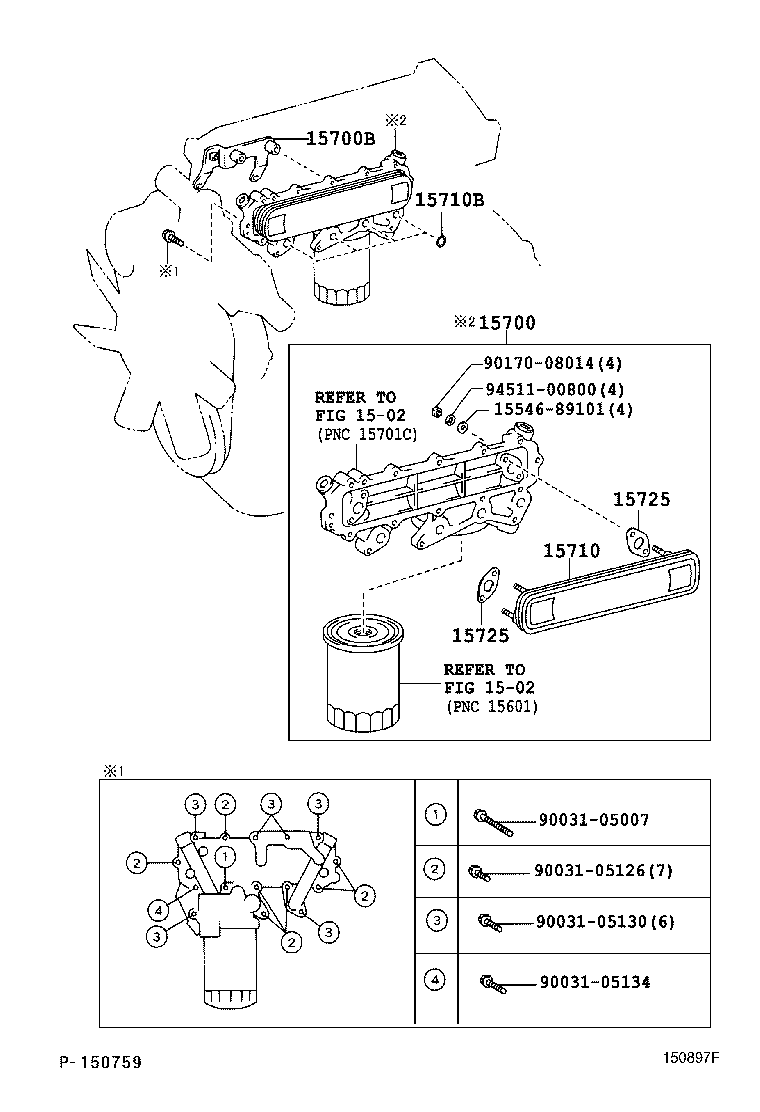

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-78131 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 82702-37411 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-89104 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
2 | ||
| Common parts | ||||
| 15546-89101 | ||||
| 90031-05007 | ||||
| 90031-05126 | ||||
| 90031-05130 | ||||
| 90031-05134 | ||||
| 90170-08014 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1502 | ||||
